Description

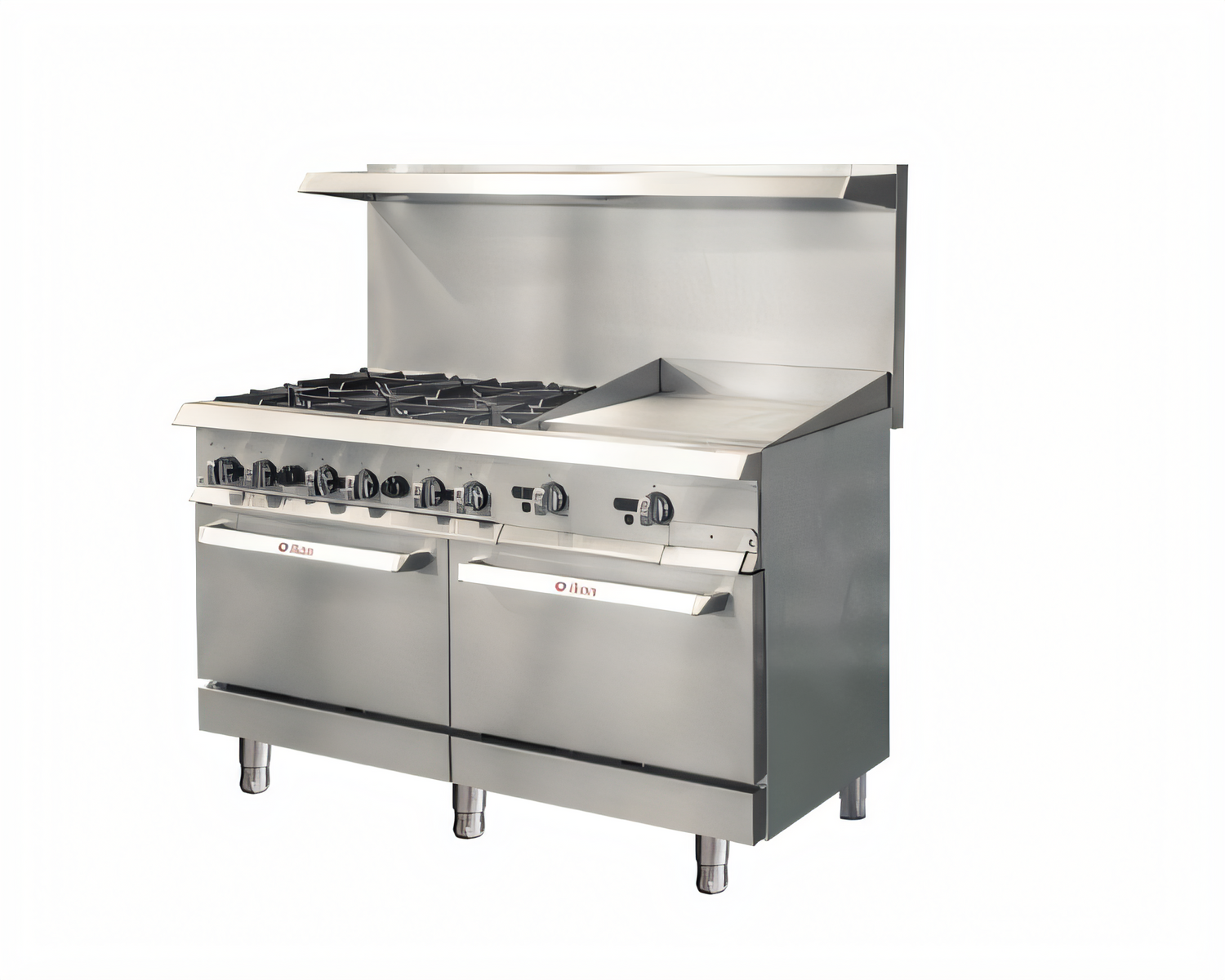

Ikon 60" Gas Range with 6 Burners & 24" Thermostatic Griddle
Model IR-6B-24TG-60 · CSA Sanitation, Flame & Star certifiedBuilt for high-volume kitchens that refuse to compromise on versatility or durability, this Ikon 60 inch range packs 306,000 BTU* of total cooking power into a heavy-duty stainless-steel frame. Six open burners sit beside a full 24 inch, 1 inch-thick thermostatic griddle, while twin static ovens handle everything from roasted entrées to baked desserts.
Key Features

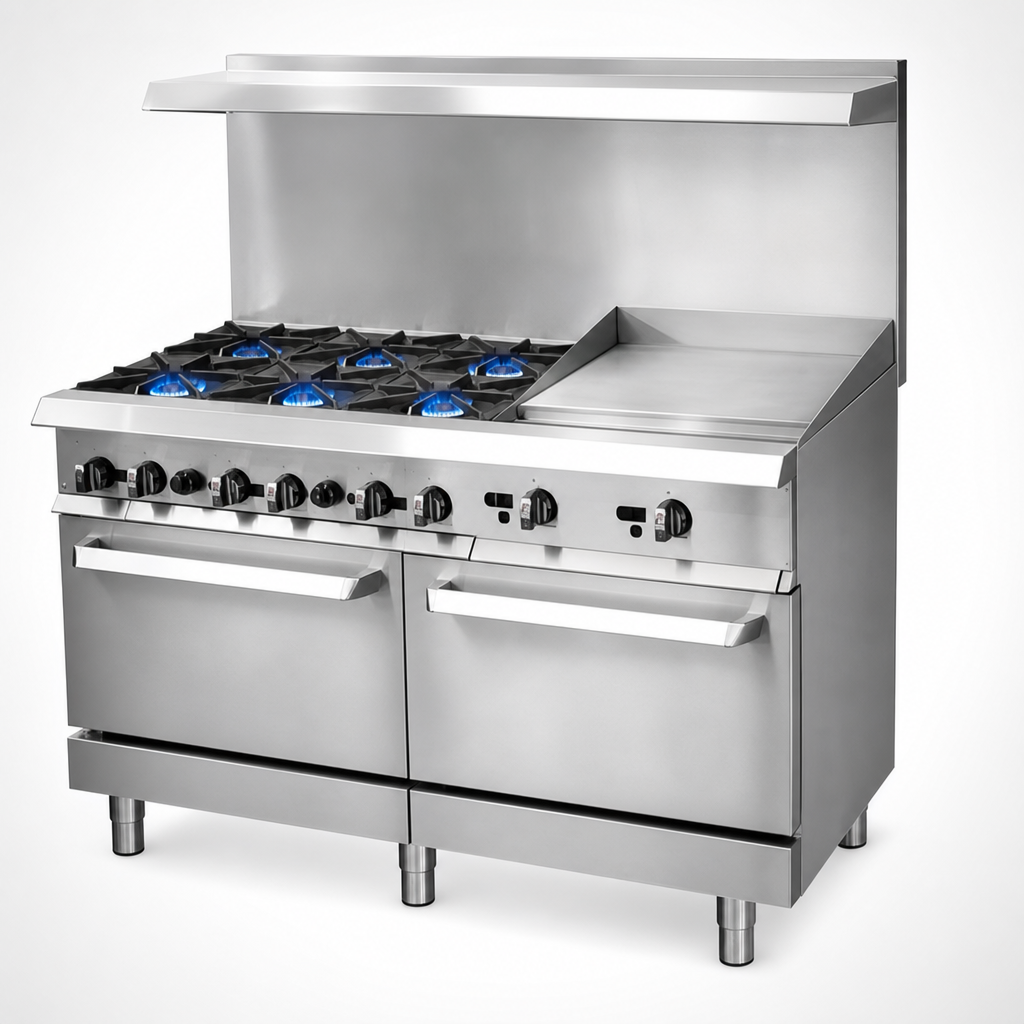

- (6) 30,000 BTU open burners with individual standing pilots

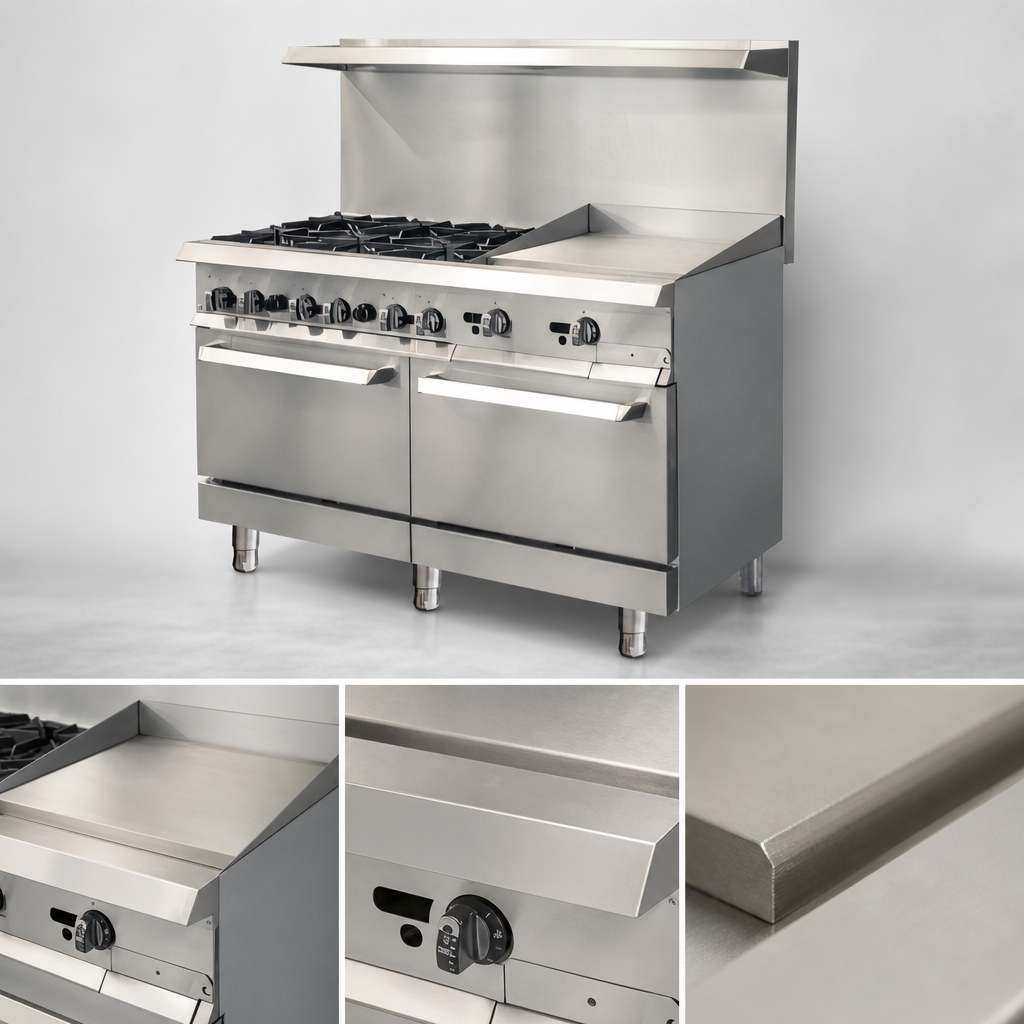

- 24" wide x 1" thick steel griddle plate with precise thermostatic control (200-500 °F)
- (2) 30,000 BTU static ovens, porcelain-coated interior for easy clean-up
- 3-position rack system; 2 chrome racks supplied per oven (4 total)
- 12" × 12" cast-iron top grates—lift off for fast cleaning
- Full pull-out crumb tray spans the entire cooktop width
- Stainless-steel front, back riser & lift-off high shelf with removable insert
- (6) 6.2" swivel casters (2 locking) factory-installed for instant mobility
- Field convertible Natural Gas / LP – conversion kit included
- 3/4" NPT rear gas connection; 1 pilot per open burner
Specification Overview
Cooktop configuration | (6) open burners + 24" thermostatic griddle |
---|---|
Total input (NG) | 306,000 BTU/hr* |
Overall dimensions | 60" W × 30.2" D × 59.2" H (to shelf) |
Oven interior (each) | 26 1/2" W × 22 1/2" D × 18" H |
Rack positions | 3 per oven | 2 racks supplied per oven |
Gas requirements | Natural Gas 4" WC / LP 10" WC | 3/4" NPT |
Crated shipping | 65" W × 37" D × 49" H | 864 lb |
Certifications | CSA Sanitation • CSA Flame • CSA Star |
*LP configuration: 272,000 BTU/hr. Performance data based on standard laboratory testing.
