Description

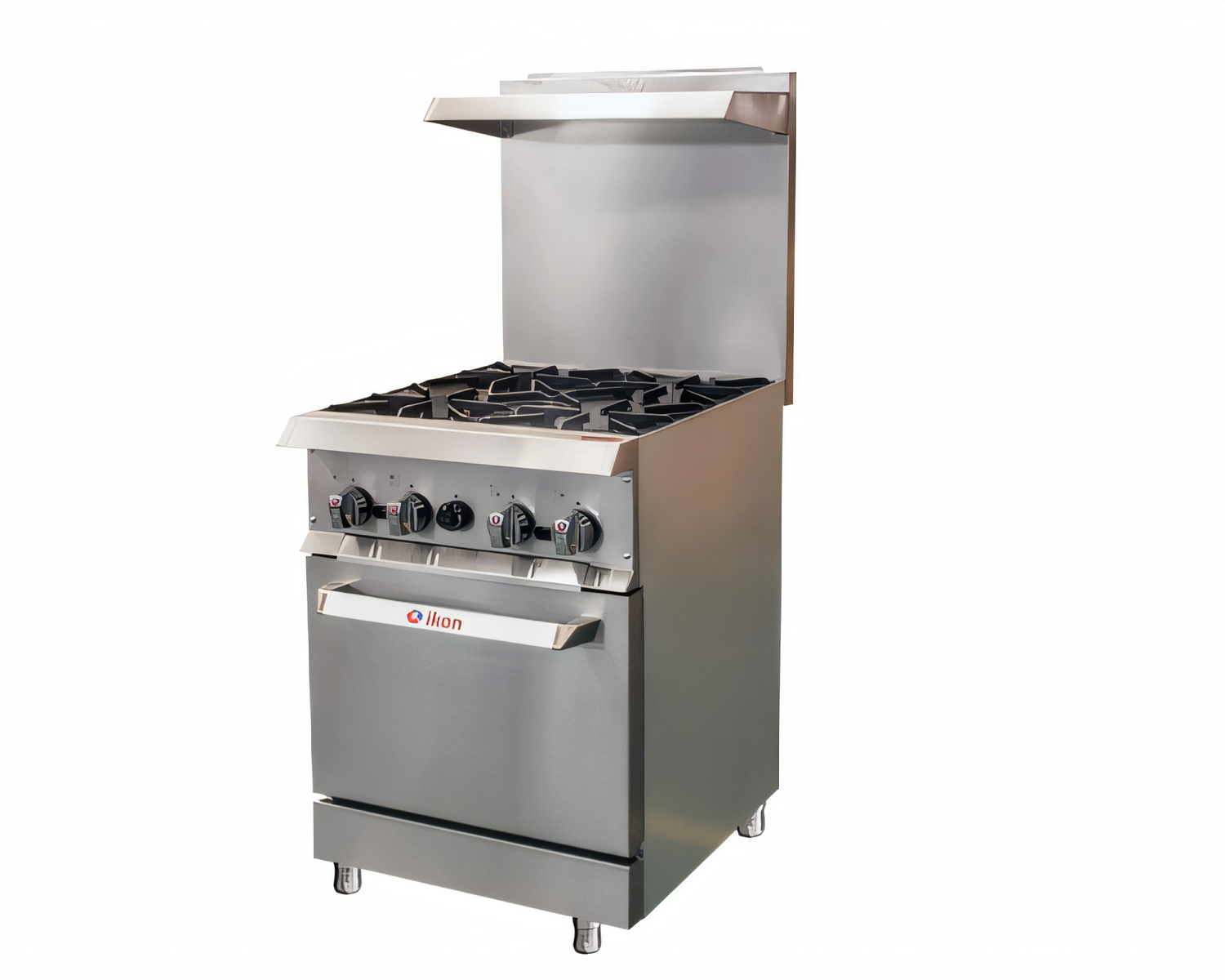

Ikon IR-4-24 24" Gas Range with Static Oven – 4 Burners, 153,000 BTU

SKU: IR-4-24 | Brand: Ikon Cooking (MVP Group LLC)

Compact outside, powerhouse inside—this 24-inch Ikon gas range delivers full-size performance where kitchen space is at a premium. Four 30,000 BTU open burners sit above a high-efficiency static oven, giving chefs the versatility to sauté, simmer and bake from a single, space-saving footprint.

Performance & Construction Highlights

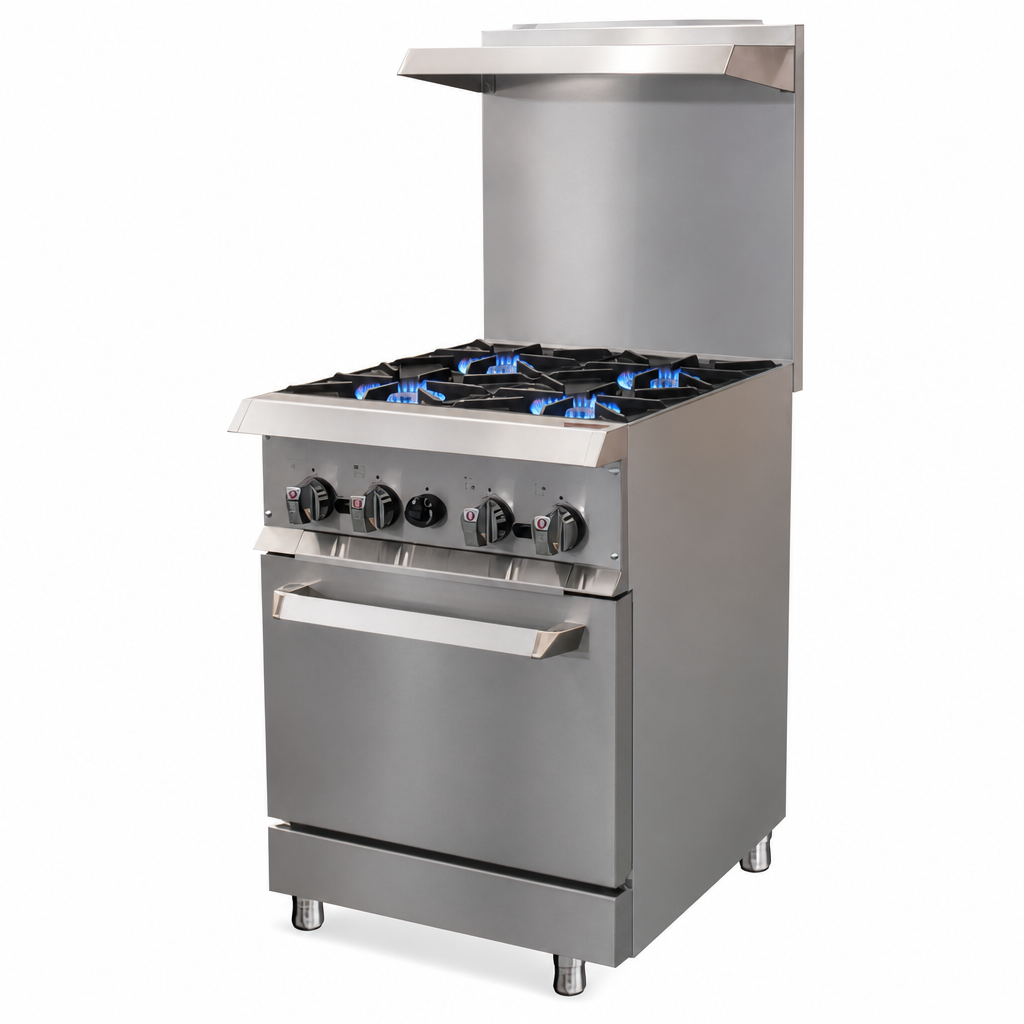

  • (4) 30,000 BTU individually-piloted open burners for instant, even heat

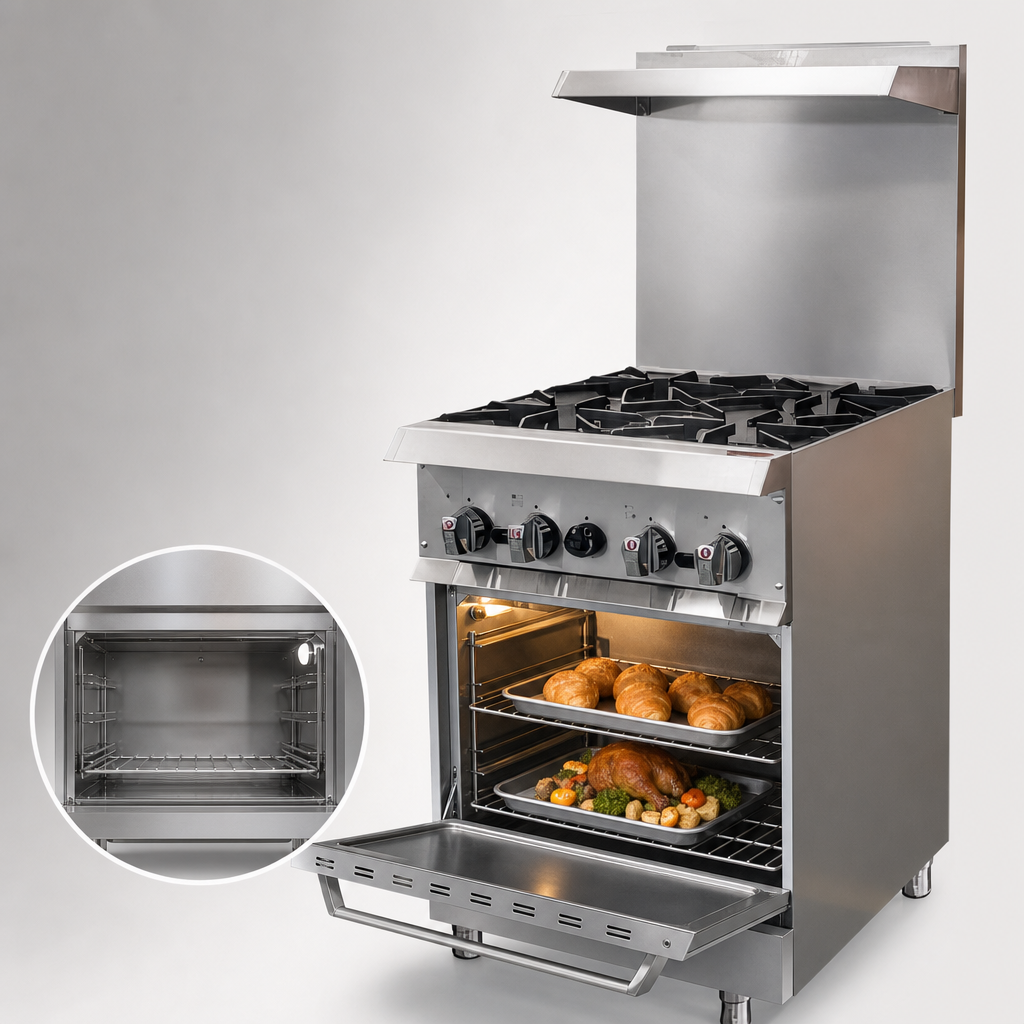

  • 30,000 BTU static oven with manual thermostat and 3-position rack guides
  • Two chrome-plated oven racks included
  • Heavy-duty 12" × 12" cast-iron top grates—lift out for fast cleaning
  • Full pull-out crumb tray spans the entire width of the range
  • Stainless steel front, back riser & lift-off shelf resist corrosion
  • Porcelain-coated oven interior, door, sides & hearth for easy wipe-down
  • Riser with removable shelf keeps spices, pans or plating essentials close
  • Four 6.2" locking swivel casters supplied for effortless mobility
  • Field-convertible Natural Gas / LP – conversion kit included
  • Certified: CSA-Sanitation, CSA Flame & CSA Star
Technical Specifications
Exterior dimensions (W × D × H) 23.9" × 30.2" × 59.2"
Oven interior dimensions (W × D × H) 19.75" × 22.5" × 18"
Total BTU 153,000 BTU (NG)  /  136,000 BTU (LP)
Open burners (4) × 30,000 BTU cast-iron open burners
Oven type / BTU Static oven  /  30,000 BTU
Controls Manual (standing pilot)
Rack positions / racks supplied 3 positions  /  2 racks
Gas connection 3⁄4" NPT (rear)
Manifold pressure Natural Gas 4" W.C.  /  LP 10" W.C.
Net weight 277 lb
Shipping weight / dimensions 366 lb  /  28" × 37" × 45"
Casters (4) 6.2" locking swivel casters (installed)
Certifications CSA-Sanitation, CSA Flame, CSA Star
Important: This appliance must be installed and gas-type conversions performed by a licensed technician in accordance with local codes and the manufacturer’s instructions. Failure to do so may void warranty and create a safety hazard.

Need adjustable legs instead of casters? Order part # 119-0300 (set of 4) at checkout.

Features & Specs

Manufacturer

MVP Group LLC

Brand_name

IKON Cooking

Certifications

CSA-Sanitation, CSA Star, CSA Flame

Height

59.2in

Width

23.9in

Depth

30.2in

Shipping Weight

366.0lbs

Vent

backriser with hi-shelf

Base

(1) space saver oven

Top

(4) open burners

Exterior Finish

stainless steel front

Specifications

IKON Cooking Range, gas, 23-9/10" W x 30-1/5" D, (4) 30,000 BTU burners, (1) static oven, 3-position oven rack, (2) oven racks, full pull-out crumb tray, manual controls, riser with removable shelf, 12" cast iron grates, porcelain coated oven interior door, sides & hearth, stainless steel front, back riser & lift off shelf, (4) casters, CSA-Sanitation, CSA Flame, CSA Star
