MVP Group LLC IMG-60 IKON Cooking Gas Griddles
$1,552.76
Unit price
/
Unavailable
Description

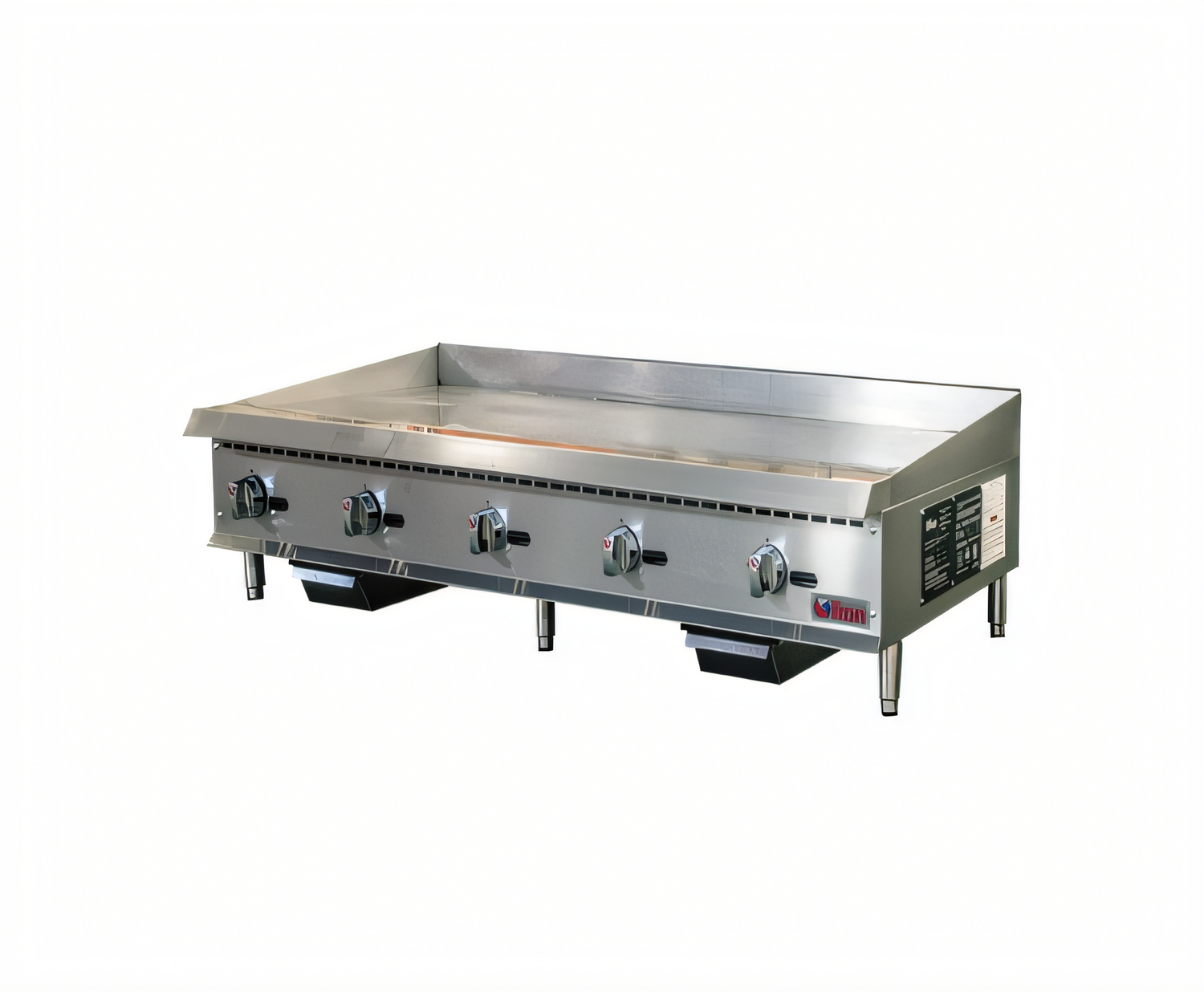

Ikon IMG-60 60″ Manual Gas Countertop Griddle
150,000 BTU • ¾″ Polished Steel Plate • CSA CertifiedFrom breakfast rush to late-night service, the Ikon IMG-60 powers through high-volume cooking with five 30,000 BTU U-shaped burners and a massive 60-inch cooking surface—all wrapped in durable stainless steel that’s ready for the rigors of a commercial kitchen.
Why You’ll Love It

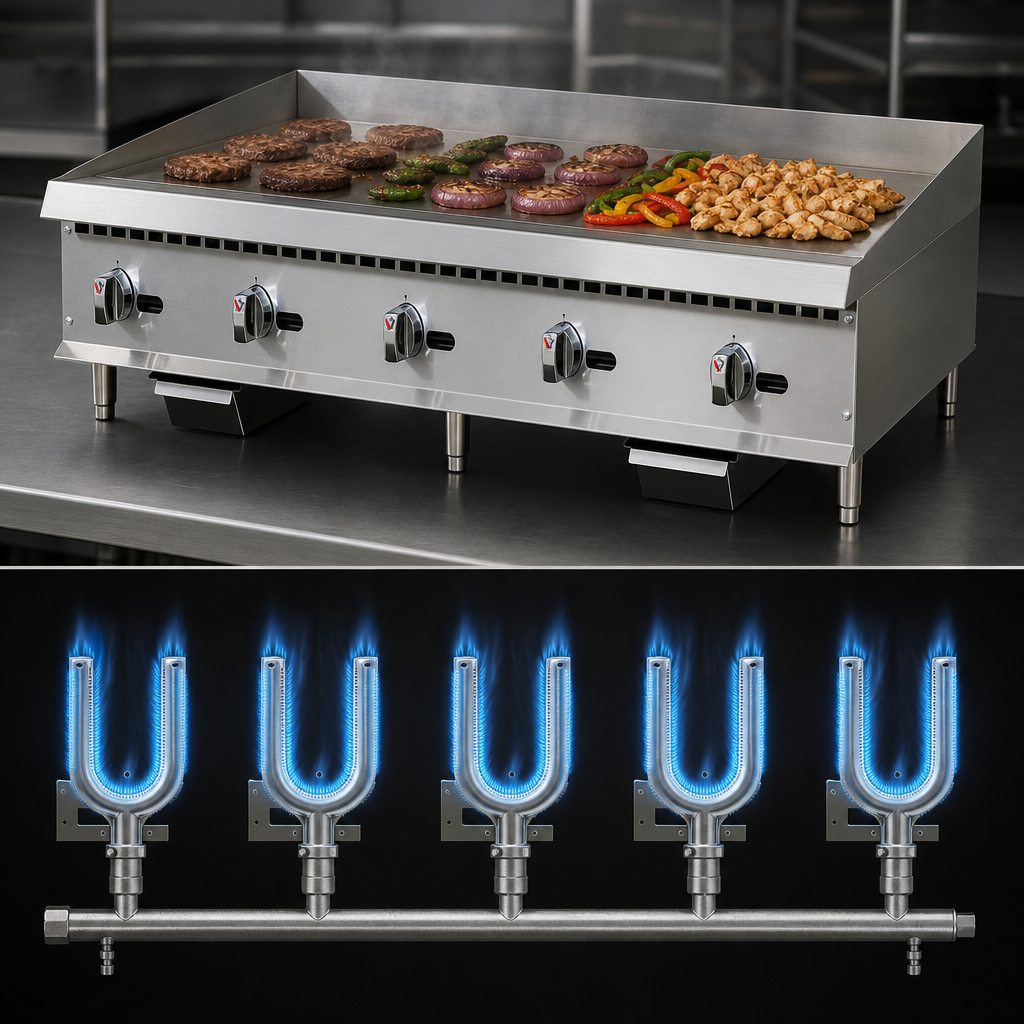

- Even heat, every 12″ – Five U-shaped burners deliver consistent heat across the entire plate.

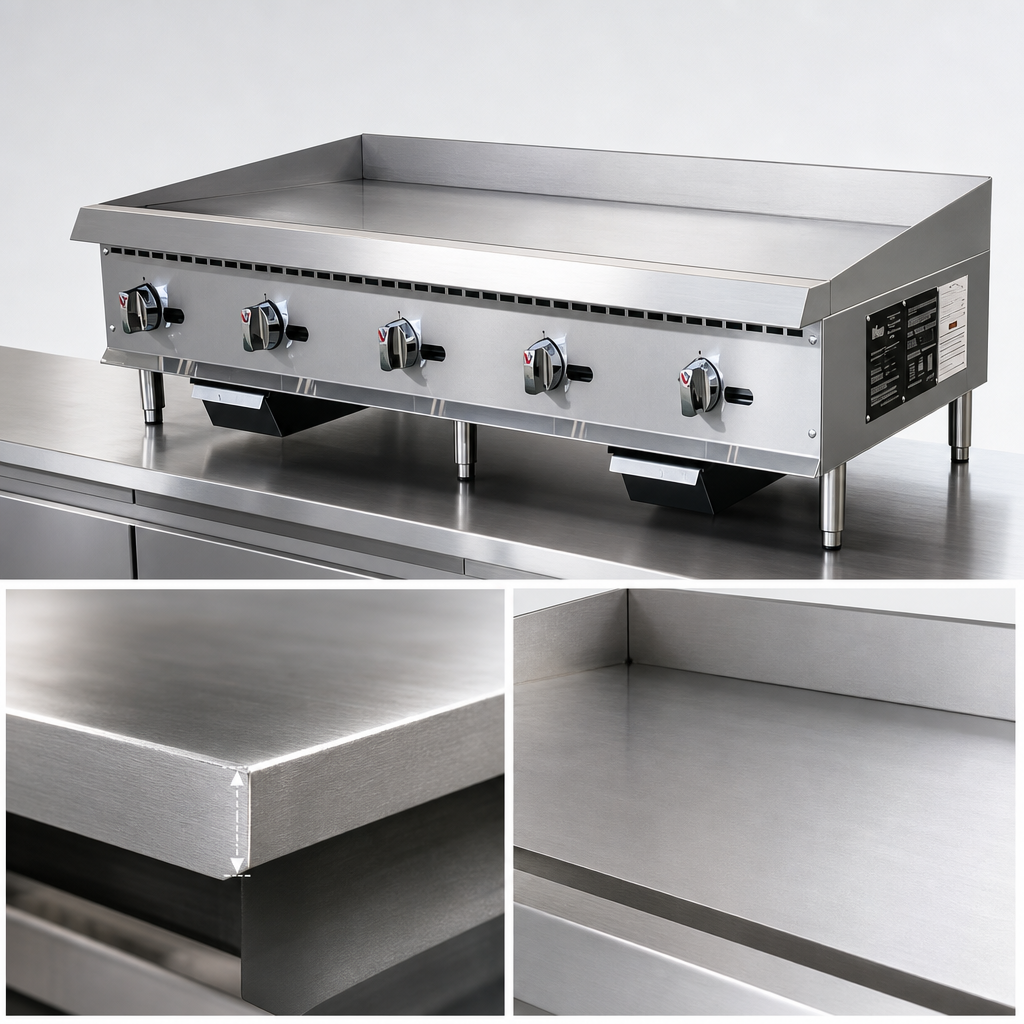

- Rugged ¾″ polished steel plate retains heat for quick recovery and perfect sears.
- Front-adjustable manual controls with individual pilots that light from the front—no reaching behind the line.
- “Cool-to-the-touch” stainless front edge protects staff during busy service.
- Fully welded 4″ splash guards on back and sides keep grease where it belongs.
- 4″-wide grease trough + 3 ¼″ drawer with weep hole & baffle for fast, clean disposal.
- Double-wall insulated sides retain heat and improve energy efficiency.
- All-stainless cabinet with six height-adjustable legs and non-skid feet for a rock-solid workspace.
- Field convertible – Ships natural gas with LP conversion kit included.
- Fully serviceable from the front for minimal downtime.
Technical Specs
| Model | IMG-60 |
|---|---|
| Cooking Surface | 60″ W × 20.5″ D (1230 in²) |
| Overall Dimensions | 60″ W × 34.4″ D × 15.5″ H |
| Footprint | 59.5″ W × 21″ D |
| Total BTU | 150,000 BTU (5 × 30,000 BTU) |
| Plate Thickness | ¾″ polished steel |
| Gas Connection | ¾″ NPT (rear) |
| Manifold Pressure | Natural Gas 4″ W.C. | LP 10″ W.C. |
| Unit Weight | 340 lb (417 lb ship weight, crated) |
| Certifications | CSA-Sanitation, CSA Star, CSA Flame |
Ships crated on a pallet. Overall height includes rear flue and factory-installed gas regulator.
Gas equipment installation required.
This appliance must be installed and converted (if applicable) by a qualified technician in accordance with all local codes. Improper installation will void warranty.
This appliance must be installed and converted (if applicable) by a qualified technician in accordance with all local codes. Improper installation will void warranty.
Features & Specs
Features & Specs
Manufacturer
MVP Group LLC
Brand_name
IKON Cooking
Certifications
CSA-Sanitation, CSA Star, CSA Flame
Height
15.5in
Width
60.0in
Depth
34.4in
Shipping Weight
417.0lbs
Exterior Finish
stainless steel front & sides
Cooking Surface Depth (front - back)
20" - 23"
Griddle Plate Finish
smooth steel
Cooking Surface Width (side - side)
55" - 60"
Plate Thickness
3/4"
Controls
manual controls
Specifications
IKON Cooking Griddle, gas, countertop, 60" W x 34.4" D, adjustable manual control, front lit pilot light, (5) 30,000 BTU U-shape burners, 3/4" polished steel griddle plate, (5) gas control knobs, double wall insulated sides, welded back & side splash guards, rear flue, removable 3-1/4" grease drawer with weep hole & baffle, 4" wide grease trough, stainless steel cabinet, (6) stainless steel adjustable legs, non-skid feet, 150,000 BTU total, CSA-Sanitation, CSA Star, CSA Flame
