MVP Group LLC  |  IKON Cooking  |  SKU: IMG-48

MVP Group LLC IMG-48 IKON Cooking Gas Griddles

$1,215.97
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Gas Griddles Griddles & Flat Tops

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

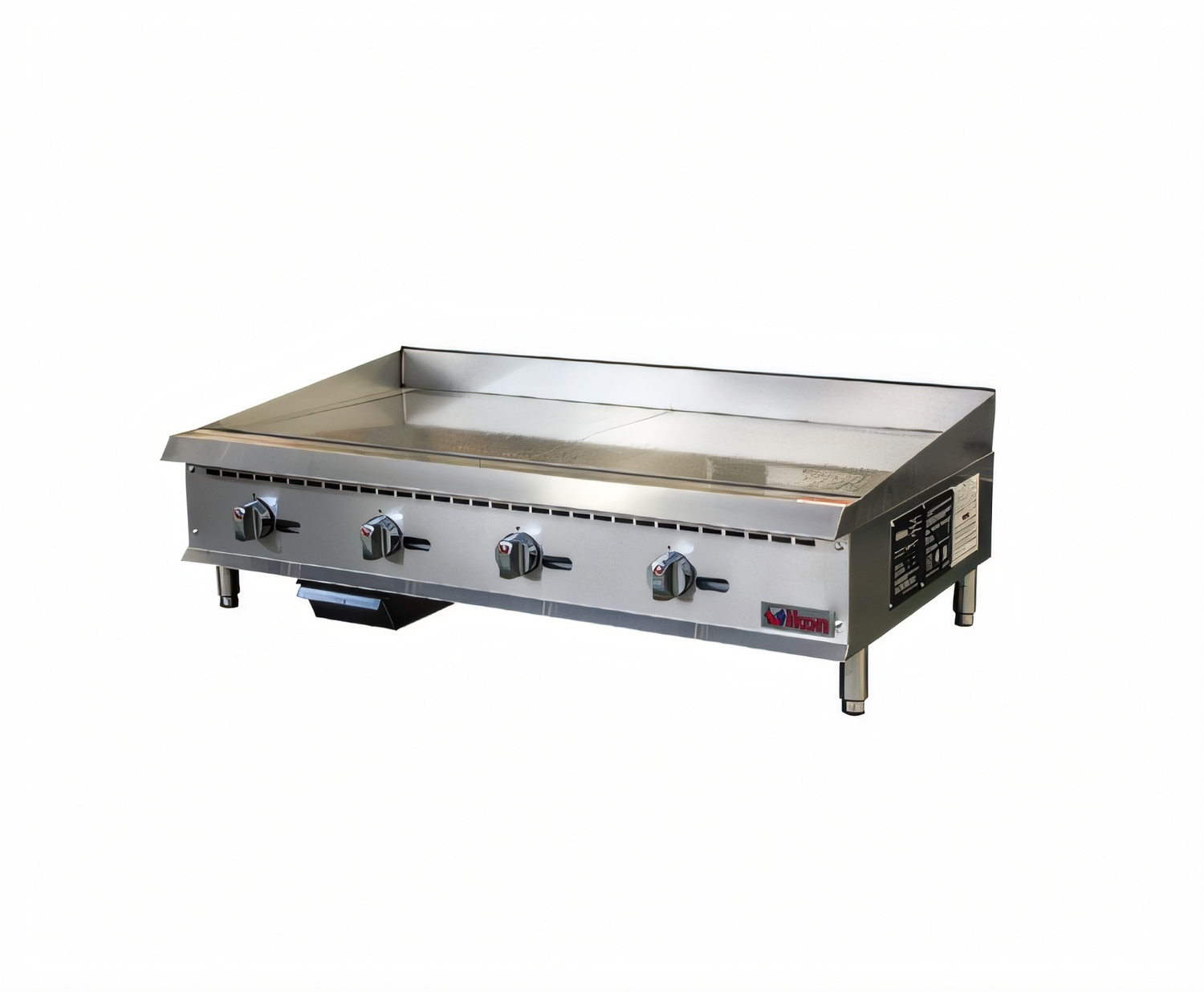

Ikon IMG-48 48" Gas Countertop Griddle

Manual control • 3⁄4" polished steel plate • 120,000 BTU

Built for demanding commercial kitchens, the 48" Ikon IMG-48 delivers powerful, even heat on a thick, 3⁄4" polished steel plate while the all-stainless cabinet, welded splash guards, and oversized grease system simplify cleanup and extend equipment life.

Top Features

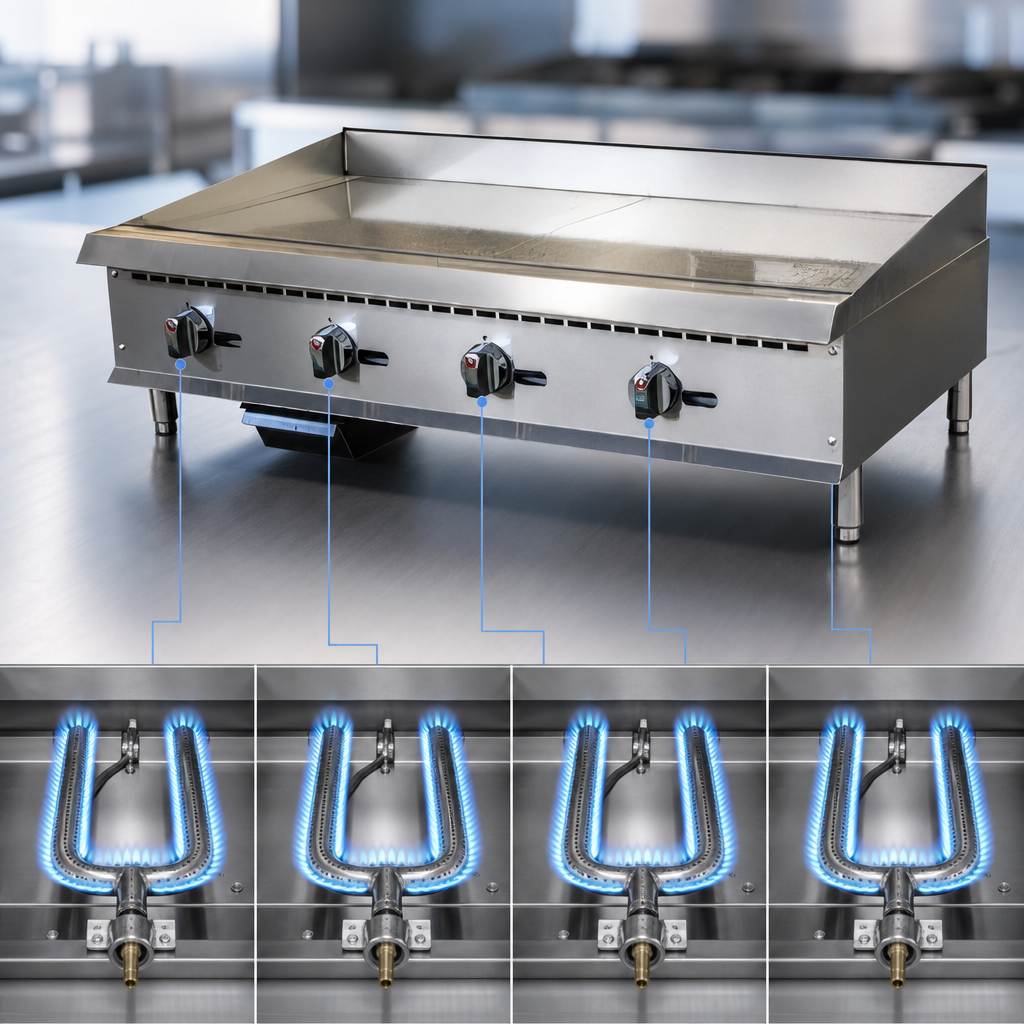

  • Four 30,000 BTU U-shape burners spaced every 12" for consistent surface temperatures
  • Front-lit continuous pilot lights—no need to reach behind the griddle
  • Adjustable manual gas valves give the chef instant flame control

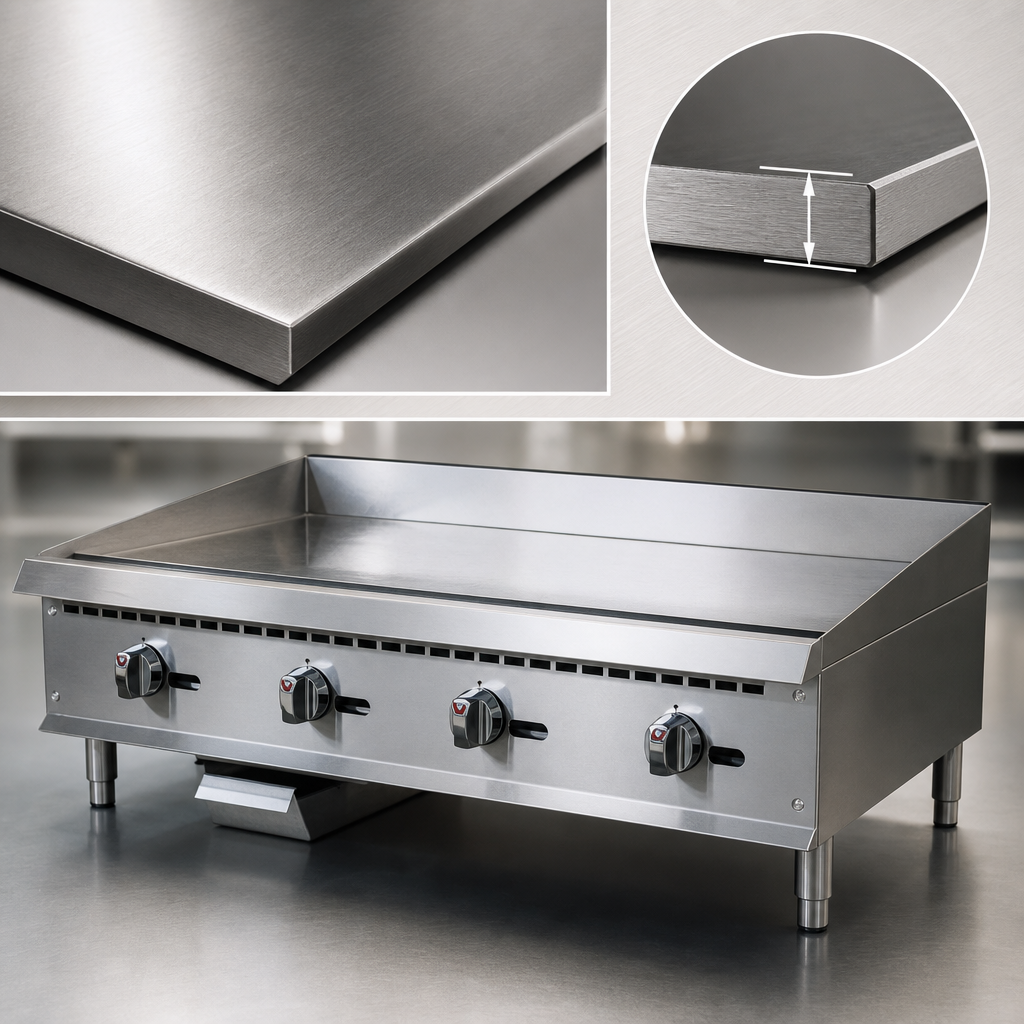

  • 3⁄4" thick polished steel cooking plate resists warping and provides excellent heat retention
  • Welded 4" back & side splash guards contain grease and food debris
  • 4"-wide grease trough and extra-deep 3-1⁄4" drawer with weep hole & baffle for fast, mess-free cleaning
  • Double-wall insulated sides & cool-to-the-touch front stainless edge increase operator safety
  • Rear flue efficiently vents heat away from the cook line
  • Stainless steel adjustable legs with non-skid feet keep the unit level and stable
  • Field convertible from Natural Gas to LP—conversion kit included
  • Fully serviceable from the front to minimize downtime

Key Specifications

Model IMG-48 (Ikon Cooking)
Overall dimensions 48.0" W × 34.4" D × 15.5" H
Cooking surface 48" W × 20.5" D  (3.4 sq ft / 984 sq in)
Burners / controls 4 manual valves & pilots (one per burner)
Heat output 30,000 BTU per burner  |  120,000 BTU total
Gas connection 3⁄4" NPT rear; NG 4" W.C. / LP 10" W.C.
Plate thickness 3⁄4" polished steel
Cabinet construction Stainless steel (front, sides & legs)
Shipping weight 355 lb (unit weight 277 lb)
Certifications CSA Flame • CSA Star • CSA-Sanitation
Important: This griddle ships crated on a pallet.
Professional installation by a licensed gas technician is required to maintain warranty coverage and ensure safe operation.

Need a different width? Manual-control Ikon griddles are also available in 24", 36" and 60" models.

Features & Specs

Manufacturer

MVP Group LLC

Brand_name

IKON Cooking

Certifications

CSA-Sanitation, CSA Star, CSA Flame

Height

15.5in

Width

48.0in

Depth

34.4in

Shipping Weight

355.0lbs

Griddle Plate Finish

smooth steel

Cooking Surface Depth (front - back)

20" - 23"

Plate Thickness

3/4"

Cooking Surface Width (side - side)

43" - 48"

Controls

manual controls

Exterior Finish

stainless steel front & sides

Specifications

IKON Cooking Griddle, gas, countertop, 48" W x 34.4" D, adjustable manual control, front lit pilot light, (4) 30,000 BTU U-shape burners, 3/4" polished steel griddle plate, (4) gas control knobs, double wall insulated sides, welded back & side splash guards, rear flue, removable 3-1/4" grease drawer with weep hole & baffle, 4" wide grease trough, stainless steel cabinet, stainless steel adjustable legs, non-skid feet, 120,000 BTU total, CSA-Sanitation, CSA Star, CSA Flame
