MVP Group LLC  |  IKON Cooking  |  SKU: IGF-75/80-LP

MVP Group LLC IGF-75/80-LP IKON Cooking Gas Fryers

$1,335.51
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation
Related Searches
Fryers Gas Fryers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

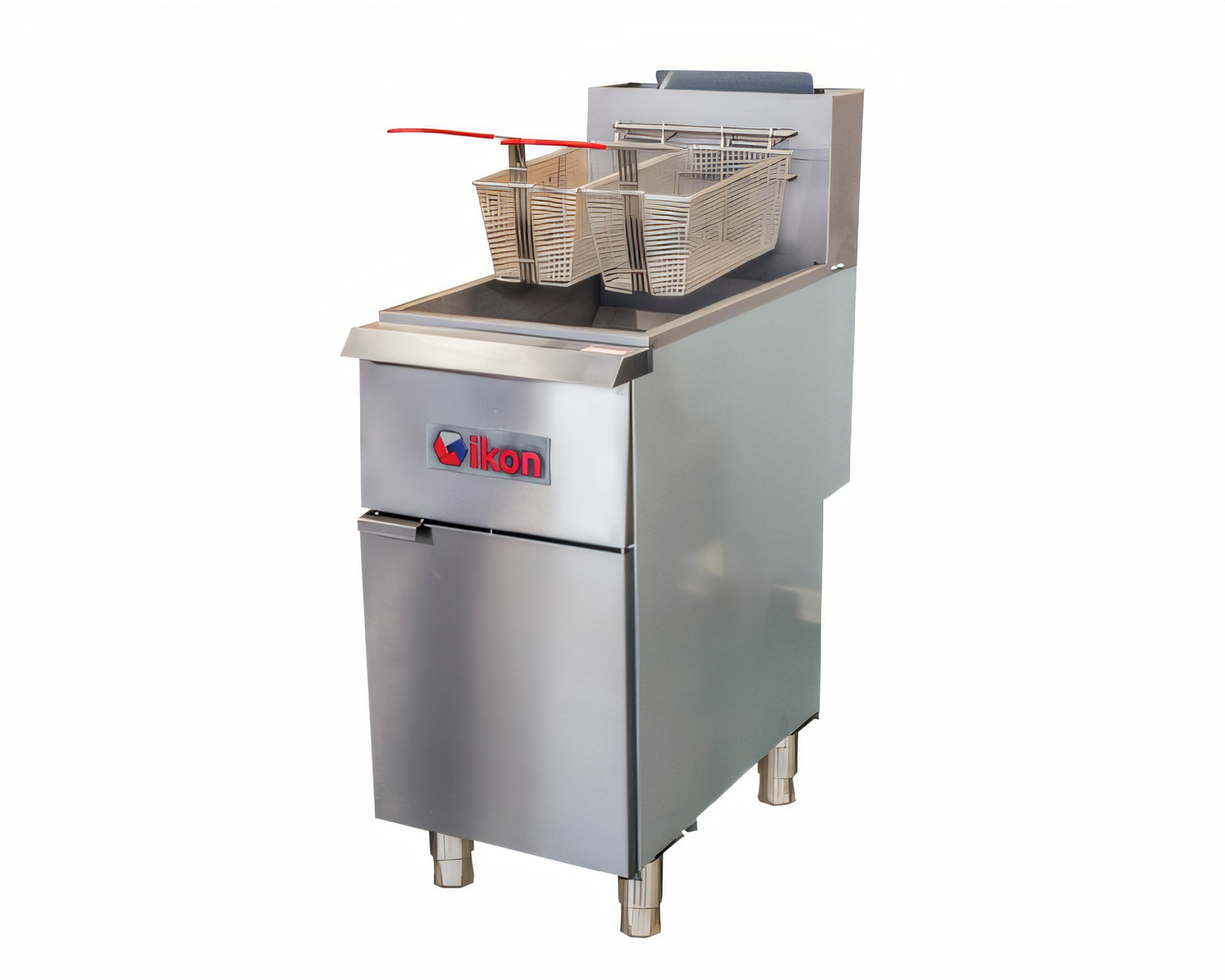

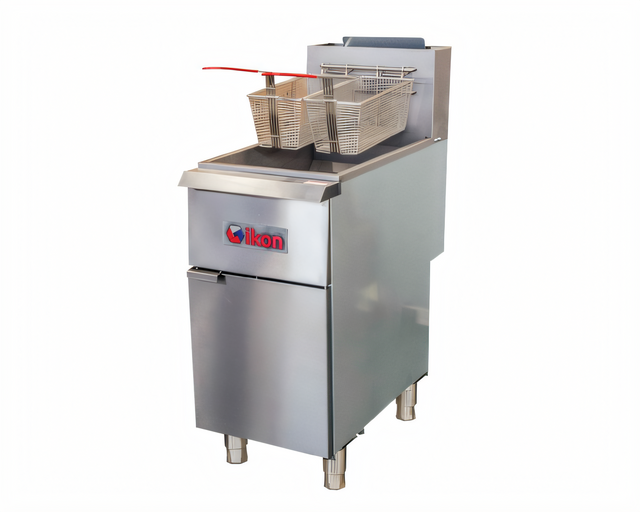

Ikon IGF-75/80-LP 75–80 lb. Tube-Type Gas Fryer

5-Tube Millivolt Control • 150,000 BTU • Liquid Propane

Designed for high-volume kitchens that demand speed, consistency, and easy clean-up, the Ikon IGF-75/80-LP packs 150,000 BTU of power into a compact 21" footprint. Fast recovery times, a generous cold zone, and rugged stainless construction keep you frying batch after batch with confidence.

Key Features

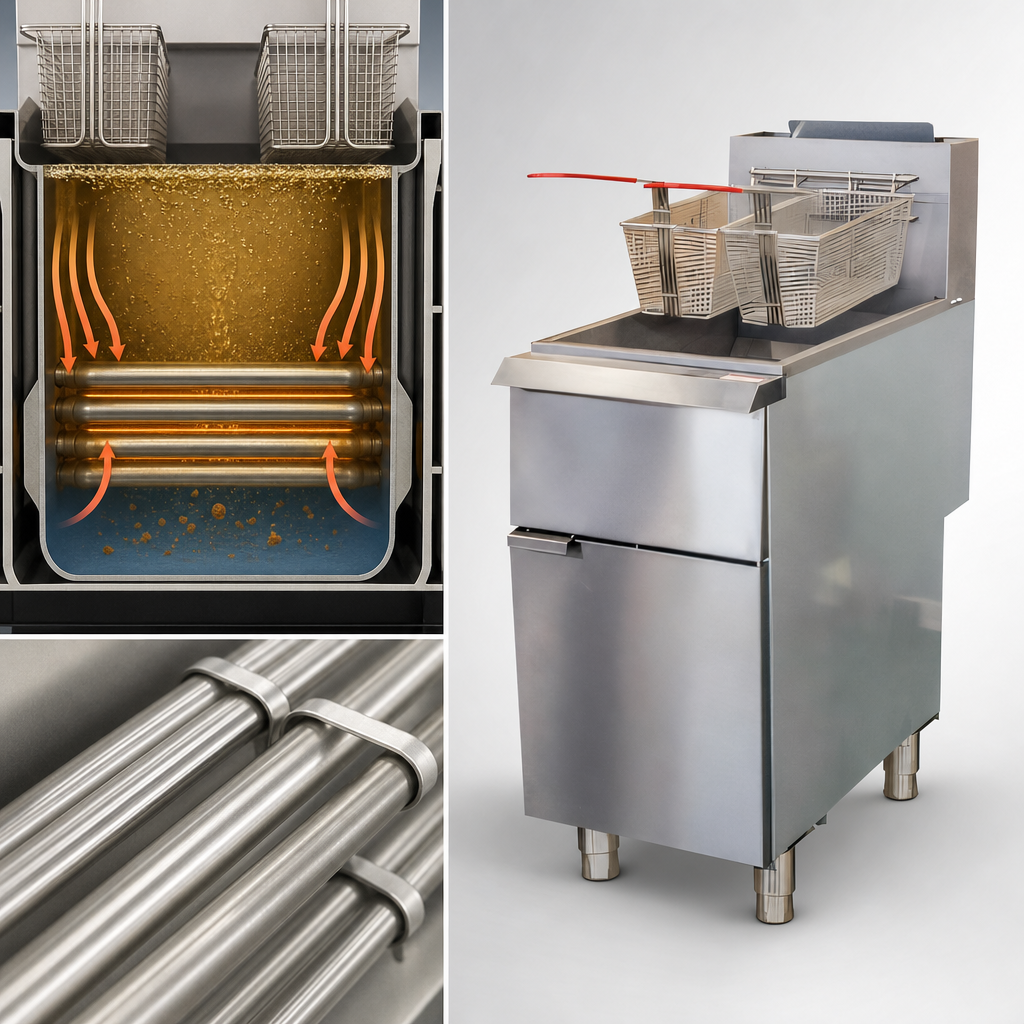

  • Five (5) 30,000 BTU heat tubes deliver rapid heat recovery for continuous production.
  • 75–80 lb. oil capacity handles large batches of fries, chicken, seafood, and more.

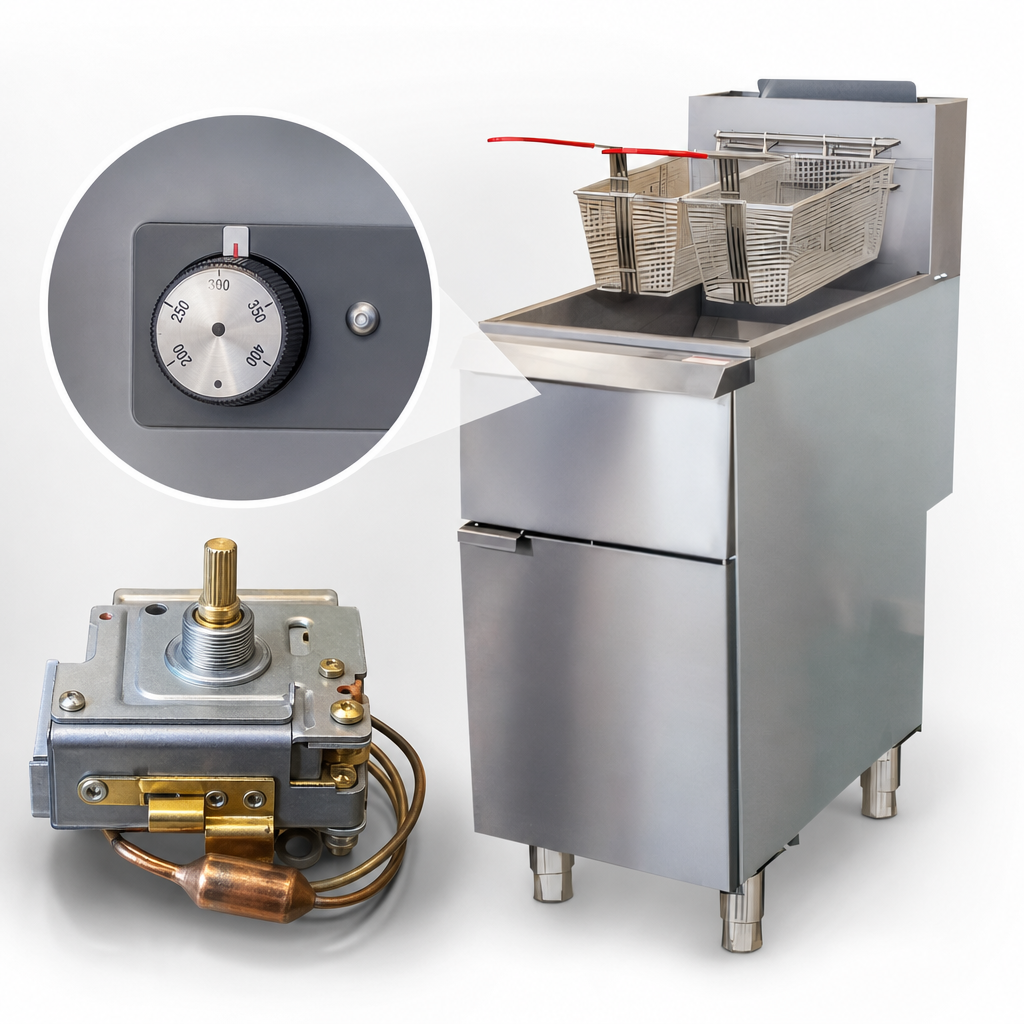

  • Millivolt (snap-action) thermostat accurately maintains 200 °F – 400 °F without an electrical connection.
  • Pressure-blasted stainless steel fry pot resists sticking and wipes clean fast.
  • Large cold zone traps crumbs below the elements, extending oil life.
  • 1-1/4" full-port drain valve and inside-door drain pipe holder speed up filtering and cleaning.
  • Stainless steel front & door; galvanized steel sides/back for long-lasting durability.
  • Four (4) 5" swivel casters (front locking) for easy mobility; adjustable stainless legs available.
  • CSA Sanitation, CSA Flame, and CSA Star certified for assured safety and performance.
What’s in the Box
  • (2) Twin nickel-plated fry baskets with cool-touch coated handles
  • Integrated drain pipe holder
  • (4) Factory-installed 5" casters
  • User & installation manual
Technical Specifications
Model IGF-75/80-LP
Oil Capacity 75 – 80 lb. (34 – 36 L)
Gas Type Liquid Propane (LP) – 10" W.C. manifold pressure
Total BTU Input 150,000 BTU/hr (5 × 30,000 BTU tubes)
Thermostat Range 200 °F – 400 °F
Overall Dimensions 21" W × 34.3" D × 39.4" H (533 × 871 × 1000 mm)
Shipping Dimensions 24.4" W × 37.4" D × 33.1" H (620 × 950 × 840 mm)
Net / Ship Weight 210 lb. / 265 lb. (95.5 kg / 120.5 kg)
Gas Connection 3/4" NPT (rear)
Included Accessories (2) Fry baskets, drain pipe holder, 5" casters
Optional Accessories Adjustable stainless steel legs – set of 4 (Part #119-0020)
Certifications CSA-Sanitation, CSA-Flame, CSA-Star
Installation & Gas Safety: This fryer must be installed by a qualified technician in accordance with local codes. A 3/4" LP gas supply line and adequate ventilation are required. Always allow the unit to cool completely before draining or cleaning.

All specifications are subject to change without notice. If you have questions about compatibility or lead times, please contact our sales team.

Features & Specs

Manufacturer

MVP Group LLC

Brand_name

IKON Cooking

Certifications

CSA-Sanitation, CSA Star, CSA Flame

Height

44.4in

Width

21.0in

Depth

34.3in

Shipping Weight

265.0lbs

Type

restaurant

Controls

millivolt controls

Fat Capacity (approximate)

80 lb

Exterior Finish

stainless steel front & galvanized sides

Basket Lifts

without basket lifts

Fry pot

stainless steel fry pot

Filter

no filter

Specifications

IKON Cooking Fryer, LP gas, 21"W x 34-3/10"D, millivolt thermostat, 75-80 lb capacity, (5) 30,000 BTU heat tubes, drain pipe holder, (2) nickel-plated baskets, stainless steel front & door, galvanized steel sides & back, (4) casters, 150,000 BTU total, CSA-Sanitation, CSA Flame, CSA Star
