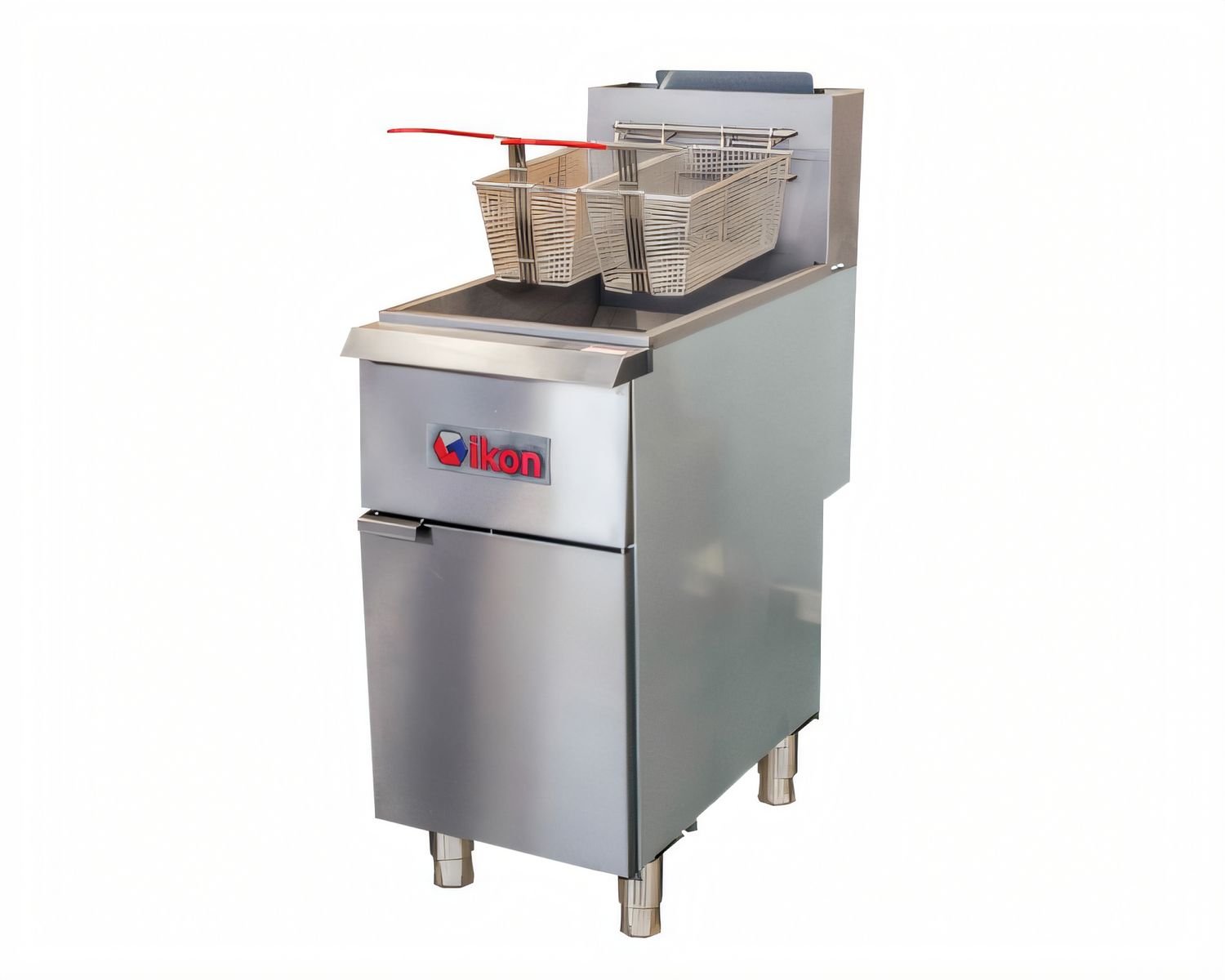

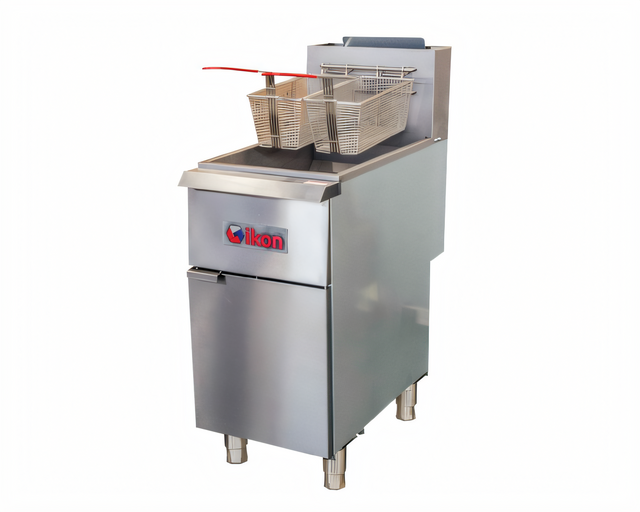

IKON Cooking Natural Gas Tube Fryer, 40-55 lb Capacity, Millivolt Thermostat

120,000 BTU, Stainless Steel Fry Tank, Twin Nickel-Plated Baskets

Built for busy commercial kitchens, this natural gas tube fryer combines 40-55 lb capacity, fast recovery, and a large cold zone for efficient frying.

  • 40-55 lb oil capacity supports high-volume frying.
  • Four 30,000 BTU heat tubes deliver 120,000 BTU total output.
  • Millivolt snap-action thermostat controls from 200°F to 400°F.
  • Stainless steel fry tank is peened for a smoother finish and easier cleaning.
  • Stainless steel front and door with galvanized steel sides and back.
  • Twin nickel-plated baskets, drain pipe holder, and full-port drain valve are included.
  • Four standard casters help with positioning and mobility.

Overall Dimensions:

15.5"W x 30.8"D x 44.4"H

Product Weight:

158.0 lb

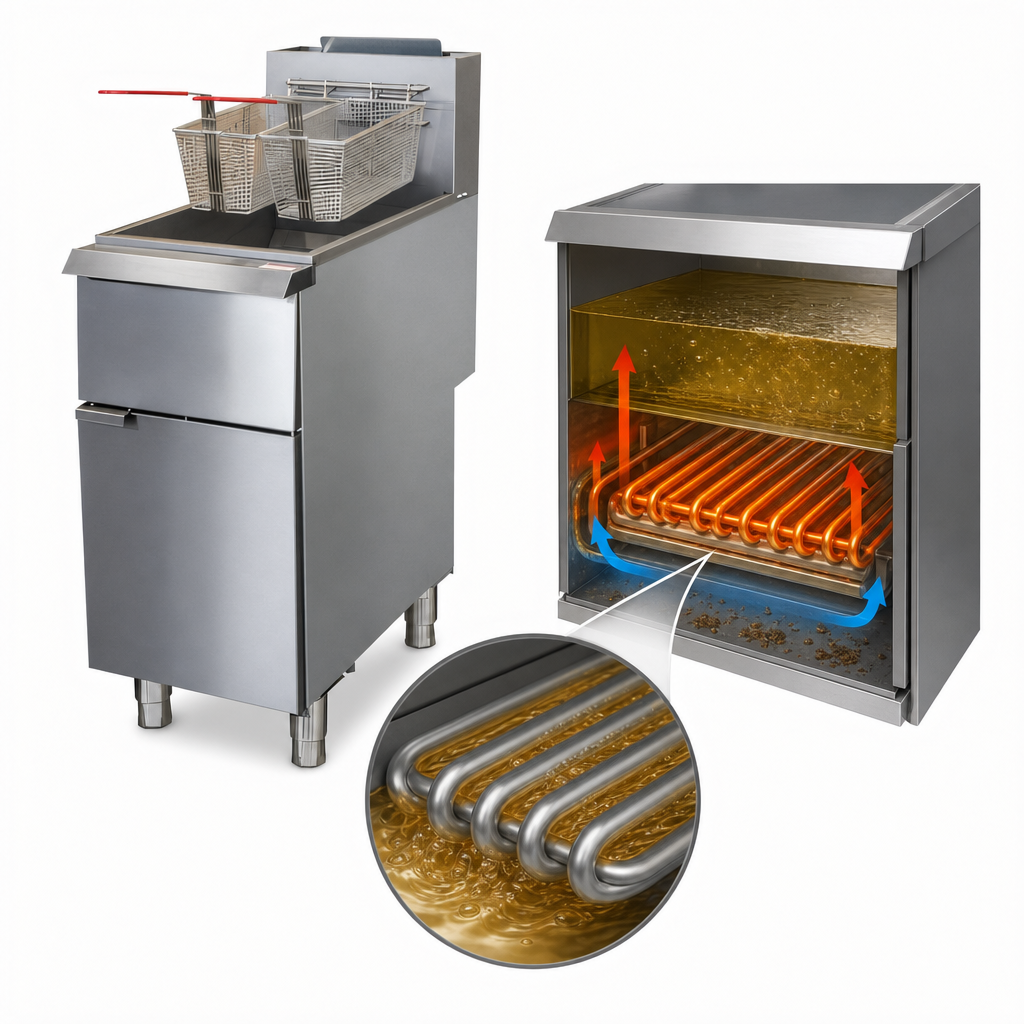

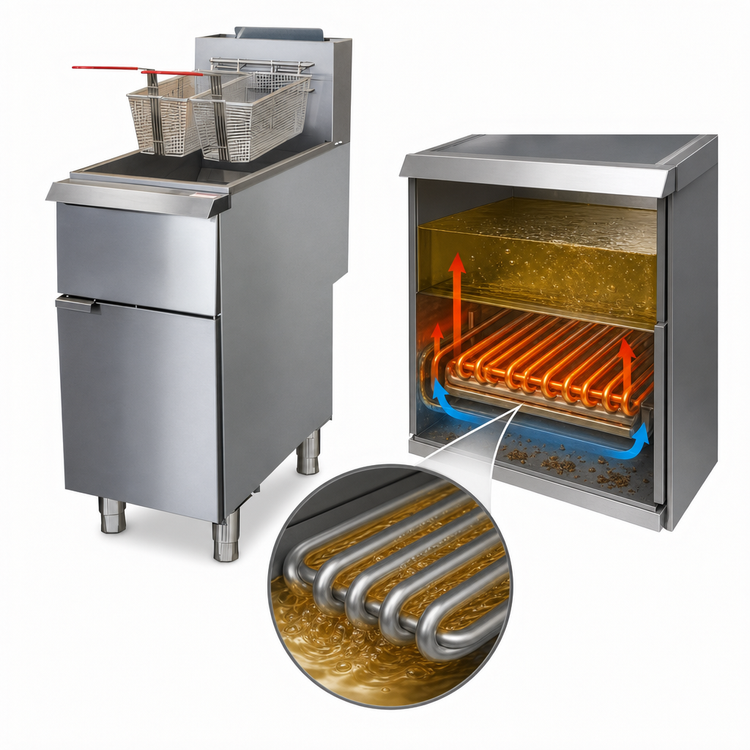

Tube Heat Exchange Design

Designed for fast temperature recovery and a large cold zone to help maintain oil quality.

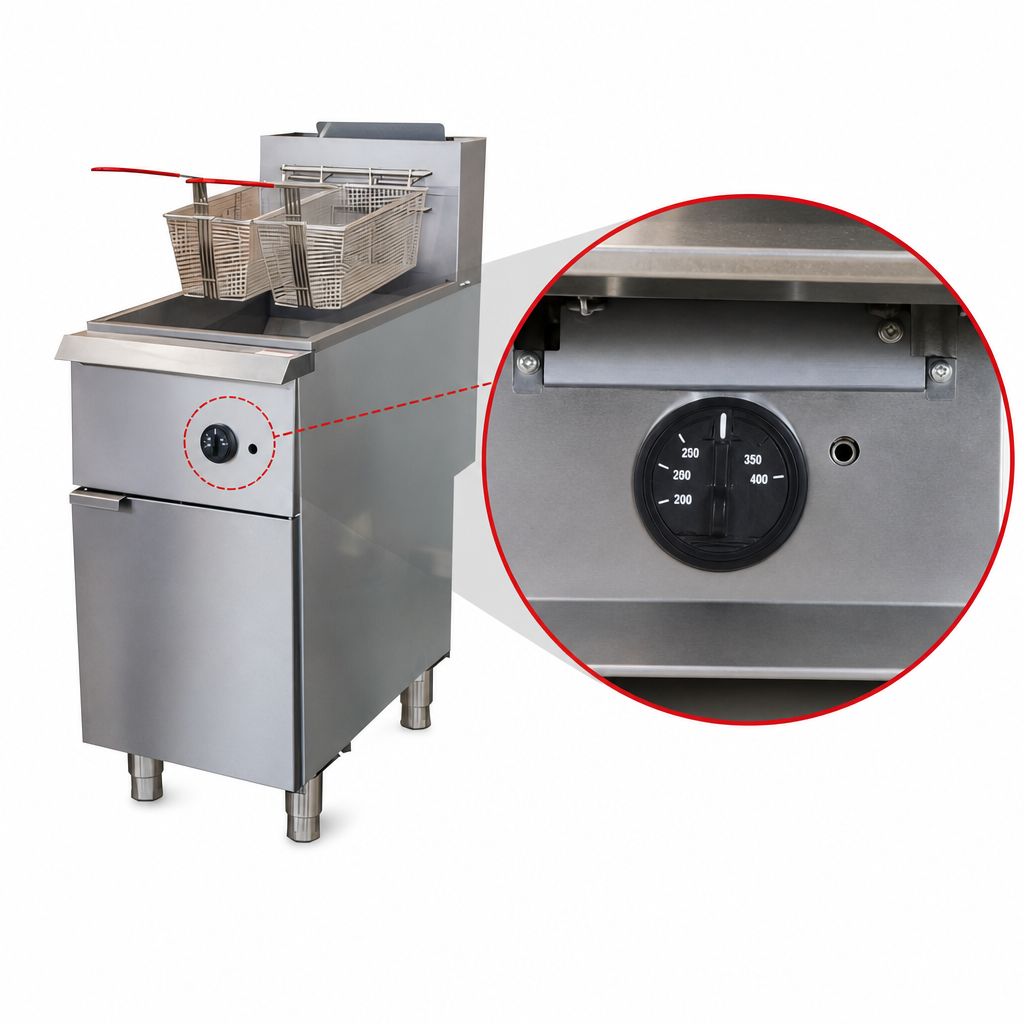

Millivolt Snap-Action Thermostat

Provides manual temperature control from 200°F to 400°F.

High-Output Heating System

Four heat tubes at 30,000 BTU each provide 120,000 BTU total output.

Stainless Steel Fry Tank

Pressure-blasted tank surface offers a smoother finish and easier cleaning.

Durable Cabinet Construction

Features a stainless steel front and door with galvanized steel sides and back.

Complete Drain Setup

Includes a 1-1/4 inch full-port drain valve and a drain pipe holder attached to the inside door.

Included Baskets

Twin nickel-plated baskets are standard with the fryer.

Mobility

Four 5-inch casters are standard; adjustable stainless steel legs are optional.

Natural Gas Connection

Configured for natural gas with a 3/4 inch NPT gas connection and 4 inches W.C. inlet pressure.

Type Fryer
Style Tube
Installation Type Floor Model
Controls Millivolt
Capacity 40-55 lb
BTU 120,000 BTU
Gas Type Natural Gas
Gas Connection Size 3/4 Inch NPT
Gas Inlet Pressure 4 Inches W.C.
Material Stainless Steel
Finish Stainless Steel Front and Door; Galvanized Steel Sides and Back
Shipping Width 16 Inches
Shipping Depth 31 Inches
Shipping Height 45 Inches
Shipping Weight 158 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download

Frequently Asked Questions

This model has a 40-55 lb oil capacity.
The millivolt thermostat is adjustable from 200°F to 400°F.
It requires a 3/4 inch NPT natural gas connection at 4 inches W.C. inlet pressure.
Yes, twin nickel-plated baskets are included.
No, conversion kits are not supplied. Gas type must be selected before ordering.
Yes, four 5-inch casters are standard.
