MVP Group LLC  |  IKON Cooking  |  SKU: IGF-40/40-LP

MVP Group LLC IGF-40/40-LP IKON Cooking Gas Fryers

$2,033.90
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation
Related Searches
Fryers Gas Fryers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Ikon IGF-40/40 Split-Pot LP Gas Fryer

Dual 40 lb vats • 120,000 BTU • 20.9″ wide footprint

Give your kitchen maximum menu flexibility in a minimum amount of space. The Ikon IGF-40/40 packs two completely independent 40-lb fry pots into a single 21-inch cabinet, letting you run wings in one tank and fries or seafood in the other—without flavor crossover. A high-efficiency tube-style heat exchanger delivers the fast recovery and consistent temperatures today’s high-volume operations demand.

Key Features

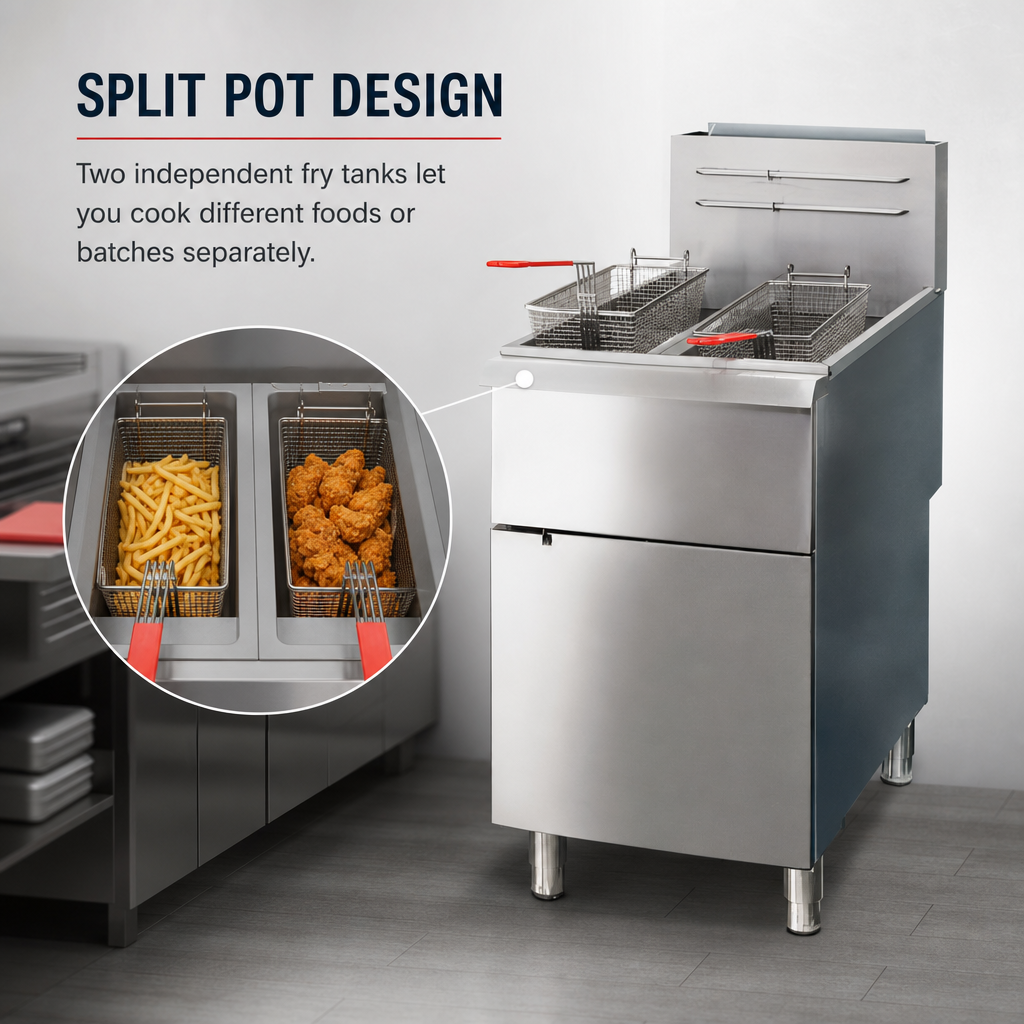

  • Split-tank design with separate gas controls & millivolt thermostats (200–400 °F) for true cooking independence.
  • Four tube burners (30,000 BTU each) for rapid heat recovery—keeps pace with peak-period demand.
  • Generous cold zones in both tanks capture crumbs to extend oil life and produce cleaner-tasting food.
  • 1 ¼″ full-port drain valves plus internal drain-pipe holder for safe, efficient filtering and draining.
  • Rugged stainless-steel front & door with galvanized steel sides and back—built to handle daily abuse.
  • Includes two nickel-plated fry baskets and removable basket hanger.
  • Four 5″ swivel casters (front two locking) for effortless mobility; optional adjustable legs available.
  • Certified: CSA Flame, CSA Star, CSA-Sanitation & cCSAus.
At-a-Glance Specifications
Model IGF-40/40 – LP
Tanks / Oil Capacity 2 × 40 lb (approx. 72–78 lb total)
Heat Output 4 tube burners  |  30,000 BTU each  |  120,000 BTU total
Thermostat Range 200 °F – 400 °F (millivolt, no external power)

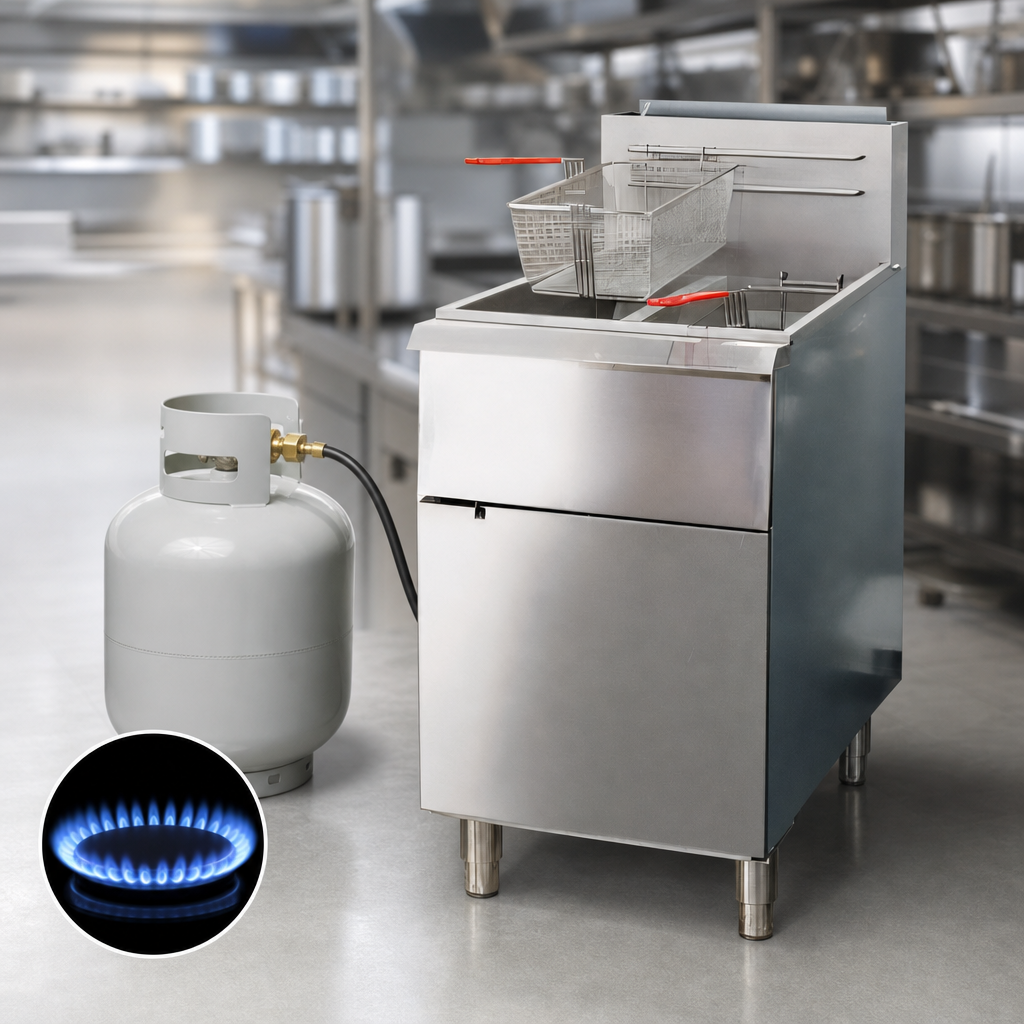

Gas Connection LP, 3/4″ NPT, 10″ W.C.
Exterior Dimensions 20.9″ W × 34.5″ D × 39.8″ H
Shipping Dimensions 22.5″ W × 36.25″ D × 33.5″ H
Net / Ship Weight 192 lb / 205 lb
Included Accessories (2) nickel-plated baskets, drain extension

Need natural gas instead? Order model IGF-40/40-NG. Units are not field convertible.

Attention: Install under a properly sized ventilation hood and follow all local codes for gas & fire safety.

Features & Specs

Manufacturer

MVP Group LLC

Brand_name

IKON Cooking

Certifications

cCSAus, CSA-Sanitation, CSA Star, CSA Flame

Height

44.75in

Width

20.9in

Depth

34.5in

Shipping Weight

205.0lbs

Type

Restaurant

Filter

no filter

Fat Capacity (approximate)

40 lbs each

Fry pot

steel

With or without basket lifts

without basket(s)

Controls

millivolt controls

Exterior Finish

stainless steel front & galvanized sides

Specifications

IKON Cooking Split Pot Fryer, LP gas, 20-9/10"W x 34-1/2"D, millivolt thermostat, 40 lbs. capacity per tank, (4) 30,000 BTU heat tubes, drain pipe holder, (2) nickel-plated baskets, stainless steel front & door, galvanized steel sides & back, (4) casters, 120,000 BTU total, CSA-Sanitation, CSA Flame, CSA Star, cCSAus
