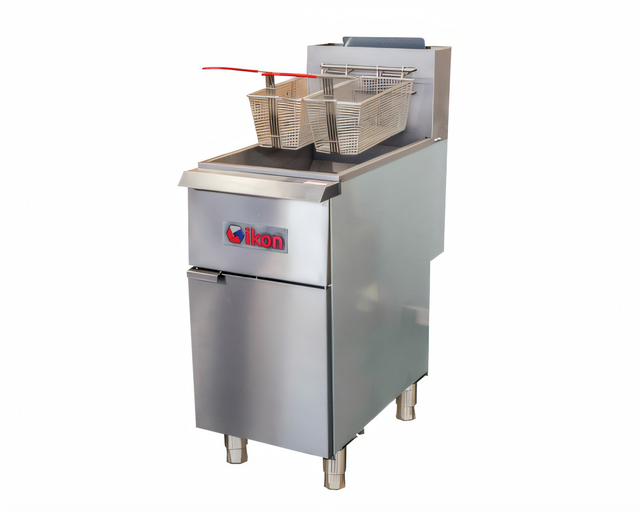

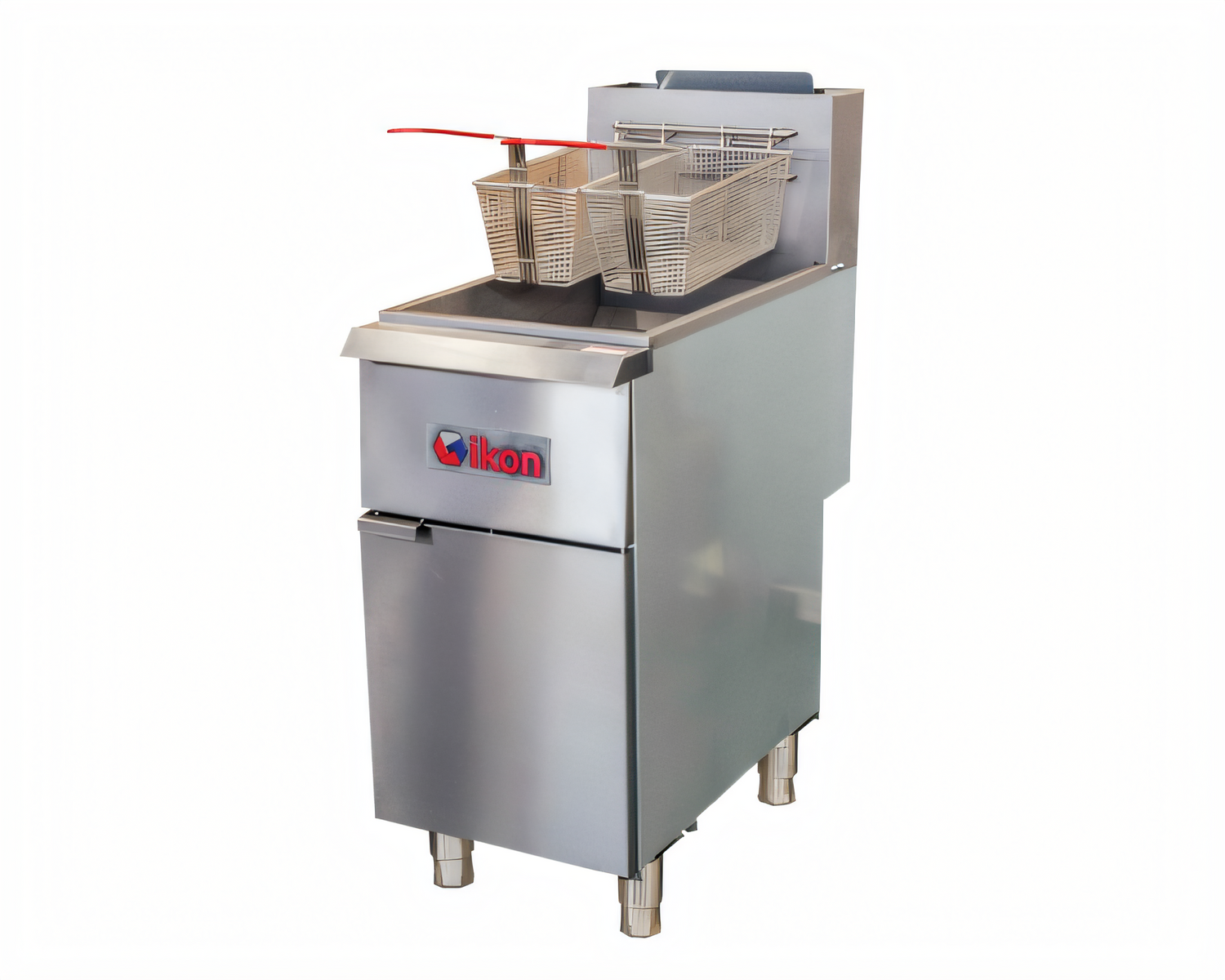

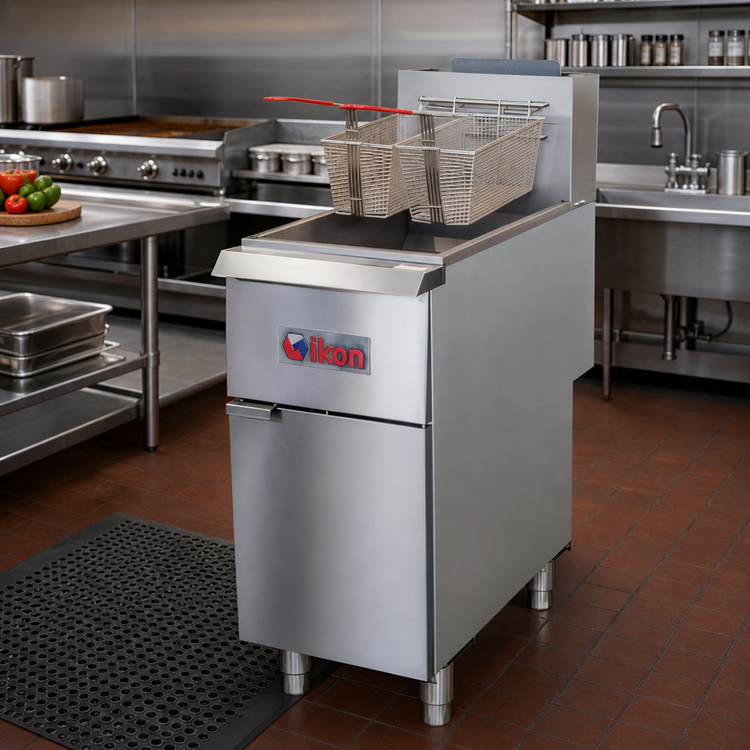

IKON Cooking IGF-35/40-NG 35-40 lb Natural Gas Tube Fryer with Millivolt Controls

SKU: IGF-35/40-NG
$940.40
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ranges Fryers Gas Fryers MVP Group LLC New Arrivals Restaurant Equipment Stock Pot Ranges

IKON Cooking IGF-35/40-NG 35-40 lb Natural Gas Tube Fryer with Millivolt Controls

Floor Model, 15-1/2 in. Wide, 90,000 BTU, 4 Casters Standard

This compact natural gas tube fryer delivers fast recovery, easy draining, and millivolt temperature control for busy commercial kitchens.

  • 35-40 lb oil capacity in a compact 15-1/2 in. wide footprint.
  • Tube heat exchange design helps speed recovery and create a large cold zone.
  • Millivolt thermostat controls temperatures from 200°F to 400°F without an electrical hookup.
  • Three 30,000 BTU heat tubes provide 90,000 BTU total on this natural gas model.
  • Stainless steel fry tank, front, and door are paired with galvanized sides and back for durability.
  • Includes twin nickel-plated baskets, a drain pipe holder, a full-port drain valve, and standard casters.
  • CSA-Sanitation, CSA Flame, and CSA Star certified.

Overall Dimensions:

15.5"W x 30.8"D x 44.4"H

Product Weight:

150.0 lb

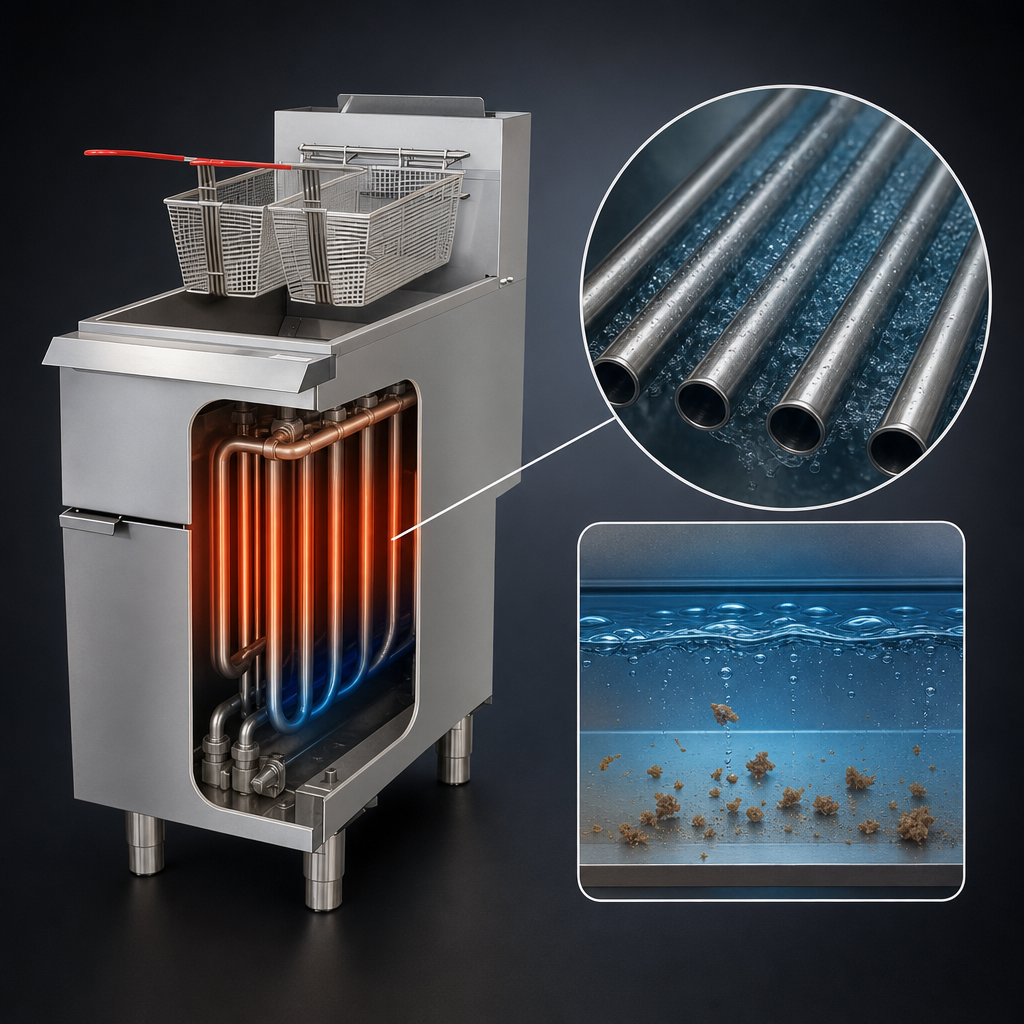

Tube Heat Exchange Design

Improves temperature recovery and helps maintain a large cold zone to catch food particles.

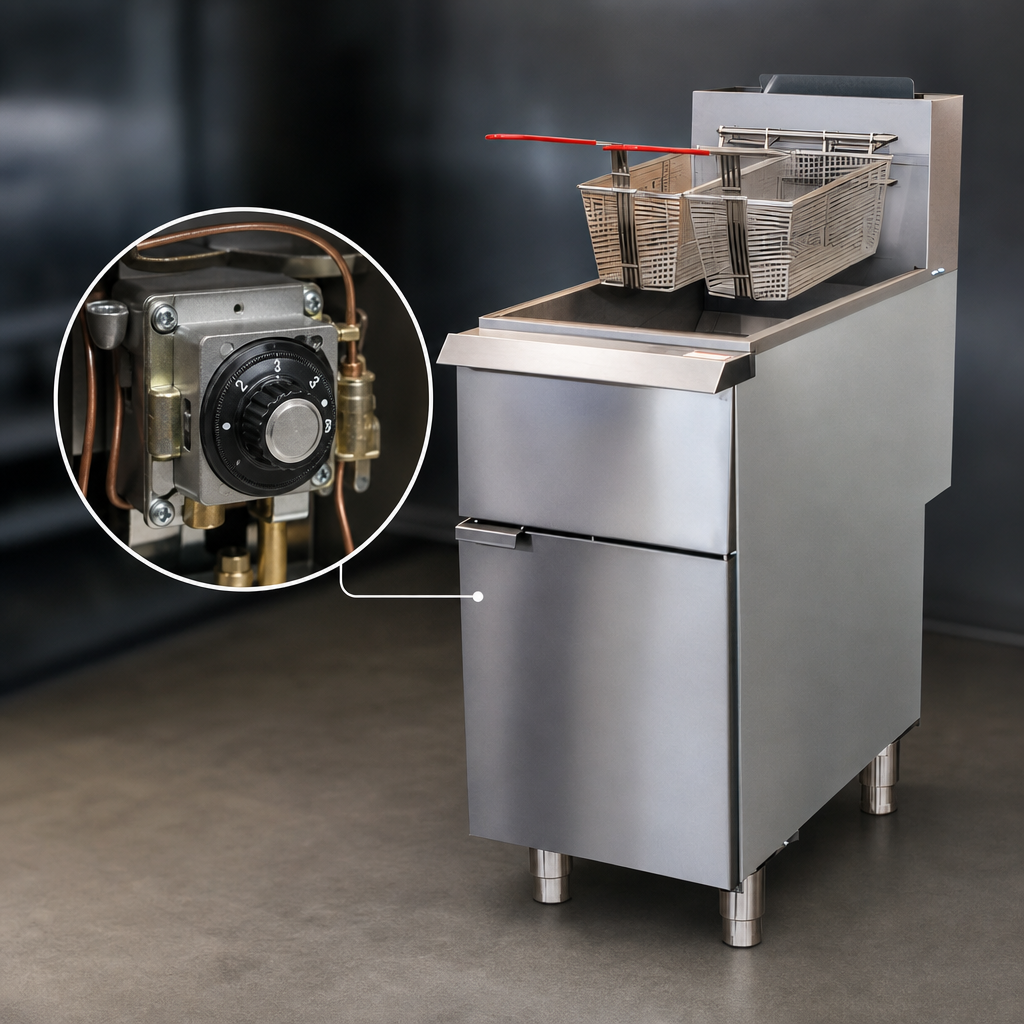

Millivolt Thermostat

Snap-action millivolt control provides reliable temperature control from 200°F to 400°F without requiring electrical power.

Stainless Steel Fry Tank

Pressure-blasted stainless steel fry tank is smoother and easier to clean.

High-Output Burner Package

Three 30,000 BTU heat tubes deliver 90,000 BTU total for demanding fry operations.

Full-Port Drain Valve

1-1/4 in. drain valve supports fast, complete oil draining.

Twin Nickel-Plated Baskets

Includes two baskets for convenient batch frying.

Standard Mobility Setup

Four 5 in. casters come standard, and adjustable stainless steel legs are available separately.

CSA Certifications

Certified to CSA-Sanitation, CSA Flame, and CSA Star standards.

Type Fryer
Style Tube Style
Installation Type Floor Model
Controls Millivolt
Capacity 35-40 lb
Heat Tubes 3
Temperature Range 200°F to 400°F
BTU 90,000 BTU
Gas Type Natural Gas
Gas Connection Size 3/4 Inch NPT
Gas Inlet Pressure 4 Inches W.C.
Material Stainless Steel
Finish Stainless Steel Front and Door; Galvanized Steel Sides and Back
Selling Unit Each
Units Per Case 1
Shipping Width 16 Inches
Shipping Depth 31 Inches
Shipping Height 45 Inches
Shipping Weight 150 lb.

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download

Frequently Asked Questions

This model is designed for approximately 35-40 lb of oil.
This specific model uses natural gas.
The millivolt thermostat controls temperatures from 200°F to 400°F.
A 3/4 in. NPT gas connection is required, and natural gas inlet pressure is 4 in. W.C.
Yes, it includes two nickel-plated baskets.
No, the units are not supplied with conversion kits.
