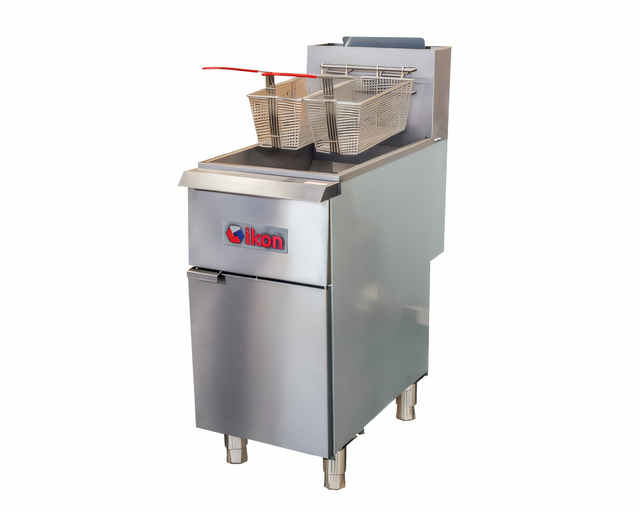

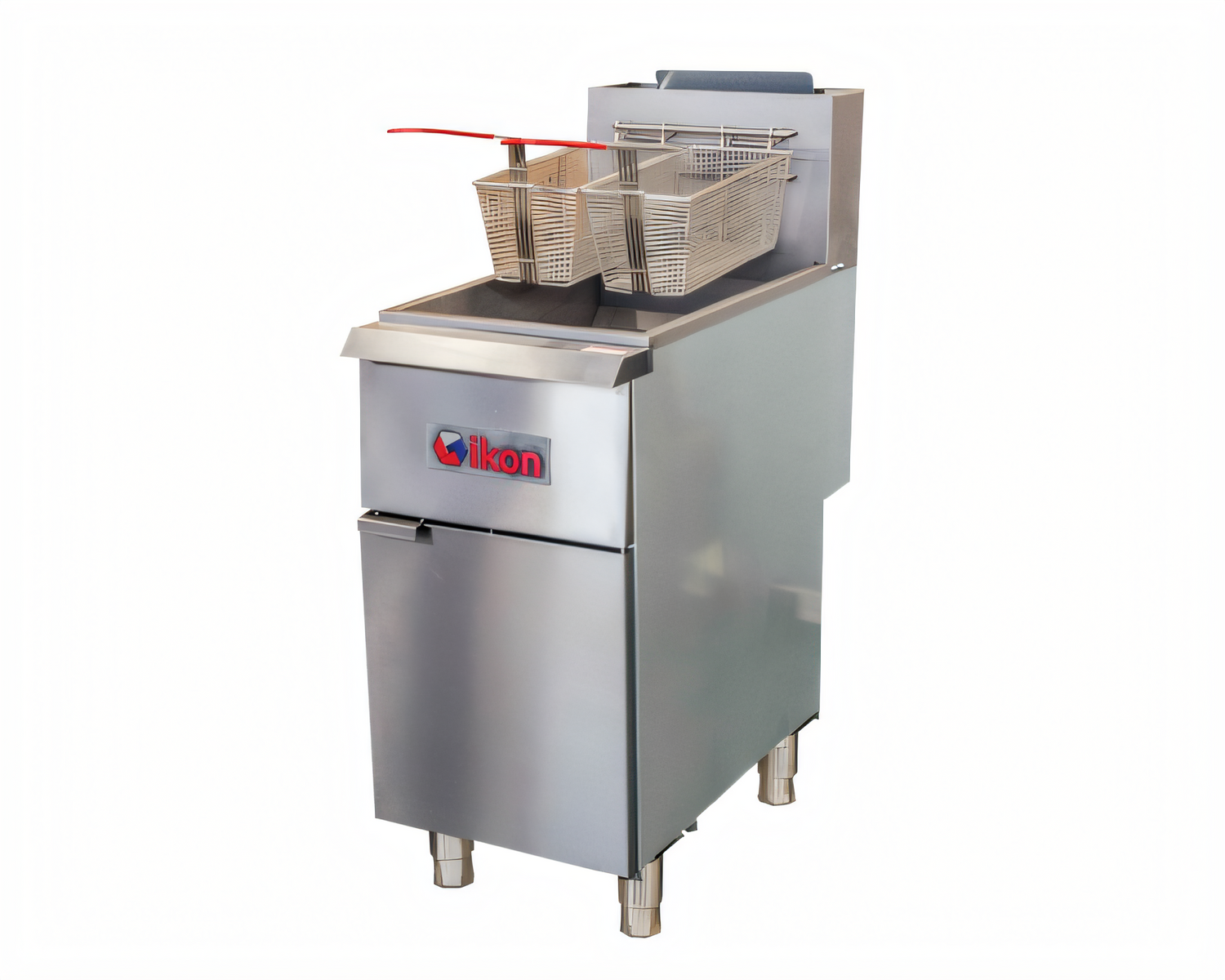

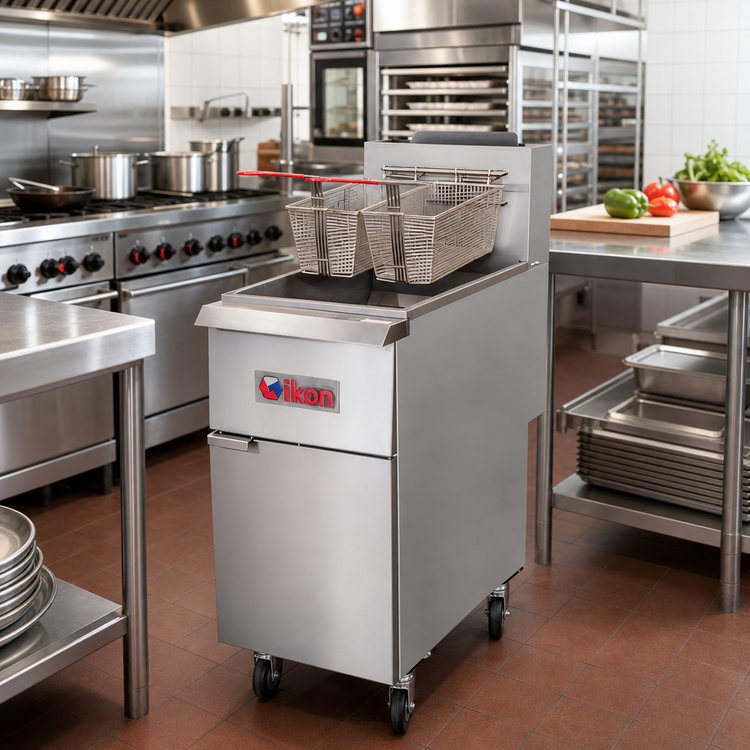

IKON Cooking 35-40 lb LP Gas Floor Fryer with Millivolt Controls and Casters

Tube-Style, 90,000 BTU, 200°F-400°F, Stainless Steel Fry Tank

This compact LP fryer delivers 90,000 BTU of tube-fired heat and a large cold zone for fast recovery and cleaner frying.

  • 35-40 lb oil capacity in a compact 15.5-inch wide footprint.
  • Millivolt snap-action thermostat adjusts from 200°F to 400°F.
  • Three 30,000 BTU heat tubes deliver 90,000 BTU total for strong recovery.
  • Stainless steel fry tank with peened finish helps simplify cleanup.
  • Includes twin nickel-plated baskets, drain pipe holder, full-port drain valve, and 4 casters.
  • LP gas model with 3/4" NPT connection and 10" W.C. inlet pressure; natural gas version also available.

Overall Dimensions:

15.5"W x 30.8"D x 44.4"H

Product Weight:

150.0 lb

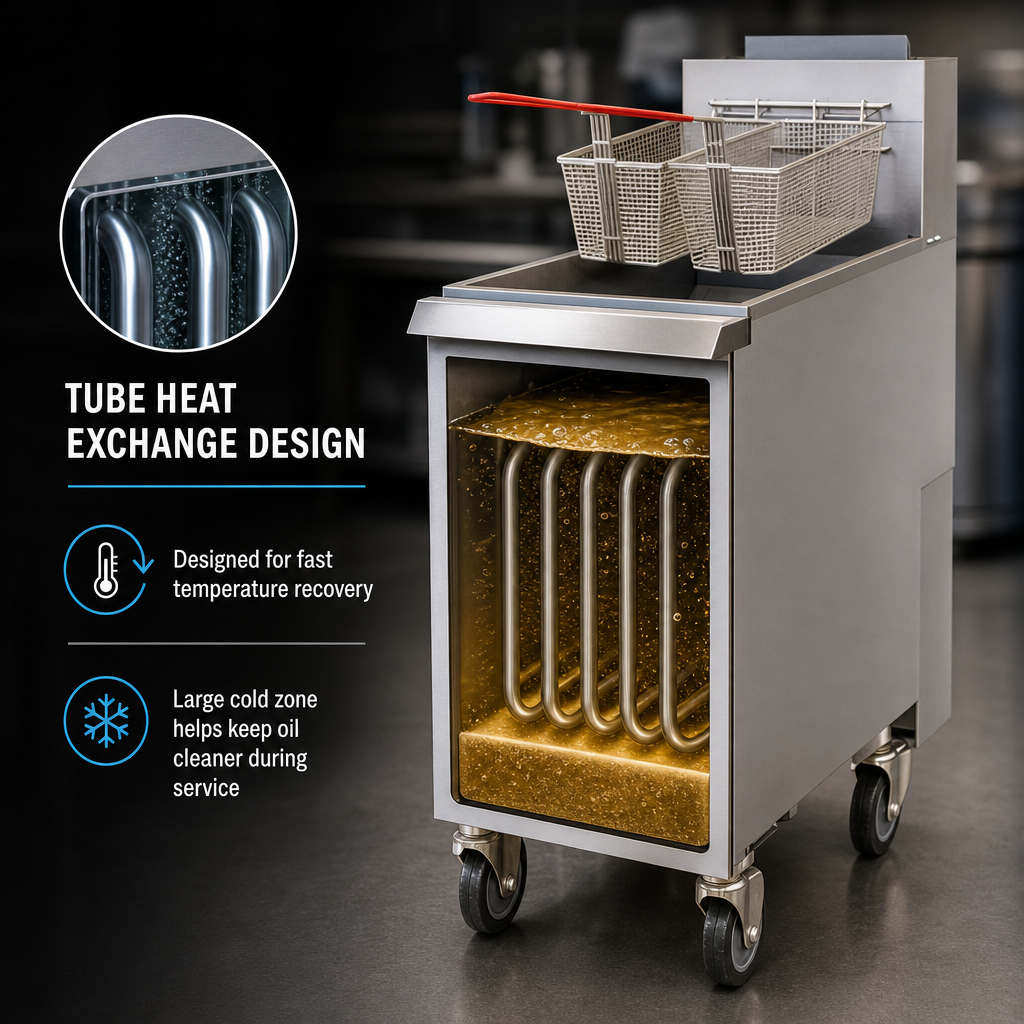

Tube Heat Exchange Design

Designed for fast temperature recovery and a large cold zone to help keep oil cleaner during service.

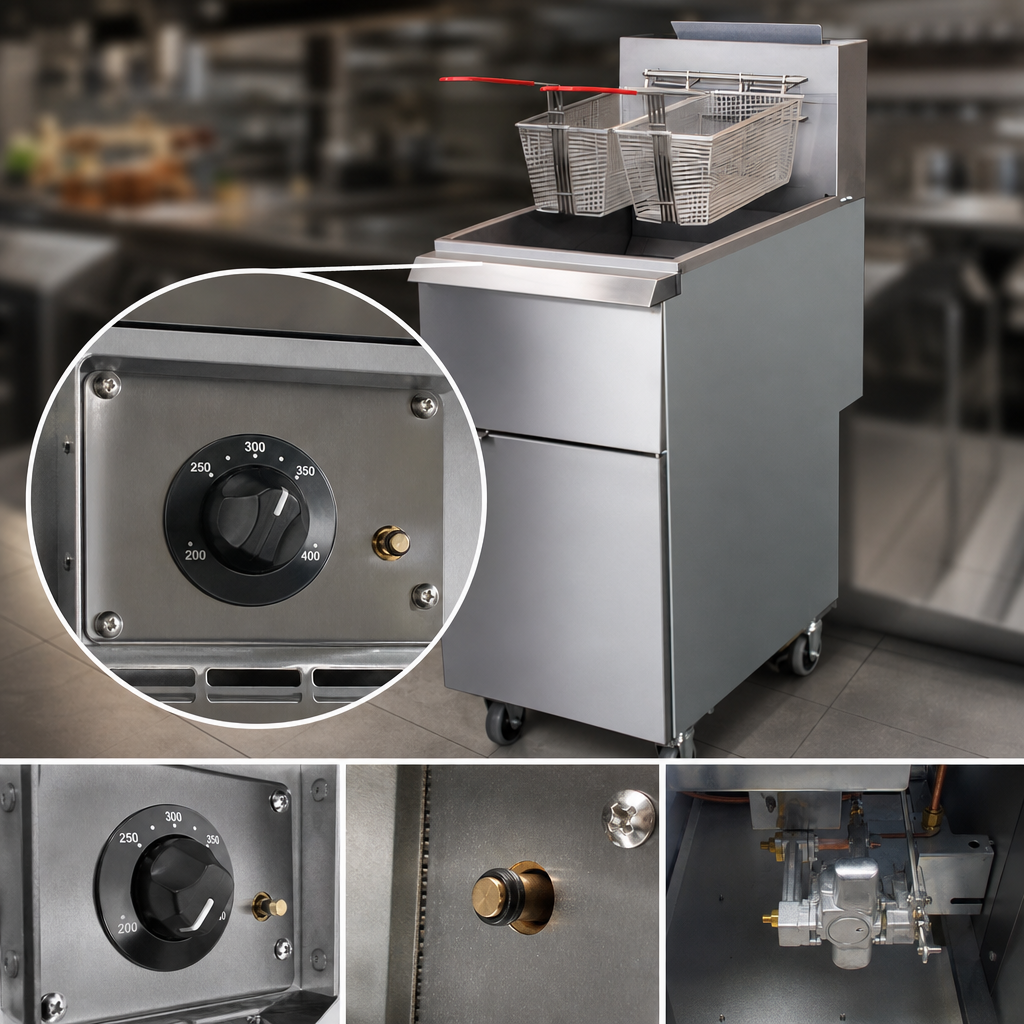

Millivolt Thermostat Control

Snap-action thermostat provides adjustable control from 200°F to 400°F.

35-40 lb Oil Capacity

Compact frying capacity suited to kitchens that need a smaller footprint without sacrificing output.

90,000 BTU Output

Three 30,000 BTU heat tubes provide powerful, even heating.

Stainless Steel Fry Tank

Pressure-blasted (peened) stainless steel tank surface is intended to be smoother and easier to clean.

Durable Exterior Construction

Stainless steel front and door are paired with galvanized steel sides and back for a durable build.

Drain and Oil Management

Features a 1-1/4" full-port drain valve and a drain pipe holder attached to the inside door.

Included Baskets and Mobility

Two nickel-plated baskets and four 5" casters come standard.

LP Gas Configuration

Built for liquid propane service with a 3/4" NPT gas connection and 10" W.C. inlet pressure.

Type Fryer
Style Tube-Style
Installation Type Floor Model
Capacity 35-40 Pounds
Controls Millivolt
Temperature Range 200°F - 400°F
Heat Tubes 3
BTU 90,000 BTU
Gas Type Propane
Gas Connection Size 3/4 Inch NPT
Gas Inlet Pressure 10 Inches W.C.
Material Stainless Steel
Interior Finish Peened Stainless Steel
Finish Stainless Steel Front and Door; Galvanized Steel Sides and Back
Shipping Width 16 Inches
Shipping Depth 31 Inches
Shipping Height 45 Inches
Shipping Weight 150 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download

Frequently Asked Questions

This model has a 35-40 lb oil capacity.
It is designed for liquid propane (Propane) service.
The millivolt thermostat is adjustable from 200°F to 400°F.
The fryer uses a 3/4" NPT gas connection and requires 10" W.C. inlet pressure for propane.
Standard equipment includes two nickel-plated baskets, a drain pipe holder, and four casters.
No. The units are not supplied with conversion kits.
