MVP Group LLC F-22/C Jet-Tech Dishwashers
Description

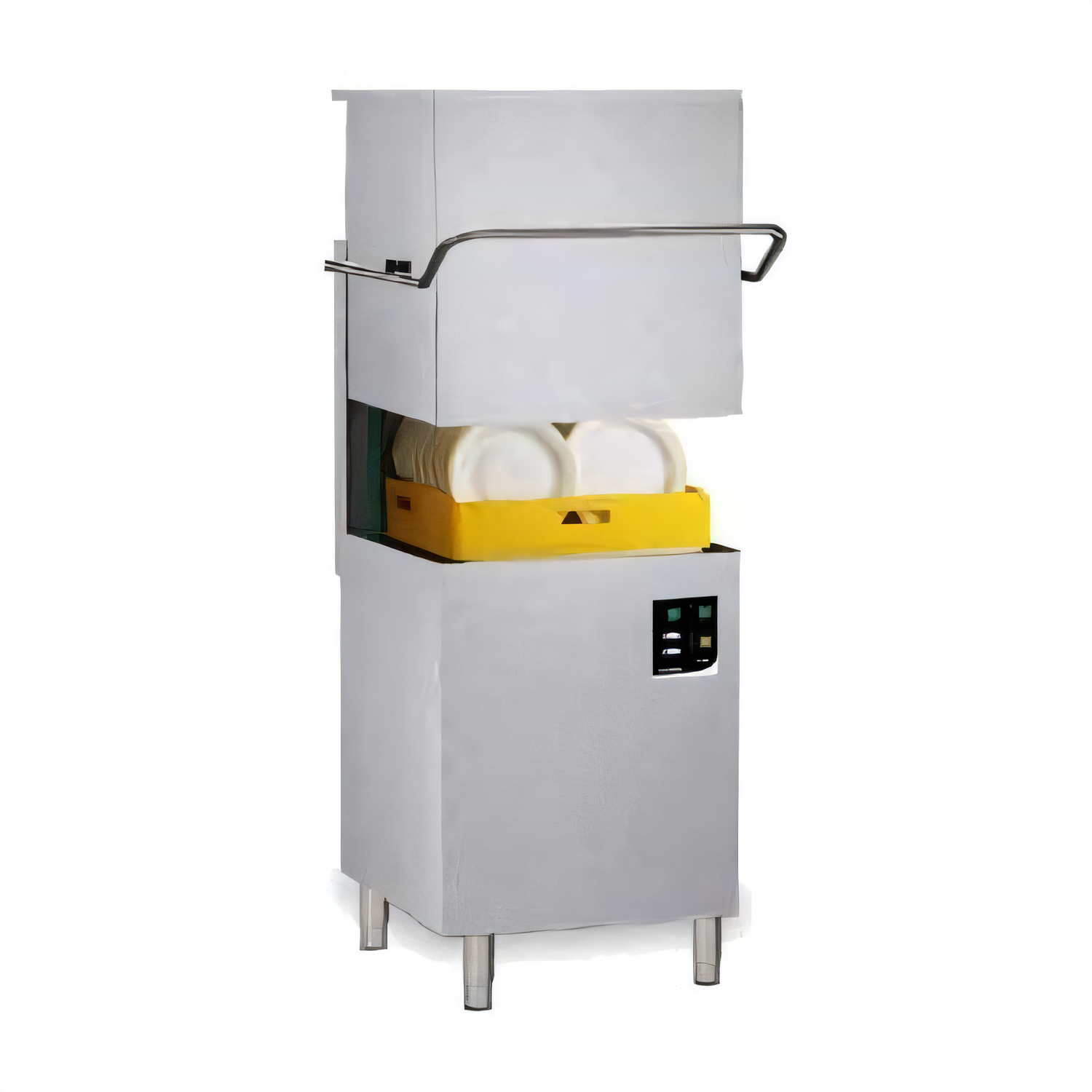

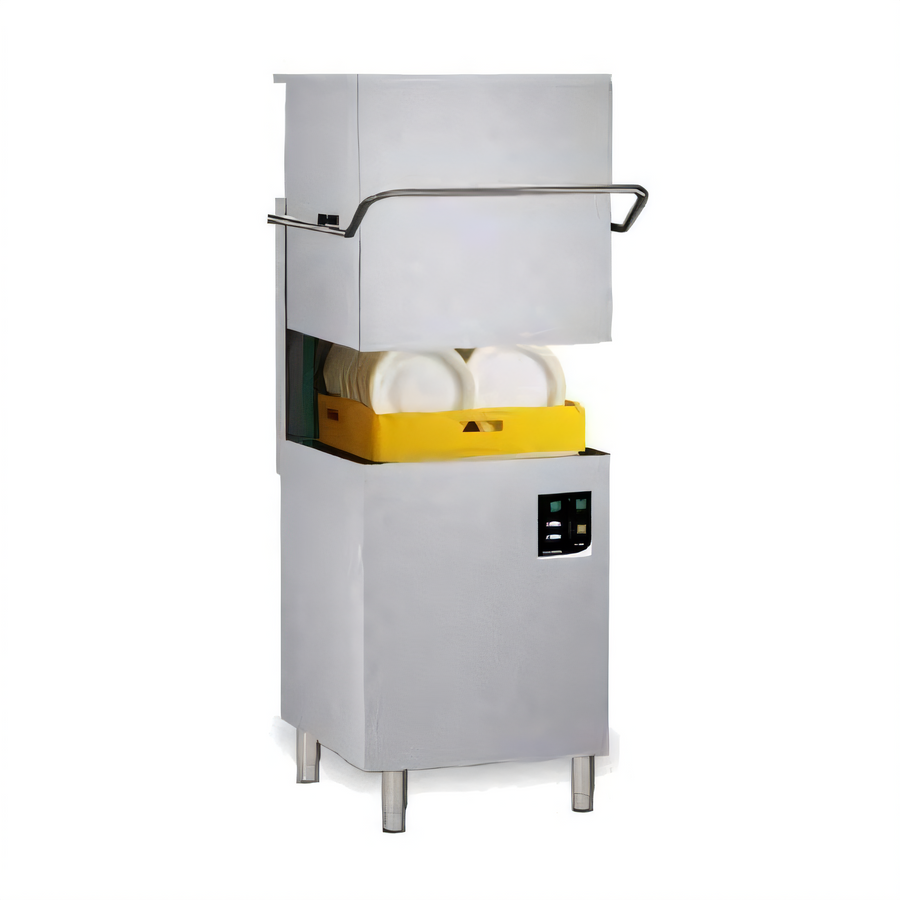

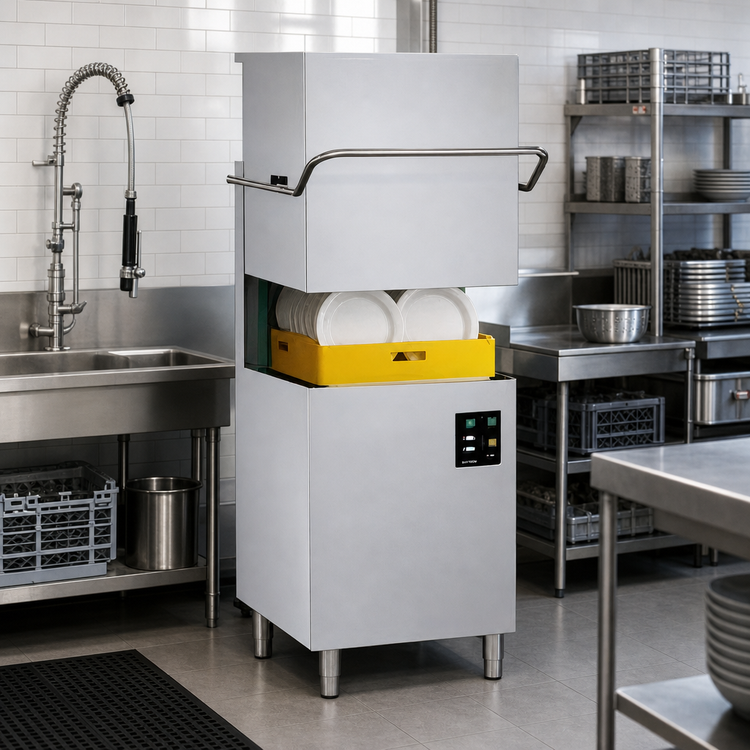

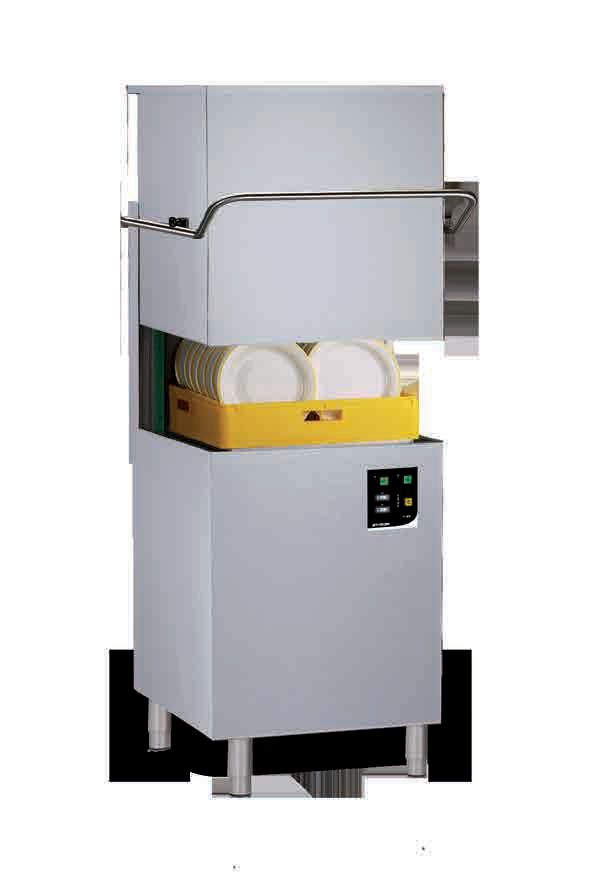

Jet-Tech F-22C High-Temperature Door-Type Dishwasher

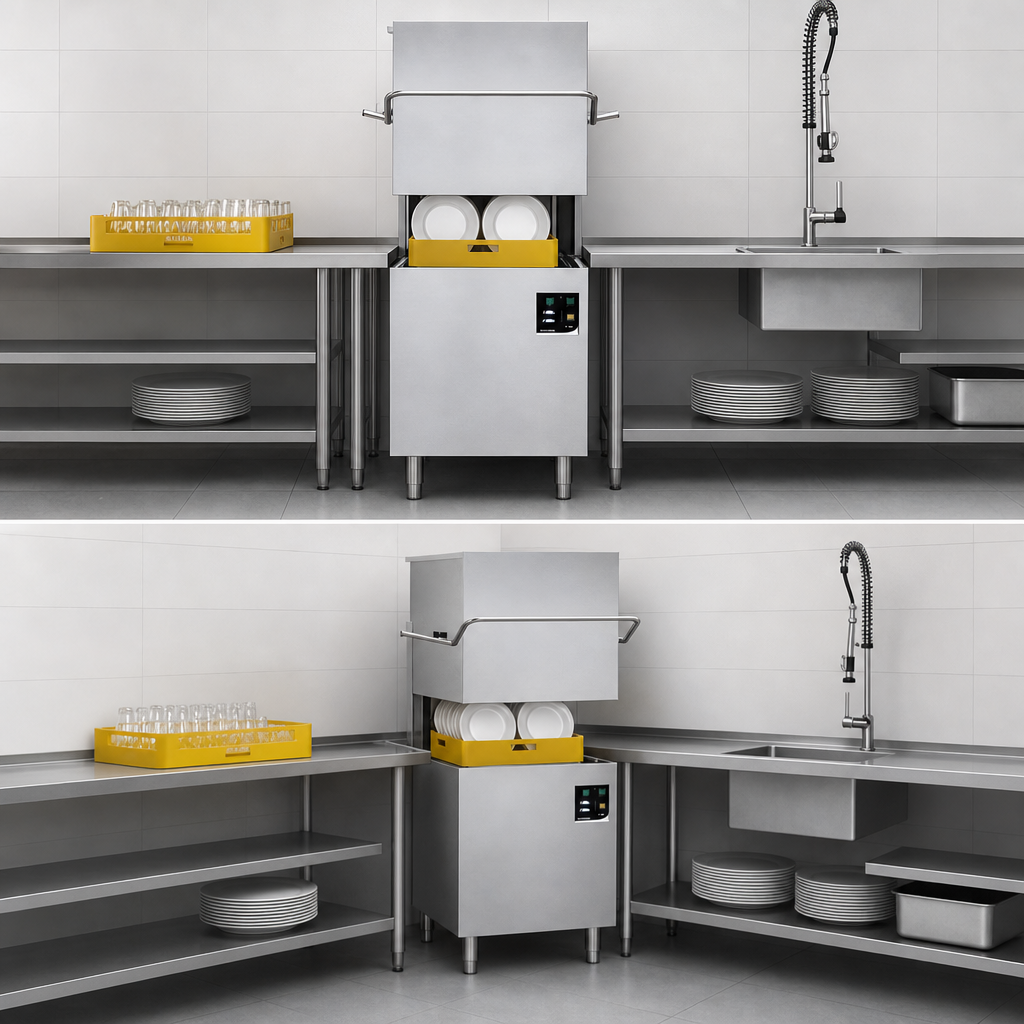

52 racks/hr • Built-in 185 °F booster • 230 V / 1 PhDesigned for high-volume food-service operations, the Jet-Tech F-22C delivers NSF-approved sanitizing performance while keeping energy and water consumption impressively low. Its field-convertible straight-thru or corner configuration lets you optimise any dishroom layout without compromising throughput.
Highlights
- Processes up to 52 racks per hour with selectable 1, 2 or 3-minute cycles

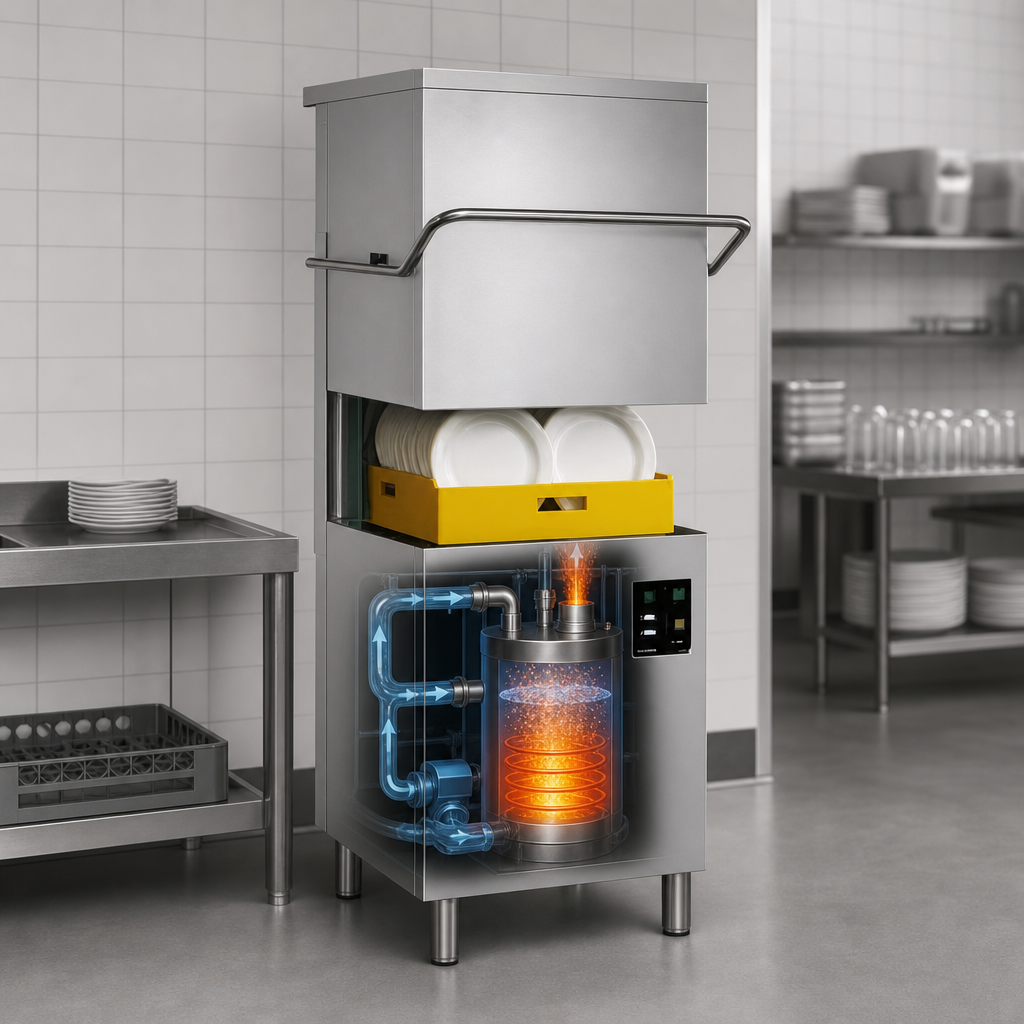

- Integral booster heater achieves a 185 °F (85 °C) final rinse—no chemical sanitizer required
- 1 HP wash pump plus upper & lower stainless spray arms for uniform coverage
- Fully enclosed, double-wall 304 stainless steel cabinet—only 58 dBA
- Built-in detergent, rinse-aid and drain pumps—nothing extra to mount or wire
- Deep-drawn tank with dual scrap filters protects the pump and speeds clean-up
- Slide-out front control drawer with analog wash / rinse thermometers
- Low 0.74 gal (2.8 L) water use per cycle to minimise utility costs
- Ships with (1) 20" × 20" open rack & (1) 20" × 20" peg rack
Specifications
| Model | F-22C |
|---|---|
| Type | Door / hood – straight-thru or corner |
| Production | Up to 52 racks /hr |
| Cycle Times | 1, 2 or 3 min |
| Rack Size | 20" × 20" (500 × 500 mm) |
| Wash Clearance | 16.5" (420 mm) |
| Water Consumption* | 0.74 gal / 2.8 L per cycle |
| Wash Pump | 1 HP (0.75 kW) |
| Tank / Booster Heaters | 4 kW / 4 kW |
| Total Load | 4.8 kW • 23 A |
| Electrical | 230 V / 1 Ph / 50-60 Hz |
| Inlet Water Pressure | 29 – 73 PSI (2 – 5 bar) |
| Noise Level | 58 dBA |
| Exterior Dimensions | 25.4" W × 28.0" D × 78.5" H (645 × 710 × 1995 mm) |
| Net Weight | 287 lb (130 kg) |
*Water consumption at 2 bar incoming pressure.
What’s in the box
- (1) 20 × 20 in. universal/open rack
- (1) 20 × 20 in. peg/plate rack
- Factory-installed detergent & rinse-aid pumps
- Operator’s manual
Jet-Tech is a division of MVP Group LLC. Specifications are subject to change without notice.
