MVP Group LLC F-16DP Jet-Tech Undercounter Dishwashers
Description

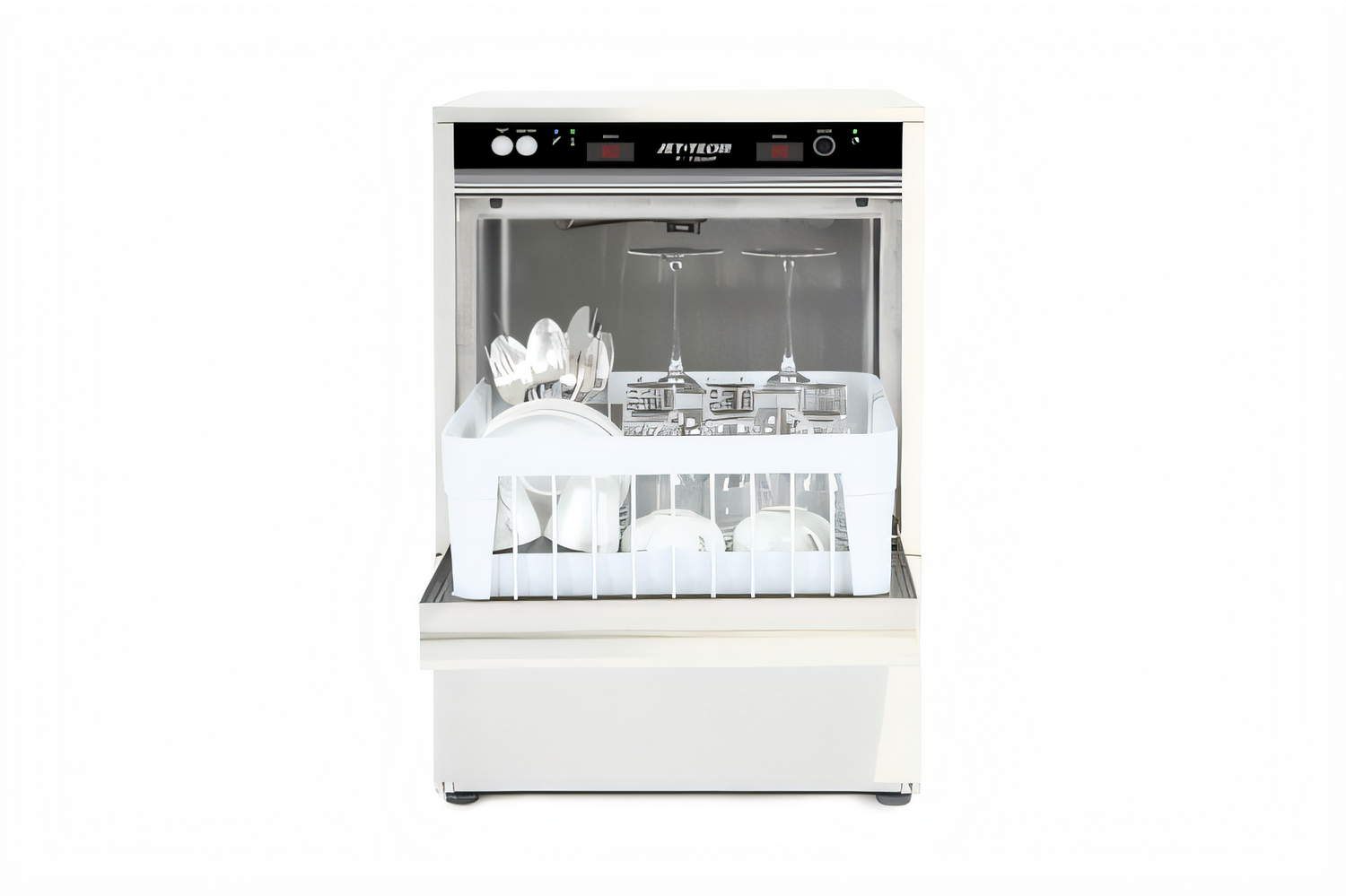

Jet-Tech F-16DP High-Temp Undercounter Cup & Glasswasher
24 racks /hr • 10 in (25 cm) clearance • ENERGY STAR®Perfect for bars, tasting rooms, cafés, and back-of-house stations that need spotless glassware fast, the Jet-Tech F-16DP packs professional cleaning power into a compact 20 ¼ in footprint. A built-in electric booster delivers a 185-194 °F final rinse for chemical-free sanitation, while double-wall stainless steel construction keeps noise to a whisper-quiet 58 dB.
Top Features
- Processes up to 24 racks per hour (145-sec wash + 15-sec rinse cycle).
- High-temperature sanitizing final rinse—no chemical sanitizer required.

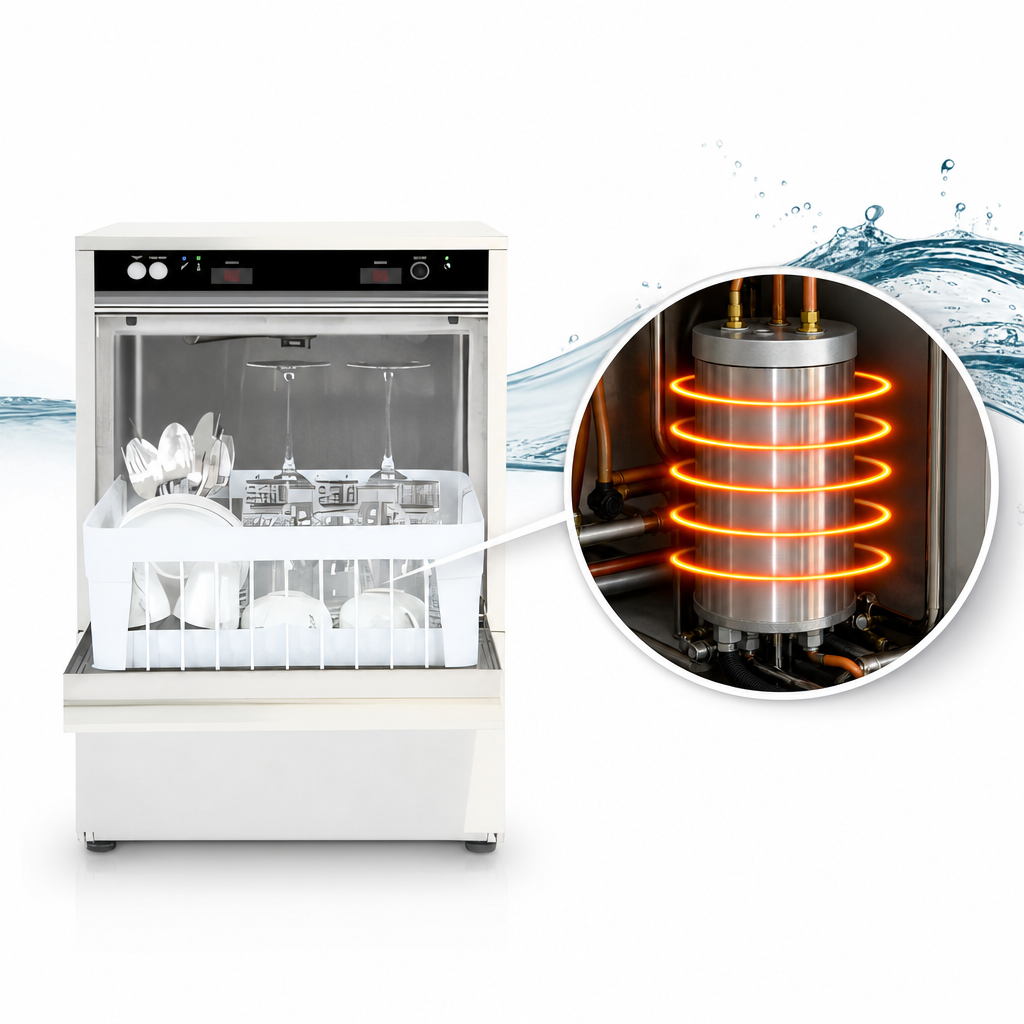

- Integrated 2.4 kW booster heater with 0.79 gal tank reaches 185-194 °F.
- Fully automatic operation with auto-fill, auto-drain, and built-in detergent & rinse additive pumps.
- Front-mounted control panel with easy-to-read analog wash & rinse temperature gauges.

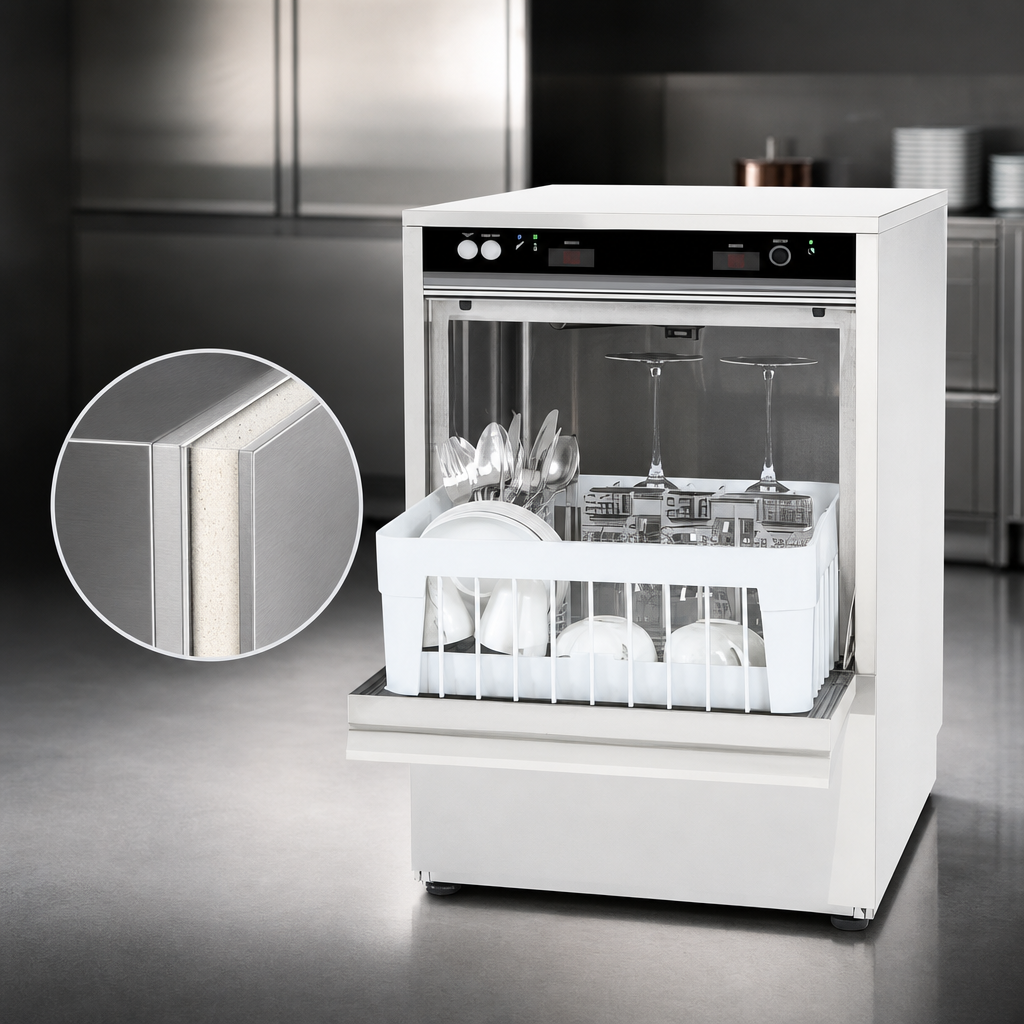

- Double-wall, 304 18/10 stainless construction for durability and reduced heat/noise loss.
- Revolving upper & lower stainless wash/rinse arms—tool-free removal for quick cleaning.
- ½ HP wash pump protected by an easily removable overflow filter.
- ENERGY STAR®, cETLus & ETL-Sanitation listed for efficiency and safety.
Included Racks
- (1) 16" × 16" open combination rack for cups, bowls & utensils
- (1) 16" × 16" 16-compartment angled glass rack (4 × 4 configuration)
Specs at a Glance
| Exterior dimensions | 20 ¼" W × 20 ¼" D × 29 ¾" H |
|---|---|
| Door opening / max glass height | 10" (25 cm) |
| Rack size / capacity | 16" × 16" (15.75" usable) / 1 rack per cycle |
| Cycle time | 145 s wash + 15 s rinse (24 racks /hr) |
| Water use | 0.53 gal per cycle • 15 gal per hour |
| Wash tank | 3.0 gal capacity • 150 °F operating temp • 2 kW element |
| Booster tank | 0.79 gal capacity • 2.4 kW element |
| Pump motor | 0.5 HP, thermal overload protected |
| Noise level | 58 dB (double-wall insulation) |
| Electrical | 208-240 V / 60 Hz / 1-ph • 12.9 A • 2.6 kW max |
| Water inlet | ¾" garden-hose connector (hose included) – 140 °F, 30 psi |
| Drain connection | 1" ID flexible hose (included), max height 36" |
| Shipping weight | 116 lb (53 kg) |
| Certifications | ENERGY STAR®, cETLus, ETL-Sanitation |
| Warranty | 1 year parts & labor (see Owner’s Manual) |
Optional Accessories
- Pressure-reducing valve (PRV) kit
- Drain-water tempering kit
- Additional Jet-Tech racks & baskets (models 30012, 30116, 30026, 30027, 30035, 30037)
Specifications subject to change without notice. Always confirm utility requirements before installation.
