MVP Group LLC EV22 Jet-Tech Dishwashers
Description

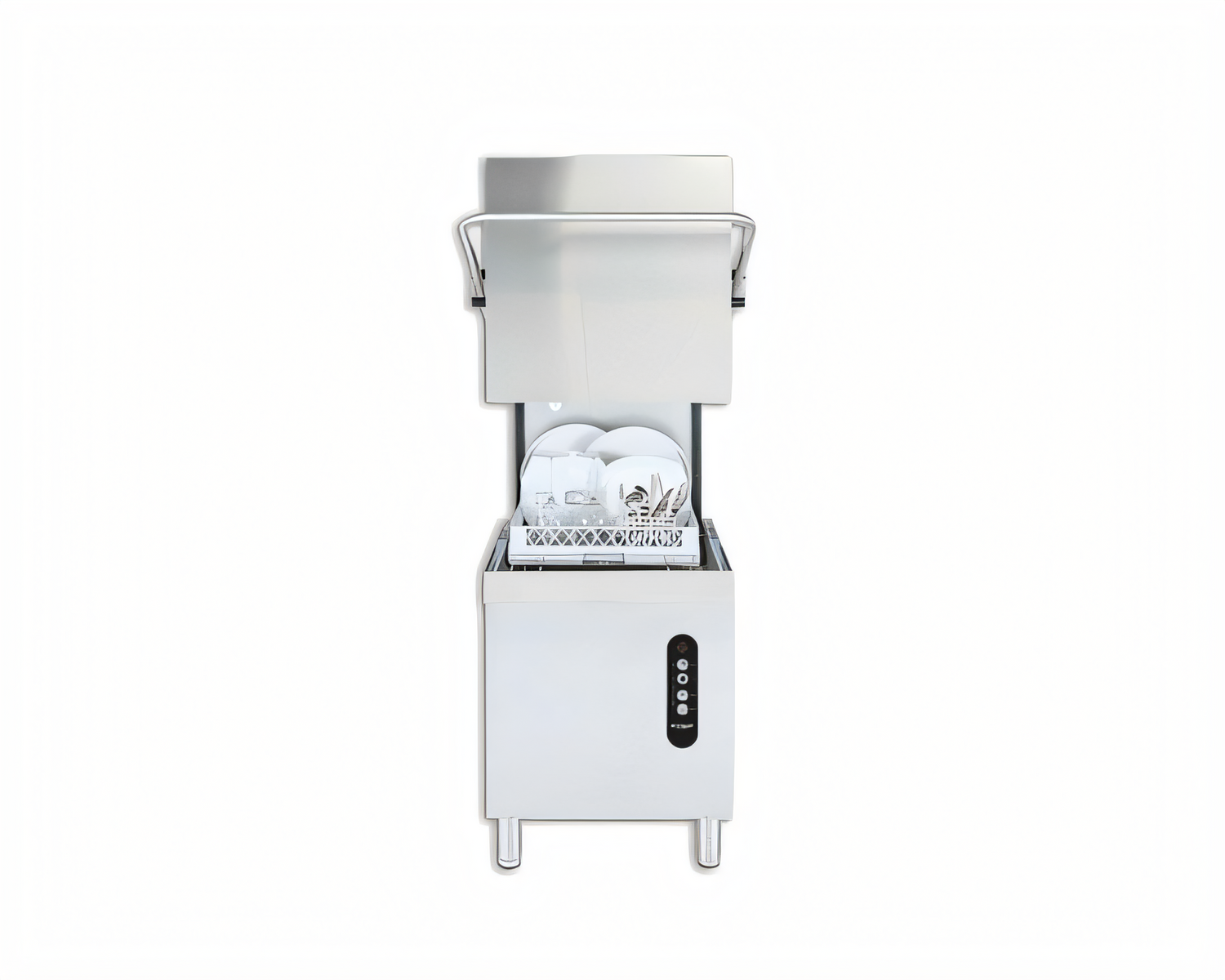

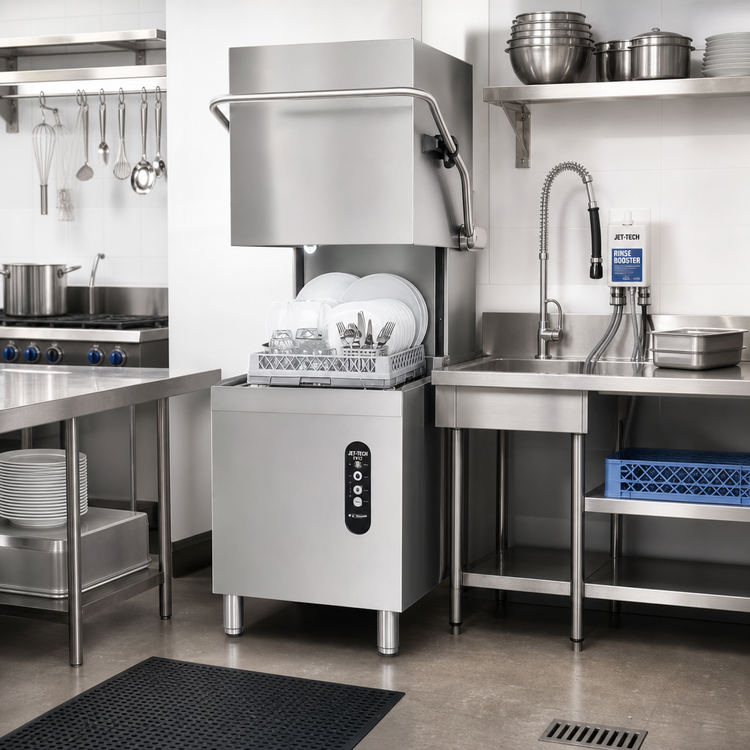

Jet-Tech EV22 High-Temp Door-Type Dishwasher
30 racks/hr • 0.85 gal per cycle • ENERGY STAR® qualifiedDesigned for today’s busy food-service operations, the Jet-Tech EV22 delivers fast, NSF-approved sanitizing results while slashing water, energy and chemical costs. A powerful 1 HP wash pump, built-in 185 °F booster and advanced dFilter® micro-filtration system keep every rack spotless—shift after shift.
Why the EV22?

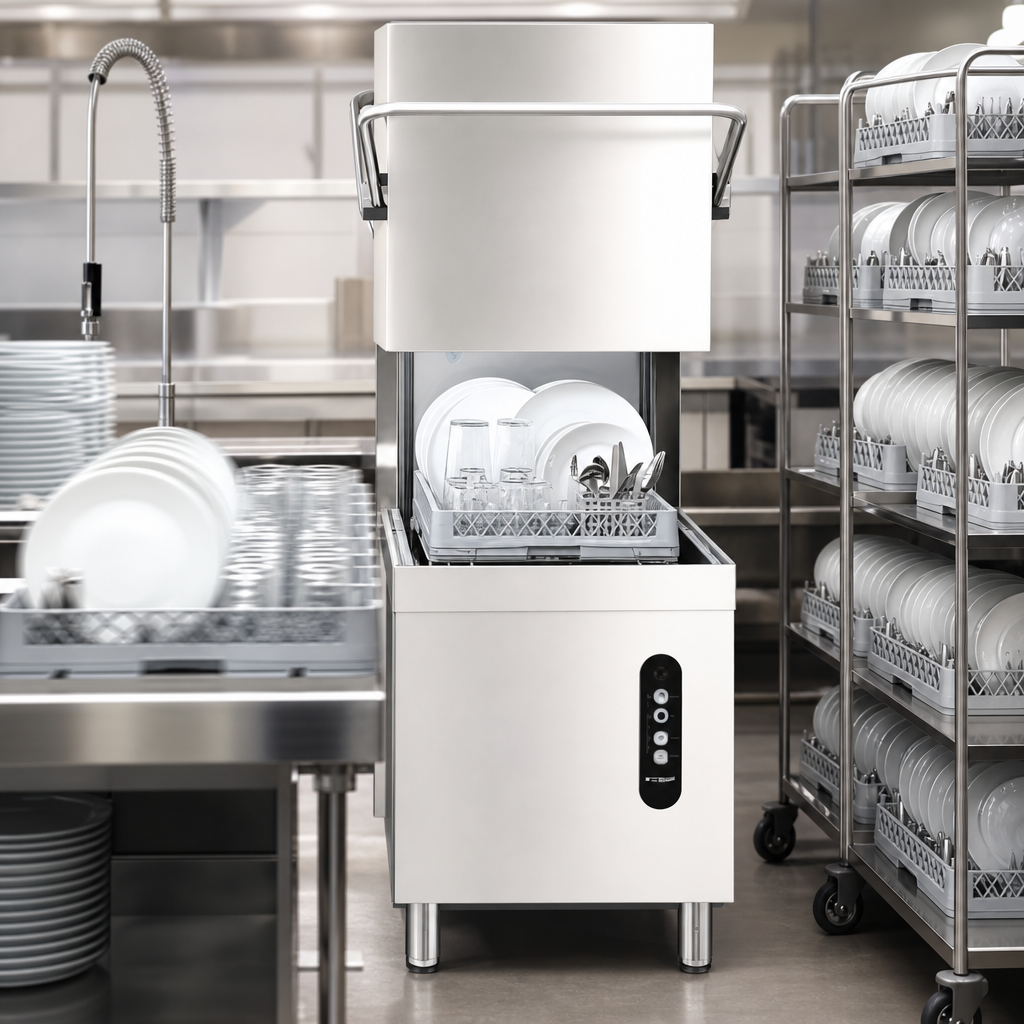

- Up to 30 racks per hour with selectable 2- or 3-minute wash cycles.

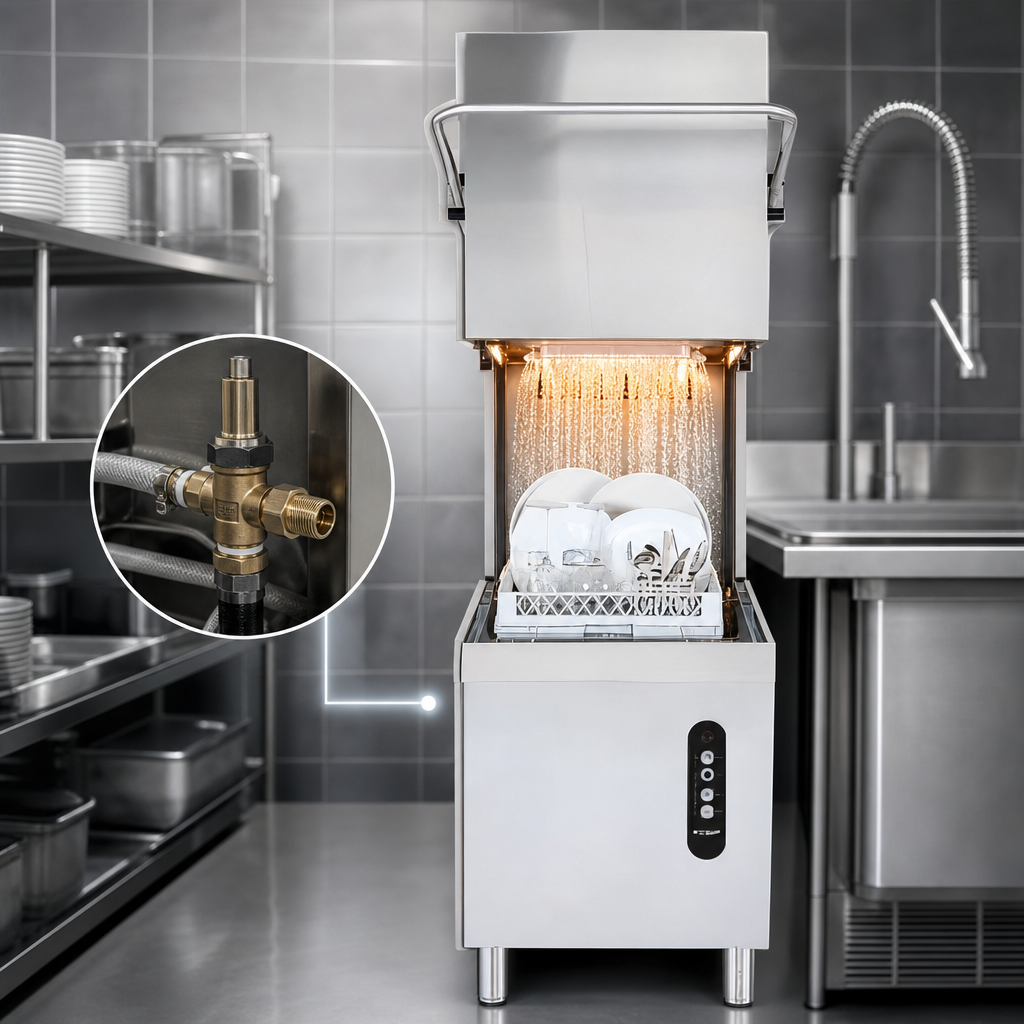

- High-temperature sanitation—built-in 2.62 gal booster delivers a 185-194 °F final rinse.
- dFilter® dual-stage filtration removes both large debris and micro-particles for cleaner wash water and longer component life.
- Ultra-low consumption: just 0.85 gal (2.7 L) of fresh water per cycle.
- 1 HP wash pump and alternating heater elements provide maximum cleaning power without peak-load spikes.
- Rugged stainless-steel construction (AISI 304, 16-ga) with scotch-brite finish—built for years of heavy use.
- Front digital display shows real-time wash & rinse temperatures for easy HACCP recording.
- Convertible installation—field-changeable between straight-through or corner setup.
- Meets cETLus, ETL-Sanitation & ENERGY STAR® requirements.
Standard equipment
- (1) 20" × 20" open combination rack
- (1) 20" × 20" peg dish rack
- Adjustable bullet feet for quick leveling
- Automatic fill & water-level regulation
- Door-activated safety micro-switch
Technical specifications
| Model | EV22 (Jet-Tech Evolution Series) |
|---|---|
| Rack size / capacity | 19.75" × 19.75" • up to 30 racks/hr |
| Cycle times | 2 or 3 min wash + 12-15 sec rinse |
| Water use | 0.85 gal (2.7 L) per cycle @ 30 psi |
| Wash temperature | 150 °F (65 °C) – electronically controlled |
| Final-rinse temperature | 185-194 °F (85-90 °C) |
| Incoming water | Min 122 °F (50 °C) • 30 psi (2 bar) |
| Wash tank capacity | 5.25 gal (21 L) • 4 kW heater |
| Booster capacity | 2.62 gal (10 L) • 4 kW (1-ph) / 6 kW (3-ph) heater |
| Wash pump | 1 HP |
| Electrical | 208-240 V / 60 Hz, 1-ph 4.8 kW (19.8-22.8 A) or 3-ph 6.8 kW (16.2-18.7 A) |
| Dimensions (W × D × H) | ≈ 24.8" × 28.1" × 58.7" (75.1" hood open) |
| Door clearance | 16.75" |
| Net weight / shipping | 308 lb (140 kg) / 340 lb (154.5 kg) |
| Certifications | cETLus • ETL-Sanitation • ENERGY STAR® |
Popular options & accessories
- Pressure-reducing valve (PRV)
- Drain-water tempering kit
- Additional flatware or glass racks
Utility connections and field wiring must be performed by a licensed professional in accordance with local codes. Always verify electrical phase and voltage before ordering.
