MVP Group LLC C1418E Sierra Conveyor Ovens
Description

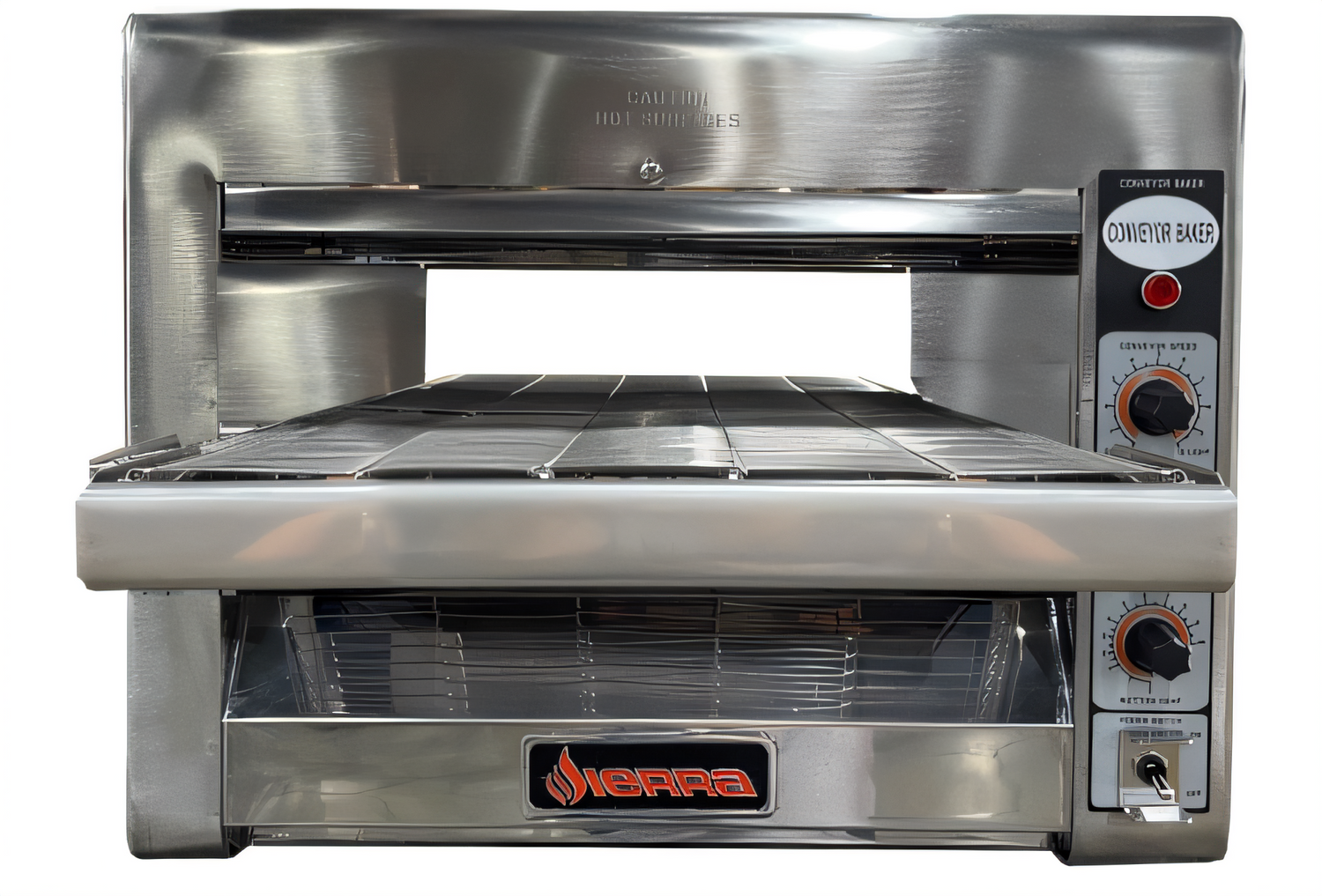

Sierra C1418E 14" Electric Countertop Conveyor Oven
3.6 kW • 240 V / 1-Phase • Single-DeckThe Sierra C1418E brings high-volume conveyor cooking to any back-of-house space— without the footprint of a full-size deck oven. A 14 inch stainless-steel conveyor belt, adjustable top & bottom infrared heaters, and variable speed control give you precision over everything from bagels and sandwiches to blistered-crust pizzas. Built entirely from commercial-grade stainless steel, this compact workhorse is ideal for cafés, ghost kitchens, food trucks, and anywhere an extra oven line can boost throughput.
Standard Features
- 14" (355 mm) stainless-steel conveyor belt with 41" travel length
- Independent top & bottom heat controls for perfectly balanced bakes
- 10-position dial delivers 158 – 500 °F (70 – 260 °C) operating range
- Variable belt speed: 1 min 20 sec to 10 min 05 sec pass-through time
- Detachable product tray speeds loading & unloading
- Full-width removable drip pan for fast, sanitary clean-up
- Simple mechanical on/off master switch—no complicated programming
- All-stainless body is only 18.5" wide; fits easily on any 24" prep table
- cETLus listed for electrical safety & sanitation
Throughput Guide (per hour)
- 16 × 14" pizzas
- 19 × 12" pizzas
- 25 × 9" pizzas
- + bagels, cookies, garlic bread, sandwiches & more
Dial Settings & Approx. Bake Time*
| Dial | Temp Range (°F) | Pass-Through Time |
|---|---|---|
| 1 | 158-194° | 10 min 05 sec |
| 2 | 194-230° | 8 min 50 sec |
| 3 | 266-284° | 7 min 45 sec |
| 4 | 284-311° | 6 min 35 sec |
| 5 | 311-356° | 5 min 45 sec |
| 6 | 365-401° | 5 min 05 sec |
| 7 | 401-428° | 4 min 20 sec |
| 8 | 464-500° | 3 min 30 sec |
| 9 | 482-500° | 1 min 45 sec |
| 10 | 482-500° | 1 min 20 sec |
*Times are based on factory belt speed settings and may vary with product load.
Technical Specifications
| Model | C1418E |
|---|---|
| Exterior Dimensions (W × D × H) | 18.5" × 41" × 15.7" (470 × 1040 × 400 mm) |
| Interior Baking Chamber | 17.9" × 14.3" × 3.3" (455 × 363 × 84 mm) |
| Conveyor Opening (H × W) | 3.3" × 14.3" (83 × 363 mm) |
| Power | 3.6 kW | 15 A |
| Electrical | 240 V / 60 Hz / 1-Phase | NEMA 6-20P |
| Temperature Range | 158 – 500 °F (70 – 260 °C) |
| Net / Gross Weight | 53 lb (24 kg) / 61 lb (27.7 kg) |
| Construction | Full stainless-steel cabinet, belt, tray & hardware |
| Safety & Approvals | cETLus listed |
| Warranty | 1-year limited parts & labor |
