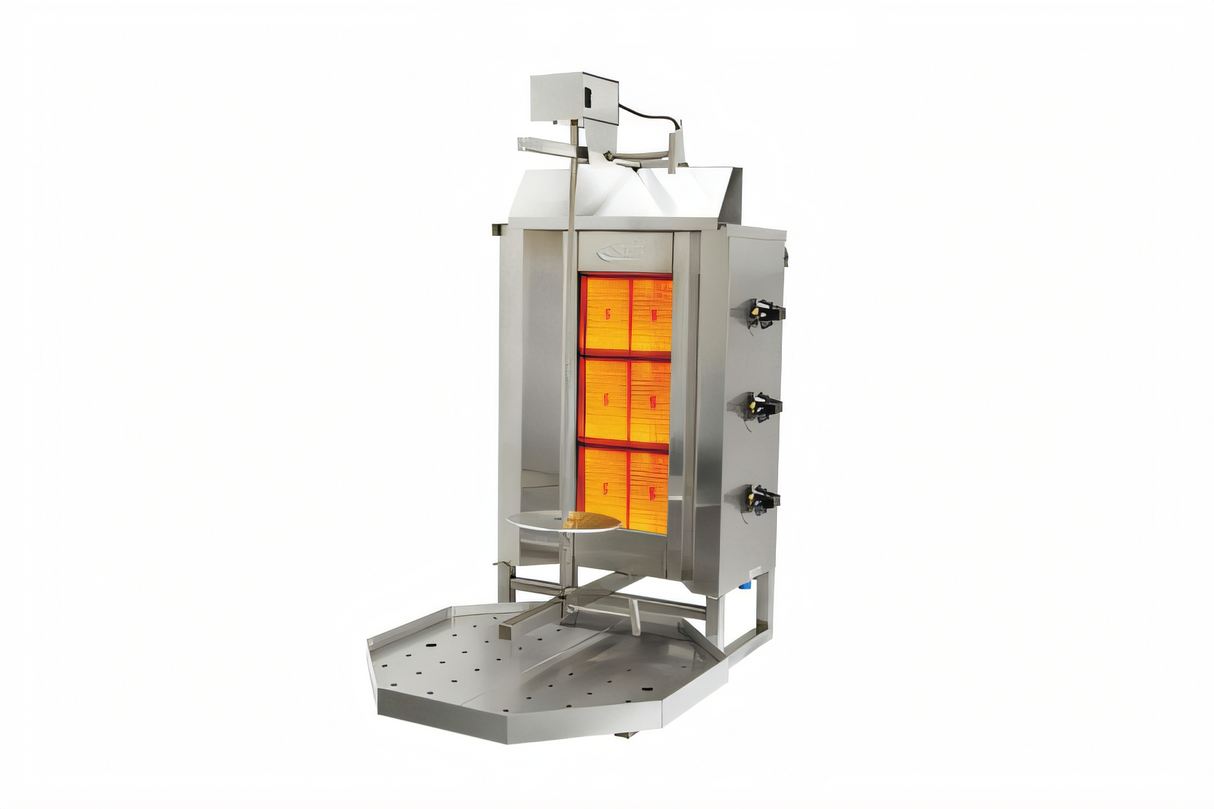

Axis AX-VB3 Natural Gas Vertical Broiler with 3 Infrared Burners, 24-Inch Spit, 88 lb Capacity

304 stainless steel construction with adjustable heat deflectors, dual rails, and LP conversion kit included.

Built for high-volume roasting, this vertical broiler combines three individually controlled infrared burners with an adjustable dual-rail spit system for precise, efficient cooking.

  • Three individually controlled infrared burners provide flexible heat control for different cuts and load sizes.
  • 88 lb. meat capacity and a 24" spit suit busy rotisserie-style service.
  • Adjustable heat deflectors and an E-Z slide dual-rail system let operators move food closer to or farther from the heat source.
  • Top-mounted enclosed motor stays away from fats and can rotate clockwise or counter-clockwise.
  • Stainless steel construction, unitized base, removable drip tray, and included octagonal drip pan support durability and cleanup.
  • Ships ready for natural gas installation; an LP conversion kit is included.

Overall Dimensions:

18.0"W x 22.0"D x 39.0"H

Product Weight:

62.0 lb

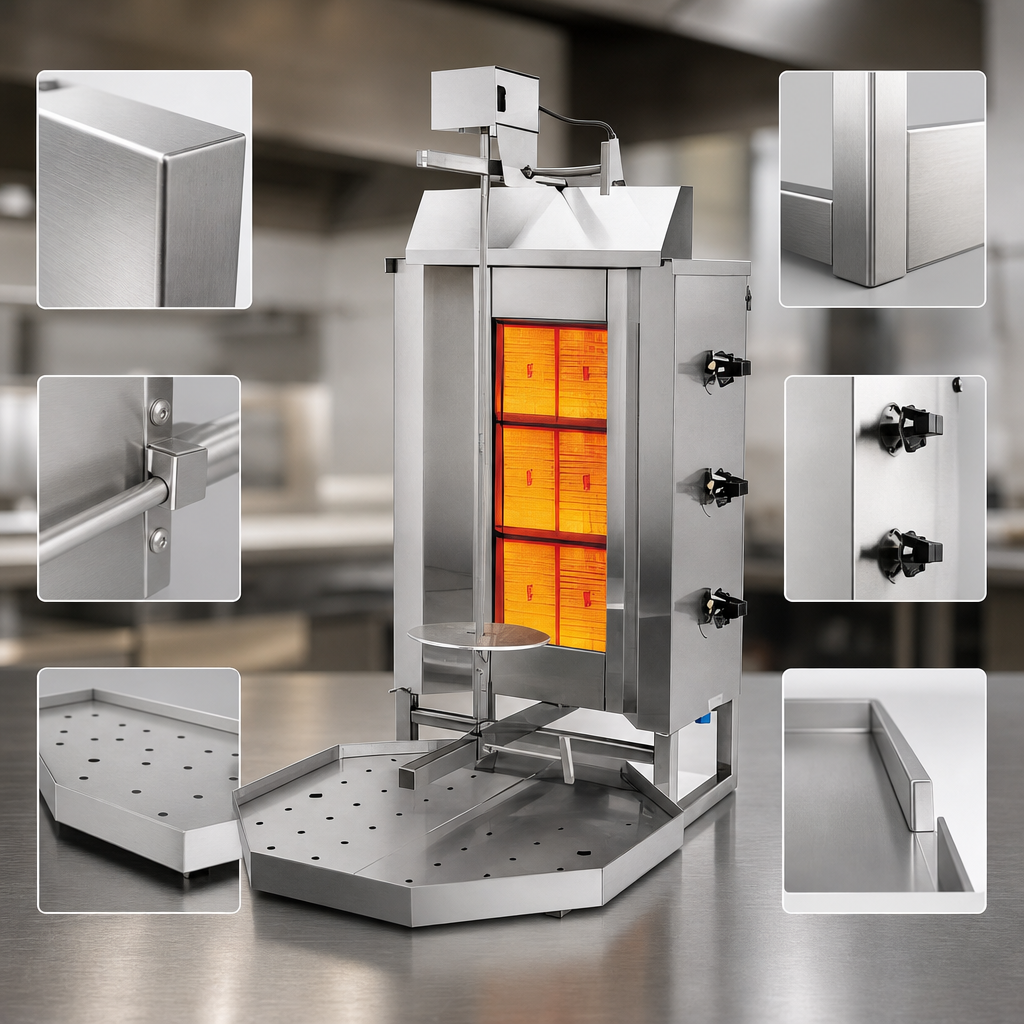

304 Stainless Steel Construction

Heavy-duty AISI 304 stainless steel construction supports hygiene and long-term durability.

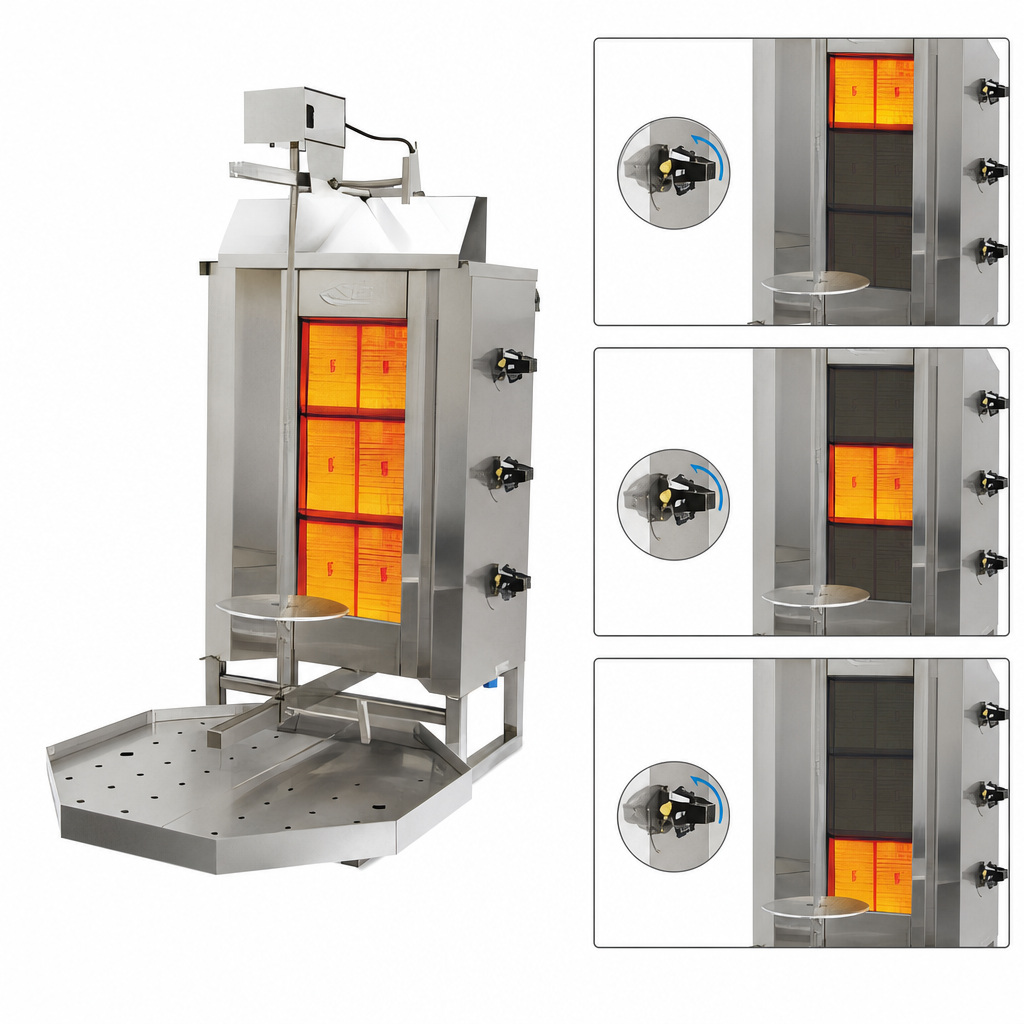

Three Individually Controlled Infrared Burners

Each burner can be operated independently for flexible heat management.

E-Z Slide Dual-Rail System

Lets the operator position meats closer to or farther from the heat source and adjust the angle.

Top-Mounted Enclosed Motor

Motor is positioned away from fats and can rotate both clockwise and counter-clockwise.

Flame-Safety Thermo-Elements

Automatically cut gas flow if the flame extinguishes.

Adjustable Heat Deflectors

Left and right heat deflectors help shape and control the broiling zone.

Removable Drip Tray

Helps simplify grease removal and cleanup.

Octagonal Drip Pan Included

A 24 x 31 in. octagonal drip pan is supplied with the unit.

Natural Gas Ready With LP Conversion Kit Included

Shipped ready for natural gas installation, with an LP conversion kit included.

120V Cord and NEMA 5-15P Plug

120-volt power connection is required for motor rotation.

Type Vertical Broiler
Style Gas
Material 304 Stainless Steel
Capacity 88 lb.
BTU 34,140 BTU
Gas Type Natural Gas
Gas Connection Size 1/2 Inch NPT
Gas Inlet Pressure 7 - 8 Inches W.C.
Voltage 120 Volts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 year parts and labor

Documents

PDF Cutsheet PDF Download PDF Warranty PDF Download

Frequently Asked Questions

It ships ready for natural gas installation, and an LP conversion kit is included.
It has three individually controlled infrared burners.
The unit has an 88 lb. meat capacity and a 24" spit.
It uses a 120V, 60 Hz, single-phase cord with a NEMA 5-15P plug.
A pressure regulator is required but not included.
Optional accessories include a meat shovel, skewer, skewer pin, discs, and a meat prep spit bed.
