MVP Group LLC AX-TDS Axis Dough Sheeters
$6,872.04
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
MVP Group LLC AX-TDS Axis Dough Sheeters is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
MVP Group LLC AX-TDS Axis Dough Sheeters
$6,872.04
Unit price
/
Unavailable
Description

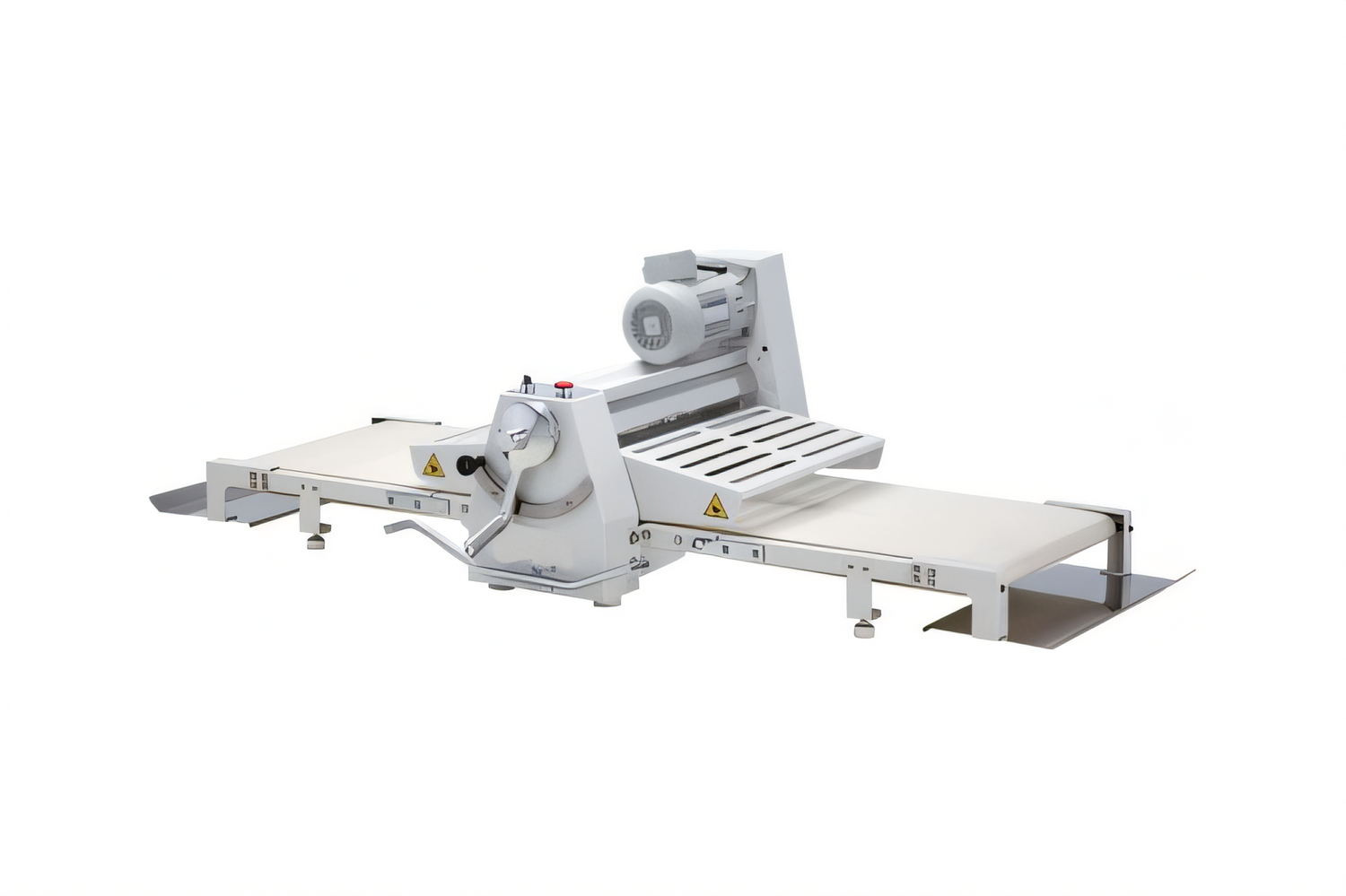

Axis AX-TDS Bench Dough Sheeter
Reversible • 2-Speed • 1/2 HP • 110 V/60/1-phEngineered to the Baking Industry Sanitation Standards, the Axis AX-TDS delivers fast, consistent sheeting for puff pastry, Danish, croissant, donut, pie, cookie, strudel and pizza dough— all in a compact bench-top footprint that saves valuable floor space.
Key Benefits
- Reversible twin-belt design sheets dough in either direction at the touch of a button.
- Adjustable gap lets you roll from 3 mm to 50 mm thickness—perfect for ultra-thin pastry up to hearty pizza crusts.

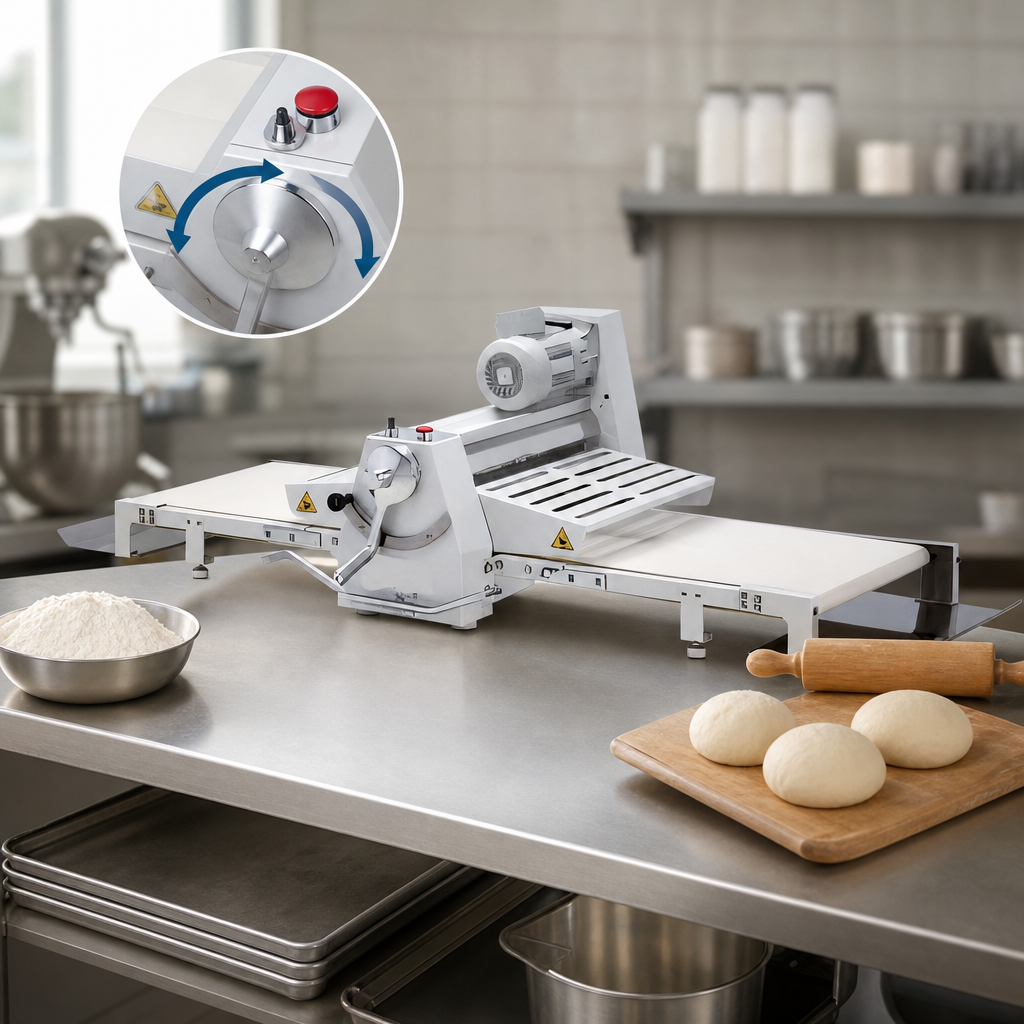

- Synchronised 2-speed in-feed prevents tearing and ensures uniform results.
- Heavy-duty aluminum-alloy head housing and precision-ground steel rollers built for years of commercial use.
- Roller speed of approx. 540 mm / sec boosts productivity during peak hours.
- Protective guards on both sides of the rollers keep hands safely away from pinch points.
- Fold-up left & right conveyor tables free up counter space when the unit is idle.
- Automatic overload protection and magnetic limit switch safeguard the ½ HP motor.
Ideal For
- Artisan & wholesale bakeries
- Pizzerias & commissaries
- Hotel & resort pastry departments
- Supermarket in-store bakeries
Product Specifications
| Model | AX-TDS (Bench) |
|---|---|
| Belt Size | 16.9 in × 66.9 in (430 mm × 1700 mm) |

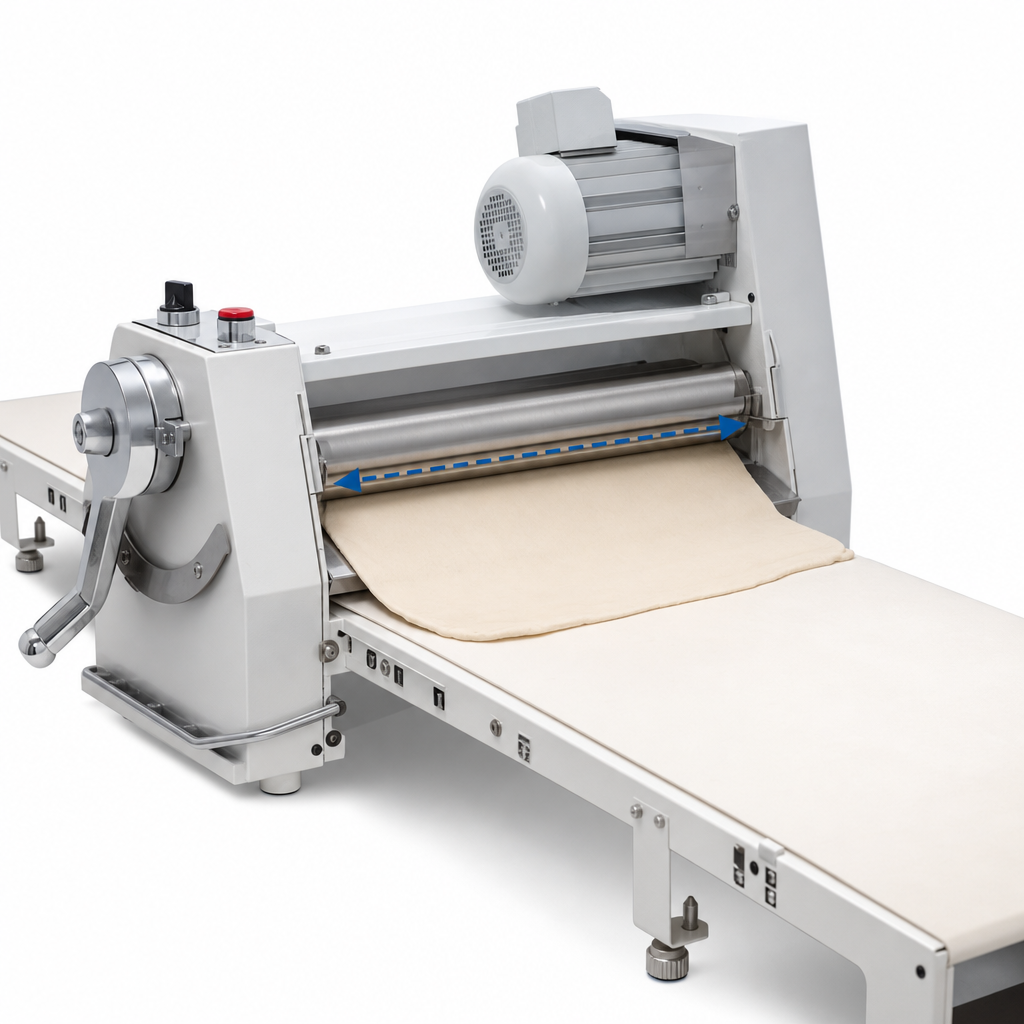

| Roller Size | 3.4 in Ø × 17.7 in W (86 mm Ø × 450 mm W) |
| Thickness Range | 3 mm – 50 mm |
| Roller Speed | ≈ 540 mm/second |
| Motor | ½ HP, ventilated, ball-bearing |
| Electrical | 110 V / 60 Hz / 1-phase |
| Overall Dimensions (L×W×H) | 70.8 × 31.8 × 23.6 in (1797 × 808 × 600 mm) |
| Ship Weight | 340 lb (154 kg) |
| Construction | Steel base, aluminum head, folding steel conveyor tables & catch pans |
Need 220 V or a floor model? Contact us for additional Axis configurations.
Features & Specs
Features & Specs
Manufacturer
MVP Group LLC
Brand_name
Axis
Height
23.6in
Width
70.8in
Depth
31.8in
Shipping Weight
340.0lbs
Roller size
17"
Bench or Floor
bench
Specifications
Axis Dough Sheeter, bench model, 2-speed, reversible, aluminum alloy head housing, push button operation, roller speed approximately 540mm per second, safety guard on both sides of roller, 1/2 HP, 110v/60/1-ph
