MVP Group LLC

Axis AX-M40 40-Quart Gear-Driven Floor Model Planetary Mixer

SKU: AX-M40
$7,732.26
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Mixers Food Prep Equipment Mixers MVP Group LLC New Arrivals Planetary Mixers Restaurant Equipment

Axis AX-M40 40-Quart Gear-Driven Floor Model Planetary Mixer

1.5 HP, 220V, 3-Speed, Digital Timer

Built for high-volume prep, this 40-quart planetary mixer pairs a gear-driven 1.5 HP motor with three speeds and a digital timer for dependable, consistent results.

  • 40-quart planetary mixer designed for large-batch mixing of dough, eggs, cream, mayonnaise, and more.
  • Gear-driven 1.5 HP motor delivers reliable performance under heavy use.
  • Three fixed speeds and a digital 0-30 minute timer help support repeatable mixing cycles.
  • Side-mounted controls include separate start and emergency stop buttons for convenient operation.
  • Stainless steel bowl guard with safety interlock helps protect operators during use.
  • Includes a 40-quart stainless steel bowl, wire whip, flat beater, and dough hook.

Overall Dimensions:

23.7"W x 27.5"D x 51.1"H

Product Weight:

510.0 lb

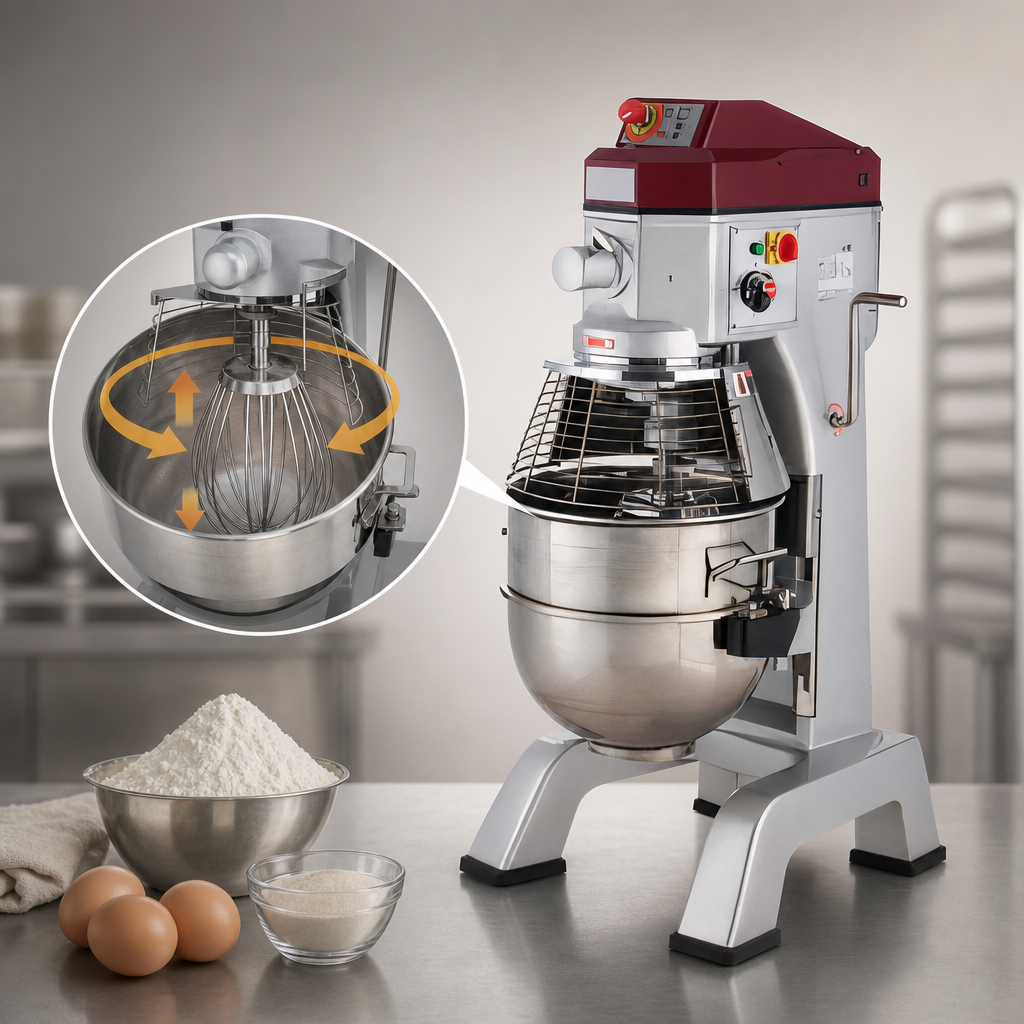

Planetary Mixing Action

Powerful planetary mixing thoroughly blends and aerates ingredients for consistent results.

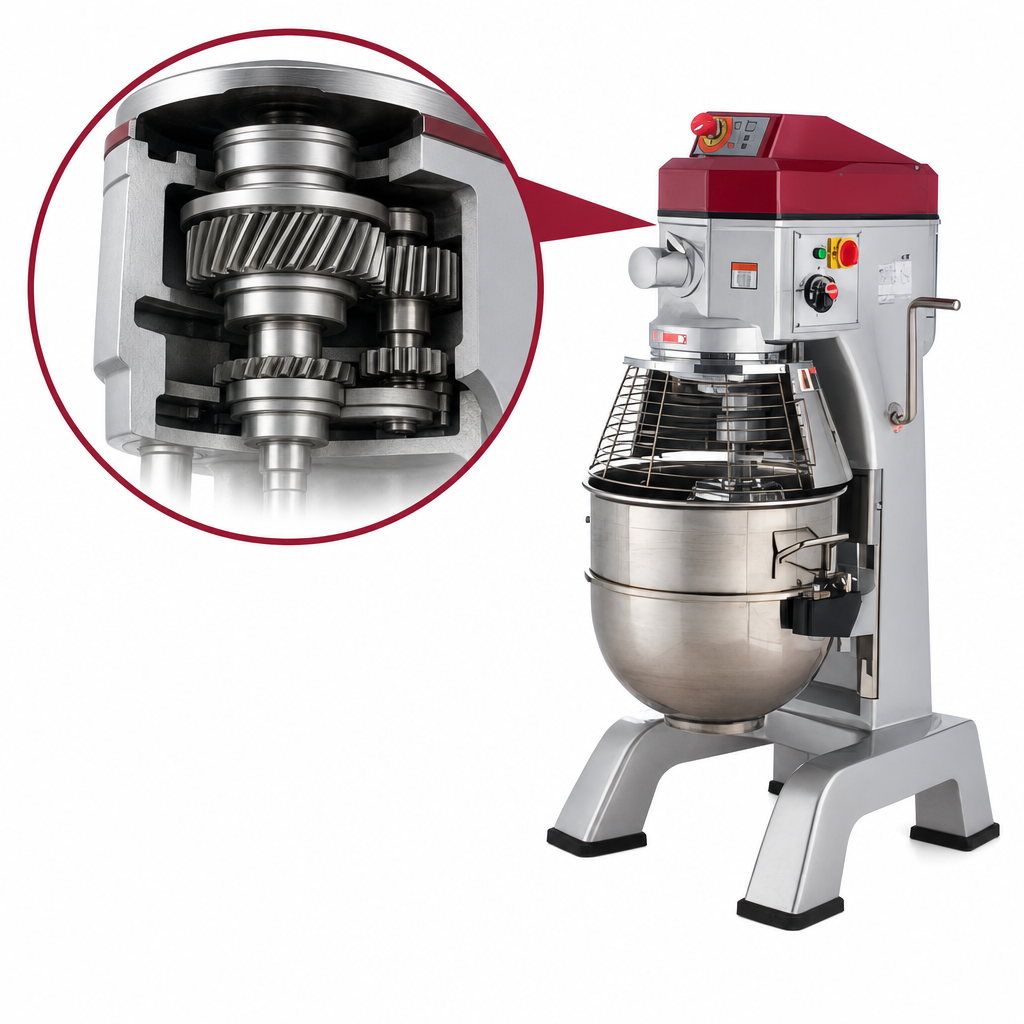

Gear-Driven Transmission

Reliable gear drive design is built to handle demanding kitchen workloads with minimal downtime.

1.5 HP Motor

The heavy-duty motor is designed to deliver dependable mixing power for commercial prep.

Digital 0-30 Minute Timer

Electronic timer helps provide accurate, repeatable mixing times.

Three Fixed Speeds

Three-speed operation gives flexibility for different mixing tasks and ingredient types.

Side-Mounted Controls

Controls are positioned on the side and include separate start and emergency stop buttons.

Stainless Steel Bowl Guard

Safety interlock helps prevent operation when the front portion of the guard is open.

Included Standard Accessories

Includes a 40-quart stainless steel bowl, aluminum flat beater, stainless steel wire whip, and aluminum dough hook.

Silent Operation

Designed for quiet operation in busy prep environments.

Type Planetary Mixer
Style Gear Driven
Installation Type Floor Model
Capacity 40 Quarts
Horsepower 1.5 HP
Hub Size #12 Hub
Timer Digital 0-30 Minutes
Controls Side Mounted
Speed 3 Fixed Speeds
Voltage 220 Volts
Amps 12 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-15P
Selling Unit Each
Units Per Case 1
Shipping Width 24 Inches
Shipping Depth 28 Inches
Shipping Height 52 Inches
Shipping Weight 510 lb.

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

2 years parts and 1 year labor

Documents

PDF Cutsheet PDF Download PDF Warranty PDF Download

Frequently Asked Questions

It includes a 40-quart stainless steel bowl, stainless steel bowl guard, wire whip, aluminum flat beater, and dough hook.
The mixer operates on 220 Volts, 60 Hz, 1-Phase power and draws 12 Amps with a NEMA 6-15P cord end.
It has 3 fixed speeds.
Yes. It includes a digital timer with a 0-30 minute range.
The mixer carries a 2-year parts and 1-year labor warranty, on-site, exclusive of wear items.
