MVP Group LLC

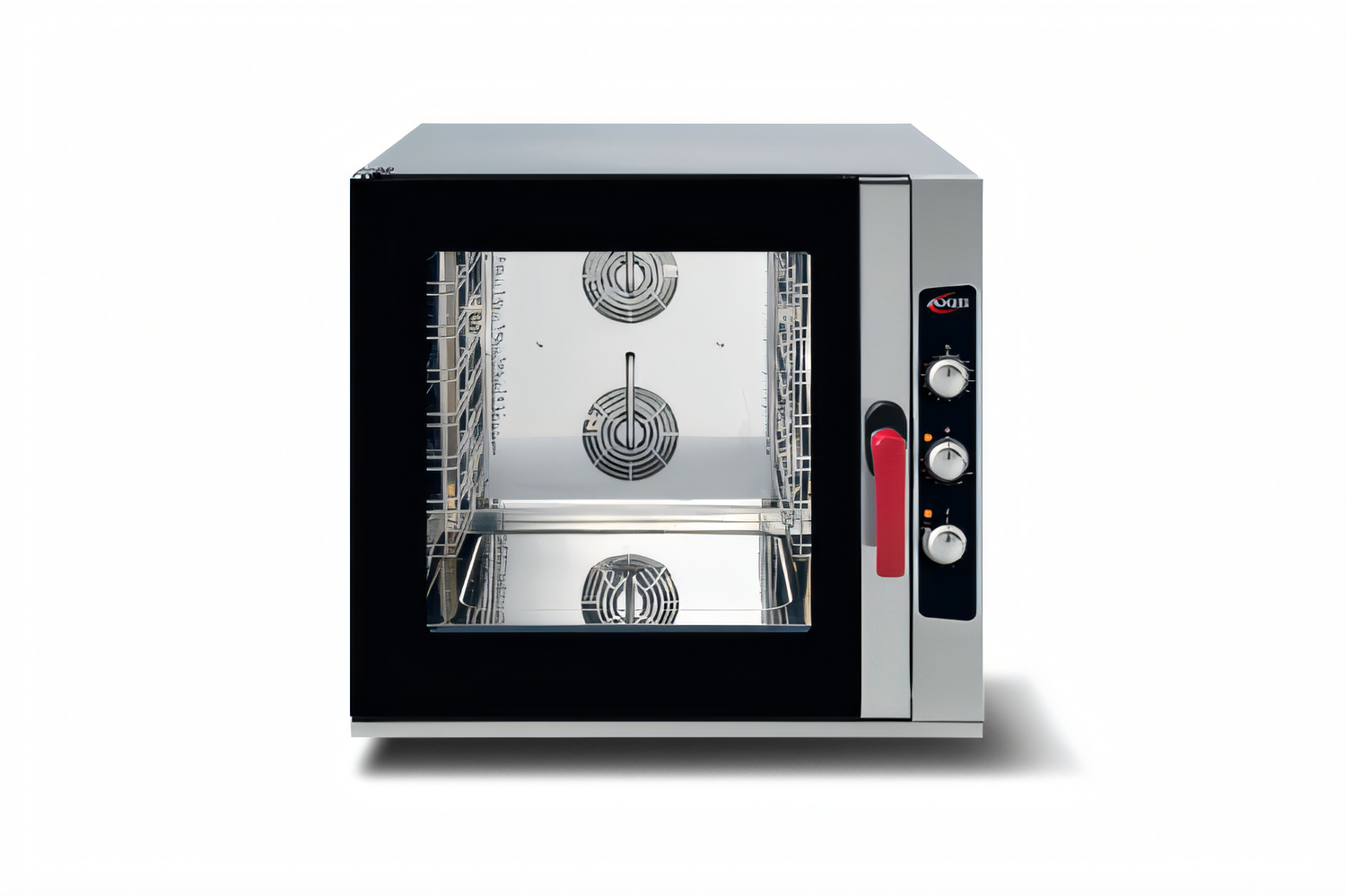

Axis Full Size Manual Combi Oven with Reversing Fans, 6 Full-Size Sheet Pan Capacity

SKU: AX-CL06M
$6,862.32
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Combi Ovens Combi Ovens Commercial Ovens MVP Group LLC New Arrivals Ovens Restaurant Equipment

Axis Full Size Manual Combi Oven with Reversing Fans, 6 Full-Size Sheet Pan Capacity

Manual time, temperature, and steam control with direct water connection

A versatile full-size combi oven with manual control, high-speed reversing fans, and adjustable steam for consistent results across baking, roasting, and steaming.

  • Accommodates 6 full-size sheet pans and includes 3 stainless steel wire shelves.
  • Manual time, temperature, and steam controls with a 120-minute timer or continuous ON.
  • Two automatic high-speed reversing fans help deliver even airflow and cooking consistency.
  • Adjustable steam from 0% to 100% and direct water connection support combi cooking.
  • Double-pane glass door, micro safety switch, interior light, and reinforced hinges improve usability and safety.
  • Heavy-duty stainless steel construction; large model requires a stand and can be stacked with a kit.

Overall Dimensions:

38.6"W x 33.64"D x 36.35"H

Product Weight:

265.0 lb

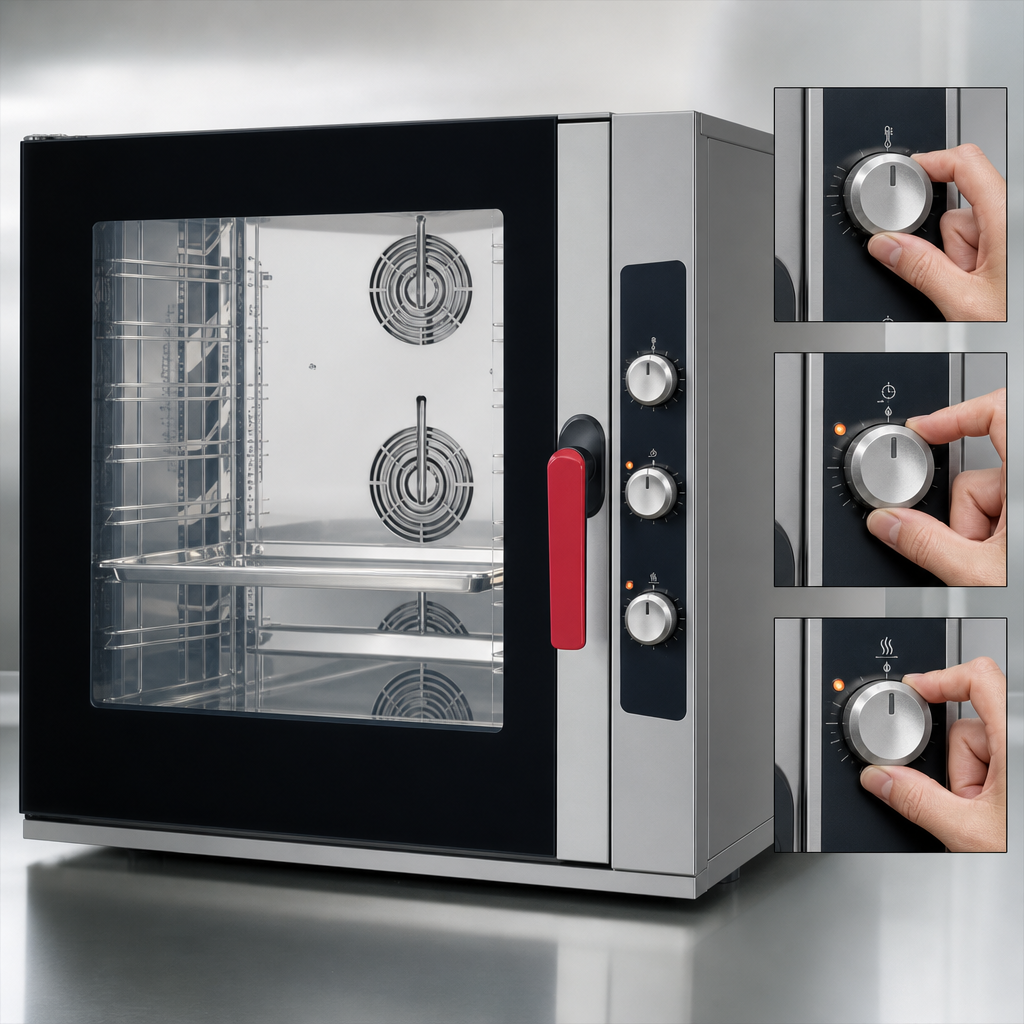

Manual Time, Temperature, and Steam Controls

Simple manual operation for setting cook time, temperature, and steam output.

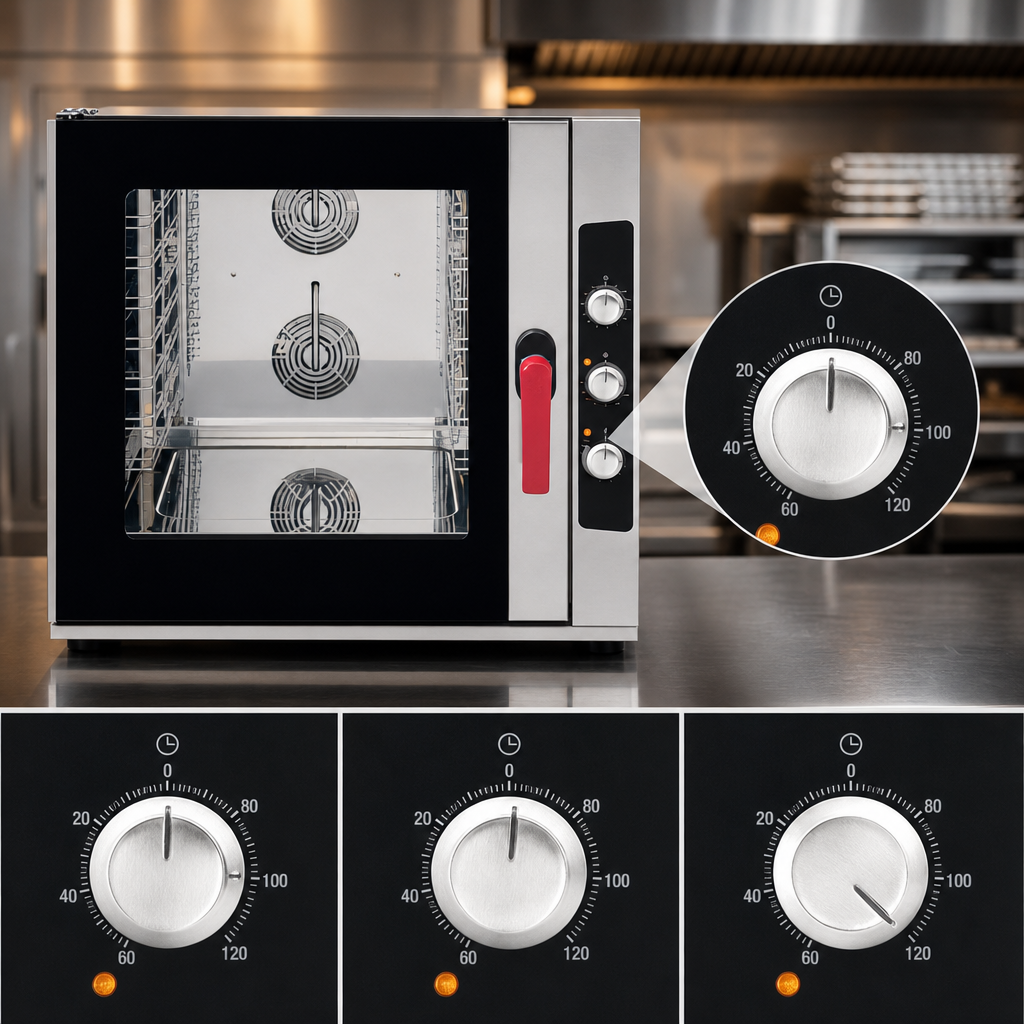

120-Minute Timer or Continuous ON

The timer can run for up to 120 minutes or be set to continuous operation.

High-Speed Reversing Fans

Two automatic fans reverse direction at 3,200 rpm to promote even airflow.

Adjustable Steam Control

Steam output adjusts from 0% to 100% for more flexible combi cooking.

Direct Water Connection

An electro valve supports direct water connection.

Double-Pane Glass Door

Hinged double-pane glass door with reinforced hinges and a micro safety switch that shuts the oven off when the door is open.

Interior Halogen Light

Built-in lighting improves visibility inside the cavity during cooking.

Stainless Steel Construction

Heavy-duty stainless steel body construction for commercial durability.

Insulated Cavity

Ultra-high temperature fiberglass insulation helps retain heat.

Hand Spray Nozzle Included

Included hand spray makes cleaning the cavity easier.

Stackable Design

Ovens can be stacked with a kit, sold separately.

Type Combi Oven
Style Full Size
Controls Manual
Installation Type Floor Model (Requires Stand)
Pan Capacity 6 Full-Size Sheet Pans
Pan Size 18 x 26 Inches
Temperature Range 86°F to 545°F
Water Connection Required
Material Stainless Steel
Voltage 208 / 240 Volts
Amps 32 / 36 Amps
Watts 10.5 / 14 kW
Hertz 60 Hz
Phase 3-Phase
Plug Type No Plug
Shipping Width 41.35 Inches
Shipping Depth 40.55 Inches
Shipping Height 39.37 Inches
Shipping Weight 263 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

2-year parts and 1-year labor

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It accommodates 6 full-size sheet pans and includes 3 stainless steel wire shelves.
It can be configured for 208V/60Hz/3-phase at 32A or 240V/60Hz/3-phase at 36A. It is supplied with a power cord only and no plug.
Yes. The oven includes an electro valve for direct water connection.
Steam is adjustable from 0% to 100%.
No. The large model requires a stand, and the AX-C10ST stand is listed separately.
