MVP Group LLC 747HH Jet-Tech Dishwashers
Description

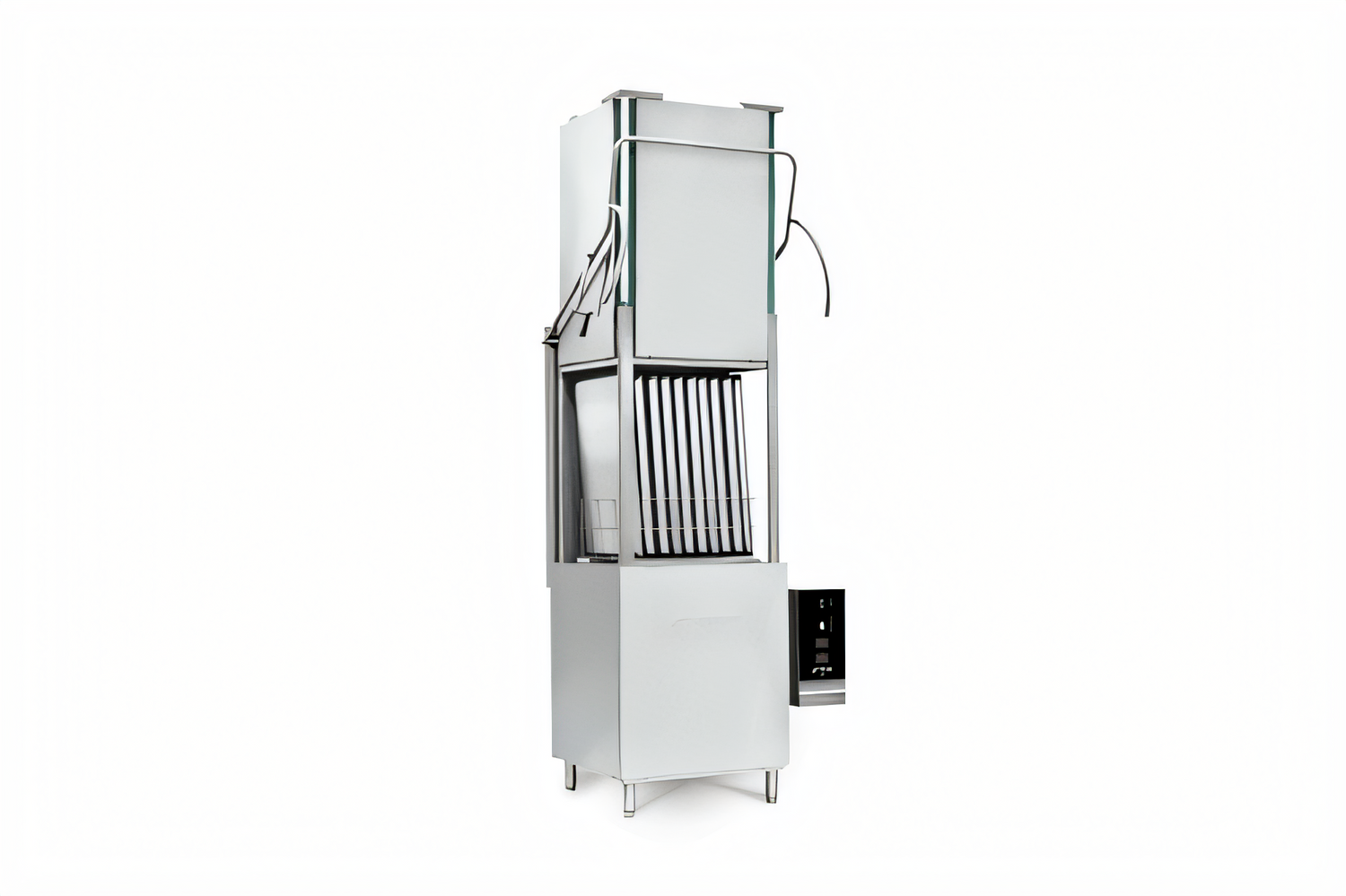

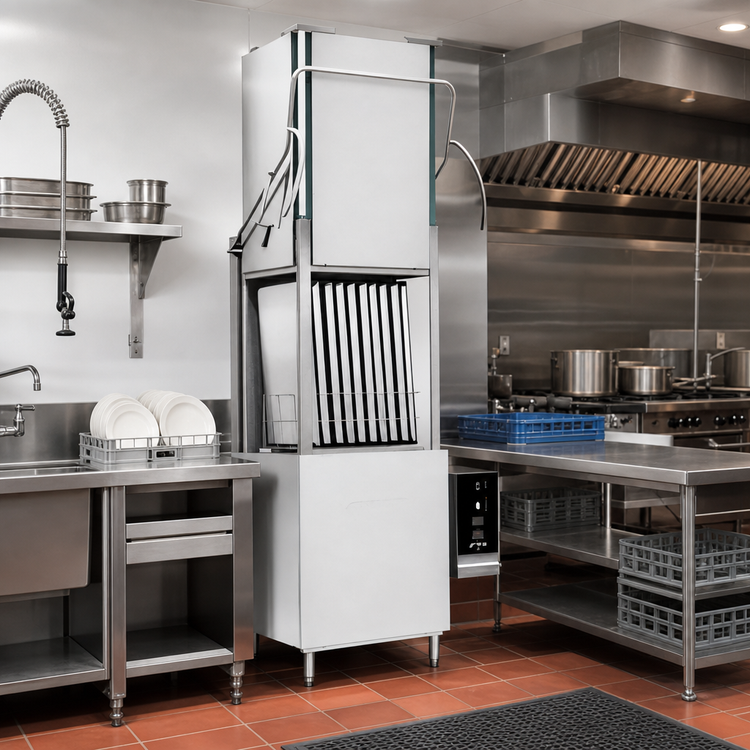

Jet-Tech 747HH High-Temp Deluxe High Hood Dishwasher
40 racks / hour • Pass-thru or corner install • ENERGY STAR® certifiedEngineered for bakeries, delis, C-stores, schools, pizzerias, and any operation that needs sheet-pan capacity in a compact footprint, the Jet-Tech 747HH powers through a full ware load in just two minutes. A built-in 9 kW booster, dual 1 HP wash pumps, and double-skinned stainless insulation deliver sanitizing performance while keeping energy costs in check.
Why You’ll Love It

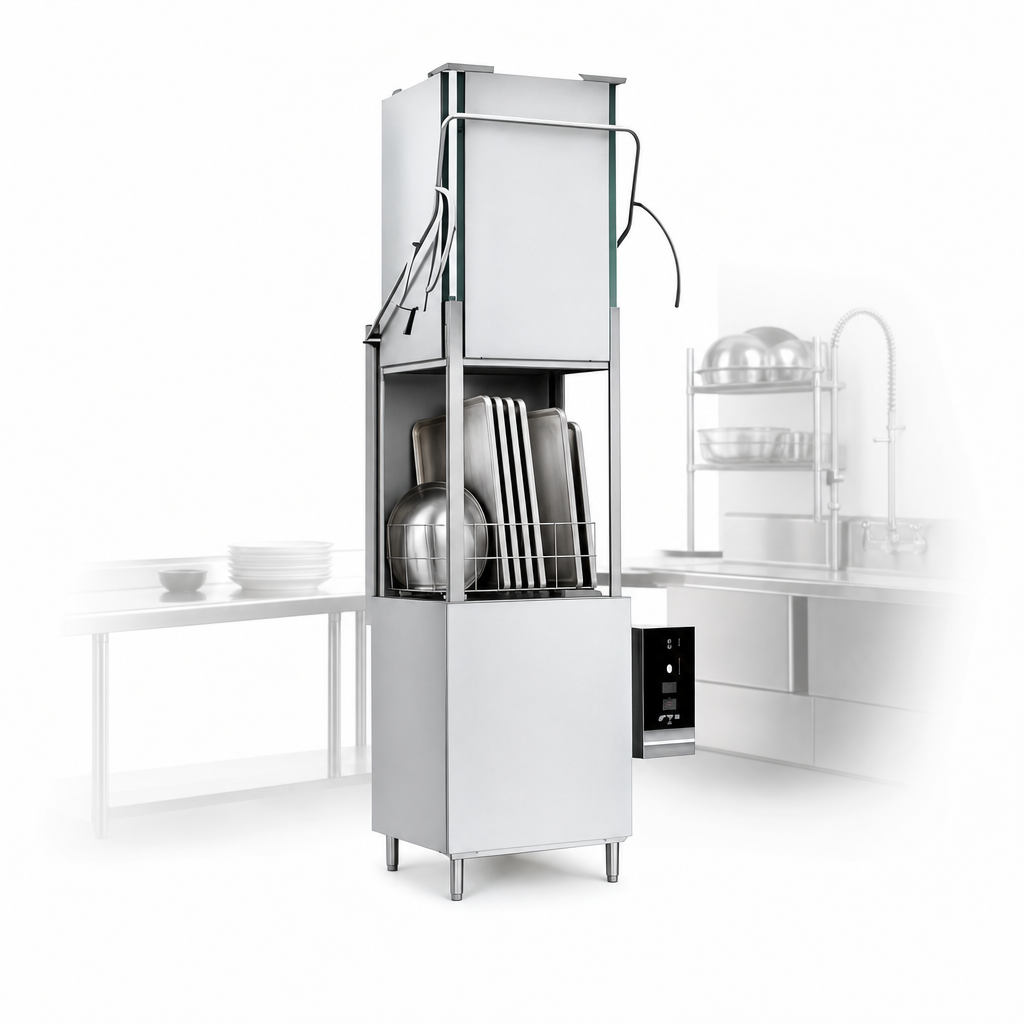

- High hood opening handles items up to 26" H × 20" W—including full sheet pans & mixing bowls.
- Fully automatic cycle: 105 s wash at 150 °F followed by a 15 s rinse at 185–194 °F.
- Two independent 1 HP wash pumps (total 2 HP) for powerful upper & lower spray coverage.
- Integral 9 kW booster heater & ENERGY STAR® qualification keep utility bills low.
- Digital temperature displays plus door-activated start/stop for fool-proof operation.
- Factory-installed detergent & rinse-aid pumps—no add-on kit required.
- Complete Type 304 stainless steel chassis, tank, and rinse arms for long-term durability.
- Whisper-quiet thanks to a fully insulated, double-skinned cabinet.
- Ships with a 20" × 20" 10-place sheet-pan rack and a 20" × 20" peg rack for dishes.
- Meets cETLus & ETL-Sanitation standards for commercial foodservice.
Technical Specifications
| Rack capacity | 19.75" × 19.75" (500 × 500 mm) |
|---|---|
| Wash / rinse cycle | 105 s wash + 15 s rinse (120 s total) |
| Throughput | Up to 40 racks per hour |
| Water use | 1 gal per cycle • 49.75 gal max per hour |
| Wash tank capacity | 11.5 gal (43.5 L) • 6 kW element |
| Booster capacity | 2.7 gal (10.2 L) • 9 kW element |
| Wash pumps | (2) × 1 HP with thermal overload (2 HP total) |
| Operating temps | Wash 150 °F / 65 °C • Rinse 185–194 °F / 85–90 °C |
| Water inlet | ½" hot (140 °F / 60 °C) @ 30 psi dynamic |
| Drain connection | 1.5" ID hose (included) |
| Electrical | 208–240 V / 60 Hz / 1 Ø (50 A) or 3 Ø (29 A) |
| Shipping weight | 352 lb (160 kg) |
| Certifications | ENERGY STAR®, cETLus, ETL-Sanitation |
| Warranty | 1 year parts & labor |
What’s in the Box
- (1) 20" × 20" stainless-steel 10-place sheet-pan rack
- (1) 20" × 20" peg rack for plates & bowls
- ¾" garden-hose water inlet hose
- 1.5" drain hose
- Owner’s manual
Popular Accessories (Sold Separately)
- Pressure-reducing valve (PRV) kit
- Corner-splash shield
- Additional sheet-pan or peg racks
- Drain-water tempering kit
MVP Group LLC continually improves products; specifications are subject to change without notice.
