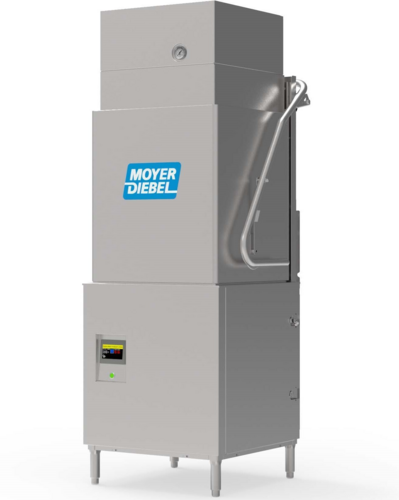

Moyer Diebel Genesis MDHHD-VL High-Temp Ventless Heat Recovery Extended Hood Door-Type Dishwasher

40 Racks/Hour, 27-Inch Chamber Clearance, Built-In Booster

Built for high-volume kitchens, this high-temp ventless door-type dishwasher combines heat recovery, a built-in booster, and 40-rack-per-hour throughput.

  • Ventless heat recovery and condensate removal help manage heat in the dishroom.
  • 27-inch chamber clearance accommodates trays and larger dishware.
  • Up to 40 racks per hour at 0.73 gallons per rack supports steady throughput.
  • Built-in booster and Rinse Sentry support high-temperature sanitizing.
  • Touchscreen HMI controls, auto start, and onboard diagnostics simplify daily operation.
  • Multi-power electrical capability and adjustable feed orientation add installation flexibility.

Overall Dimensions:

33.94"W x 31.63"D x 79.0"H

Product Weight:

350.0 lb

Ventless Heat Recovery and Condensate Removal

Helps recover heat and control moisture during operation.

27-Inch Chamber Clearance

Provides ample room for trays and larger wares.

High-Temperature Sanitizing Booster

Built-in stainless steel electric booster provides the 70° rise needed for high-temp rinsing.

40 Racks Per Hour

Delivers approximately 40 racks per hour with 0.73 gallons per rack.

Rinse Sentry

Extends the wash cycle until the booster reaches the proper sanitizing temperature.

Touchscreen HMI Controls

Bottom-mounted interface with condition alerts, multilingual support, and cleaning guidance.

Visual Diagnostic Display

On-board service diagnostics help identify faults quickly and reduce downtime.

Auto Start, Auto-Fill, and Sleep Mode

Starts when the door closes and conserves energy during inactivity.

Adjustable Feed Orientation

Configurable for front-load, corner installation, and pass-through setups.

Stainless Steel Construction

Durable stainless steel build with electric tank heat, interchangeable spray arms, automatic drain valve, and a 2 HP self-draining pump.

Type Dishwasher
Style Door-Type
Installation Type Floor Model
Capacity 40 Racks Per Hour
Controls Touchscreen HMI
Material Stainless Steel
Water Consumption 0.73 Gallons Per Rack
Wash Tank Capacity 10 Gallons
Horsepower 2 HP
Temperature Range 150°F Wash / 180°F Rinse
Hertz 60 Hz
Water Inlet Size 3/4 Inch NPT
Drain Connection Size 1 Inch NPT
Water Connection Required
Drain Connection Required
Shipping Width 34 Inches
Shipping Depth 32 Inches
Shipping Height 79 Inches
Shipping Weight 350 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 year parts and labor.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is rated for up to 40 racks per hour.
The machine has 27 inches of chamber clearance for trays and larger dishware.
The cut sheet lists 208/60/1, 208/60/3, and 480/60/3 electrical specifications, and notes multi-power capability between single-phase and three-phase incoming power.
It requires a 3/4-inch NPT cold water connection and a 1-inch NPT gravity drain connection.
Yes, adjustable feed orientation supports front load, corner installation, and pass-through setups.
The machine includes a 1-year parts and labor warranty; coverage lasts 1 year after installation or 15 months after shipment, whichever occurs first.
