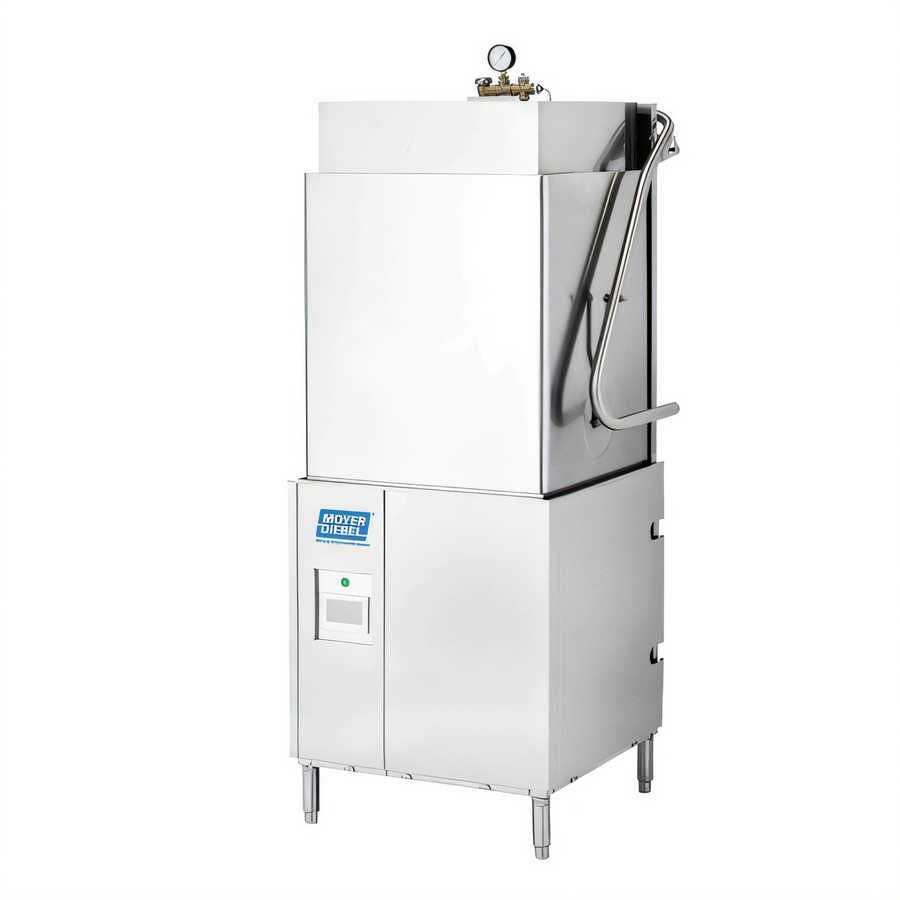

Moyer Diebel MDHHD-NB High-Temperature Door-Type Dishwasher with 27-Inch Tray Opening

SKU: MDHHD-NB
$17,086.02
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Dishwashers Dishwashers Dishwashing & Sanitation Door-type Dishwashers New Arrivals Restaurant Equipment

Moyer Diebel MDHHD-NB High-Temperature Door-Type Dishwasher with 27-Inch Tray Opening

Hood-Type, Dual NSF Dishwasher and Pot Washer

Built for busy kitchens, this high-temperature dishwasher delivers up to 60 racks per hour, 27-inch tray clearance, and dual dishwasher/potwasher performance in one stainless steel machine.

  • Dual NSF listed as both a dishwasher and pot washer.
  • 27-inch extended hood opening provides clearance for trays and larger wares.
  • Up to 60 racks per hour with 4 selectable cycles and auto start.
  • Bottom-mounted HMI touchscreen controls with onboard service diagnostics.
  • Automatic fill, automatic drain valve, mounted PRV, and interchangeable spray arms help streamline operation.
  • 2 HP self-draining pump and 5.2 kW electric tank heat support dependable high-temperature washing.
  • Stainless steel construction with NSF, cULus, and ENERGY STAR listings.

Overall Dimensions:

33.94"W x 31.0"D x 90.94"H

Product Weight:

300.0 lb

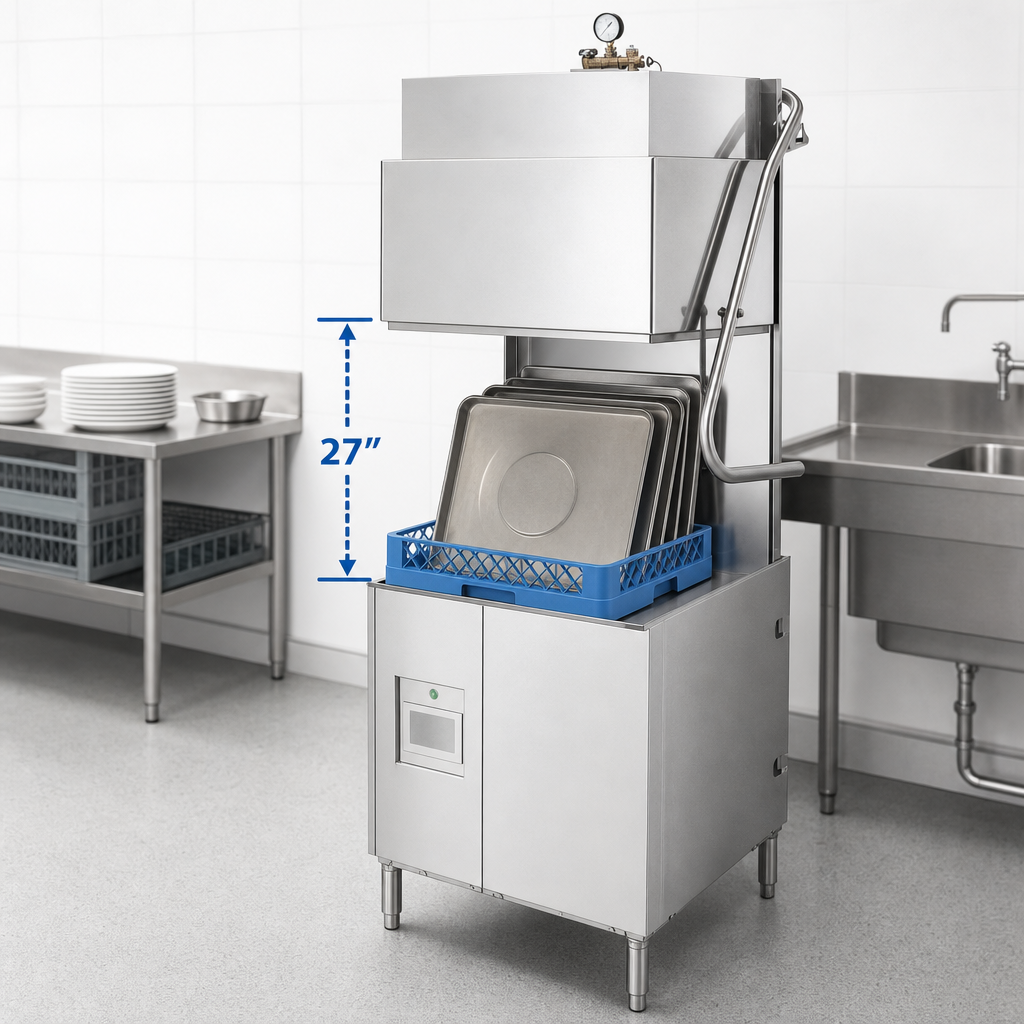

27-Inch Extended Hood Opening

Provides extra clearance for trays and oversized wares.

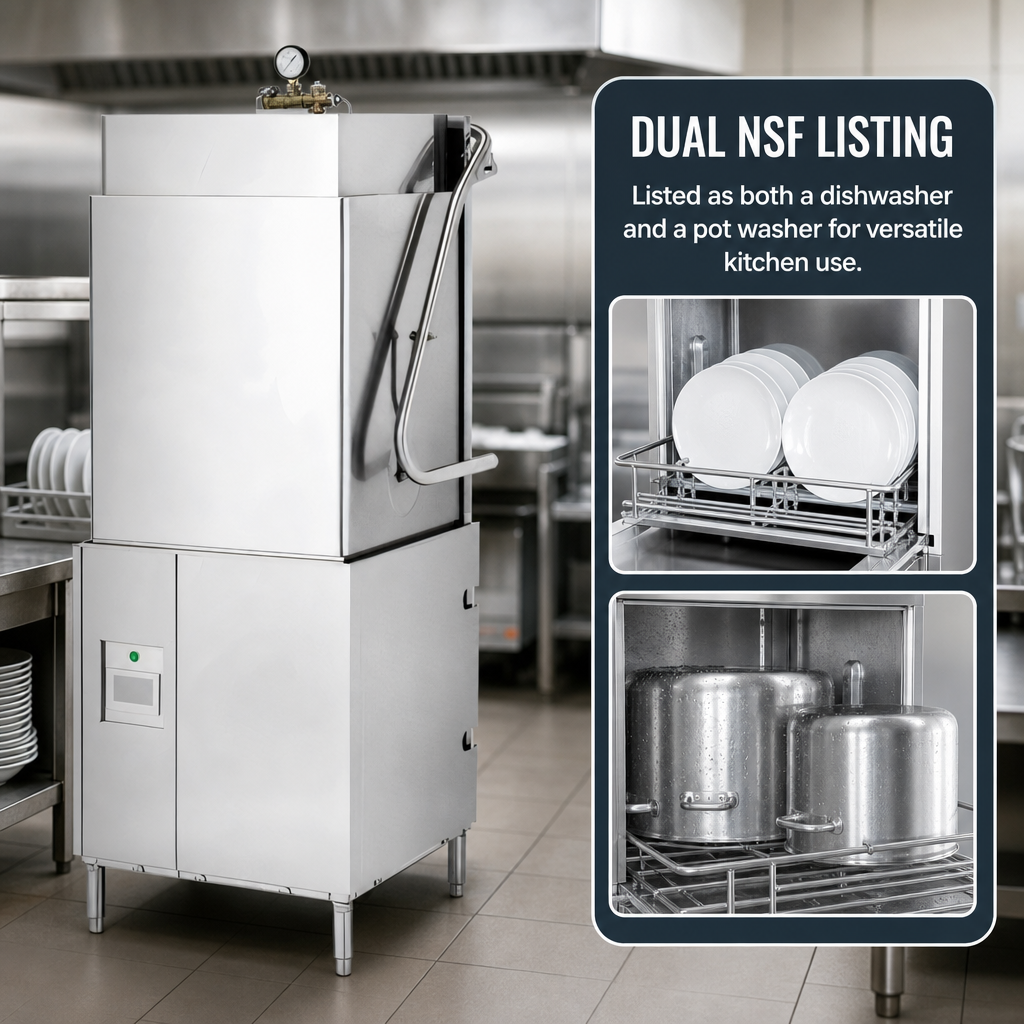

Dual NSF Listing

Listed as both a dishwasher and a pot washer for versatile kitchen use.

HMI Touchscreen Controls

Bottom-mounted operator touch screen interface for straightforward control.

On-Board Service Diagnostics

Built-in diagnostics help speed troubleshooting and maintenance.

4 Selectable Cycles

Offers multiple cycle choices to match different load types.

Auto Start

Starts the cycle automatically when the hood is closed.

Sleep Mode

Shuts off internal heaters after 4 hours of idle time to reduce energy use.

Automatic Fill and Drain Valve

Automatically fills the tank and drains it when power is off.

Interchangeable Spray Arms

Upper and lower stainless steel wash and rinse arms are interchangeable for easier service.

High-Efficiency Self-Draining Pump

2 HP pump helps keep the machine operating efficiently and simplifies draining.

Mounted Pressure Reducing Valve

Includes a mounted PRV for controlled water pressure at the machine.

Field-Convertible Operation

Can be configured for straight-through or corner operation in the field.

Vent Fan Control

Integrated control for the vent fan cycle.

Stainless Steel Construction

Durable stainless steel build for commercial kitchen environments.

Type Door-Type Dishwasher
Style High Temperature
Installation Type Floor Model
Capacity 60 Racks Per Hour
Temperature Range 150°F Wash / 180°F Rinse
Reservoir Capacity 10 Gallons
Controls Touchscreen
Material Stainless Steel
Water Connection Required
Drain Connection Required
Water Inlet Size 3/4 Inch NPT
Drain Connection Size 1.5 Inch OD
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is NSF rated for up to 60 racks per hour.
Yes. The extended hood opening provides 27 inches of clearance for trays and larger items.
Yes. It includes automatic tank fill and an automatic drain valve that drains the wash tank when power is off.
The unit requires a 3/4 inch NPT hot water connection and a 1.5 inch OD drain connection. An optional drain water tempering setup uses a 1/2 inch cold water line.
Yes. It is field convertible for straight-through or corner operation.
The machine warranty is 1 year parts and labor, or 15 months from shipment, whichever occurs first.
