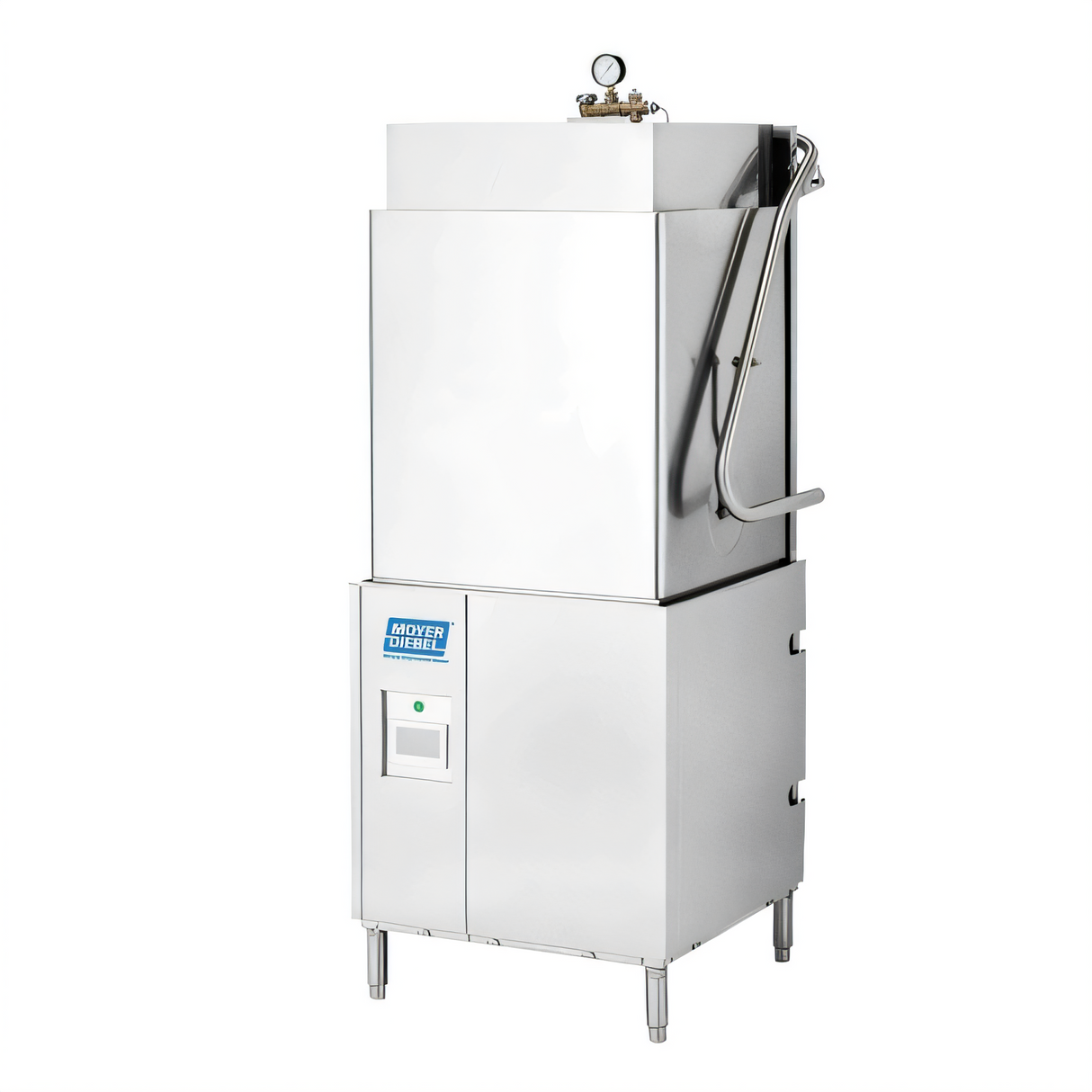

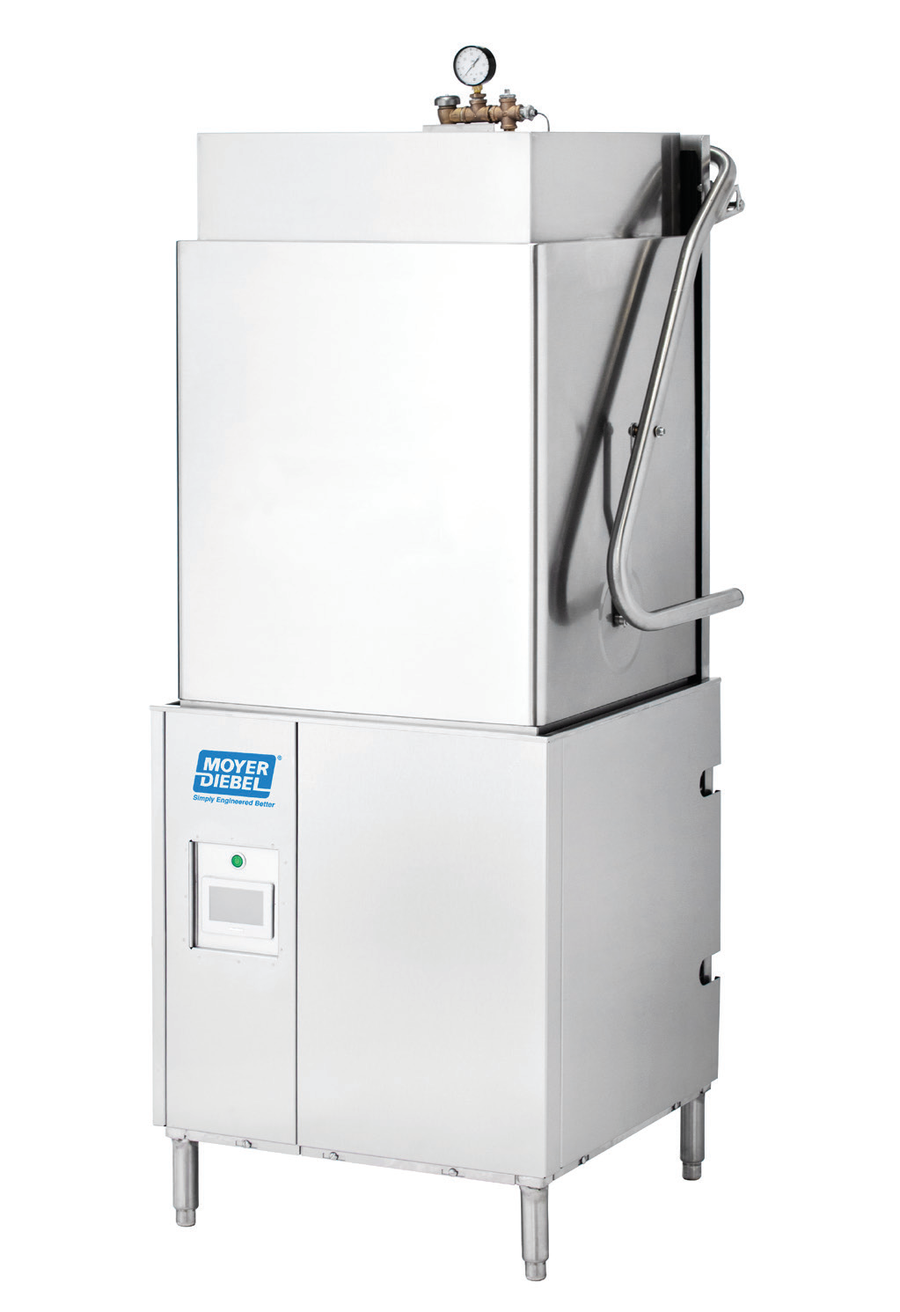

Moyer Diebel MDHHD High-Temperature Extended Hood Door-Type Dishwasher/Pot Washer with 27-Inch Tray Opening

Stainless Steel, 60 Racks/Hour, Built-In Booster, Straight-Thru or Corner Convertible

Built for high-volume kitchens, this dual-listed hood-type washer combines a 27-inch tray opening, 60 racks-per-hour throughput, and a built-in booster for dependable high-temperature cleaning.

  • High-temperature door-type dishwasher with an extended 27-inch hood opening for trays and oversized wares.
  • Dual NSF listed as both a dishwasher and pot washer for versatile kitchen use.
  • Up to 60 racks per hour with 4 selectable cycles and auto start for efficient throughput.
  • Built-in electric booster helps deliver a 180°F final rinse.
  • Stainless steel construction with interchangeable upper and lower spray arms for durability.
  • Touchscreen HMI controls, onboard diagnostics, sleep mode, and vent fan control simplify daily operation.
  • Field convertible for straight-thru or corner operation with flexible electrical connection options.
  • ENERGY STAR efficiency helps reduce operating costs.

Overall Dimensions:

33.94"W x 31.0"D x 90.94"H

Product Weight:

300.0 lb

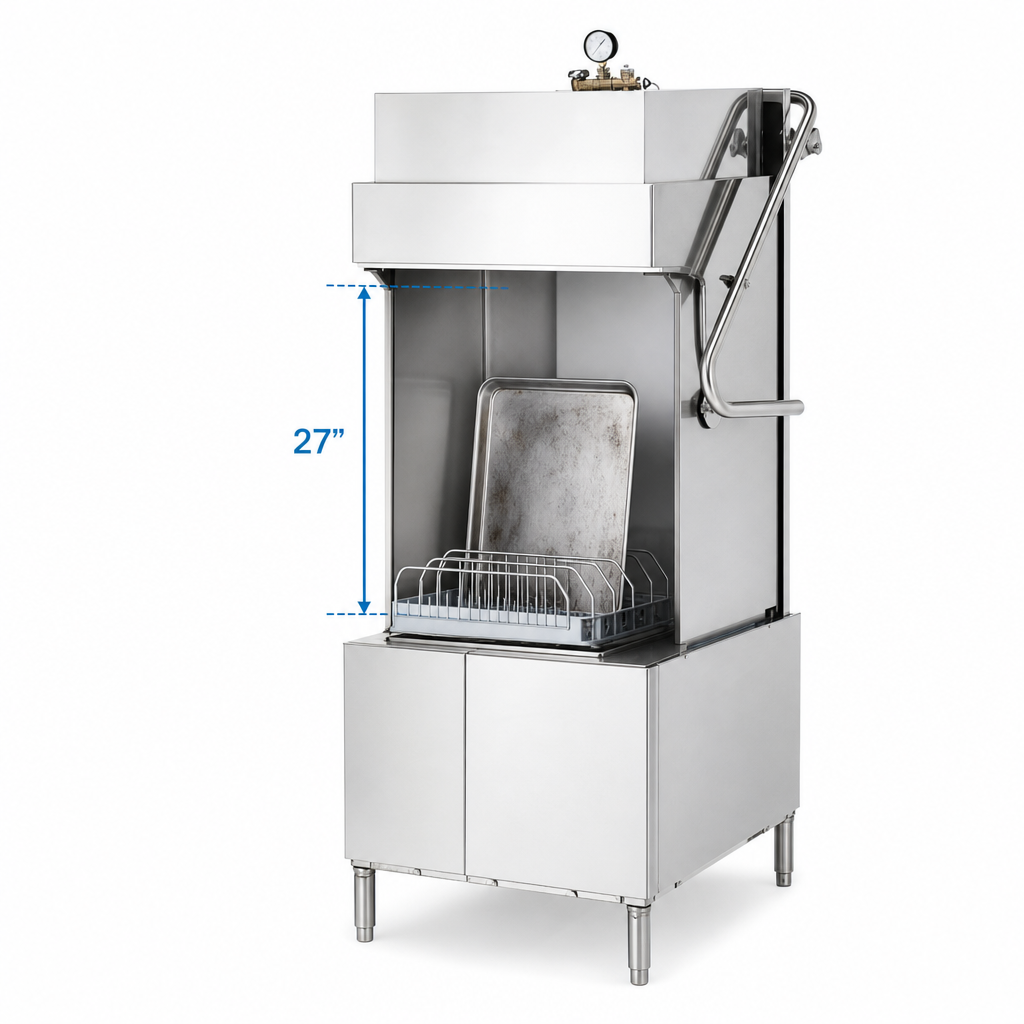

27-Inch Extended Hood Clearance

Provides extra opening height for trays and larger wares.

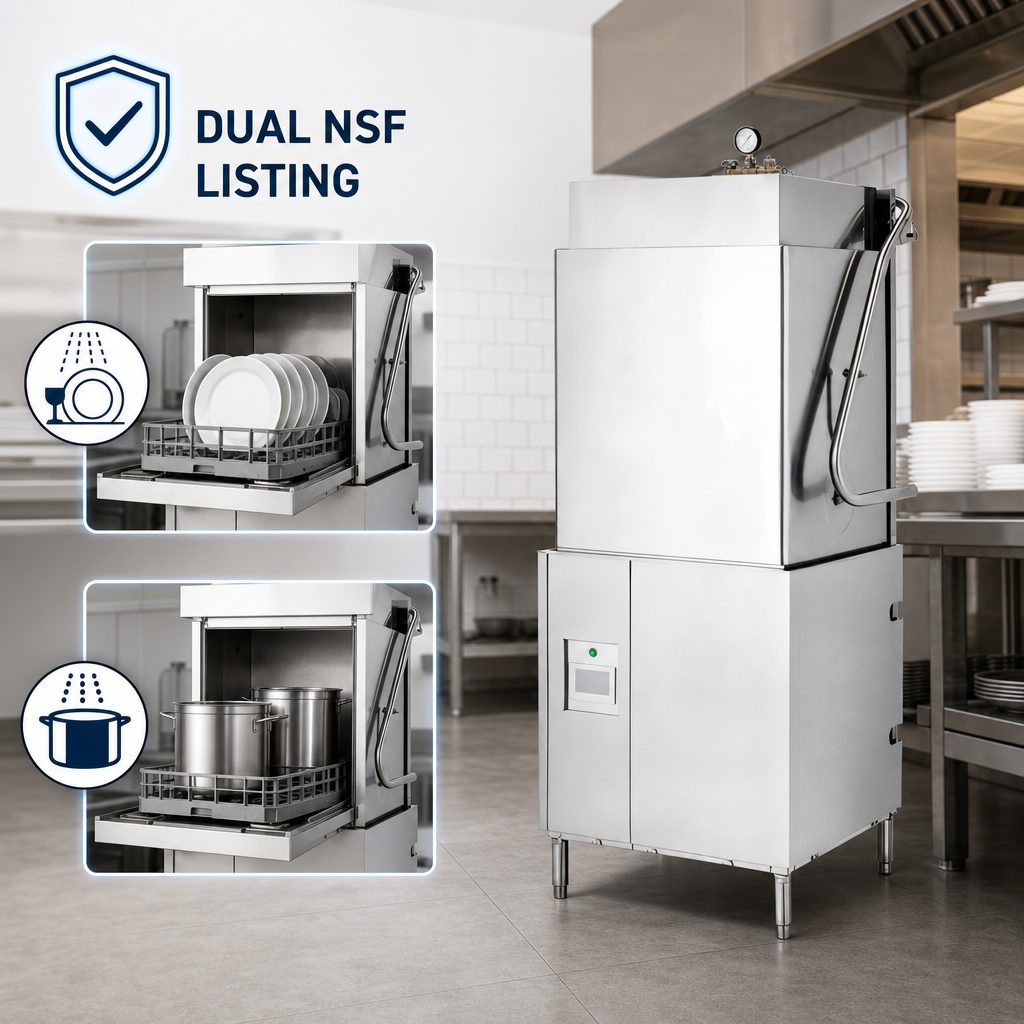

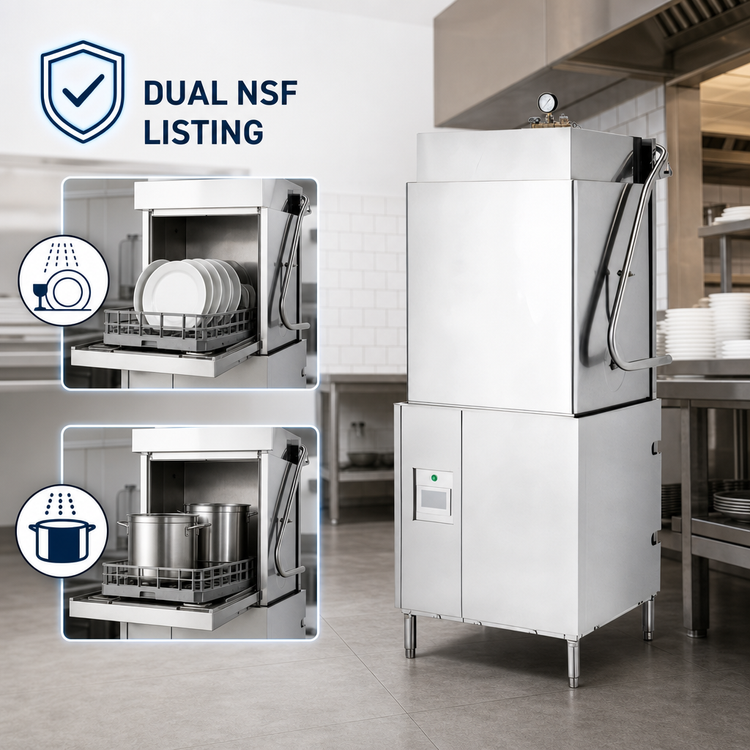

Dual NSF Listing

Listed as both a dishwasher and a pot washer for broader utility in the kitchen.

Built-In Electric Booster

Configured to help ensure a 180°F final rinse.

4 Selectable Cycles

Lets staff match the cycle to the soil level or load type.

Touchscreen HMI Controls

Bottom-mounted operator touchscreen includes onboard service diagnostics.

Automatic Fill and Drain

Includes auto-fill and an automatic drain valve that drains the wash tank when power is off.

Interchangeable Stainless Steel Spray Arms

Upper and lower wash and rinse arms are interchangeable for easier service.

2 HP Self-Draining Pump

High-efficiency pump design supports reliable washing and easier shutdown.

Flexible Layout and Electrical Setup

Field convertible between straight-thru and corner operation, with single- or three-phase conversion capability.

Idle Sleep Mode

Shuts off internal heaters after 4 hours of idle time to help conserve energy.

Mounted Pressure Reducing Valve

Built-in PRV helps maintain consistent incoming water pressure.

Type Door-Type Dishwasher
Style High Temperature
Installation Type Floor Model
Capacity 60 Racks Per Hour
Controls Touchscreen
Material Stainless Steel
Wash Tank Capacity 10 Gallons
Water Consumption 0.73 Gallons Per Rack (39 Gallons Per Hour Max)
Motor Horsepower 2 HP
Temperature Range 150°F Wash / 180°F Rinse
Tank Heat 5.2 kW
Booster Heat 7.5 kW
Water Inlet Size 3/4 Inch NPT
Drain Connection Size 1.5 Inches OD
Water Connection Required
Drain Connection Required
Hertz 60 Hz
Selling Unit Each
Units Per Case 1
Shipping Width 34 Inches
Shipping Depth 31 Inches
Shipping Height 91 Inches
Shipping Weight 300 Pounds

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 year parts and labor

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is NSF rated for up to 60 racks per hour.
Yes. It includes a built-in electric booster configured to help ensure a 180°F final rinse.
Yes. The unit has a 27-inch extended hood opening and is dual NSF listed as both a dishwasher and pot washer.
It is field convertible between straight-thru and corner operation and can be converted between single- and three-phase power setups.
The machine requires a 3/4-inch NPT hot water connection and a 1.5-inch OD drain connection.
The product is covered by a 1-year parts and labor warranty.
