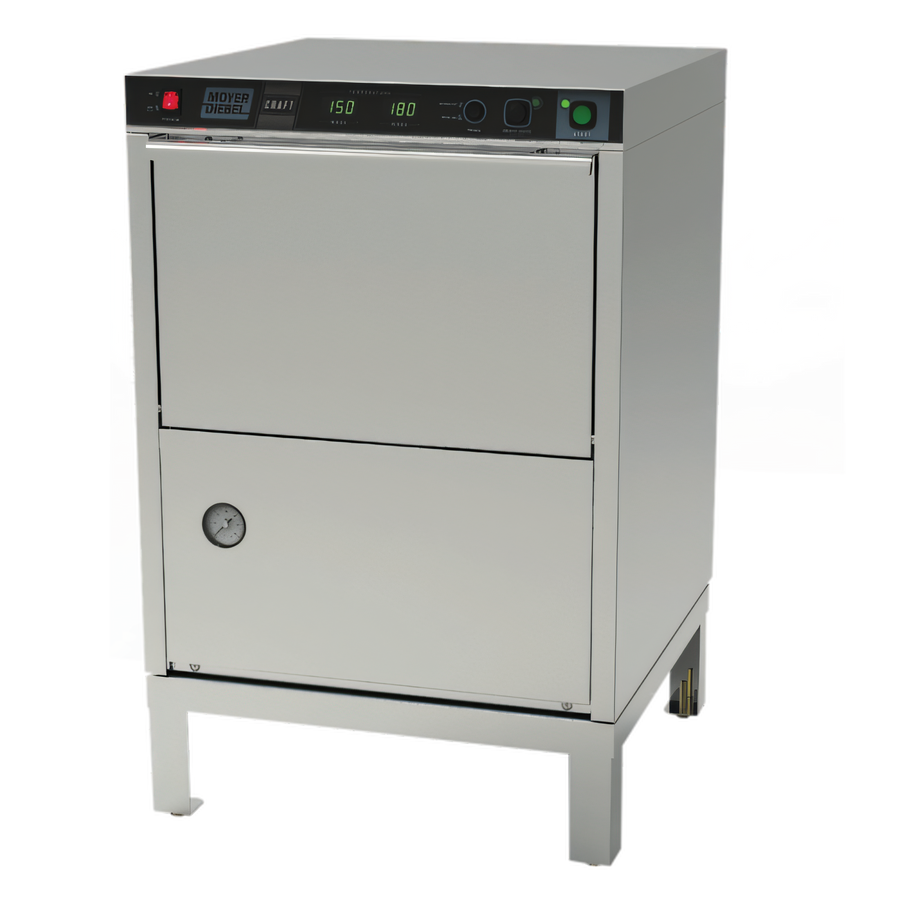

Moyer Diebel Craft Series 601HTG-HSR9KW Undercounter High-Temperature Glasswasher with 9 kW Booster

24" Wide, Fresh Water Sanitized, Approx. 25 Racks/Hour

A compact undercounter glasswasher that delivers high-temp, fresh-water sanitation and fast 9 kW booster recovery for sparkling results.

  • Compact 24-inch undercounter footprint fits tight kitchen spaces without sacrificing performance.
  • 9 kW high-speed recovery booster helps deliver the 180°F final rinse needed for high-temperature sanitation.
  • Soft Start, dedicated rinse arms, and a heavy-duty cycle help protect glassware while handling tough loads.
  • Built-in detergent and rinse-aid pumps, auto-clean, and delime features simplify daily operation and upkeep.
  • Includes one flat rack and one peg rack, plus microprocessor controls with LED temperature display and diagnostics.

Overall Dimensions:

24.0"W x 24.0"D x 37.25"H

Product Weight:

198.0 lb

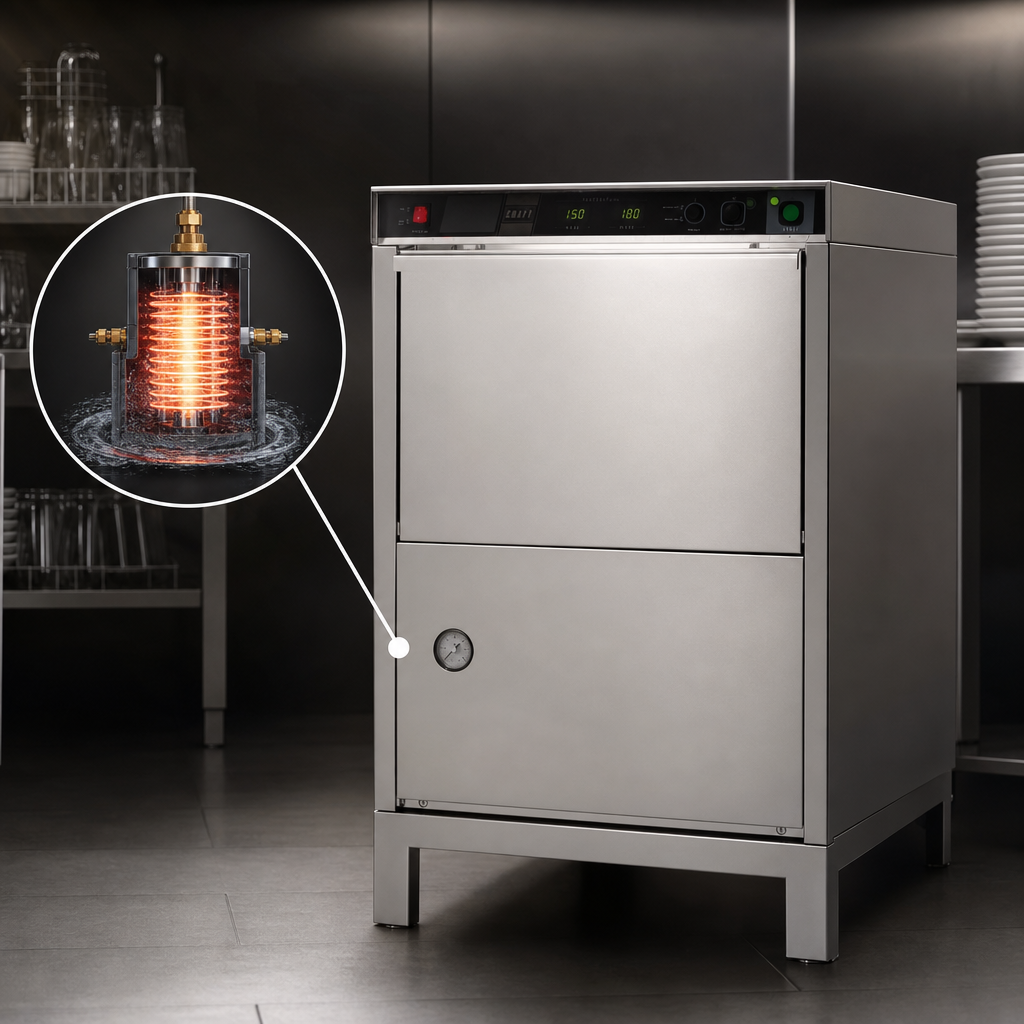

9 kW High Speed Recovery Booster

Built-in electric booster supports fresh-water sanitation and fast 180°F final rinse performance.

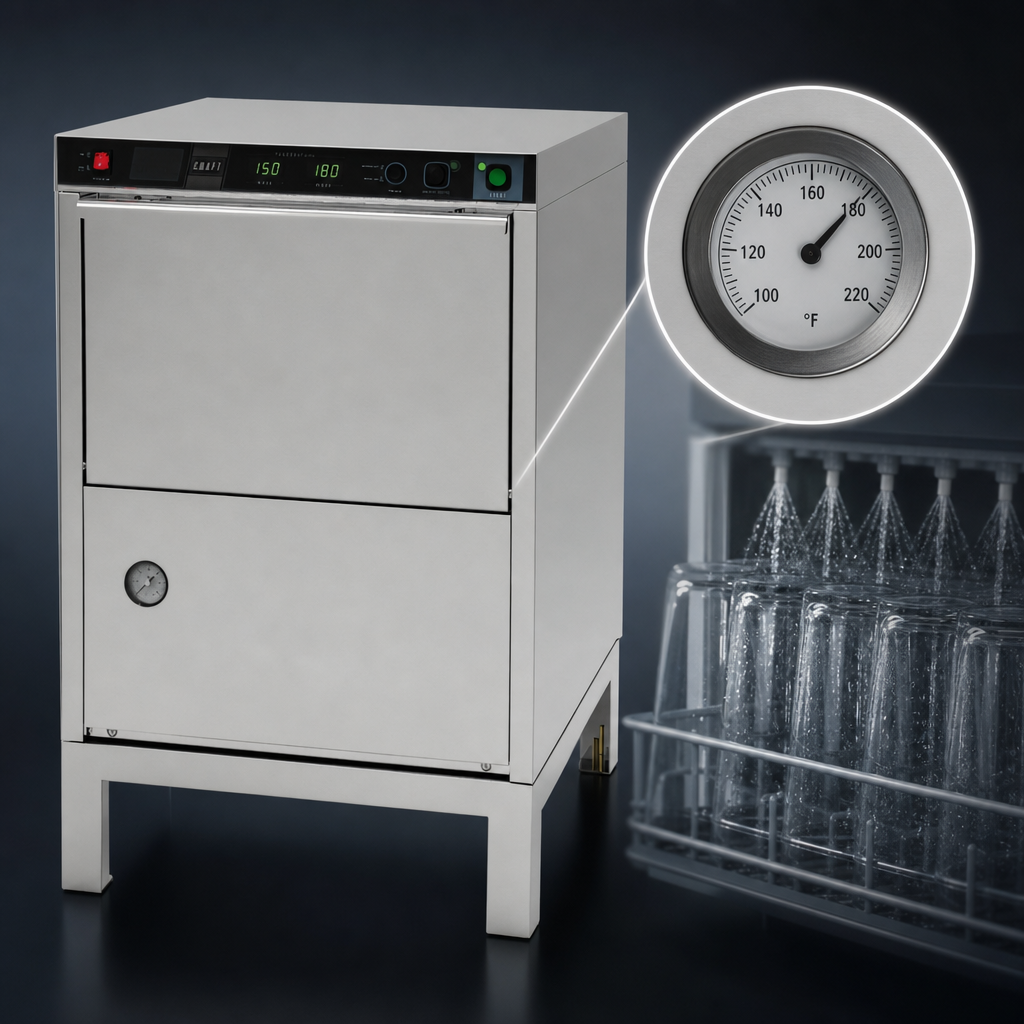

Rinse Sentry Final Rinse Control

Helps ensure the machine reaches the required 180°F final rinse.

Soft Start Wash

Helps reduce chipping and breakage of glasses and mugs.

Dedicated Rinse Arms

Delivers consistent rinse coverage for sparkling results.

Auto-Clean and Delime Cycle

Flushes the tank at shutdown and helps simplify maintenance.

Microprocessor Controls

Includes a digital LED temperature display and advanced service diagnostics.

Built-In Chemical Dispensing Pumps

Detergent and rinse-aid pumps are built in for easier chemical management.

Counter-Balanced Door and Pumped Drain

Supports smoother operation and easier installation.

1 HP Wash Pump

Provides strong wash action for heavily soiled glassware.

Type 316 Stainless Steel Tank

Durable stainless steel wash tank built for demanding commercial use.

Included Rack Package

Ships with one flat rack and one peg rack for 20" x 20" ware.

Type Glasswasher
Style Door Type
Installation Type Undercounter
Capacity 25 Racks Per Hour
Rack Size 20 x 20 Inches
Temperature Range 150°F - 180°F
Material Stainless Steel
Interior Finish Type 316 Stainless Steel
Controls Microprocessor
Water Inlet Size 3/4 Inch Garden Hose Connection
Drain Connection Size 1-1/2 Inch
Water Connection Required
Drain Connection Required
Wash Pump 1 HP
Tank Heater 2 kW
Booster Heater 9 kW
Hertz 60 Hz
Selling Unit Each
Units Per Case 1
Shipping Width 24 Inches
Shipping Depth 24 Inches
Shipping Height 38 Inches
Shipping Weight 198 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is a high-temperature, fresh-water sanitized glasswasher with a built-in 9 kW booster heater for final-rinse performance.
Approximately 25 racks per hour.
It uses 20" x 20" racks and includes one flat rack and one peg rack.
A vent hood is not recommended because the unit does not produce excessive steam; always follow local building codes.
The cutsheet lists a 5 ft. flexible fill hose with a 3/4" garden hose connection and a flexible drain hose for a 1-1/2" drain.
