Key specifications

BTU
159,000 BTU
Amps
3.4 Amps
Phase
1-Phase
Dimensions
36.0"W × 37.25"D
Type
Charbroiler Range
Style
Low Boy
Spec sheet
Montague SKU: V136LB/UFLC-36R

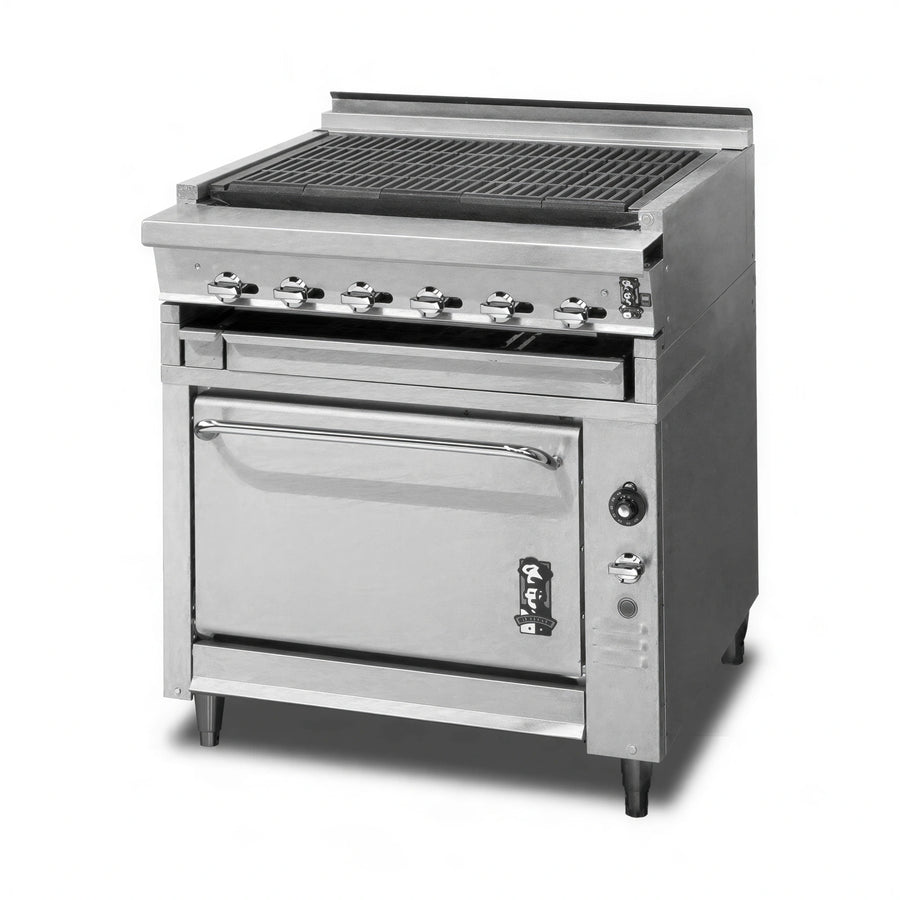

Montague Legend V136LB/UFLC-36R 36-Inch Gas Charbroiler with Convection Oven Base, Stainless Steel Front & Sides

$23,026.32
/each
Estimated to ship in 16–19 business days
Gas type
Electrical
Oven control
Base support
Gas Connector

Need something else? Contact us.

Included: Montague warranty Montague's limited original warranty covers repair or replacement of defective parts for 12 months from the date of installation, with coverage no longer than 48 months from the date of manufacture

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $2,130/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Charbroiler Range
Style Low Boy
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel Front and Sides
Size 36 in
Base Type Convection Oven
BTU 159,000 BTU
Voltage 120 Volts
Amps 3.4 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 ft
Temperature Range Low to 500°F
Oven Compartment Size 26.625 W x 22.25 D x 15 H in
Rack Count 3
Rack Support Positions 5
Oven Burner Input 40,000 BTU
Grid Positions 2
Grate Material Cast Iron
Radiant Material Stainless Steel
Oven Interior Finish Porcelain
Flue Riser Height 1 in
Leg Height 6 in
Gas Inlet Size 3/4 in NPT

Description

The Montague Legend V136LB/UFLC-36R is a 36-inch gas charbroiler range with a front-venting convection oven base. Its charbroiler top has removable self-cleaning stainless steel radiants, a two-position grid frame, and reversible cast-iron top grates.

The convection oven uses an indirect-fired design with a blower, a counterweighted door, five-position adjustable nickel-plated rack supports, and three standard racks. The unit also includes stainless steel front and sides, a 1-inch flue riser, a pressure regulator, and 6-inch adjustable stainless steel legs.

  • 159,000 BTU total input
  • Standard 120-volt, single-phase electrical connection with NEMA 5-15P plug
  • NSF, cETLus, and CE certifications

Overall Dimensions:

36.0"W x 37.25"D

Product Weight:

855.0 lb

Charbroiler Top

Includes removable self-cleaning stainless steel radiants, a two-position grid frame, and reversible cast-iron top grates.

Convection Oven Base

Front-venting, indirect-fired convection oven design with a blower.

Oven Rack System

Five-position adjustable nickel-plated rack supports with three racks standard.

Counterweighted Oven Door

Heavy-duty counterweighted oven door design.

Oven Temperature Control

Thermostat adjusts from low to 500°F.

Oven Burner

40,000 BTU/hr cast-iron burner with automatic ignition safety pilot.

Construction

Stainless steel front and sides with a stainless steel top.

Gas Connection

Includes a pressure regulator and a 3/4-inch NPT gas inlet.

Adjustable Legs

Six-inch adjustable stainless steel legs.

Electrical Connection

Standard 120-volt, single-phase, 60 Hz connection with a 6-foot cord and NEMA 5-15P plug.

Frequently Asked Questions

Yes. The V136LB base includes a front-venting convection oven with an indirect-fired design, blower, five-position rack supports, and three standard racks.
The charbroiler has reversible cast-iron top grates and a two-position grid frame.
The documented standard configuration is 120 volts, 1-phase, 60 Hz, and 3.4 amps with a NEMA 5-15P plug and 6-foot cord.
The specified total input is 159,000 BTU.
The listed product width is 36 inches and depth is 37.25 inches. Product height is not provided in the authoritative dimensions.
No. The product documentation states that it is intended for commercial use by professionally trained personnel and is not intended for residential use.
