Key specifications

BTU
405,000 BTU
Amps
3.4 Amps
Phase
1-Phase
Dimensions
36.0"W × 37.25"D × 36.0"H
Type
Range
Style
Lowboy
Spec sheet
Montague SKU: V136LB

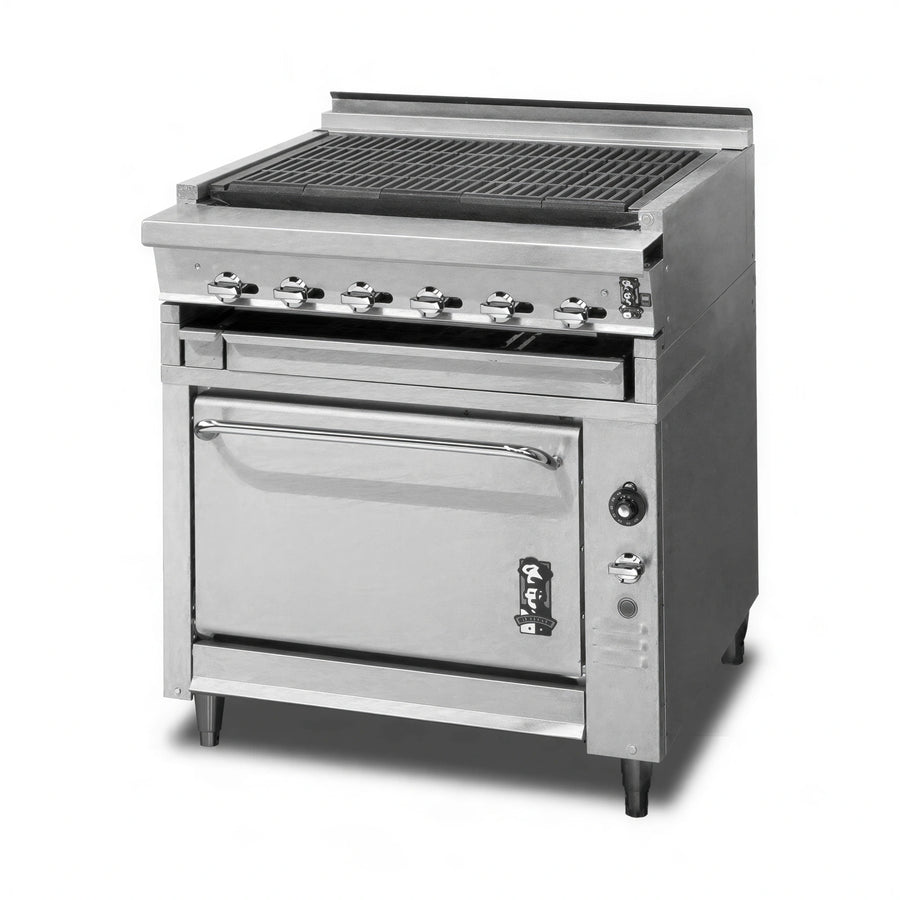

Montague Legend V136LB 36-Inch Heavy-Duty Gas Range with Lowboy Convection Oven, Stainless Steel Exterior

$12,778.95
/each
Estimated to ship in 16–19 business days
Oven type
Gas typeRequired
Electrical120 V · 1-phase · 60 Hz · 3.4 A
Oven control
International approval
Gas Connector

Need something else? Contact us.

Included: Montague warranty Limited original warranty provides repair or replacement of defective parts for 12 months from installation, not exceeding 48 months from manufacture. Legend range doors have a limited lifetime warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,182/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Range
Style Lowboy
Installation Type Floor Model
Material Stainless Steel
Finish Satin
Oven Type Convection
Deck Count 1
BTU 405,000 BTU
Oven BTU 40,000 BTU/hr
Controls Thermostatic
Temperature Range Low to 500°F
Rack Count 3
Rack Positions 5
Voltage 120 Volts
Amps 3.4 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 ft

Description

The Montague Legend V136LB is a 36-inch heavy-duty gas range with a lowboy convection oven, thermostatic control, and a stainless steel work top, front, and sides.

The convection oven features an indirect-fired design with a blower, a counterweighted door, five-position adjustable nickel-plated rack supports, and three racks standard. Six-inch adjustable stainless steel legs support floor-model installation.

  • 405,000 BTU listed gas input
  • 40,000 BTU/hr convection oven burner with automatic ignition safety pilot
  • Porcelain-lined oven interior panels and door
  • Standard 120 Volt, 1-phase electrical configuration with a 6 ft cord and NEMA 5-15P plug

Overall Dimensions:

36.0"W x 37.25"D x 36.0"H

Product Weight:

575.0 lb

Lowboy Convection Oven

Muffled, indirect-fired oven design with a blower for convection cooking.

Thermostatic Control

Thermostatic control with a temperature range from low to 500°F.

Adjustable Rack System

Five-position adjustable nickel-plated rack supports with three racks standard.

Counterweighted Door

Heavy-duty counterweighted oven door without springs.

Porcelain-Lined Interior

Oven interior panels and door are porcelain lined.

Adjustable Legs

Six-inch stainless steel legs with adjustable bullet feet.

Electrical Connection

Standard 120 Volt, 1-phase, 60 Hz configuration with a 6 ft NEMA 5-15P power cord.

Frequently Asked Questions

Yes. The V136LB has one lowboy convection oven with an indirect-fired design and blower.
The standard configuration is 120 Volts, 1-phase, 60 Hz, and 3.4 Amps with a 6 ft cord and NEMA 5-15P plug.
The range is 36 in wide, 37.25 in deep, and 36 in high, with a listed weight of 575 lb.
The V136LB is listed with CE, NSF, and cETLus certifications.
The limited original warranty covers repair or replacement of defective parts for 12 months from installation, not exceeding 48 months from manufacture. Legend range doors have a limited lifetime warranty subject to the stated exclusions.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
