Key specifications

BTU
100,000 BTU
Amps
3.4 Amps
Phase
1-Phase
Dimensions
36.0"W × 37.25"D × 36.0"H
Type
Range
Style
Convection Oven Base
Spec sheet
Montague SKU: V136-9E

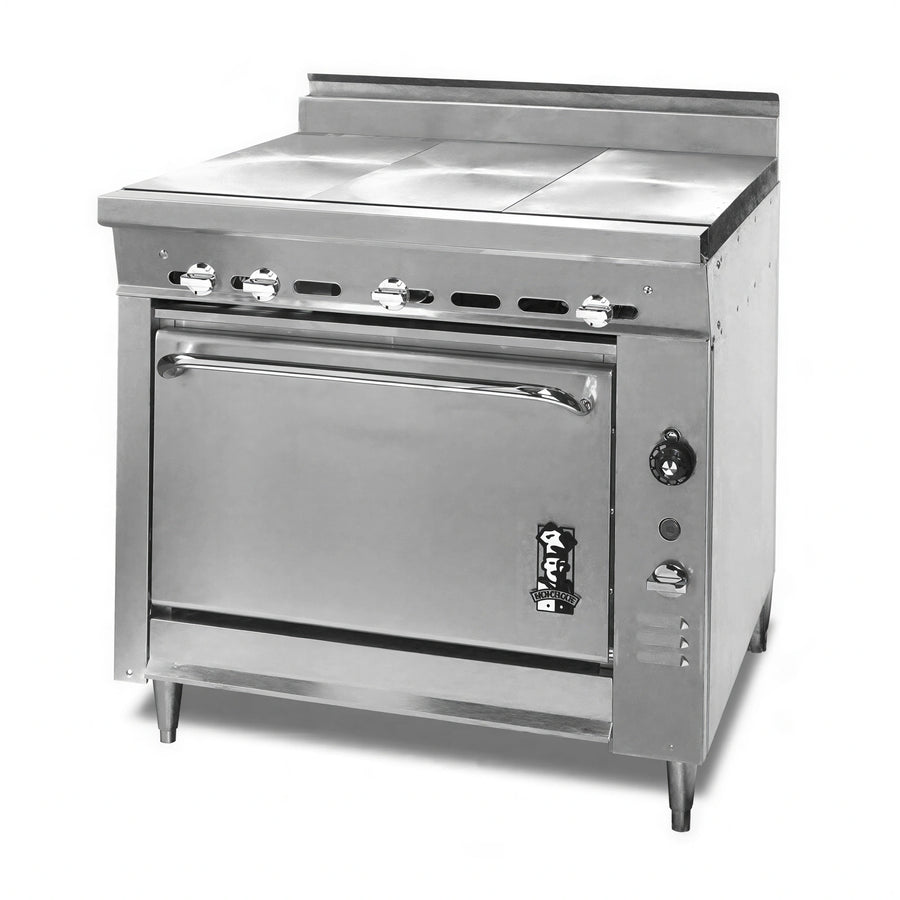

Montague Legend V136-9E Commercial Gas Range, 36 in., 3 Hot Tops, Convection Oven Base, Stainless Steel Front

$15,066.32
/each
Estimated to ship in 16–19 business days
Base
Hot top
Gas typeRequired
Electrical120 V · 1-phase · 60 Hz · 3.4 A
Rangetop pilot ignition
Oven configuration
Gas Connector

Need something else? Contact us.

Included: Montague warranty Limited original warranty covers repair or replacement of defective parts for 12 months from installation, not to exceed 48 months from manufacture

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,394/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Range
Style Convection Oven Base
Installation Type Floor Model
Material Stainless Steel
Finish Satin
Size 36 Inches
Top Configuration 3 Hot Tops
Hot Top Size 12 Inches
Oven Type Convection
BTU 100,000 BTU
Oven Burner BTU 40,000 BTU
Hot Top Burner BTU 20,000 BTU
Controls Individual Burner Controls
Temperature Range Low to 500°F
Rack Count 3
Leg Height 6 Inches
Voltage 120 Volts
Amps 3.4 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet

Description

The Montague Legend V136-9E is a 36-inch gas range with three 12-inch Even-Heat hot tops and a convection oven base.

  • Three solid cast iron hot tops with individual burner controls
  • Convection oven with a 40,000 BTU burner, blower, and five-position rack supports
  • Three wire pan racks standard
  • Stainless steel front and exterior bottom with a 4-inch stainless steel rear flue riser
  • Six-inch adjustable stainless steel legs
  • Standard 120-volt electrical connection with a 6-foot NEMA 5-15P cord

Overall Dimensions:

36.0"W x 37.25"D x 36.0"H

Product Weight:

745.0 lb

Even-Heat Hot Tops

Three 12-inch solid cast iron hot tops with precision-ground plates, 20,000 BTU burners, and individual burner controls.

Convection Oven

Indirect-fired convection oven with a blower, 40,000 BTU cast iron burner, five-position adjustable nickel-plated rack supports, and a thermostat ranging from low to 500°F.

Oven Racks

Three wire pan racks are standard.

Stainless Steel Construction

Stainless steel front and exterior bottom, a 4-inch stainless steel rear flue riser, and six-inch adjustable stainless steel legs.

Counterweighted Door

Heavy-duty convection oven door with a counterweighted design.

Electrical Connection

Standard 120-volt, 1-phase, 60 Hz connection with 3.4 amps and a 6-foot NEMA 5-15P cord.

Frequently Asked Questions

Yes. The V136-9E has a convection oven base with a 40,000 BTU burner, blower, and five-position rack supports.
It has three 12-inch Even-Heat hot tops, each with a 20,000 BTU burner.
The standard connection is 120 Volts, 1-Phase, 60 Hz, and 3.4 Amps, with a 6-foot NEMA 5-15P cord.
Yes. Three wire pan racks are standard.
The product measures 36 Inches wide, 37.25 Inches deep, and 36 Inches high, with a listed weight of 745 lb.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
