Key specifications
- BTU
- 120,000 BTU
- Amps
- 3.4 Amps
- Phase
- 1-Phase
- Dimensions
- 36.0"W × 37.25"D × 36.0"H
- Type
- Range
- Style
- Heavy-Duty

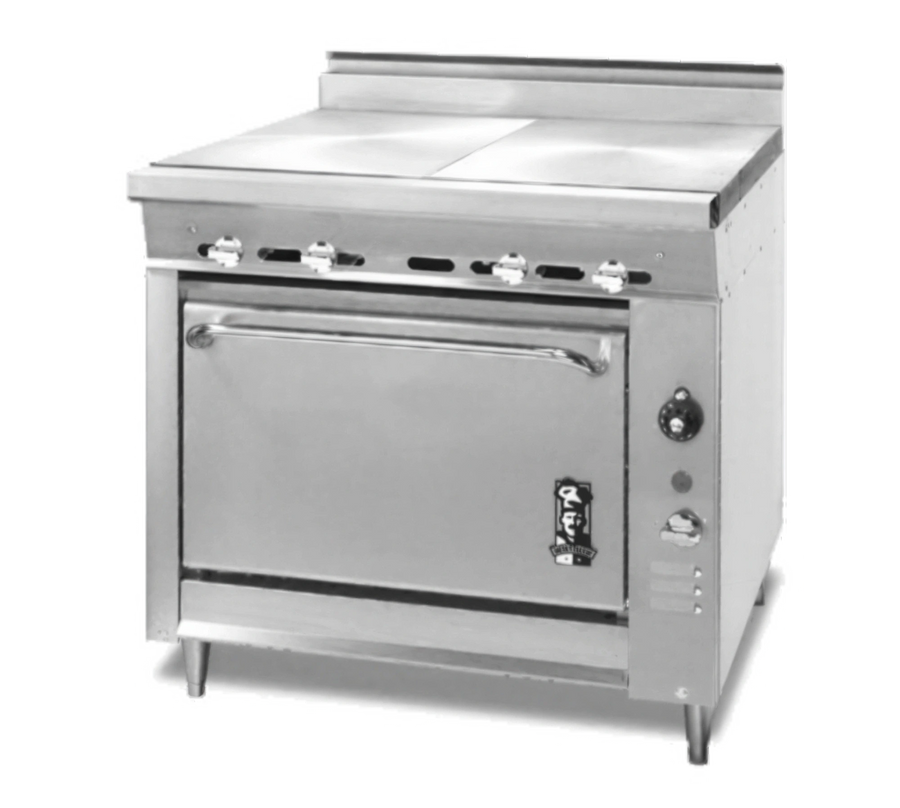

Montague Legend V136-9ASE Heavy-Duty Gas Range, 36", Two Hot Tops, Convection Oven Base, Stainless Steel Front
- Convection oven
- Standard oven
- Open cabinet
- Ring/Cover
- Even Heat
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
The Montague V136-9ASE is a 36-inch heavy-duty gas range with two 18-inch Even-Heat hot tops and a convection oven base.
- Each hot top has two 20,000 BTU/hr burners, individual burner controls, and automatic standing pilots.
- The convection oven uses an indirect-fired design with a blower and includes three wire pan racks standard.
- The oven has a porcelain-lined interior and door, five-position adjustable nickel-plated rack supports, and a thermostat adjustable from low to 500°F.
- The range provides 120,000 BTU/hr total input and includes a stainless steel front, 4-inch flue riser, and 6-inch adjustable stainless steel legs.
- Standard electrical service is 120 Volts, 1-Phase, 60 Hz, 3.4 Amps, with a 6-foot NEMA 5-15P power cord.
Overall Dimensions:
36.0"W x 37.25"D x 36.0"HProduct Weight:
715.0 lbEven-Heat hot tops
Two 18-inch hot tops are provided, each with two 20,000 BTU/hr burners, individual burner controls, and automatic standing pilots.
Convection oven
The oven has an indirect-fired design with a blower, a 40,000 BTU/hr cast iron burner, and an automatic ignition safety pilot.
Oven rack system
Five-position adjustable nickel-plated rack supports and three wire pan racks are standard.
Porcelain-lined oven
The oven interior panels and door are porcelain lined.
Counterweighted door
The heavy-duty oven door is counterweighted and uses no springs.
Adjustable legs
Six-inch adjustable stainless steel legs are standard.
Standard electrical connection
The standard electrical specification is 120 Volts, 1-Phase, 60 Hz, 3.4 Amps, with a 6-foot NEMA 5-15P power cord.
Frequently Asked Questions
This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.
The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
- Count every piece against the delivery receipt.
- Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
- Photograph the freight on the truck before it’s moved.
- If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.
Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.
Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.
If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.
Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
