Key specifications

BTU
130,000 BTU
Amps
3.4 Amps
Phase
1-Phase
Dimensions
36.0"W × 37.25"D × 36.0"H
Type
Range
Installation Type
Floor Model
Spec sheet
Montague SKU: V136-7PL

Montague Legend V136-7PL 36" Gas Range with Convection Oven, 24" Plancha, and 2 Open Burners

$18,227.37
/each
Estimated to ship in 16–19 business days
Base
Griddle type
Gas typeRequired
Electrical120 V · 1-phase · 60 Hz · 3.4 A
Plancha controls
Plancha plate thickness
Gas Connector

Need something else? Contact us.

Included: Montague warranty 12-month limited original warranty; Legend range doors have a limited lifetime warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,686/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Range
Installation Type Floor Model
Material Stainless Steel
Finish Satin
Oven Type Convection
Top Configuration 24 in Plancha; 2 Open Burners
Plancha Width 24 in
Plate Thickness 3/4 in
Open Burner Count 2
Open Burner Output 30,000 BTU each
BTU 130,000 BTU
Controls Manual
Leg Height 6 in Adjustable
Rack Count 3 Wire Racks
Pan Size 18 x 26 in
Temperature Range Low to 500°F
Voltage 120 Volts
Amps 3.4 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 ft

Description

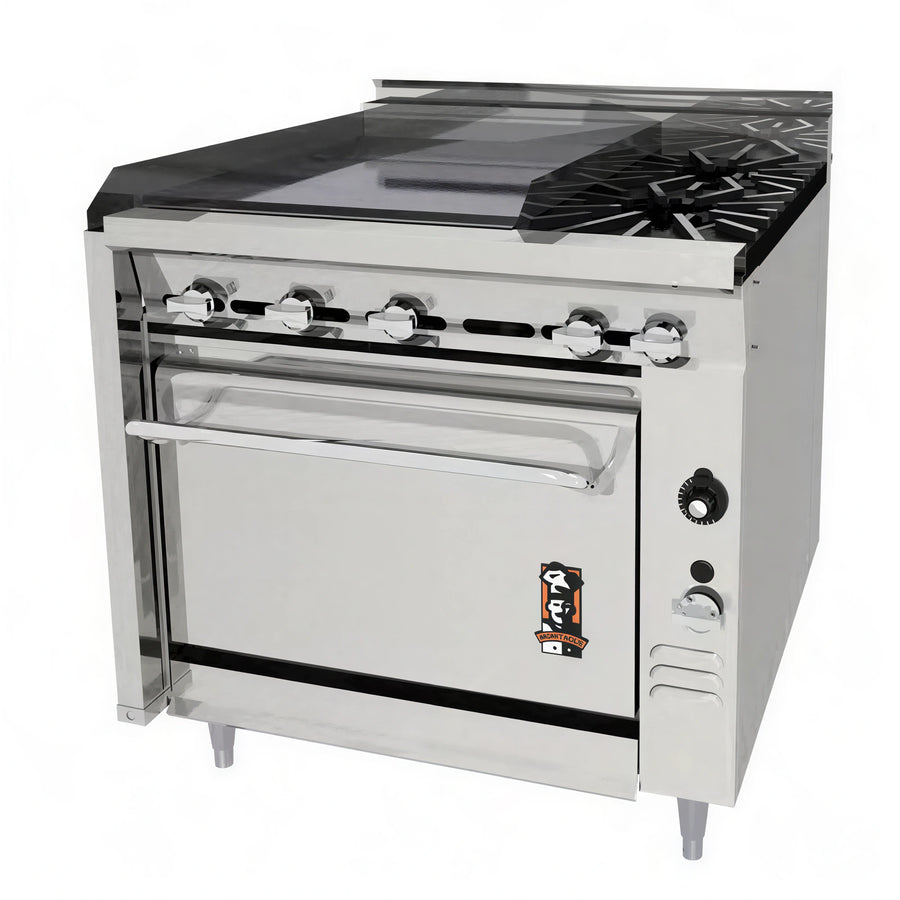

The Montague Legend V136-7PL is a 36-inch gas range with a 24-inch plancha top, two 30,000 BTU open burners, and a convection oven base.

It features manual controls, a 130,000 BTU total input, six-inch adjustable stainless steel legs, a stainless steel front and sides, and a four-inch flue riser.

  • Three wire racks are standard in the convection oven.
  • The unit includes a stainless steel burner box assembly, drip tray, drip tray glides, deflector shields, and burner supports.

Overall Dimensions:

36.0"W x 37.25"D x 36.0"H

Product Weight:

785.0 lb

24-Inch Plancha

The plancha top has a 3/4-inch thick cook surface.

Open Burners

Two open burners provide 30,000 BTU each.

Convection Oven

The convection oven base includes three wire racks.

Manual Controls

The range uses manual controls.

Stainless Steel Construction

The unit has a stainless steel front and sides, plus a stainless steel burner box assembly.

Adjustable Legs

Six-inch adjustable stainless steel legs are included.

Included Components

Includes an all-stainless steel bottom, drip tray, drip tray glides, deflector shields, and burner supports.

Frequently Asked Questions

Yes. The V136-7PL includes a convection oven base.
The range top includes a 24-inch plancha and two 30,000 BTU open burners.
It uses 120 volts, 3.4 amps, 1-phase, 60 Hz power with a NEMA 5-15P plug and a 6-foot cord.
Three wire racks are standard.
The range is 36 inches wide, 37.25 inches deep, and 36 inches high, with a listed weight of 785 pounds.
