Key specifications

BTU
175,000 BTU
Amps
3.4 Amps
Phase
1-Phase
Dimensions
36.0"W × 37.25"D × 36.0"H
Type
Range
Style
Convection Oven Base
Spec sheet
Montague SKU: V136-6

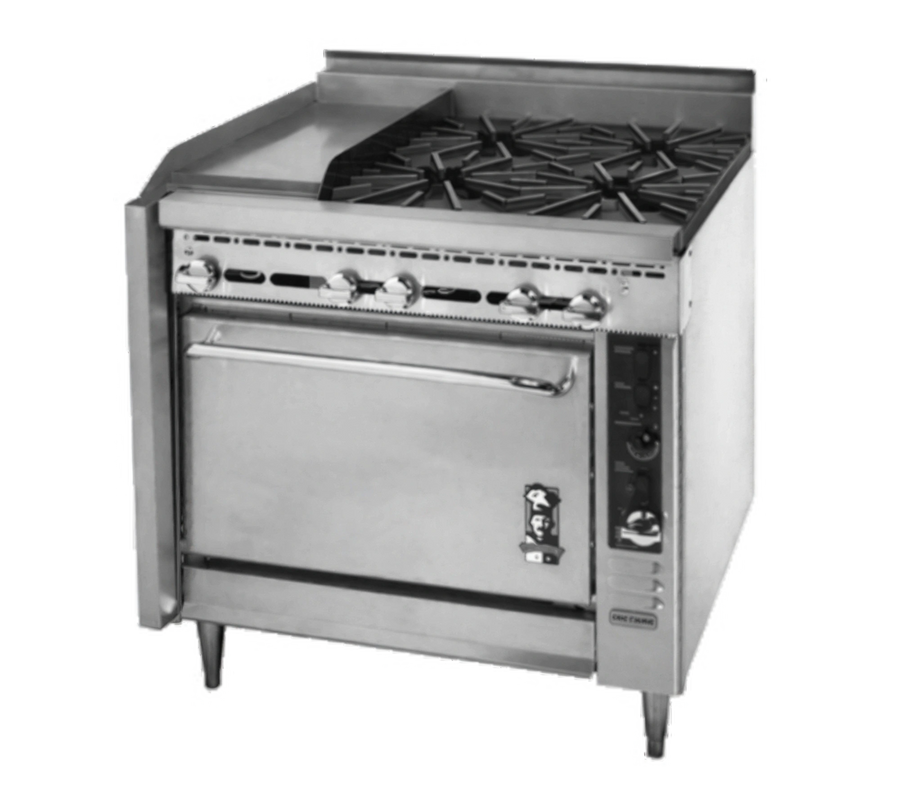

Montague Legend V136-6 36" Gas Range with Convection Oven, 4 Open Burners, 12" Griddle and Manual Controls

$16,251.58
/each
Estimated to ship in 16–19 business days
Base
Electrical120 V · 1-phase · 60 Hz · 3.4 A
Range depth
Griddle control
Griddle plate
Gas Connector

Need something else? Contact us.

Included: Montague warranty Limited original warranty for 12 months from installation, not exceeding 48 months from manufacture

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,503/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Range
Style Convection Oven Base
Installation Type Floor Model
Material Stainless Steel
Finish Satin
Interior Finish Porcelain
Top Configuration 1 Griddle, 4 Open Burners
Griddle Width 12 Inches
Plate Thickness 3/4 Inch
Pan Size 18 x 26 Inches
Rack Count 3 Racks
Rack Positions 5 Positions
Burner Count 4 Open Burners
BTU 175,000 BTU
Open Burner BTU 30,000 BTU Each
Griddle BTU 15,000 BTU
Oven BTU 40,000 BTU
Temperature Range Low to 500°F
Controls Manual
Voltage 120 Volts
Amps 3.4 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Leg Height 6 Inches
Flue Riser Height 4 Inches

Description

The Montague V136-6 is a 36-inch heavy-duty gas range with a convection oven base, a left-positioned 12-inch griddle, and four right-positioned open burners.

  • Cooking top: The griddle has a 3/4-inch precision-ground steel surface and a 15,000 BTU burner. Four 30,000 BTU open burners provide individual manual controls.
  • Convection oven: The oven includes five-position rack supports, three wire racks, a porcelain-lined interior, and a thermostat ranging from low to 500°F.
  • Construction: The range includes a stainless steel front, exterior bottom, burner box assembly, and 4-inch flue riser, plus 6-inch adjustable stainless steel legs.
  • Electrical: The standard configuration uses 120 Volts, 1-Phase, 60 Hz power with a 6-foot cord and NEMA 5-15P plug.

Overall Dimensions:

36.0"W x 37.25"D x 36.0"H

Product Weight:

760.0 lb

Convection Oven

Indirect-fired convection oven with a low-to-500°F thermostat, five-position rack supports, three wire racks, and porcelain-lined interior.

12-Inch Griddle

Left-positioned griddle with a 3/4-inch precision-ground steel cook surface, 15,000 BTU burner, grease trough, and grease receptacle.

Open Burners

Four right-positioned 30,000 BTU lift-off gas star burners with individual controls and automatic standing pilots.

Manual Controls

Manual control configuration for the range top and cooking functions.

Adjustable Legs

Six-inch adjustable stainless steel legs are standard.

Stainless Steel Construction

Stainless steel front, exterior bottom, burner box assembly, and 4-inch rear flue riser.

Electrical Connection

Standard 120 Volt, 1-Phase, 60 Hz connection with 3.4 Amps, a 6-foot cord, and NEMA 5-15P plug.

Frequently Asked Questions

It has a left-positioned 12-inch griddle and four right-positioned open burners.
The V136-6 has an indirect-fired convection oven with five-position rack supports and three wire racks.
The standard configuration is 120 Volts, 1-Phase, 60 Hz, and 3.4 Amps with a 6-foot cord and NEMA 5-15P plug.
The range is 36 Inches wide, 37.25 Inches deep, and 36 Inches high.
The limited original warranty is 12 months from installation and no longer than 48 months from manufacture. Legend Range Doors are listed for limited lifetime coverage, subject to stated exclusions and conditions.
