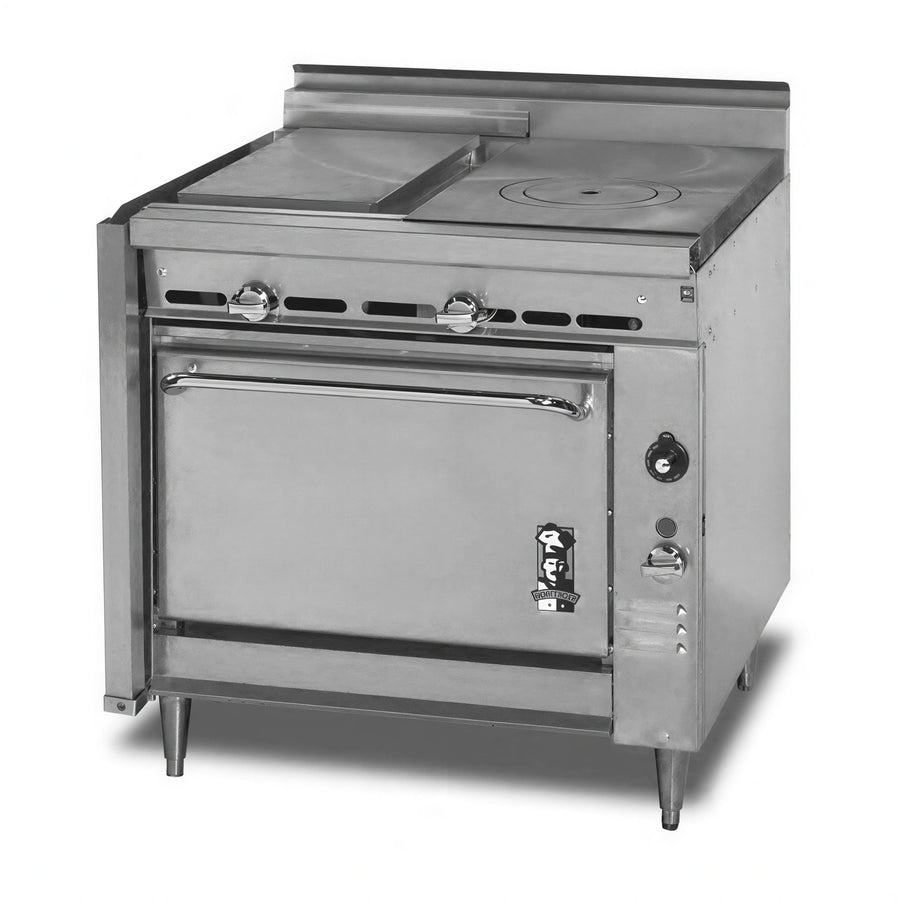

Montague Company Legend V136-12PL 36" Gas Range with Convection Oven, 18" Plancha and 18" Hot Top, Manual Controls

SKU: V136-12PL
$17,042.11
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

The Montague Company V136-12PL Legend heavy-duty gas range combines manual controls, an 18-inch plancha top, an 18-inch ring-and-cover hot top, and a convection oven base.

  • Cooking top: One 18-inch plancha on the left and one 18-inch ring-and-cover hot top on the right.
  • Convection oven: Indirect-fired oven with a 40,000 BTU/hr burner, five-position rack supports, and three wire pan racks.
  • Construction: Stainless steel front and sides, a 4-inch flue riser, and 6-inch adjustable stainless steel legs.
  • Input: 90,000 BTU/hr total gas input.

Overall Dimensions:

36.0"W x 37.25"D x 36.0"H

Product Weight:

780.0 lb

Plancha top

The left-side plancha has a 3/4-inch precision-ground steel cook surface.

Ring-and-cover hot top

The right-side hot top includes a ring and cover.

Convection oven

The indirect-fired convection oven has a 40,000 BTU/hr cast iron burner, blower, five-position adjustable rack supports, and three wire pan racks.

Manual controls

The range uses manual controls.

Stainless steel construction

The product has a stainless steel front and sides, a 4-inch flue riser, and 6-inch adjustable stainless steel legs.

Electrical connection

The V136 convection model is specified for 120 V, single-phase, 60 Hz operation at 3.4 A with a 6-foot NEMA 5-15P cord.

Commercial gas input

Total gas input is 90,000 BTU/hr.

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Commercial Ranges Cooking Equipment Equipment Gas Ranges Gas Ranges Montague Company New Arrivals Ranges Restaurant Equipment
Product Type Heavy-duty gas range
Width 36 in
Depth 37.25 in
Height 36 in
Weight 780 lb
Oven Base Convection oven
Controls Manual
Plancha Size 18 in
Hot Top Size 18 in
Plate Thickness 3/4 in
Total Gas Input 90,000 BTU/hr
Oven Burner Input 40,000 BTU/hr
Hot Top Burner Input 35,000 BTU/hr
Plancha Burner Input 15,000 BTU/hr
Oven Cooking Compartment 26-5/8 in W x 22-1/4 in D x 15 in H
Oven Rack Supports Five-position adjustable
Standard Oven Racks Three wire pan racks
Electrical 120 V, 1 phase, 60 Hz, 3.4 A
Power Cord 6 ft, NEMA 5-15P
Gas Inlet 1-1/4 NPT front manifold with 1/2-inch union on each end
Exterior Finish Stainless steel front and sides
Flue Riser 4 in stainless steel
Legs 6 in adjustable stainless steel legs

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Montague Limited Original Warranty: 12 months from installation and no longer than 48 months from manufacture, subject to stated conditions and exclusions.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has one 18-inch plancha top on the left and one 18-inch ring-and-cover hot top on the right.
Yes. The V136-12PL has a convection oven base with a 40,000 BTU/hr burner, five-position rack supports, and three wire pan racks.
The product has manual controls.
The product is 36 inches wide, 37.25 inches deep, and 36 inches high.
The convection model is specified for 120 V, single-phase, 60 Hz operation at 3.4 A with a 6-foot NEMA 5-15P cord.
The product is listed with NSF, cETLus, and CE certifications.
The Montague Limited Original Warranty covers repair or replacement of defective parts for 12 months from installation, not exceeding 48 months from manufacture, subject to its conditions and exclusions. Legend range doors have a separate limited lifetime warranty for the original purchaser.
