Montague Company Legend V136-12E 36-Inch Gas Range with 18-Inch Griddle, 3/4-Inch Plate, 18-Inch Hot Top & Convection Oven

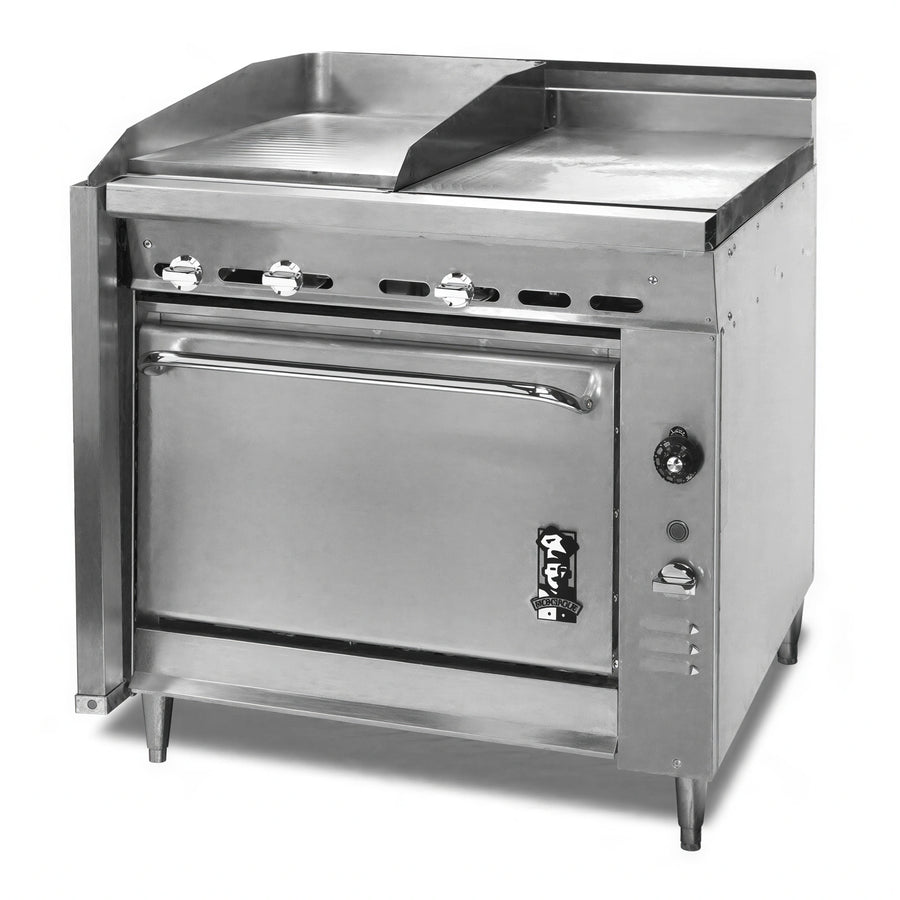

The Montague Legend V136-12E is a 36-inch gas range with an 18-inch griddle on the left, an 18-inch Even-Heat hot top on the right, and a convection oven base.
- Griddle: 3/4-inch precision-ground steel cook surface with two 15,000 BTU/hr burners.
- Hot top: Precision-ground 18-inch Even-Heat hot top with two 20,000 BTU/hr burners.
- Convection oven: Indirect-fired design with blower, 40,000 BTU/hr cast iron burner, five-position rack supports, and three wire racks standard.
- Construction: Stainless steel front and sides, 4-inch flue riser, and 6-inch adjustable stainless steel legs.
- Controls and connection: Manual controls with a 120 V, 3.4 A electrical connection and 6-foot cord with 3-prong NEMA 5-15P plug.
Overall Dimensions:
36.0"W x 37.25"D x 36.0"HProduct Weight:
780.0 lb18-inch griddle
The left-side griddle has a 3/4-inch precision-ground steel cook surface, grease trough and receptacle, and two 15,000 BTU/hr gas burners with standing pilots.
18-inch Even-Heat hot top
The right-side hot top uses a precision-ground plate with two 20,000 BTU/hr burners and individual burner controls.
Convection oven
The oven uses an indirect-fired design with blower, a 40,000 BTU/hr cast iron burner, five-position adjustable rack supports, and three wire racks standard.
Manual controls
Manual controls are specified for the range.
Counterweighted oven door
The heavy-duty oven door is counterweighted and designed without springs.
Porcelain-lined oven interior
The oven interior panels and door are porcelain lined.
Stainless steel construction details
The unit has a stainless steel front and sides, a 4-inch stainless steel flue riser, and 6-inch adjustable stainless steel legs.
Electrical connection
The convection model is specified with a 6-foot cord and 3-prong NEMA 5-15P plug; the cutsheet lists 120 V, 1-phase, 60 Hz, 3.4 A as standard.
Certifications & Compliance
Warranty & Protection
Montague's limited original warranty covers repair or replacement of defective parts for 12 months from the date of installation, not exceeding 48 months from the date of manufacture.
