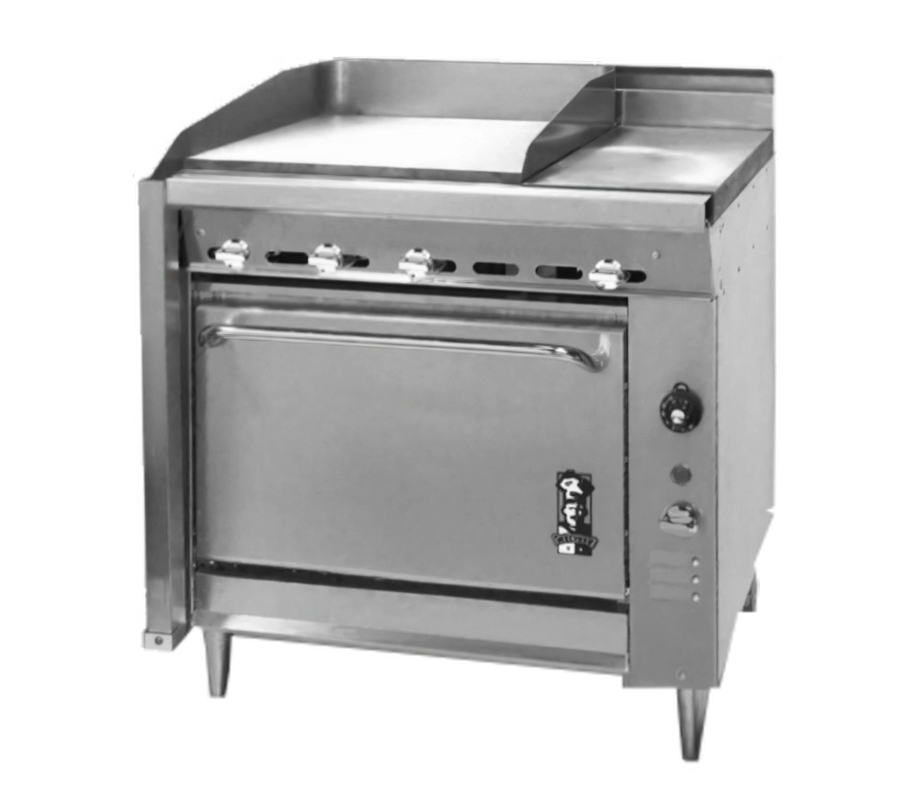

Montague Company Legend V136-0E 36" Gas Range with Convection Oven, 24" Griddle, 3/4" Plate, and 12" Hot Top
The Montague Legend V136-0E is a 36-inch gas range with a convection oven base, a left-side 24-inch griddle and a right-side 12-inch Even Heat hot top.
- The griddle has a 3/4-inch thick cook surface and manual control.
- The Even Heat hot top has a 20,000 BTU/hr burner.
- The range has a total input of 105,000 BTU.
- Construction includes a stainless steel front, stainless steel sides, a 4-inch stainless steel flue riser and 6-inch adjustable stainless steel legs.
The product is intended for commercial use by professionally trained personnel and is not intended for residential use.
Overall Dimensions:
36.0"W x 37.25"D x 36.0"HProduct Weight:
868.0 lbConvection oven base
The indirect-fired convection oven has a 40,000 BTU/hr cast iron burner, five-position rack supports and three wire pan racks standard.
24-inch griddle
The left-side griddle has a 3/4-inch thick precision-ground steel cook surface, three 15,000 BTU/hr burners and manual control.
12-inch Even Heat hot top
The right-side hot top uses a one-piece cast iron plate and a 20,000 BTU/hr burner with individual burner controls.
Stainless steel exterior elements
The product specification identifies a stainless steel front, stainless steel sides and a stainless steel 4-inch flue riser.
Adjustable stainless steel legs
The range has 6-inch high adjustable stainless steel legs.
Electrical connection
The V136-0E cut sheet lists 120 V, single-phase, 60 Hz, 3.4 A electrical service with a 6-foot NEMA 5-15P cord.
Certifications & Compliance
Warranty & Protection
Montague provides a limited original warranty for 12 months from installation, with coverage ending no later than 48 months from the date of manufacture. Legend range doors have a limited lifetime door warranty.
