Montague Company Legend UFSC-72C 72" Countertop Char-Broiler with Ceramic Briquettes and Adjustable 3-Position Cast-Iron Grate

SKU: UFSC-72C
$17,114.40
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

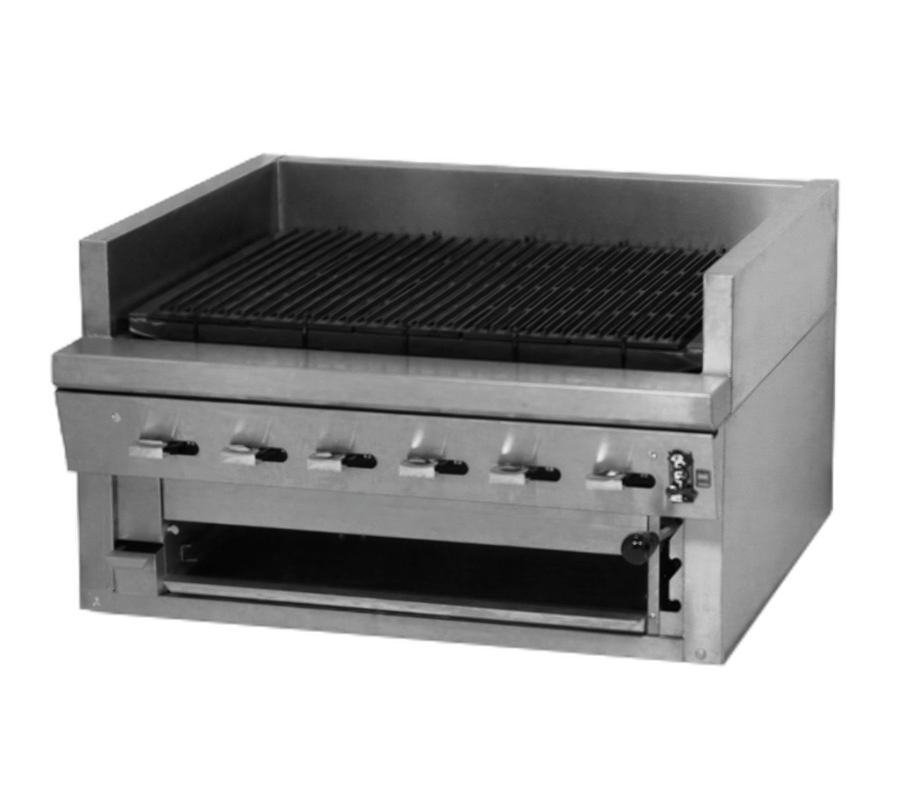

The Montague Legend UFSC-72C is a 72-inch free-standing countertop gas underfired broiler with ceramic briquettes and an adjustable three-position, reversible cast-iron Ultra-Flow top grate.

  • Six cast-iron H burners provide 270,000 BTU/hr total input with individual manual gas valves.
  • Ten grates provide a 60 x 24 inch cooking area.
  • Stainless steel front, top trim, and splash shields.
  • Includes a 3/4-inch NPT gas pressure regulator.
  • For commercial use by professionally trained personnel; not intended for residential use.

Overall Dimensions:

72.0"W x 32.88"D x 15.25"H

Product Weight:

1005.0 lb

Ceramic briquette bed

Ceramic briquettes are used in the broiler bed; the cutsheet describes them as quick heat absorbing and reducing flare-ups.

Reversible adjustable grate

The cast-iron Ultra-Flow top grate is reversible and adjusts through three positions, with flat and ribbed sides.

Zoned heat control

Individual manual gas valves provide zoned heat control for the burners.

Grease management

The unit has a full-width front grease trough, removable large-capacity grease container, full-width removable drip tray, and debris screen under the burners.

Stainless steel exterior elements

The front, top trim, and splash shields are stainless steel.

Gas connection and regulator

A 3/4-inch NPT rear gas manifold connection and 3/4-inch NPT gas pressure regulator are provided.

Related Searches

Best Sellers Charbroilers Charbroilers & Grills Commercial Charbroilers Commercial Grills Cooking Equipment Equipment Gas Charbroilers Montague Company New Arrivals Restaurant Equipment
Product type Heavy-duty gas underfired broiler, free-standing countertop model
Overall width 72 in
Cooking area 60 x 24 in
Number of grates 10
Number of burners 6
Burner type Cast-iron H burners
Total input 270,000 BTU/hr
Fuel Gas
Heating medium Ceramic briquettes
Top grate Reversible cast-iron Ultra-Flow grate with three-position adjustment
Grate spacing 1 in
Gas connection 3/4 in NPT rear gas manifold connection
Gas pressure regulator 3/4 in NPT provided
Front and top trim material Stainless steel
Splash shield material Stainless steel
Intended use Commercial use by professionally trained personnel; not intended for residential use

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

Montague limited original warranty: 12 months from installation, no longer than 48 months from manufacture.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Yes. It is a gas-fired underfired broiler with a 3/4-inch NPT rear gas connection and 270,000 BTU/hr total input.
The cooking area is 60 x 24 inches.
The UFSC-72C has 10 grates and 6 cast-iron H burners.
Yes. The reversible cast-iron Ultra-Flow grate has three-position adjustment.
Yes. A 3/4-inch NPT gas pressure regulator is provided.
No. The product documentation states that it is intended for commercial use by professionally trained personnel and is not intended for residential use.
Montague's limited original warranty is generally 12 months from installation and no longer than 48 months from manufacture. For underfired gas broilers, burners, grates, and grids are listed as covered for 6 months from installation, subject to the stated warranty terms and exclusions.
