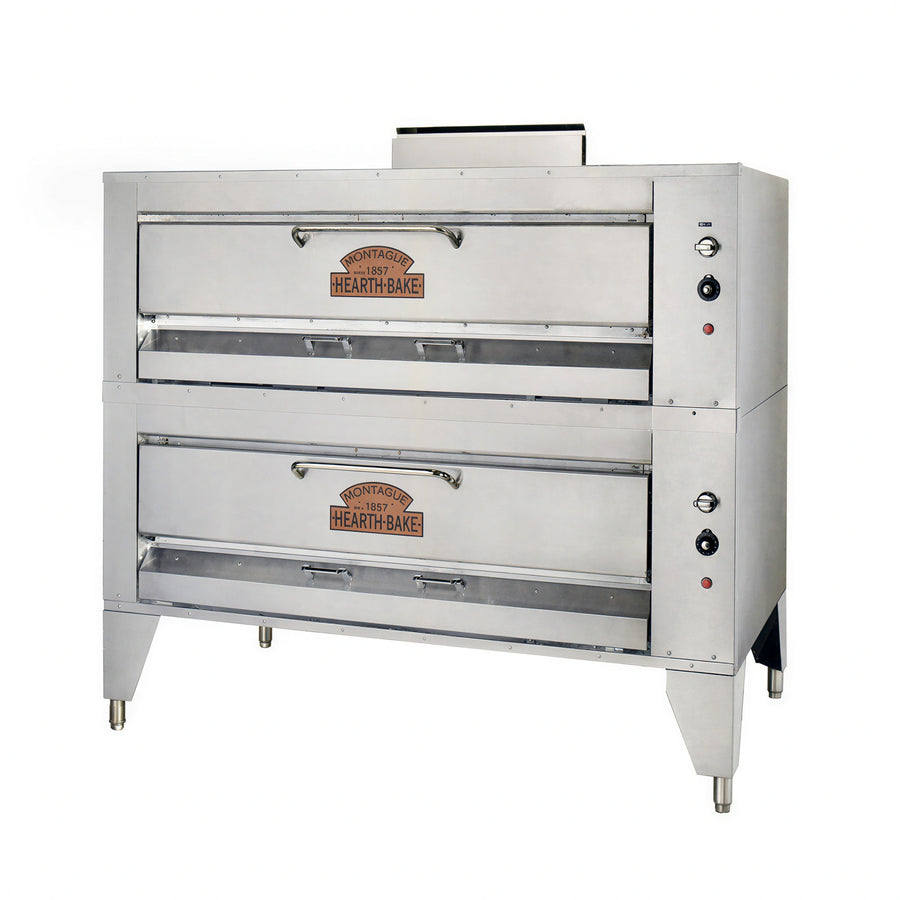

Montague Company Legend 23P-2 Double-Deck Gas Pizza Oven with Cordierite Decks, 41-1/2" W x 31" D, 650°F Thermostats

SKU: 23P-2
$31,550.40
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ovens Commercial Ovens Cooking Equipment Deck Ovens Deck Ovens Equipment Montague Company New Arrivals Ovens Pizza Ovens Pizza Ovens Restaurant Equipment

The Montague Legend 23P-2 is a double-deck gas pizza oven with two 8-inch-high bake compartments and 41-1/2-inch by 31-inch Cordierite decks. Four burners provide 160,000 BTU/hr total input, while burner-modulating thermostats adjust from 300°F to 650°F.

  • Fire brick-lined cooking compartments with high-temperature fiberglass blanket insulation.
  • Stainless steel front, sides and top with a 7-3/4-inch-high black flue deflector.
  • Counterweighted full-compartment-width drop-down doors and 15-inch stainless steel gusset-style legs with adjustable feet.

The oven is intended for commercial use by professionally trained personnel and is not intended for residential use.

Overall Dimensions:

62.0"W x 40.5"D x 68.63"H

Product Weight:

1912.0 lb

Double-deck configuration

Includes two 8-inch-high bake compartments, with two gas burners mounted below each deck.

Cordierite baking decks

Each deck is 1-1/2 inches thick and measures 41-1/2 inches by 31 inches.

Gas burner system

Four removable cast iron burners provide 40,000 BTU/hr each and 160,000 BTU/hr total input.

Modulating thermostats

Each deck has a burner-modulating thermostat with a 300°F to 650°F operating range.

Fire brick-lined compartments

Oven sides, back and top are lined with fire brick, with high-temperature fiberglass blanket insulation.

Stainless steel construction

The front, sides and top are stainless steel; other surfaces are painted black with electrolytic zinc undercoating.

Counterweighted doors

Full-compartment-width drop-down doors use counterweights for closing and sealing.

Adjustable support legs

The oven includes 15-inch stainless steel gusset-style legs with adjustable feet.

Automatic ignition safety

Automatic safety pilots provide automatic ignition, and the burners and standing pilots are accessed through the fire door with a crumb ejector.

Flue deflector

A 7-3/4-inch-high black flue deflector is standard.

Fuel Type Gas
Number of Decks 2
Bake Compartment Height per Deck 8 in
Deck Size 41-1/2 in W x 31 in D
Deck Construction 1-1/2 in thick Cordierite
Cooking Compartment Lining Fire brick lined
Burners 4 removable cast iron burners, 40,000 BTU/hr each
Total Input 160,000 BTU/hr
Thermostat Range 300–650°F
Exterior Construction Stainless steel front, sides and top
Flue Deflector Height 7-3/4 in
Leg Height 15 in
Gas Connections Two 3/4 in NPT rear gas connections

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

Montague Limited Original Warranty: 12 months from the date of installation and no longer than 48 months from the date of manufacture.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The 23P-2 has two decks and two 8-inch-high bake compartments.
Each Cordierite deck measures 41-1/2 inches wide by 31 inches deep.
The listed overall dimensions are 62.0 inches wide, 40.5 inches deep and 68.63 inches high.
The oven has four 40,000 BTU/hr burners for a total input of 160,000 BTU/hr.
The burner-modulating thermostats adjust from 300°F to 650°F.
No. The documentation states that the appliance is intended for commercial use by professionally trained personnel and is not intended for residential use.
The Montague Limited Original Warranty covers repair or replacement of defective parts for 12 months from installation, limited to no longer than 48 months from manufacture. A limited lifetime door warranty applies to Pizza, Bake and Roast Oven Doors, subject to stated exclusions and conditions.
