Key specifications

BTU
85,000 BTU
Dimensions
36.0"W × 37.25"D × 36.0"H
Type
Range
Style
Plancha Top
Installation Type
Floor Model
Material
Stainless Steel
Spec sheet
Montague SKU: 136-8PL

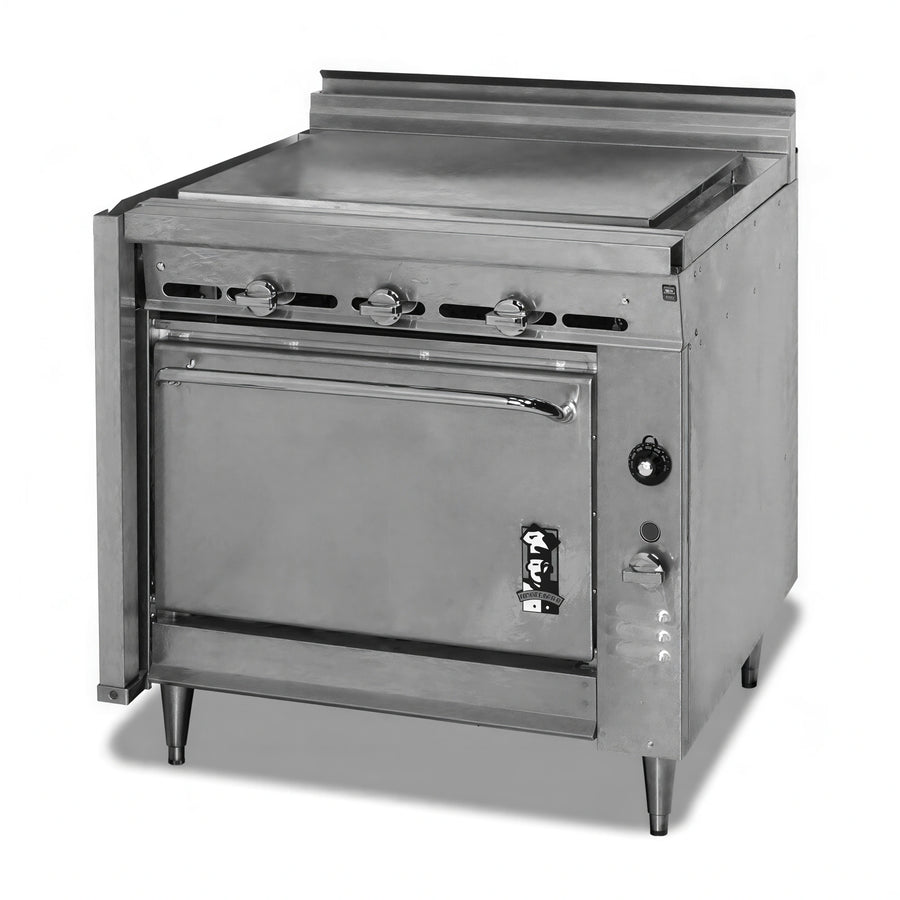

Montague Legend 136-8PL Commercial Gas Range, 36", 3/4" Plancha Top, Standard Oven, Manual Control, Stainless Steel Front

$13,616.85
/each
Estimated to ship in 16–19 business days
Base
Gas typeRequired
Plancha burners and controls
Oven temperature
Plancha plate thickness
Rangetop ignition

Need something else? Contact us.

Included: Montague warranty Limited original warranty for 12 months from installation, not to exceed 48 months from manufacture, plus a limited lifetime warranty for the Legend range door

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,260/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Range
Style Plancha Top
Installation Type Floor Model
Material Stainless Steel
Interior Finish Porcelain
Size 36 Inches
Plate Thickness 3/4 Inch
Pan Size 18 x 26 Inches
Burner Count 4
Plancha Burner Count 3
Plancha Width 31 Inches
Plancha Depth 25 Inches
BTU 85,000 BTU
Plancha Burner BTU 15,000 BTU/hr
Oven Burner BTU 40,000 BTU/hr
Controls Manual
Temperature Range Low to 500°F
Gas Inlet Size 1-1/4 NPT
Flue Riser Height 4 Inches
Leg Height 6 Inches
Grease Receptacle Capacity 2 Quarts
Rack Count 1
Oven Cooking Compartment 26-5/8 W x 28 D x 15 H Inches

Description

The Montague Legend 136-8PL is a 36-inch gas range with a 3/4-inch plancha top, manual controls, and a standard front-vented oven.

  • The 31-inch plancha has a precision-ground steel cook surface, full perimeter grease trough, 2-quart hanging grease receptacle, and three 15,000 BTU/hr burners with individual controls.
  • The standard oven has a 26-5/8-inch W x 28-inch D x 15-inch H cooking compartment, porcelain-lined interior panels and door, a low-to-500°F thermostat, and one standard wire pan rack.
  • The range includes a stainless steel front, 4-inch flue riser, and 6-inch adjustable stainless steel legs.

Overall Dimensions:

36.0"W x 37.25"D x 36.0"H

Product Weight:

746.0 lb

Plancha Top

The 31-inch-wide plancha has a 3/4-inch precision-ground steel cook surface, full perimeter grease trough, and 2-quart hanging grease receptacle.

Individual Heating Controls

Three 15,000 BTU/hr plancha burners have individual gas control valves for zoned heating.

Standard Oven

The front-vented conventional oven has a 26-5/8-inch W x 28-inch D x 15-inch H cooking compartment, low-to-500°F thermostat, porcelain-lined interior panels and door, and one wire pan rack standard.

Manual Control

The range uses manual controls.

Adjustable Legs

The range includes 6-inch adjustable stainless steel legs.

Flue Riser

A 4-inch stainless steel flue riser is standard.

Gas Connection

The front gas manifold has a 1-1/4 NPT connection with a 1/2-inch union on each end.

Frequently Asked Questions

It has a standard front-vented conventional oven with a low-to-500°F thermostat.
The plancha cook surface is 3/4 inch thick.
It has three plancha burners plus one oven burner, for four burners total.
The total input is 85,000 BTU.
The product dimensions are 36 inches wide, 37.25 inches deep, and 36 inches high.
One wire pan rack is standard.
