Moffat  |  Turbofan  |  SKU: H8D-UC

Moffat H8D-UC Turbofan Heated Cabinets & Holding Shelves

$4,775.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Heated Cabinets & Holding Shelves Holding Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

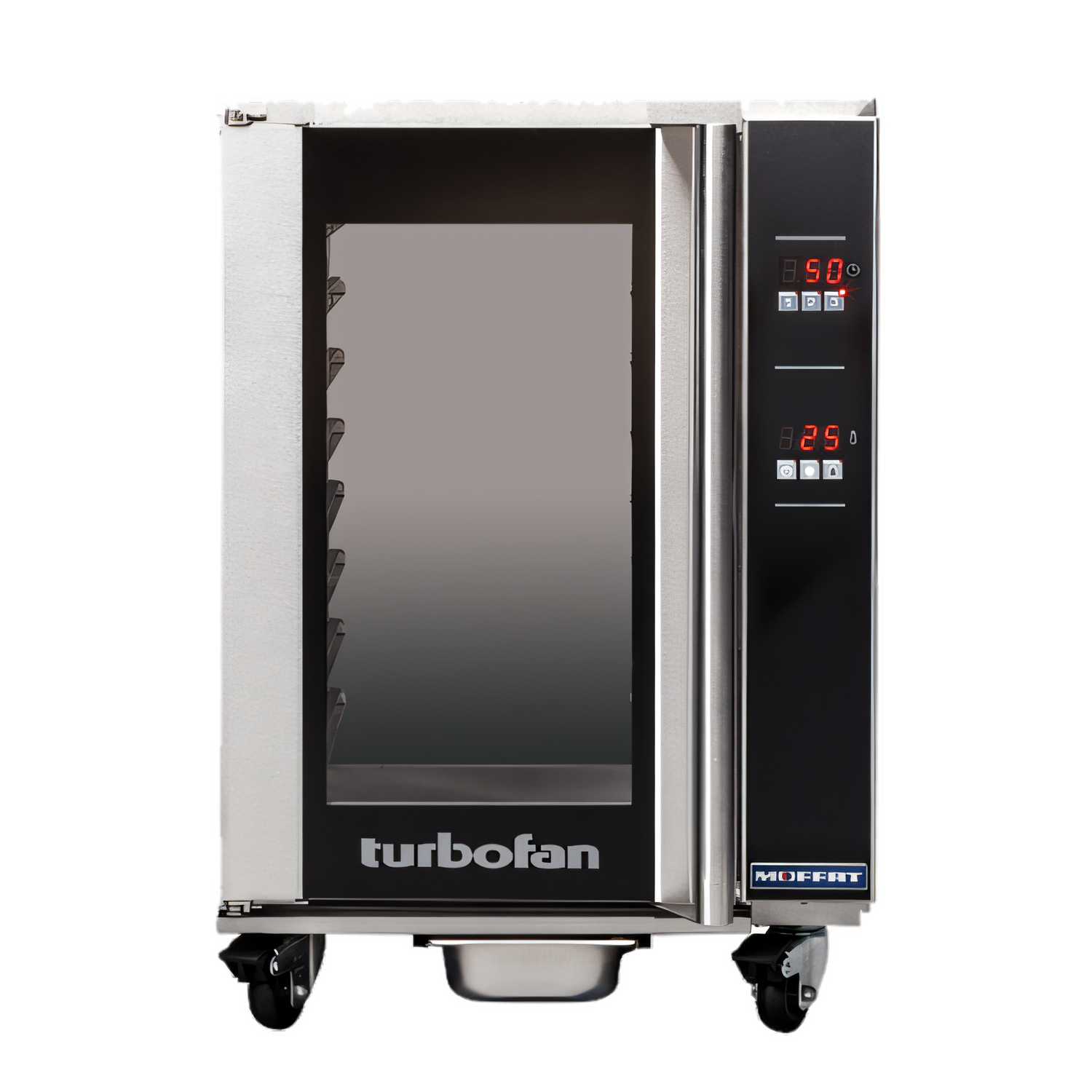

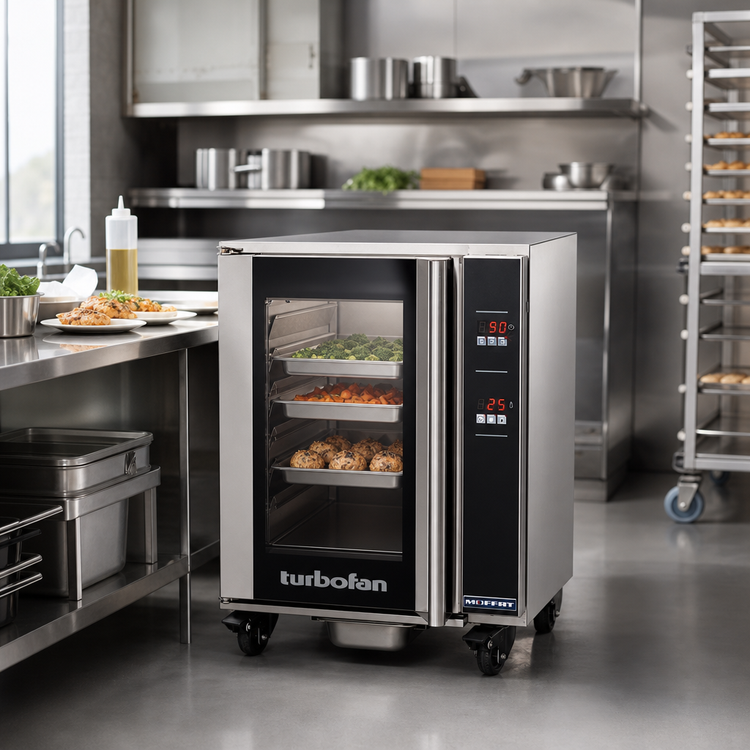

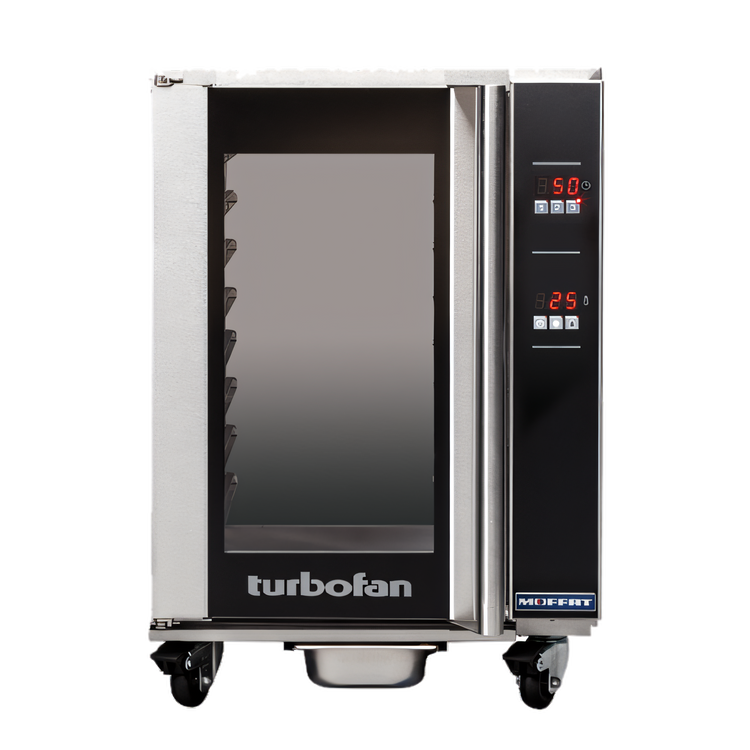

Moffat Turbofan H8D-UC Undercounter Holding Cabinet

8 Half-Size Pan Capacity • Digital Control • 120 V Plug-In

Keep finished dishes hot, fresh, and table-ready with the Turbofan H8D-UC. This compact, undercounter holding cabinet delivers gentle, even heat for up to eight half-size pans—perfect for staging entrées, sides, and baked goods during service peaks or catering events.

Key Features

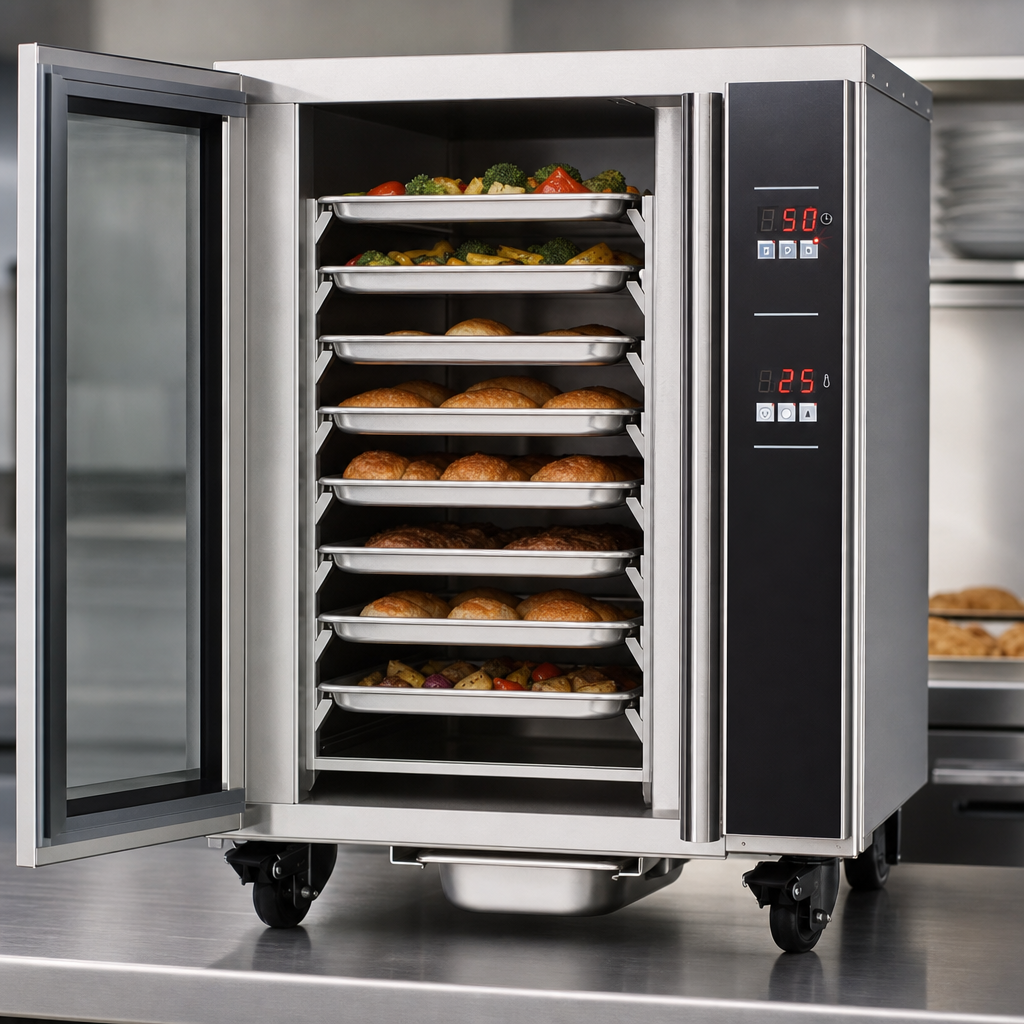

  • Holds 8 × half-size sheet pans or 8 × 12" × 20" steam pans
  • 2 ⅞" / 74 mm tray spacing accommodates bulk platters and hotel pans
  • Digital temperature & timer controller with easy-read ¾" LED displays
  • Three independent hold timers for precise batch management
  • Low-velocity fan and continuous door seal maintain consistent humidity
  • Double-skin, all-stainless cabinet with side-hinged glass door for visibility and insulation
  • Dual interior halogen lamps keep product visible without opening the door

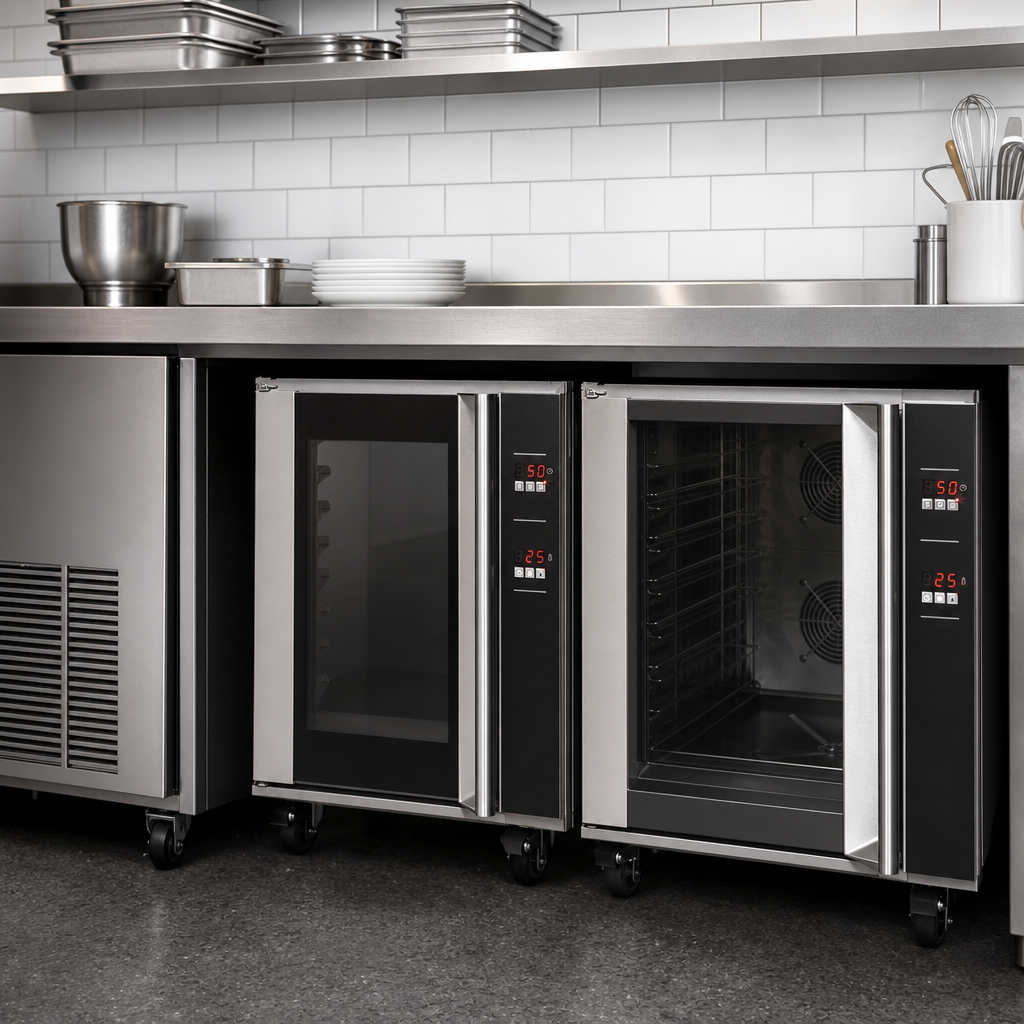

  • Undercounter 32" / 810 mm height; stacks perfectly with Turbofan E33D ovens
  • 2 ½" / 65 mm casters—front swivel with locks, rear rigid—for effortless mobility
  • 1200 W, 120 V operation with factory-fitted NEMA 5-15P cordset
  • cETLus & NSF-4 listed; built under ISO 9001 quality standards
Specifications
Capacity 8 × half-size sheet pans (13" × 18")
8 × 12" × 20" steam pans
Tray Spacing 2 ⅞" / 74 mm
Temperature Range 68–194 °F (20–90 °C)
Controls Digital temperature & timer display
3 programmable hold timers (count-up / count-down)
Electrical 120 V, 50/60 Hz, 1-phase, 1.2 kW, 10.4 A
NEMA 5-15P cordset supplied
Construction Stainless steel interior, sides, front & top; aluminized rear panels
Door Side-hinged with 5 mm double-glazed window; plug-in gasket
Exterior Dimensions (W × D × H) 24" × 26 ¾" × 31 ⅞" (610 × 680 × 810 mm)
Includes 2 ½" / 65 mm casters
Net / Shipping Weight 143 lb / 65 kg  |  183 lb / 83 kg • 18.7 ft³ (0.53 m³)
Installation Clearances Rear: 1" (25 mm) • Sides: 0" (0 mm)
Keep 12" (300 mm) from heat sources

Pair it with a Turbofan E33D convection oven for a seamless cook-and-hold station.

Pro Tip: Place a shallow pan of hot water on the bottom rack—or use covered steam pans—to lock in moisture for tender proteins and fluffy baked goods.

Features & Specs

Manufacturer

Moffat

Brand_name

Turbofan

Certifications

NSF, cETLus

Height

31.88in

Width

25.75in

Depth

26.75in

Shipping Weight

183.0lbs

Exterior Finish

all stainless steel exterior

Half Size Sheet Pan Capacity

(8) 13" x 18" pans

Specifications

Turbofan® Holding Cabinet, undercounter, capacity (8) half-size pans, 2-7/8" tray spacing, digital controls, (3) hold timers, stainless steel interior & exterior with glass door, 2-1/2" casters (2 swivel with locks), 1200 watts, cETLus, NSF
