Moffat H8D-FS-UC Turbofan Heated Cabinets & Holding Shelves
Description

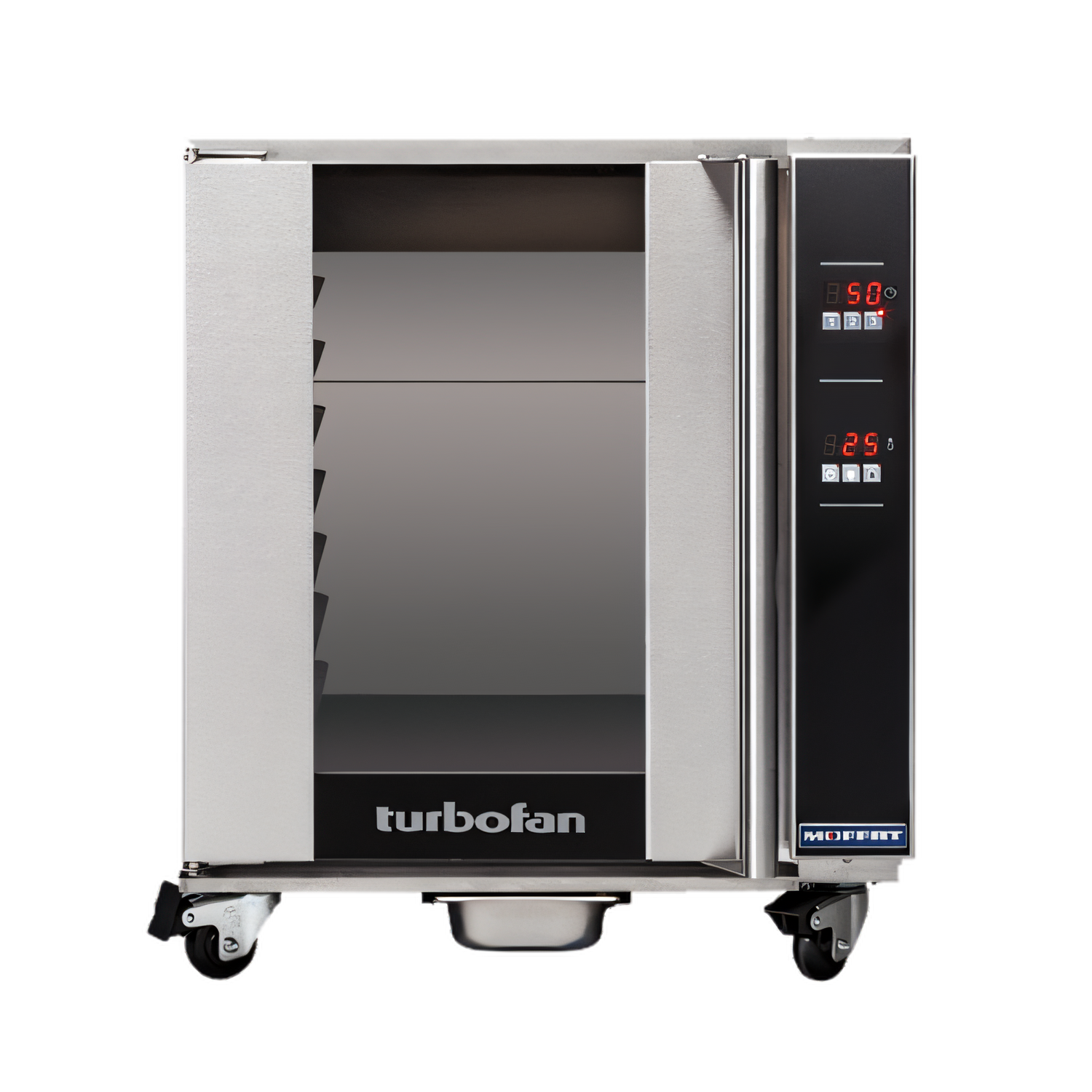

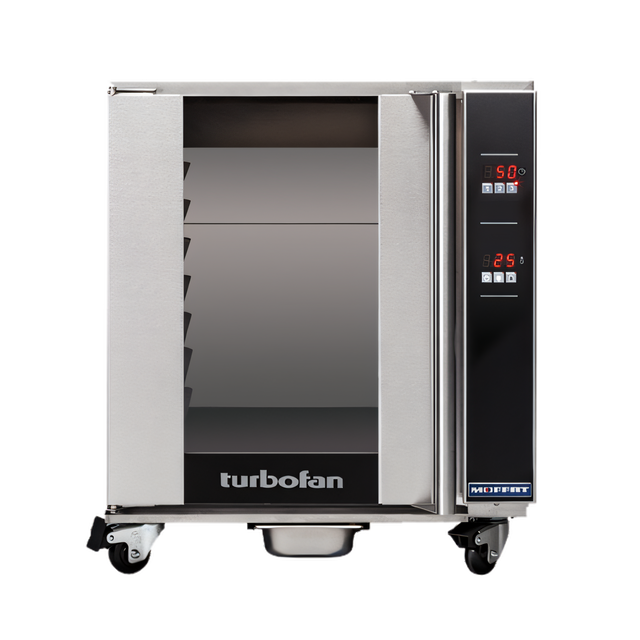

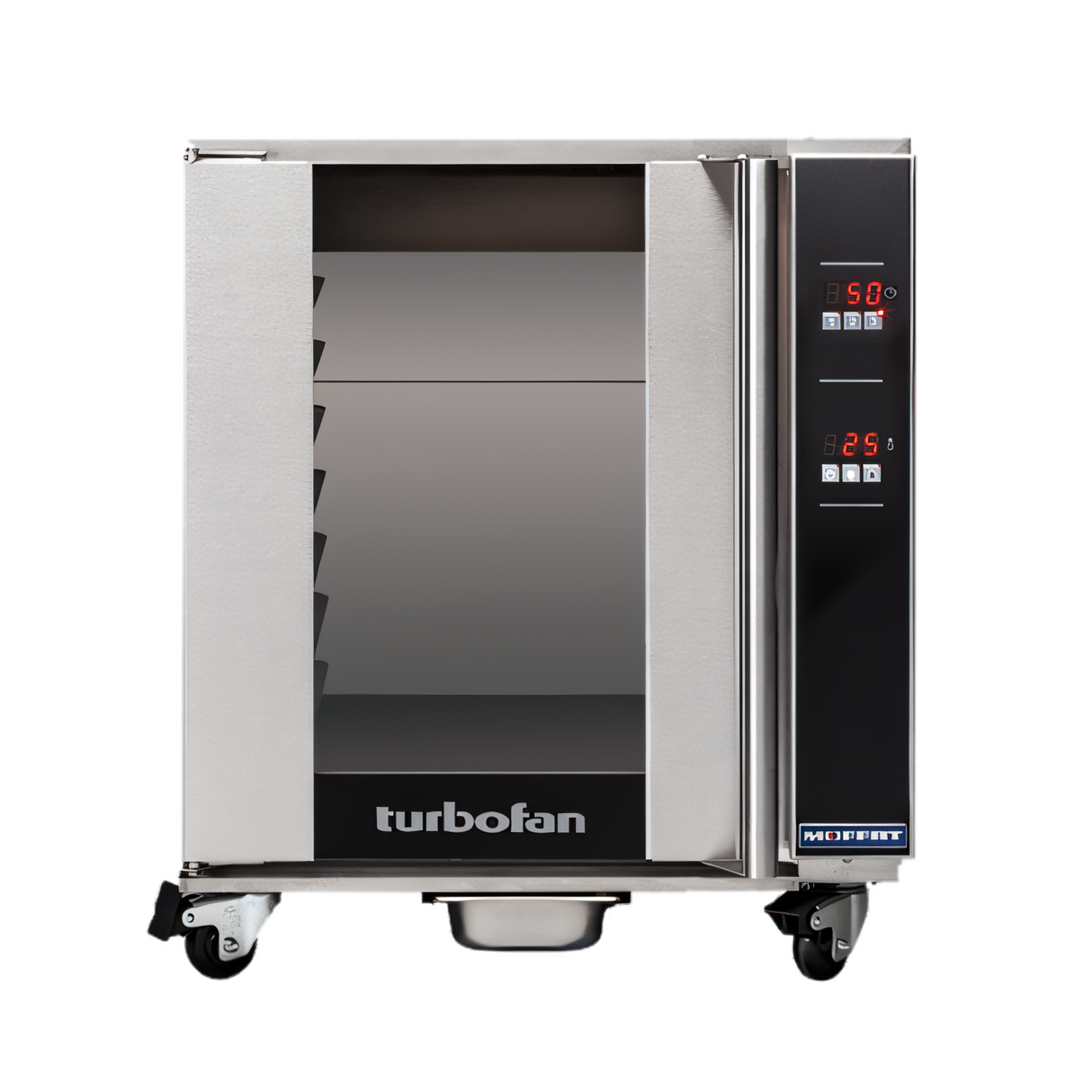

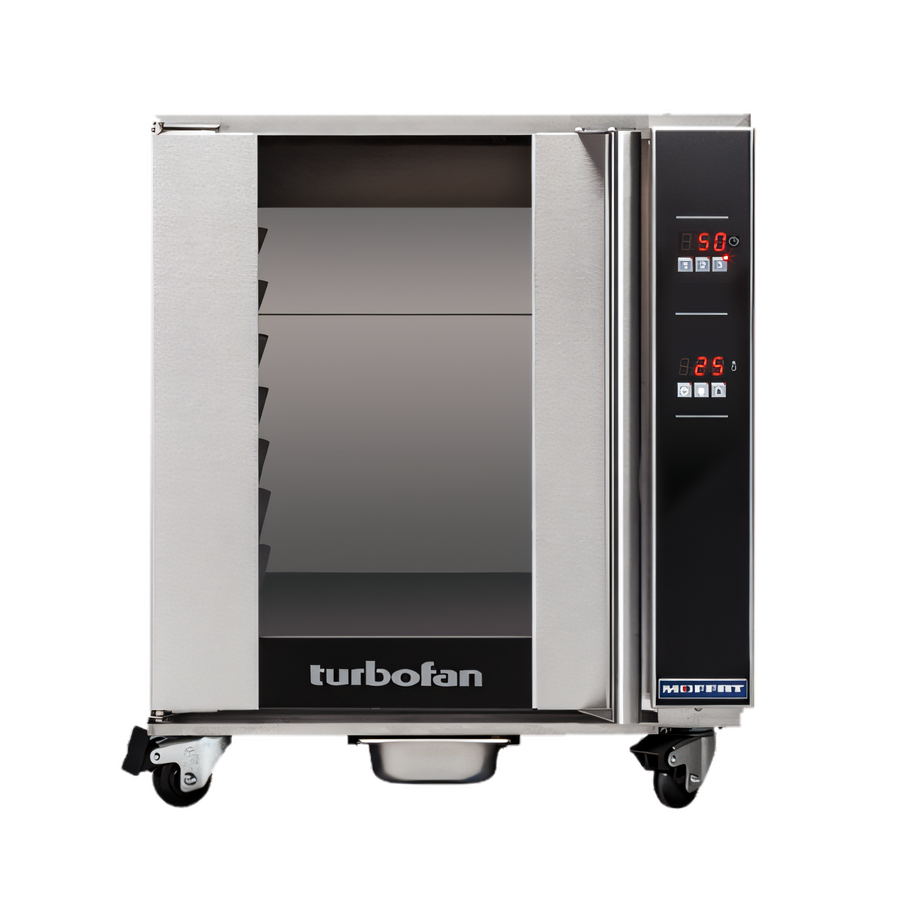

Moffat Turbofan H8D-FS-UC Undercounter Holding Cabinet

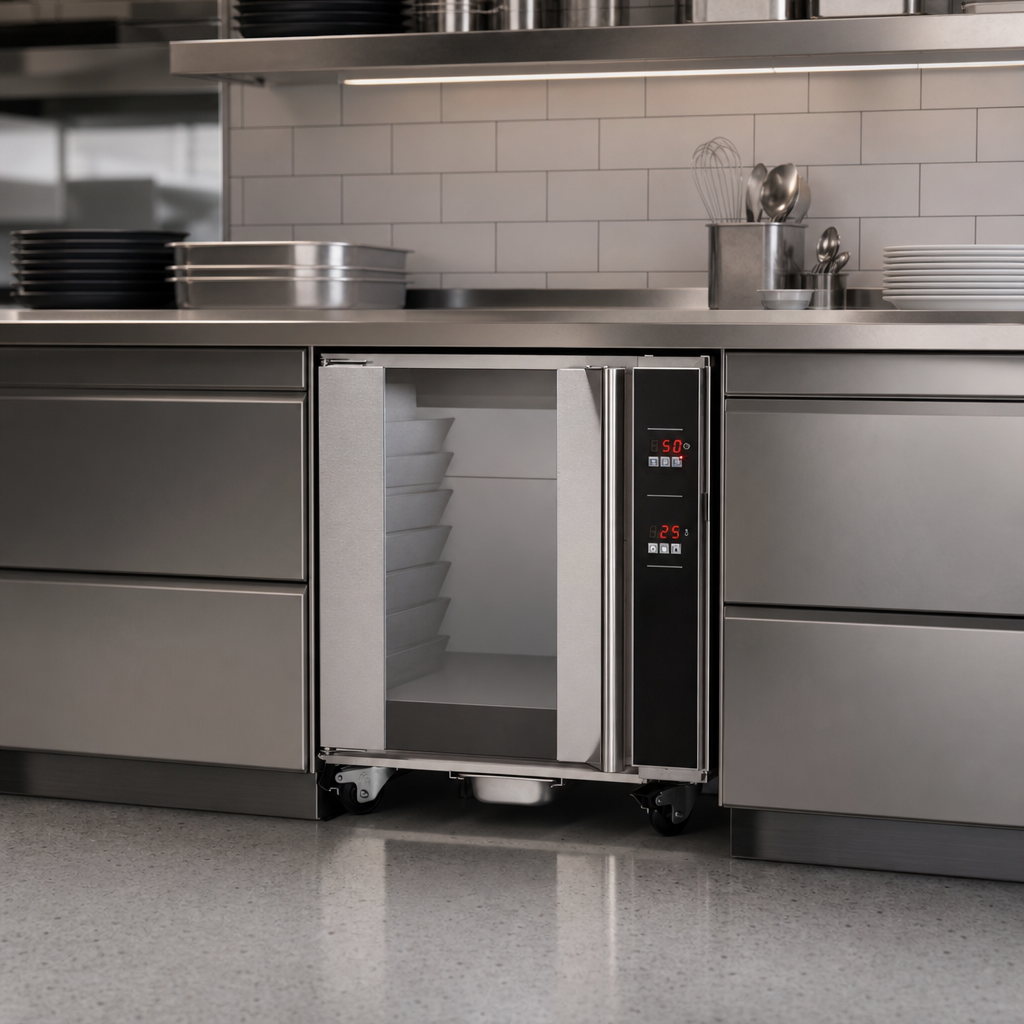

8 Full-Size Pan Capacity • Digital Precision • 208-240 V Plug-and-PlayServe every plate at its peak. The Turbofan H8D-FS-UC gently holds cooked food at a consistent, food-safe temperature while preserving flavor, texture, and presentation. Its low-profile 32" (810 mm) height slides under counters or stacks perfectly with Turbofan E32D convection ovens, giving busy kitchens an efficient, space-saving hot-holding solution.
Why You’ll Love It

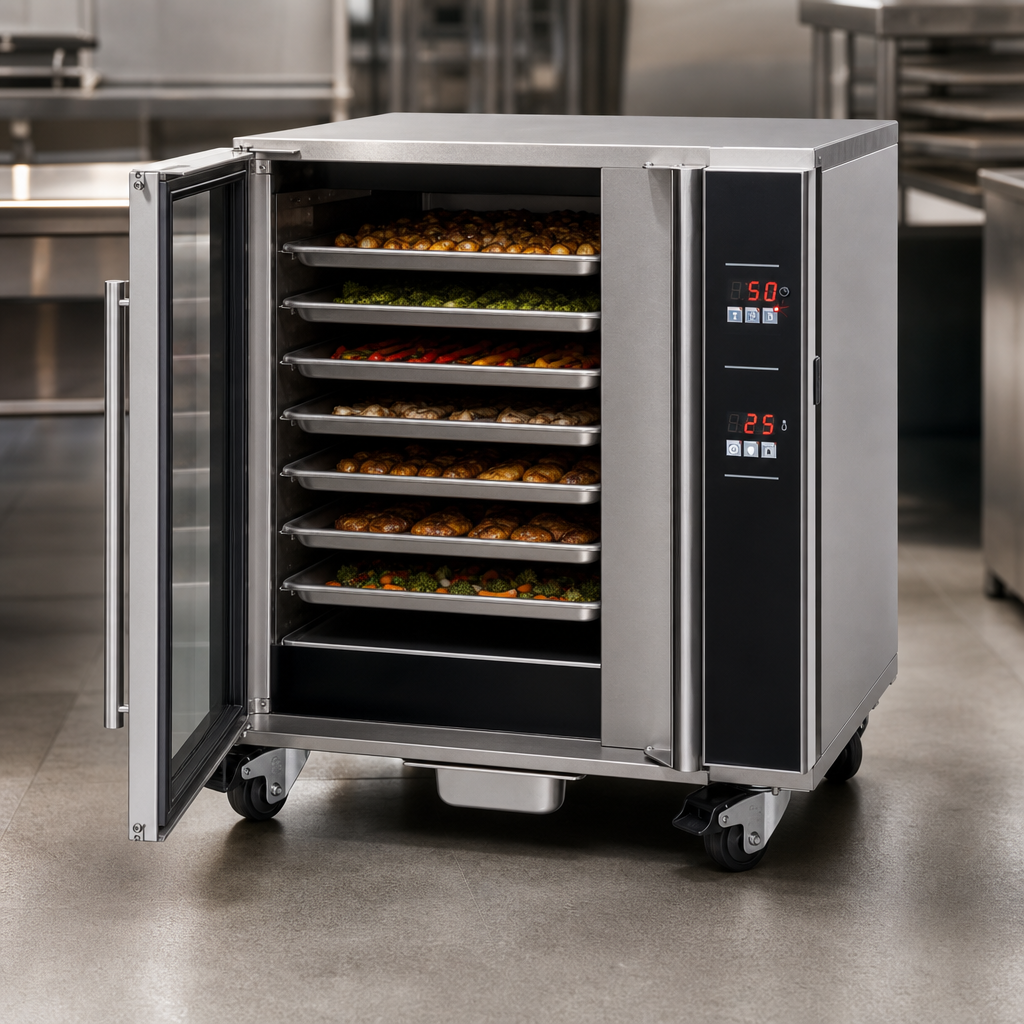

- Accommodates 8 full-size 18" × 26" sheet pans with 2 ⅞" (74 mm) spacing.
- Digital LED controller shows set & actual temperature plus timer status at a glance.
- Three independent hold timers (up to 4 h each) keep multiple batches perfectly timed.
- Low-velocity fan circulates gentle, even heat—no drying, no hot spots.
- Dual halogen lamps and a 5 mm glass door provide full-cabinet visibility without opening the door.
- Robust, double-skin stainless-steel construction with continuous door seal locks heat in and stands up to daily commercial use.
- Mounted on four 2 ½" casters (front swivel & lock) for effortless cleaning and layout changes.
- Ships ready to run on a standard NEMA 6-15P 208-240 V outlet—no hardwiring required.
- cETLus & NSF certified and packed in 100 % recyclable materials.
Perfect For
- Restaurants and cafés staging entrées during peak service
- Catering operations transporting hot pans directly to events

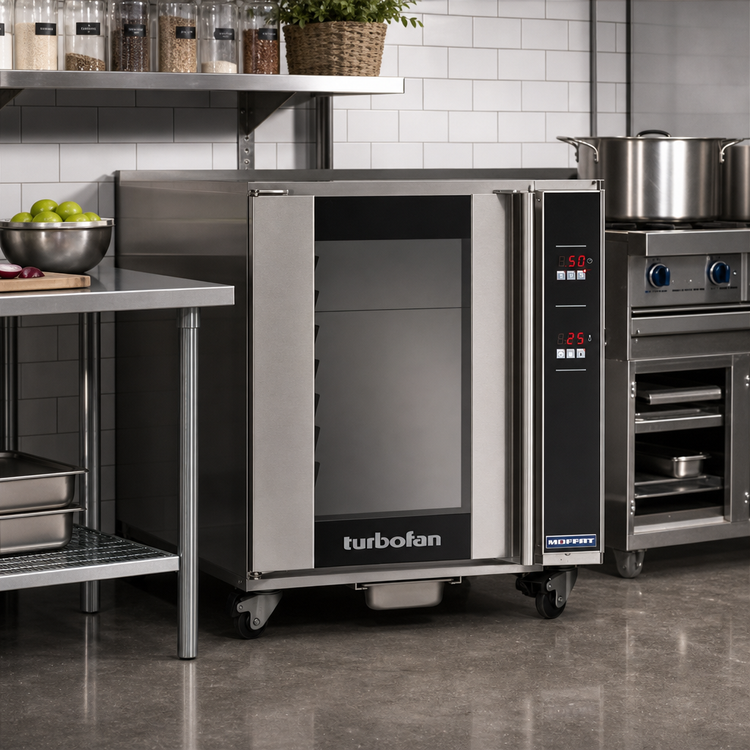

- High-volume kitchens pairing with Turbofan convection ovens for a streamlined cook-and-hold station
Technical Specifications
| Model | Turbofan H8D-FS-UC |
|---|---|
| Pan Capacity | 8 × 18" × 26" full-size sheet pans |
| Tray Spacing | 2 ⅞" / 74 mm |
| Temperature Range | 68–194 °F / 20–90 °C |
| Controls | Digital LED; 3 hold timers (count-up/countdown, 0–4 h) |
| Heating Power | 1.9 kW @ 240 V | 1.43 kW @ 208 V |
| Electrical | 208–240 V, 60 Hz, 1-phase, 8.5 A, NEMA 6-15P |
| Dimensions (W × D × H) | 28 ⅞" × 31 ⅞" × 31 ⅞" (735 × 810 × 810 mm) incl. casters |
| Net Weight | 179 lb / 81 kg |
| Construction | Stainless-steel interior & exterior, double-skin insulation, side-hinged glass door |
| Mobility | 4 × 2 ½" casters (2 front swivel with locks, 2 rear fixed) |
| Clearances | Rear 1" (25 mm) | Sides 0" | 12" (300 mm) from heat sources |
| Certifications | cETLus, NSF |
Have questions or need a complete Turbofan cook-and-hold stack? Talk to our equipment specialists for personalized assistance.
