Moffat E32D5 Turbofan Convection Ovens
Description

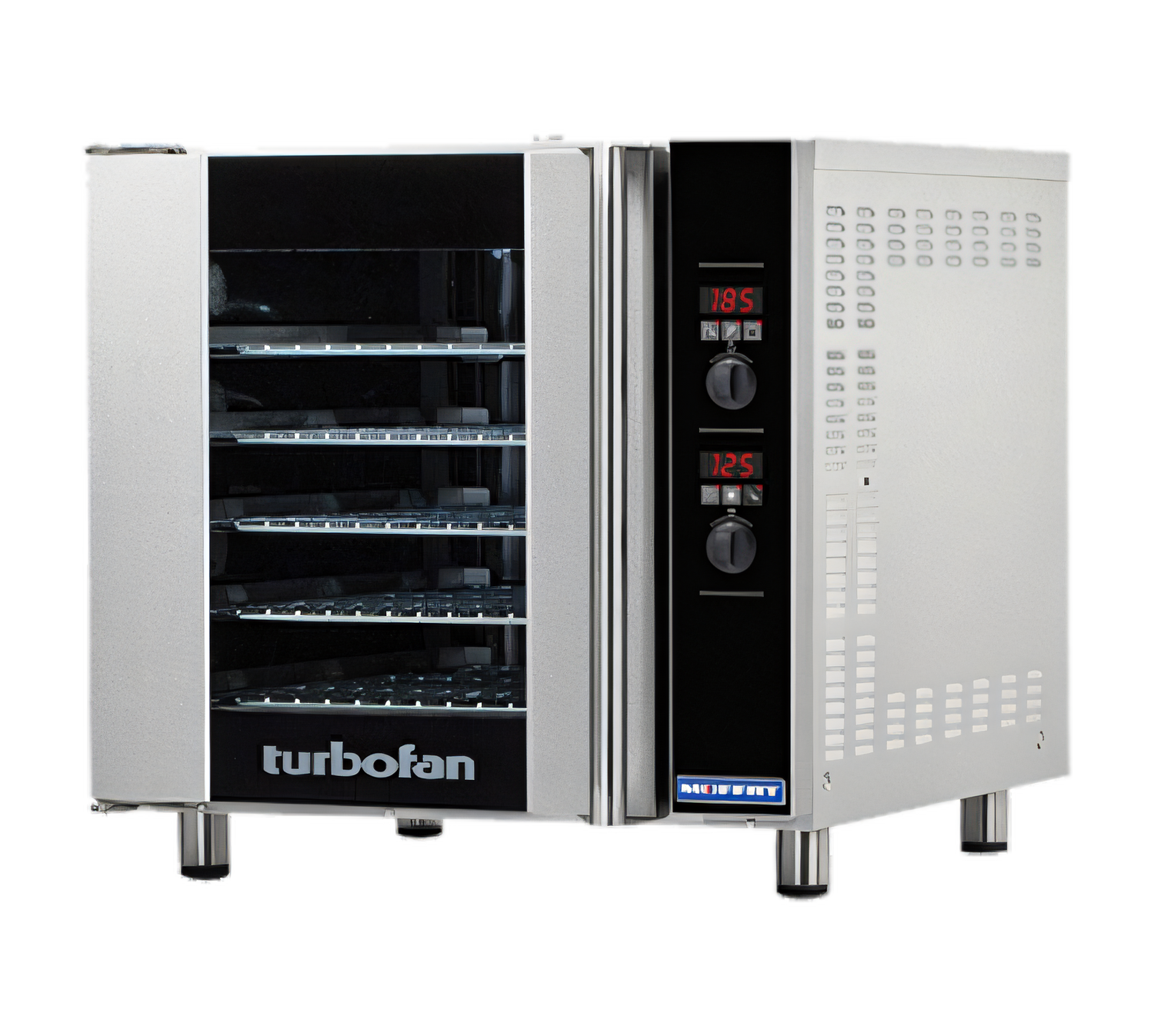

Moffat Turbofan E32D5 Full-Size Digital Electric Convection Oven
5-tray • 2-speed fan • 140 – 500 °F • ENERGY STAR®Designed for busy commercial kitchens that refuse to compromise on speed or consistency, the Turbofan E32D5 delivers powerful convection performance in a compact 30" footprint. Bake, roast, rethermalize or hold—all with fingertip-simple digital controls and precise moisture management.
Why you’ll love it

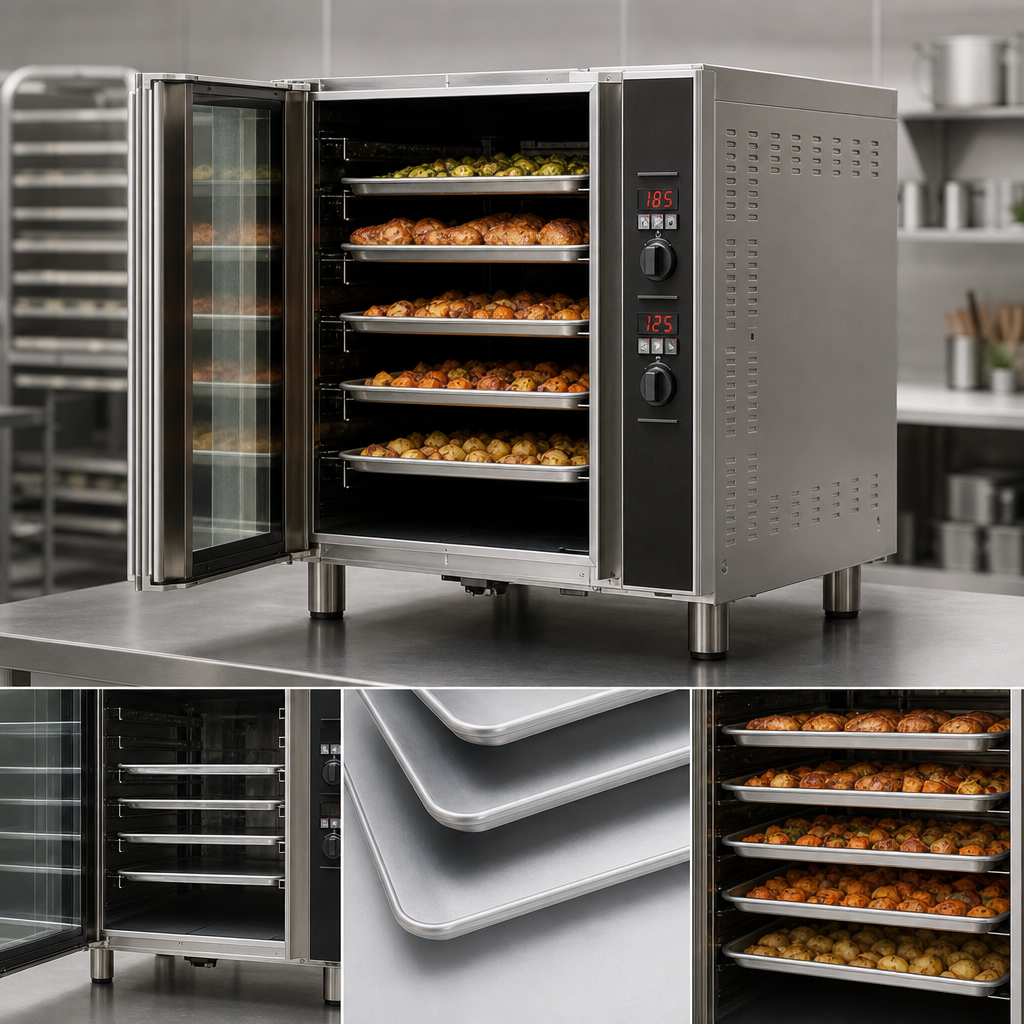

- Holds 5 full-size (18 × 26″) sheet pans on sturdy wire racks

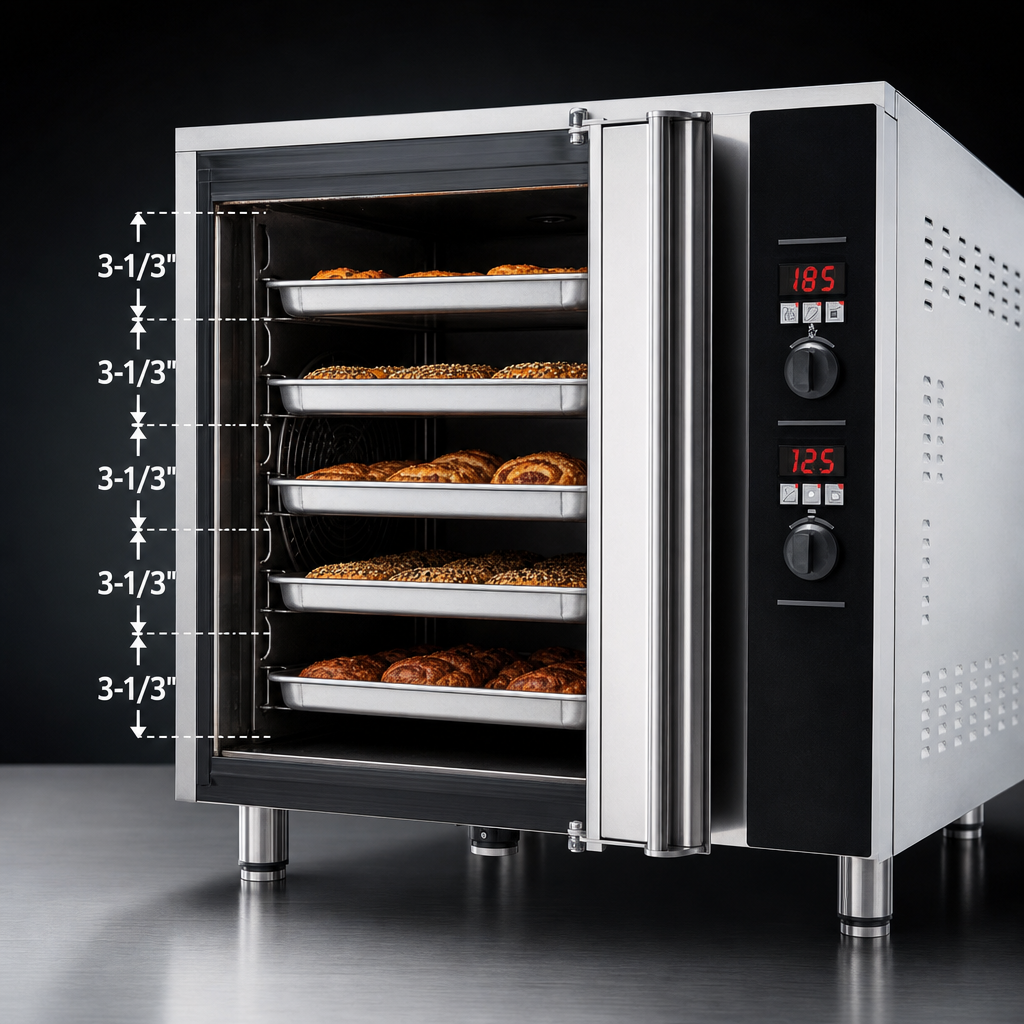

- 3 ⅓″ / 85 mm tray spacing—ideal clearance for roasts, baked goods & hotel pans
- 2-speed, bi-directional reversing fan for even browning or delicate baking
- 140 – 500 °F electronic thermostat with large dual digital displays
- Built-in moisture injection (5 levels) plus manual water shot for artisan crusts
- 1-hour cook timer & automatic 3-hour hold—perfect for cook-and-hold service
- Dedicated Retherm & Roast programs for effortless menu versatility
- All-stainless exterior, porcelain-enameled interior & Safe-Touch hinged glass door
- Anti-skid, height-adjustable stainless steel feet for stable countertop use
- ENERGY STAR®, cETLus & NSF listed—meets today’s toughest efficiency & sanitation standards
Unmatched performance & control
The high-output 6.3 kW heating system teams with a two-speed reversing fan to move more air, more evenly—slashing cooking times while eliminating hot spots. Low fan speed pampers delicate pastries; high speed powers through dense proteins.
Intuitive push-and-turn knobs let you set time, temperature and moisture in seconds, while bright ¾″ LEDs are easy to read across a bustling line.
Technical specifications
| Pan capacity | 5 full-size sheet pans (18 × 26″) |
|---|---|
| Tray spacing | 3 ⅓″ / 85 mm |
| Temperature range | 140 – 500 °F (50 – 260 °C) |
| Control interface | Dual digital display; electronic thermostat & timers |
| Fan system | Bi-directional reversing, 2 speeds |
| Moisture system | 5-level programmed injection + manual water shot |
| Timers | 1-hour cook cycle; 3-hour hold cycle |
| Electrical |
208 V / 1-ph 5.8 kW 28 A 220–240 V / 1-ph 6.3 kW 27 A (field selectable) Hard-wired connection; no cordset supplied |
| Exterior dimensions | W 28 ⅞″ × D 31 ⅞″ × H 30″ * |
| Net weight | 196 lb / 89 kg |
| Interior finish | Porcelain-enameled steel |
| Certifications | ENERGY STAR®, NSF, cETLus |
*Height includes 3″ adjustable feet.
Built to work every day
- Safe-Touch vented door keeps exterior surfaces cooler for operator safety
- Stay-cool, ergonomically angled handle for confident one-hand operation
- Push-fit continuous door seal—no tools needed for fast replacement
- Dual halogen lights illuminate every rack for quick doneness checks
- 100 % recyclable packaging supports sustainable purchasing goals
Water connection (optional)
A cold-water inlet (¾″ GHT) is recommended for automatic moisture injection.
20–80 psi supply pressure.
Peace-of-mind warranty
The Turbofan E32D5 is backed by Moffat’s industry-leading commercial warranty and national service network.
Need a stand, ventless hood or core-temperature probe? Matching accessories are available—ask your foodservice consultant or sales rep.
