Moffat E28D4 Turbofan Convection Ovens
Description

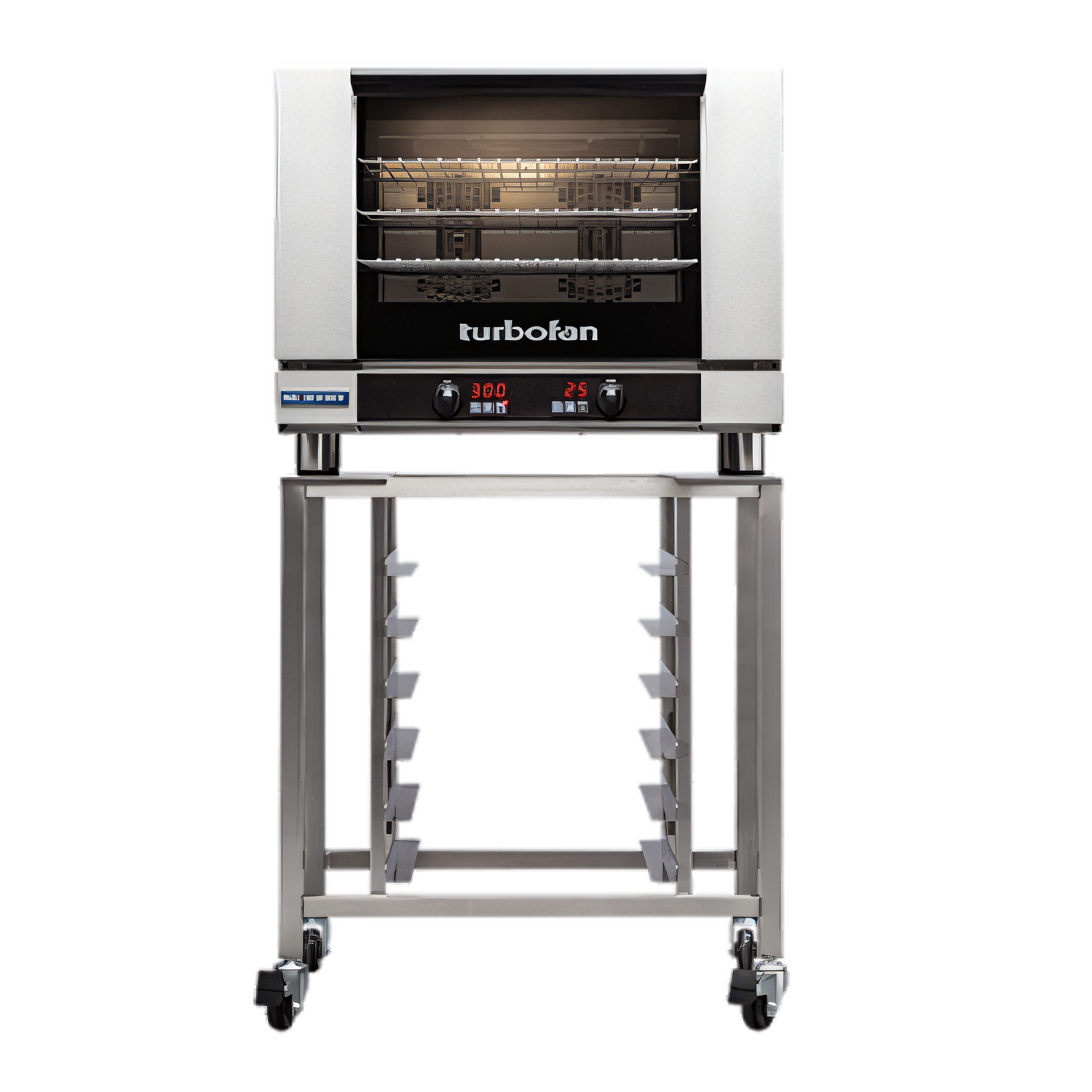

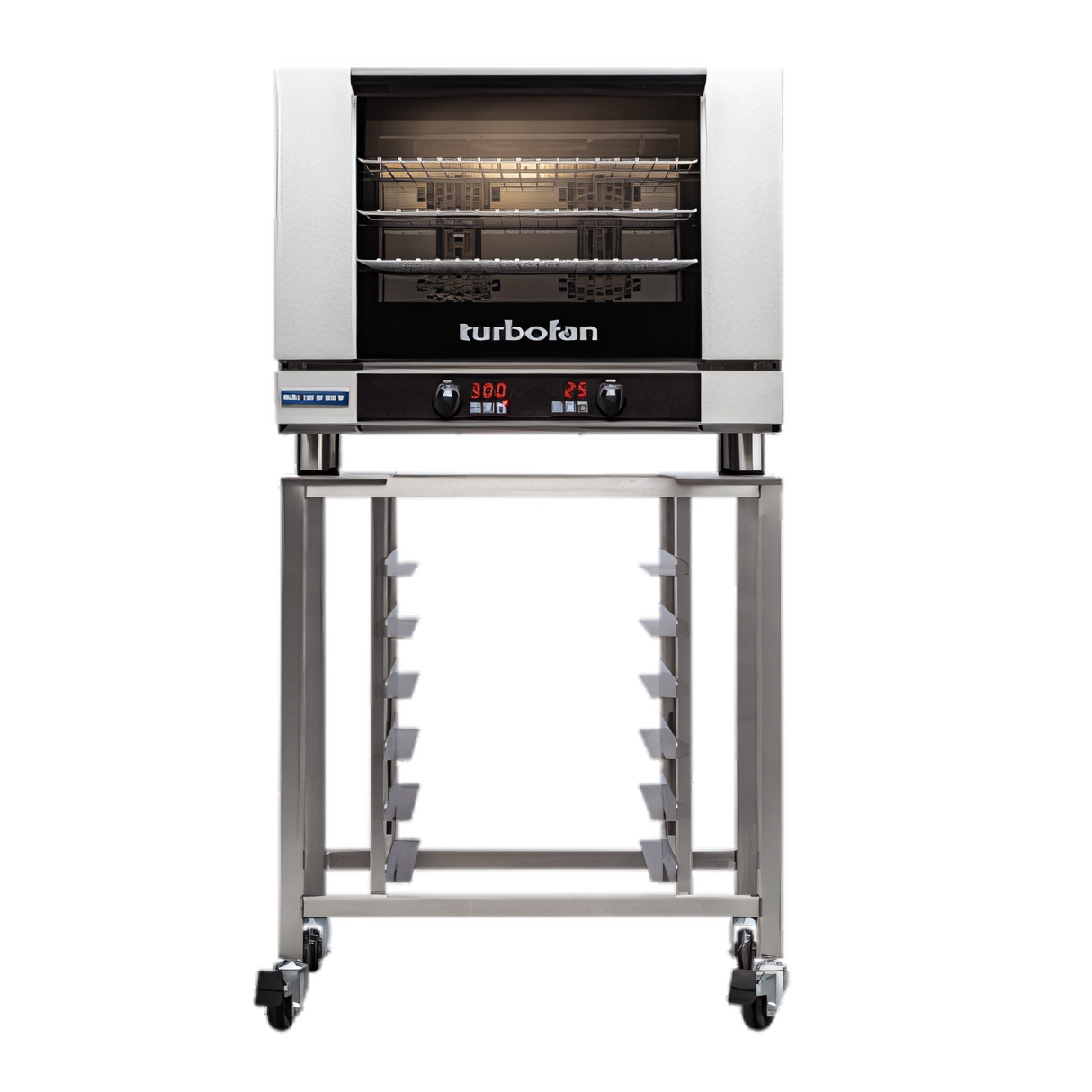

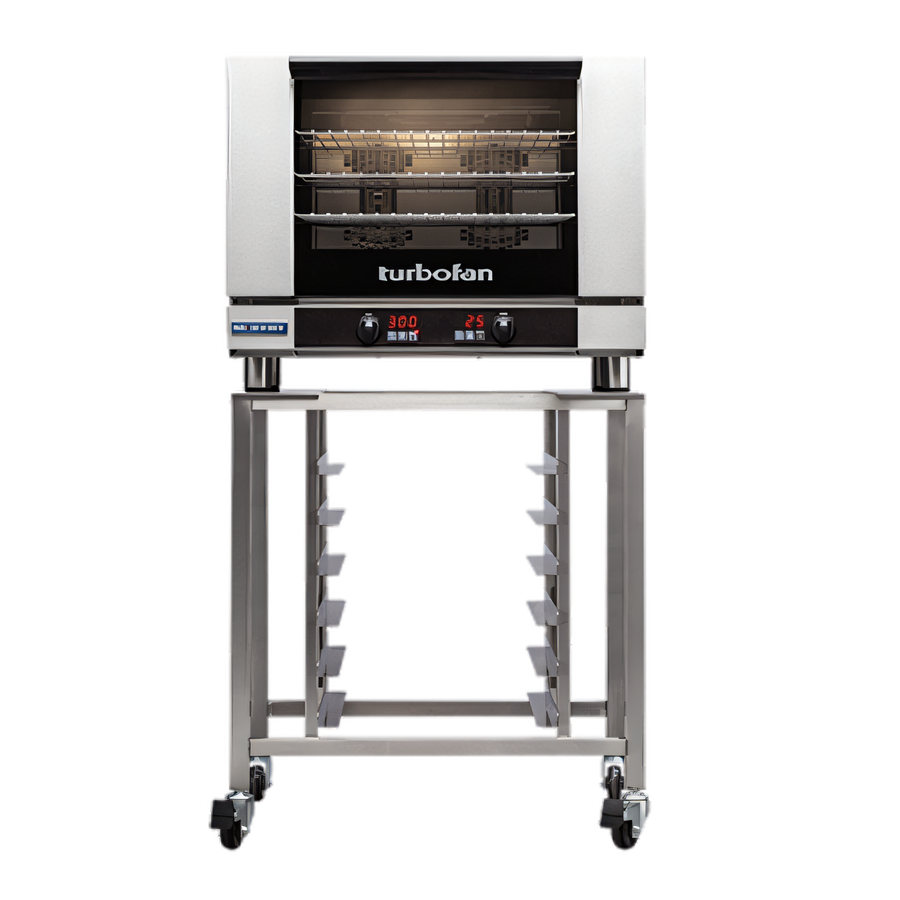

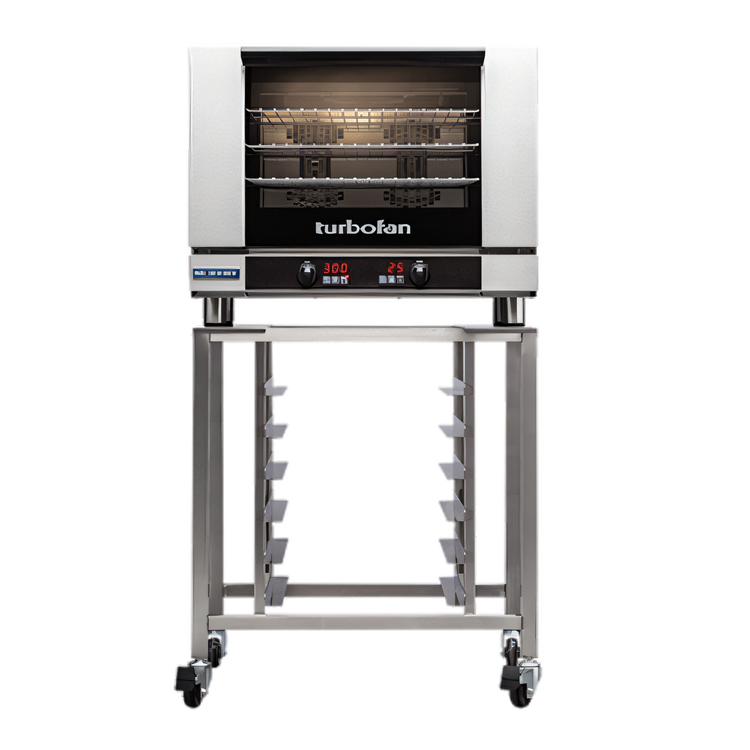

Moffat Turbofan E28D4 Digital Electric Convection Oven
Full-Size, 4-Pan Countertop PerformanceBring bakery-quality results to any countertop with the Turbofan E28D4. This compact, 26 inch-high oven fits four full-size sheet pans and delivers perfectly even bakes thanks to twin reversing fans, precise digital controls, programmable steam injection and a porcelain-enameled baking chamber that handles the most demanding commercial workloads.
Key Features

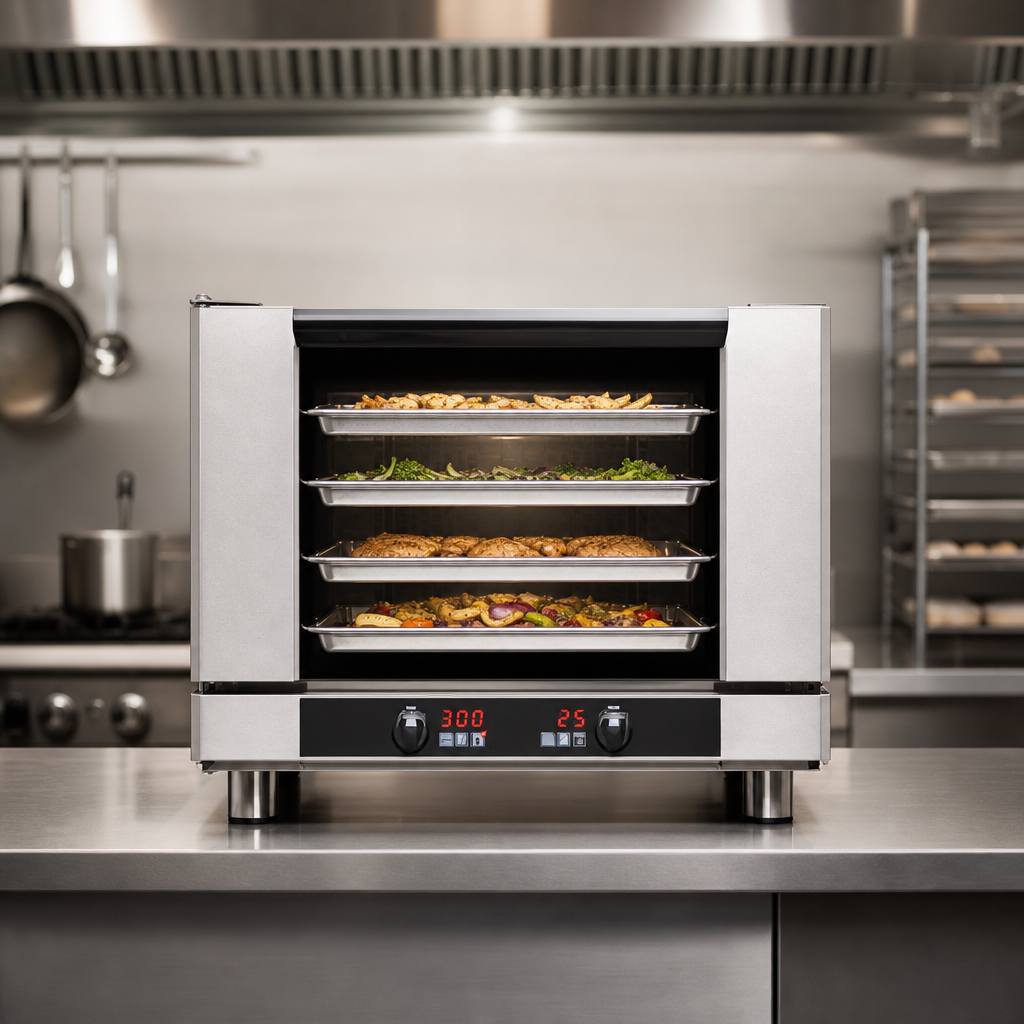

- Holds 4 full-size (18 × 26 in) sheet pans with 3-1/8 in (80 mm) tray spacing

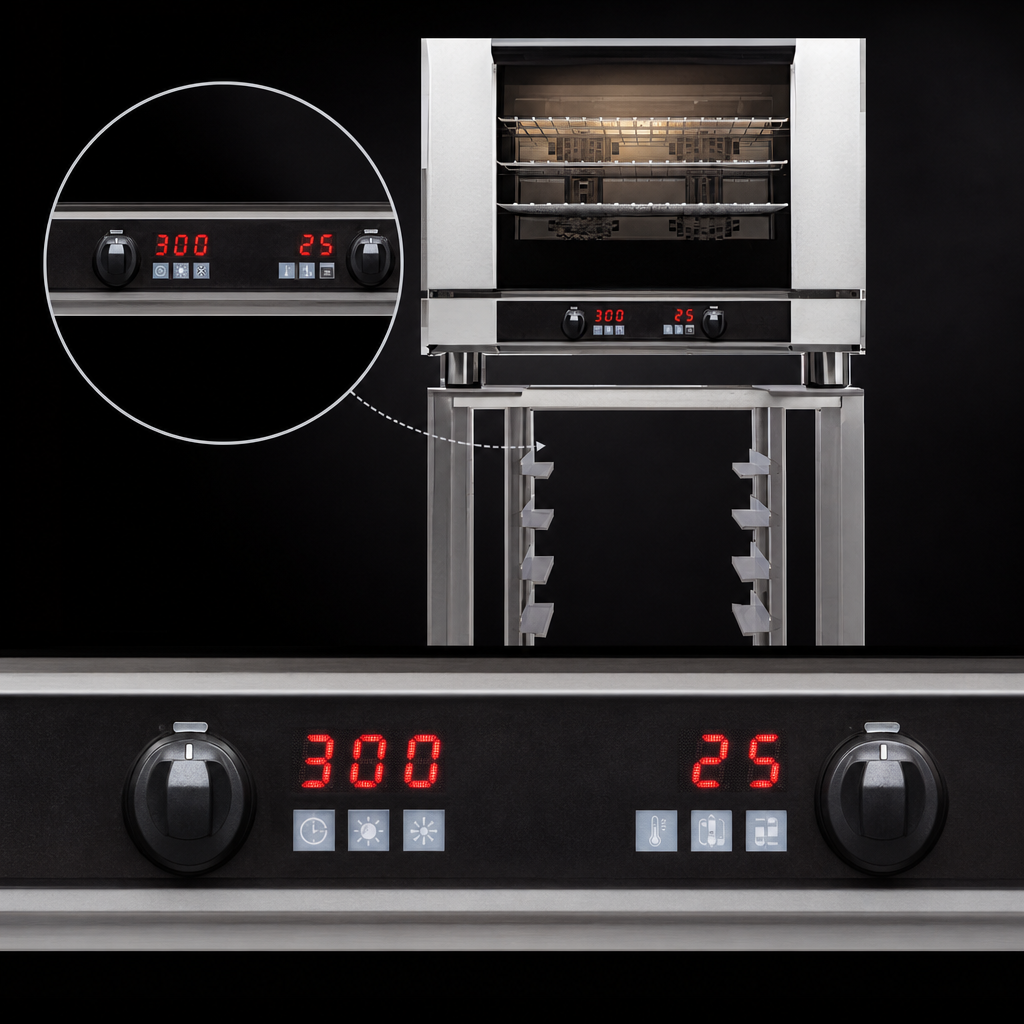

- Intuitive digital panel with large ¾ in (20 mm) LED time & temperature displays
- Manual or programmable operation — store 20 recipes, each with 3 cooking stages and end-stage alarms
- Five automatic steam levels plus manual shot for crusty breads and roasted proteins
- Twin 7 in (180 mm) bi-directional stainless steel fans for rapid, even heat circulation
- Electronic thermostat 150 – 500 °F (50 – 260 °C)
- 5.6 kW (220–240 V) / 5.0 kW (208 V) heating elements
- Safe-Touch vented drop-down door with twin-pane glass and stay-cool handle
- One-piece porcelain-enameled chamber with halogen light for crystal-clear visibility
- Removable side racks, hinge-out inner glass and plug-in door seal for tool-free cleaning
- 3 in (76 mm) anti-skid, height-adjustable stainless steel feet
- Ships in 100 % recyclable packaging
Specifications
| Model | Turbofan E28D4 |
|---|---|
| Capacity | 4 full-size sheet pans (18 × 26 in) |
| Tray Spacing | 3-1/8 in / 80 mm |
| Temperature Range | 150 – 500 °F / 50 – 260 °C |
| Programmability | 20 programs • 3 stages each • stage alarms |
| Steam Injection | 5 automatic levels + manual injection |
| Heating Power | 5.6 kW @ 220–240 V, 1-ph (25 A) 5.0 kW @ 208 V, 1-ph (25.8 A) |
| Exterior Dimensions* | W 31 7/8 in (810 mm) × D 30 in (762 mm) × H 26 in (662 mm) |
| Interior Volume | 4.1 ft³ / 0.116 m³ (W 27 in × H 14 in × D 18 ½ in) |
| Net Weight | 153 lb / 69.5 kg |
| Construction | Stainless steel exterior; porcelain-enameled chamber |
| Door | Vented drop-down, twin-pane glass, plug-in seal |
| Fans | Twin reversing 7 in stainless steel fans |
| Water Connection (optional) | ¾ in BSP; 20–80 psi |
| Minimum Clearances | 1 in (25 mm) sides & rear; 12 in (300 mm) from heat sources |
*Dimensions include 3 in (76 mm) adjustable feet.
What’s in the Box
- (4) Chrome wire oven racks
- Removable plug-in door seal
- 3 in adjustable stainless steel feet (installed)
Optional Accessories

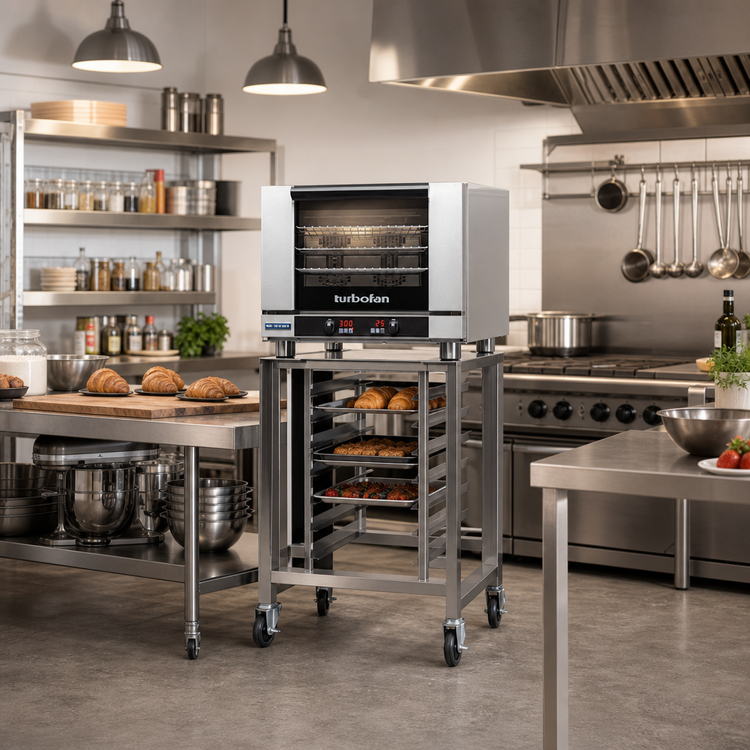

- SK2731U stainless steel oven stand with locking castors (holds up to 6 sheet pans)
