Minus Forty / QBD 72-UTGF Due North Minus forty 3-Section Glass Door Display Freezer, Hinged Doors, Black Exterior, 78 in W
- Product type
- Display freezer merchandiser
- Gross capacity
- 66.34 cu. ft. (1878.7 L)
- Sections
- 3
- Door configuration
- 3 hinged glass doors
- Exterior finish
- Black
- Interior finish
- White galvanized
Specifications
Description

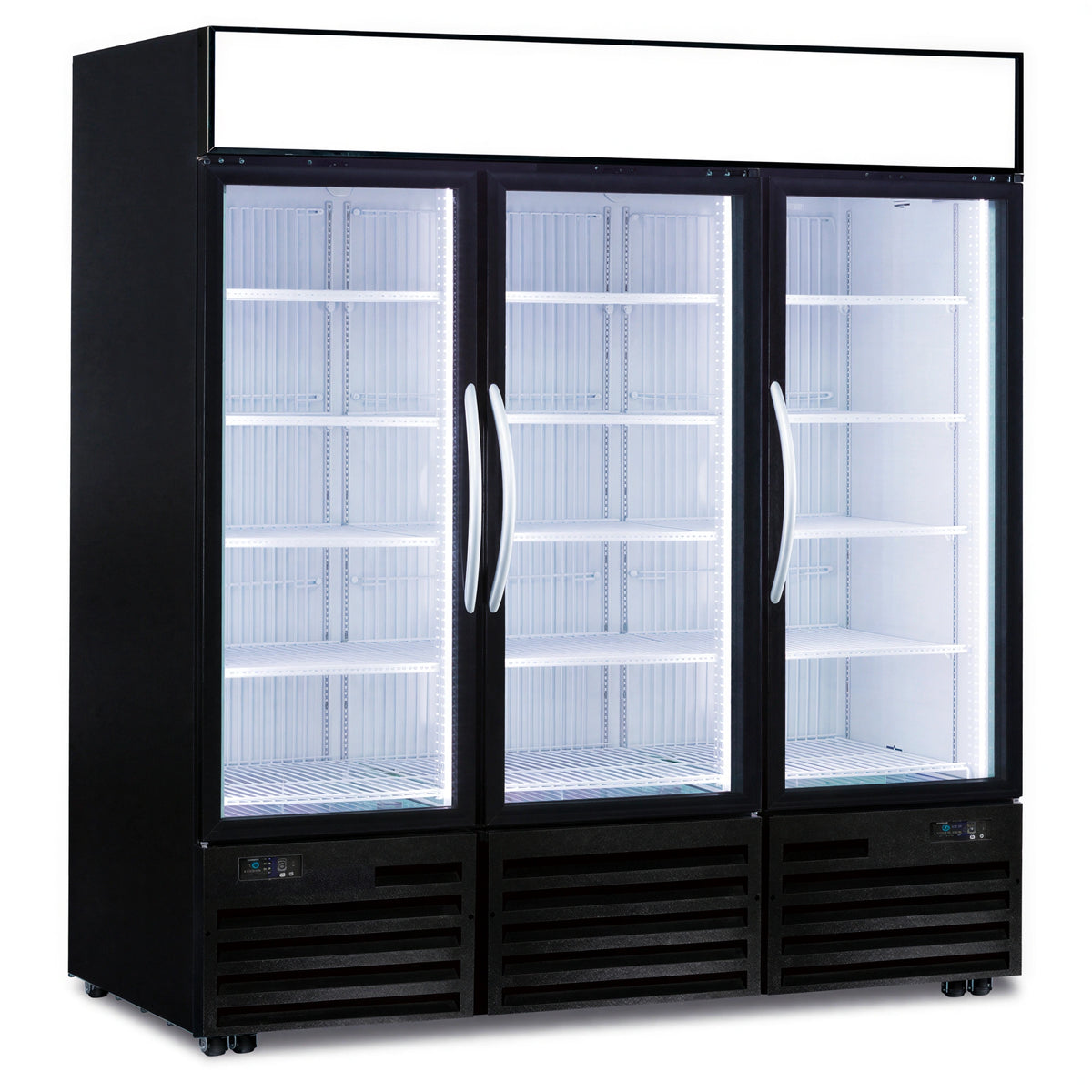

The 72-UTGF is a 66.34 cu. ft. display freezer with three hinged glass doors, a black exterior, and a white galvanized interior.
Its self-contained R290 refrigeration system uses forced air and a bottom-mounted condensing unit. Six interior LED light strips, an LED-backlit translight display, 12 coated adjustable shelves, and three coated bottom shelves support product display.
The unit uses 115 V, 60 Hz, single-phase power at 10.5 amps and includes a cord and plug. NSF certified.
Overall Dimensions:
78.0"W x 31.75"D x 79.8"HProduct Weight:
996.0 lbGlass doors
Three hinged, triple-pane, Low-E coated insulated safety glass doors include an anti-fog feature.
Low-temperature refrigeration
The self-contained R290 system uses forced air for quick, even freezing and provides setpoint temperatures from -20°F to 0°F.
Temperature controls and alarms
An external front-mounted electronic microprocessor controller provides a continuous digital temperature display, adjustable setpoint, and audible and visual temperature and door-open alarms.
LED lighting
Six full-height interior LED light strips illuminate the cabinet, while four full-width white LED strips provide the backlit translight display.
Adjustable shelving
Twelve coated shelves adjust in 1/2-inch increments, with three additional coated bottom shelves.
Cabinet construction
The cabinet has a black exterior, white galvanized interior, 2 1/4-inch insulated walls, and smooth interior corners.
Bottom-mounted condensing unit
The bottom-mounted condensing unit provides elevated product visibility and keeps merchandise within reach.
Mobility and leveling
Low-profile casters and front leveling legs support installation.
