Minus Forty / QBD 43-UDGF Due North Minus forty 2-Section Glass Door Display Freezer, Black, 46.5"W
- Amperage
- 7.5 A
- Phase
- Single phase
- Dimensions
- 46.5"W × 33.77"D × 78.75"H
- Product type
- Display freezer merchandiser
- Sections
- 2
- Gross capacity
- 37.93 cu. ft. (1074.1 L)
Specifications
Description

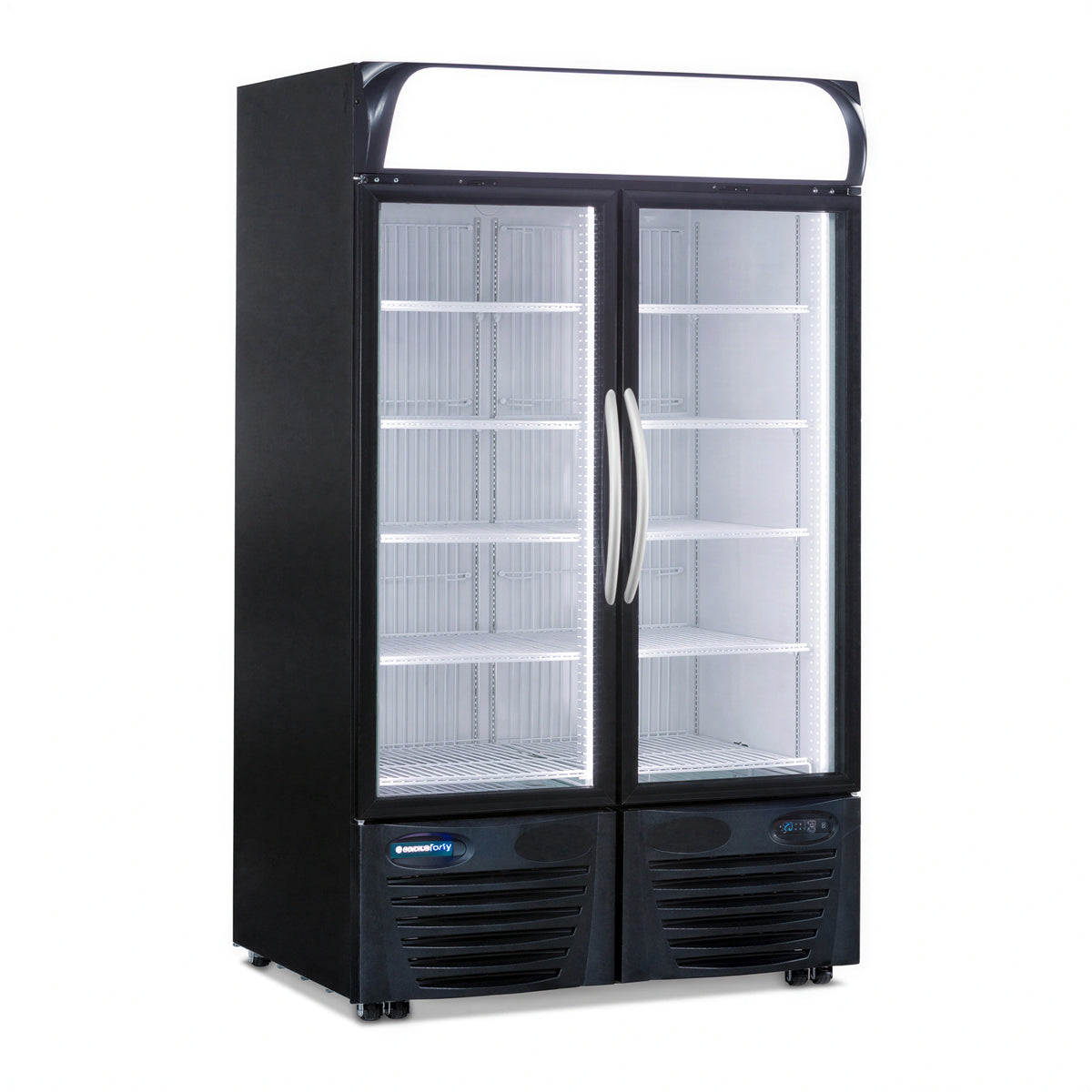

The 43-UDGF is a 2-section glass door display freezer with a 37.93 cu. ft. gross capacity, black exterior, white galvanized interior, and bottom-mount condensing unit.
- Temperature: Factory setpoint of -20°F with an adjustable setpoint range from -20°F to 0°F.
- Refrigeration: Self-contained R290 forced-air system with user-defined or temperature-sensed defrost cycles.
- Visibility: Four full-height white LED light strips, an LED-backlit translight display, and triple-pane Low-E coated glass doors.
- Storage: Eight coated adjustable shelves and two coated bottom shelves.
- Electrical: 115 V, 60 Hz, single phase, 7.5 A operation with a NEMA 5-15P plug.
Overall Dimensions:
46.5"W x 33.77"D x 78.75"HProduct Weight:
359.0 lbGlass door display
Two triple-pane, Low-E coated, insulated safety glass doors include an anti-fog feature, self-sealing gaskets, and a self-closing torsion bar system.
Low-temperature refrigeration
The self-contained R290 refrigeration system delivers stated setpoint temperatures from -20°F to 0°F.
Forced-air cooling
The frost-free forced-air system supports quick, even freezing with user-defined or temperature-sensed defrost cycles.
Temperature controls and alarms
An external electronic microprocessor controller provides a continuous digital temperature display, adjustable setpoint, and audible and visual temperature and door-open alarms.
LED illumination
Four full-height, high-intensity white LED light strips illuminate the cabinet, while two full-width LED strips provide the backlit translight display.
Adjustable shelving
Eight coated shelves adjust in 1/2-inch increments, with two additional coated bottom shelves.
Insulated glass doors
The energy-free triple-pane, Low-E coated glass doors provide insulation and clear product visibility.
Cabinet construction
The cabinet has a black exterior, white galvanized interior, 2.5-inch insulated walls, smooth interior corners, low-profile casters, and front leveling legs.
Bottom-mount condensing unit
The bottom-mount condensing unit provides elevated merchandising visibility and keeps products within easy reach.
Electrical connection
The unit includes a cord and plug for a dedicated 15 amp grounded 115 V, 60 Hz, single-phase circuit.
