Minus Forty / QBD 22-USGF-F1-BK-BI Due North Minus forty Glass Door Display Freezer, 1 Full-Height Hinged Door, 23.41 cu. ft., Black, 30"W
- Phase
- Single phase
- Dimensions
- 30.0"W × 33.77"D × 78.75"H
- Product type
- Display freezer merchandiser
- Door configuration
- 1 full-height hinged glass door
- Gross capacity
- 23.41 cu. ft. (663.0 L)
- Temperature range
- -20°F to 0°F
Specifications
Description

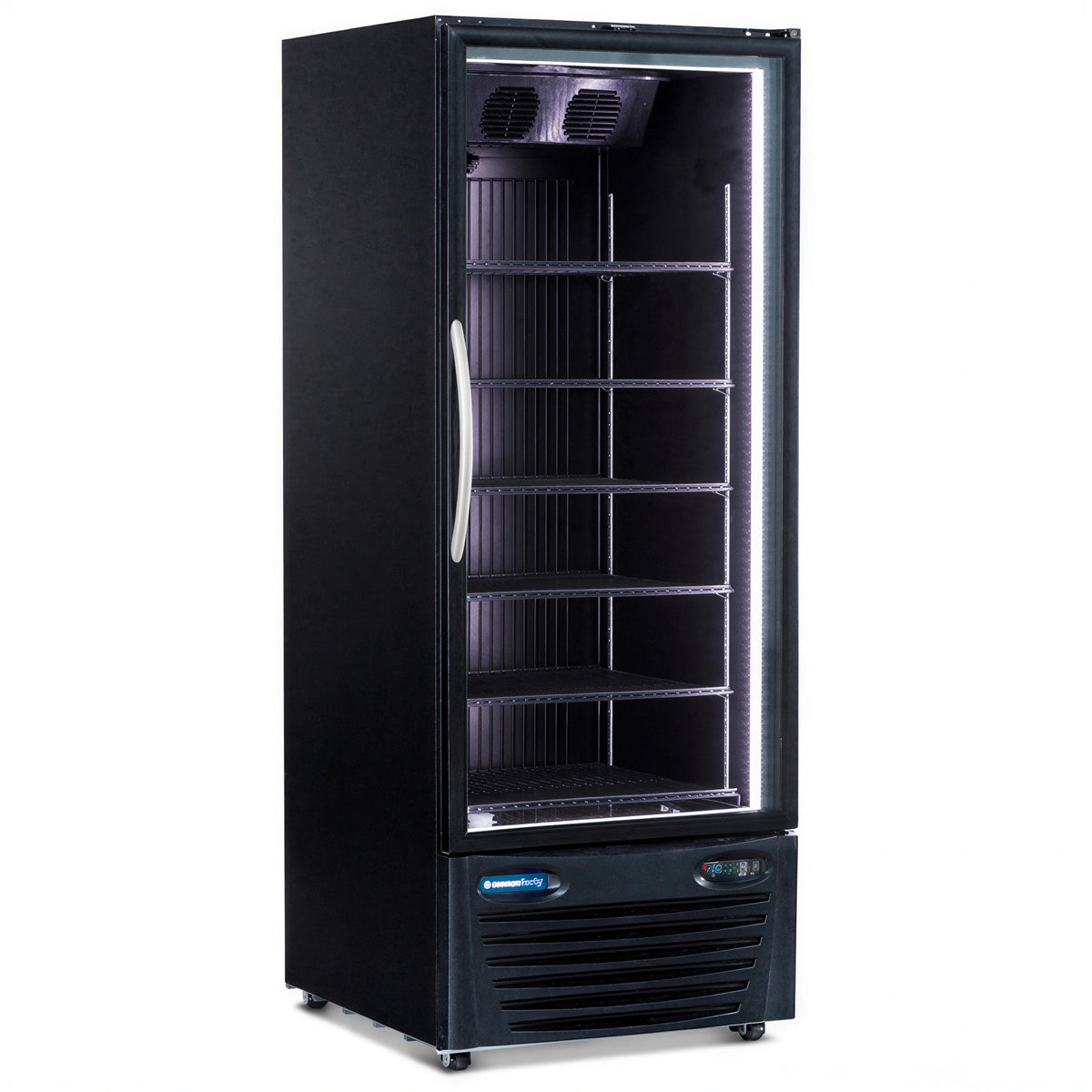

22-USGF-F1-BK-BI is a 23.41 cu. ft. display freezer merchandiser with one full-height hinged glass door, black exterior and interior, and a bottom-mount condensing unit.
The frost-free forced-air system supports setpoint temperatures from -20°F to 0°F, while two full-height LED light strips, five adjustable coated shelves, and one coated bottom shelf help present frozen products.
- Temperature control: External electronic controls provide digital temperature display, adjustable setpoint, audible and visual temperature alarms, and a door-open alarm.
- Glass door: Triple-pane, Low-E coated insulated safety glass with an anti-fog feature.
- Electrical: Includes cord and plug for a 115 V, 60 Hz, single-phase connection with a NEMA 5-15P plug.
Overall Dimensions:
30.0"W x 33.77"D x 78.75"HProduct Weight:
420.0 lbLow-temperature refrigeration
The self-contained R290 refrigeration system delivers setpoint temperatures from -20°F to 0°F and is factory set at -20°F.
Frost-free forced air
The forced-air system supports quick, even freezing with user-defined or temperature-sensed defrost cycles.
Electronic temperature control
The external front-mounted electronic microprocessor controller provides a continuous digital temperature display, adjustable setpoint, audible and visual temperature alarms, and a door-open alarm.
Insulated glass door
The self-closing full-height door uses triple-pane, Low-E coated insulated safety glass and includes an anti-fog feature.
LED interior lighting
Two full-height, high-intensity white LED light strips illuminate the cabinet interior.
Adjustable shelving
Five coated adjustable shelves can be adjusted in 1/2-inch increments, with one additional coated bottom shelf.
Cabinet construction
The cabinet has 2 1/2-inch-thick foamed-in-place closed-cell insulation, black galvanized interior walls, and smooth interior corners.
Installation features
Low-profile casters and front leveling legs support installation, and the unit includes a cord and plug.
