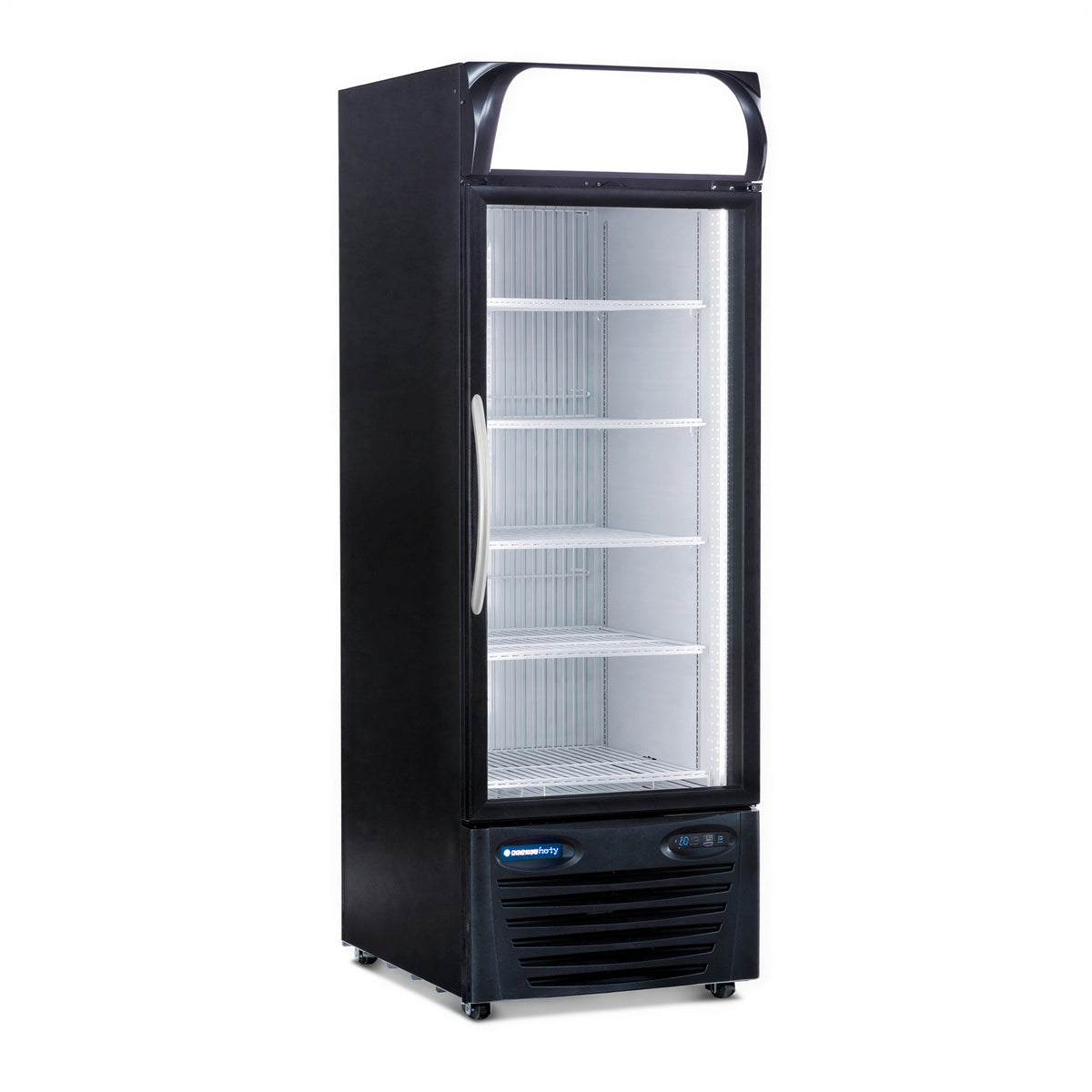

Minus Forty / QBD 19-USGF Due North Minus forty Glass Door Display Freezer Merchandiser, 1 Door, 19.88 cu. ft., Black, Self-Contained
- Product type
- Display freezer merchandiser
- Door configuration
- 1 glass door
- Gross capacity
- 19.88 cu. ft. / 563 L
- Temperature range
- -20°F to 0°F setpoint range
- Factory setpoint
- -20°F
- Refrigerant
- R290
Specifications
Description
The Minus Forty 19-USGF is a one-door glass display freezer merchandiser with 19.88 cu. ft. of gross capacity. It has a black exterior, white interior, four adjustable shelves, and one bottom shelf.
The self-contained R290 refrigeration system uses frost-free forced air circulation and an external electronic microprocessor controller. A self-closing, anti-fog glass door, interior LED lighting, and an LED backlit translight display support product visibility and merchandising.
- Factory setpoint of -20°F
- Bottom-mount condensing unit
- 115V, 60Hz, single-phase electrical connection with NEMA 5-15P plug
- NSF certified
Overall Dimensions:
26.5"W x 33.77"D x 78.75"HProduct Weight:
420.0 lbLow-temperature refrigeration
The self-contained R290 refrigeration system provides setpoint temperatures from -20°F to 0°F depending on requirements.
Frost-free forced air
The frost-free forced air system supports quick, even freezing with user-defined or temperature-sensed defrost cycles.
Electronic temperature control
An external front-mounted electronic microprocessor controller provides a digital temperature display plus audible and visual temperature and door-open alarms.
Insulated glass door
The triple-pane, Low-E-coated insulated safety glass door includes an anti-fog feature and a self-closing torsion bar.
LED merchandising lighting
Two full-height white LED light strips illuminate the cabinet, while the LED backlit translight display measures 22.6 in. x 8.3 in.
Adjustable shelving
The cabinet includes four coated adjustable shelves and one coated bottom shelf.
Bottom-mount condensing unit
The condensing unit is mounted at the bottom of the cabinet.
Electrical connection
The unit operates at 115V, 60Hz, single phase, draws 4.6 amps, and uses a NEMA 5-15P plug.
