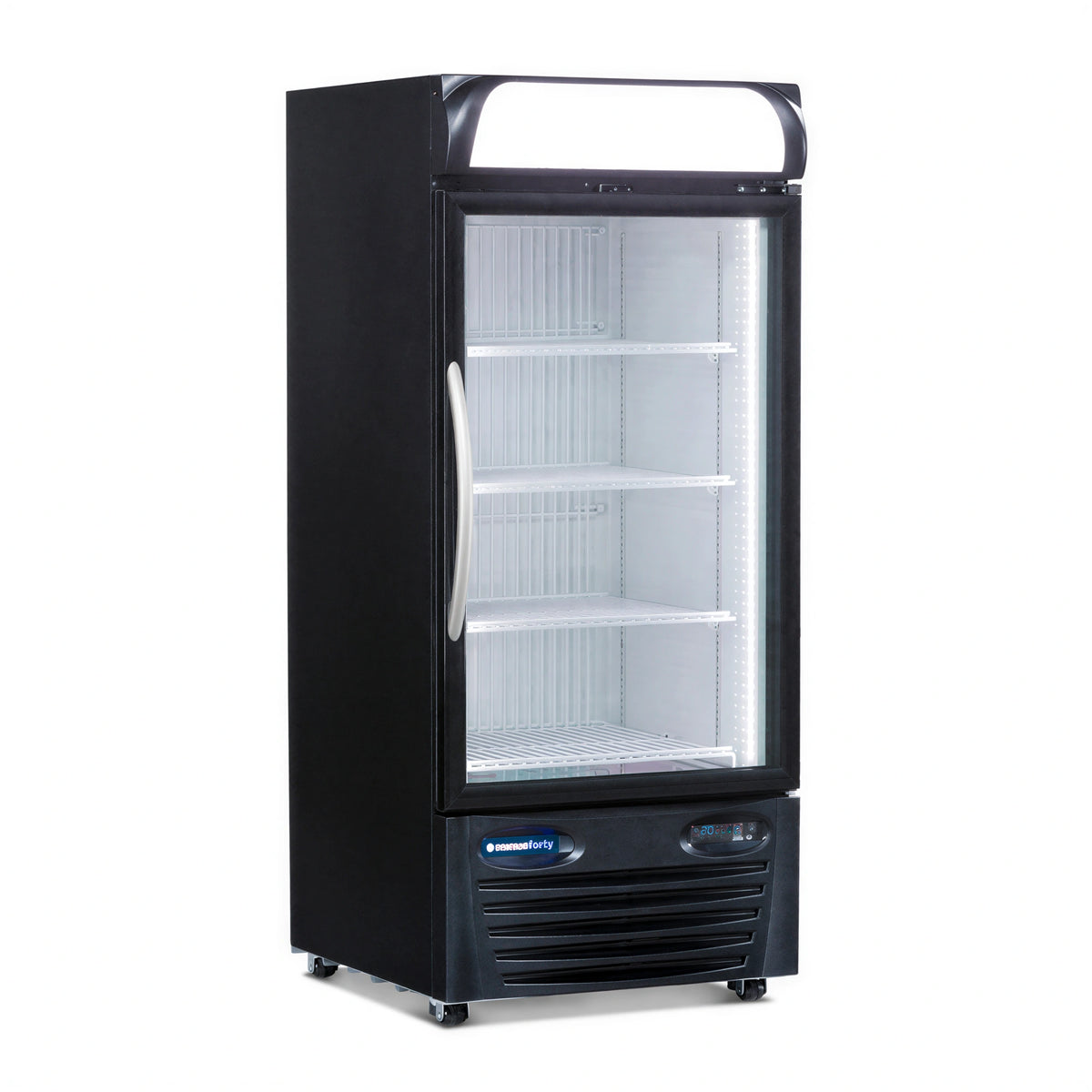

Minus Forty / QBD 13-USGF Due North Minus forty Glass Door Display Freezer Merchandiser, 1 Section, Hinged Door, Black, 12.28 cu. ft.
- Amperage
- 4.5 A
- Phase
- Single phase
- Dimensions
- 26.5"W × 28.27"D × 62.25"H
- Product type
- Display freezer merchandiser
- Sections
- 1
- Gross capacity
- 12.28 cu. ft. (347.7 L)
Specifications
Description
The Minus Forty 13-USGF is a one-section glass-door freezer merchandiser with a 12.28 cu. ft. gross capacity, black exterior, white galvanized interior, and bottom-mounted condensing unit.
Its forced-air system provides a factory-set temperature of -20°F, with a documented setpoint range from -20°F to 0°F. Two interior LED light strips and an LED-backlit translight display illuminate merchandise.
The freezer includes three coated adjustable shelves, one coated bottom shelf, a self-closing insulated glass door, cord and plug, and R290 refrigerant.
Overall Dimensions:
26.5"W x 28.27"D x 62.25"HProduct Weight:
420.0 lbForced-air refrigeration
The frost-free forced-air system supports quick, even freezing and uses user-defined or temperature-sensed defrost cycles.
R290 refrigeration
The self-contained refrigeration system uses R290 refrigerant and provides a documented setpoint range from -20°F to 0°F.
Temperature controls
The external electronic microprocessor controller provides a digital temperature display, adjustable setpoint, and audible and visual temperature and door-open alarms.
Glass door
The self-closing door uses triple-pane, Low-E coated insulated safety glass with an anti-fog feature and a self-sealing gasket.
LED illumination
Two full-height interior LED light strips illuminate the cabinet, while the backlit translight display uses two full-width white LED light strips.
Adjustable shelving
Three coated shelves adjust in 1/2-inch increments, with one additional coated bottom shelf.
Cabinet construction
The cabinet has a black exterior, white galvanized interior, 2 1/2-inch insulated walls, smooth interior corners, low-profile casters, and front leveling legs.
Bottom-mounted condensing unit
The bottom-mounted condensing unit keeps the merchandising area elevated and products within easy reach.
