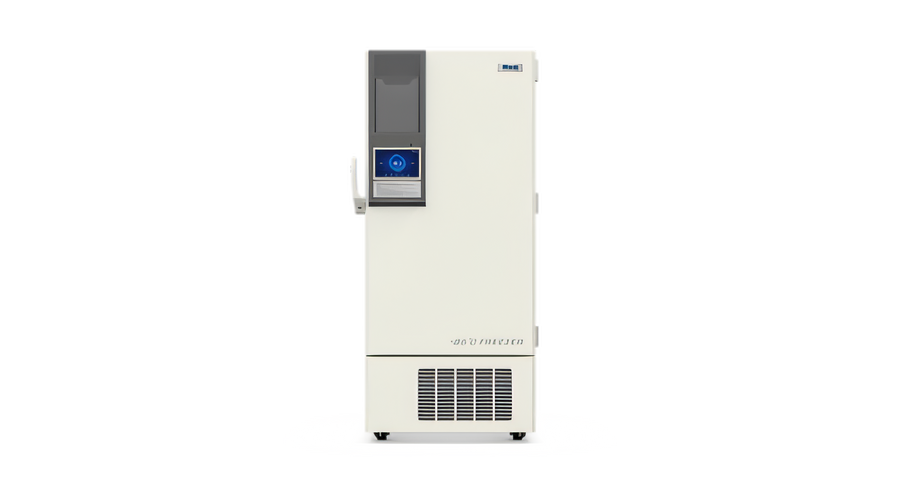

Migali Scientific Cascade Ultra-Low Temperature Upright Lab Freezer, Solid Door, 19 Cu. Ft.
Migali Scientific Cascade Ultra-Low Temperature Upright Lab Freezer, Solid Door, 19 Cu. Ft.
Two-Stage Cascade Cooling, 10" Touch Screen, Self-Contained Bottom-Mounted Refrigeration
Built for specimen preservation, this ultra-low freezer pairs a -86°C cascade cooling system with smart monitoring and energy-efficient inverter compressors.
- Ultra-low temperature range of -40°C to -86°C for reliable specimen storage.
- Two-stage cascade cooling with dual inverter compressors and R290/R170 hydrocarbon refrigerants.
- 10" HD intelligent touch screen with IntelVU® OS, built-in data logging, and alarm monitoring.
- 19 cu. ft. cabinet with 3 stainless steel shelves, insulated inner doors, and a stainless steel interior.
- VIP insulation, access port, heated vacuum relief port, casters, and leveling feet support lab use.
Overall Dimensions:
36.61"W x 40.98"D x 76.65"HProduct Weight:

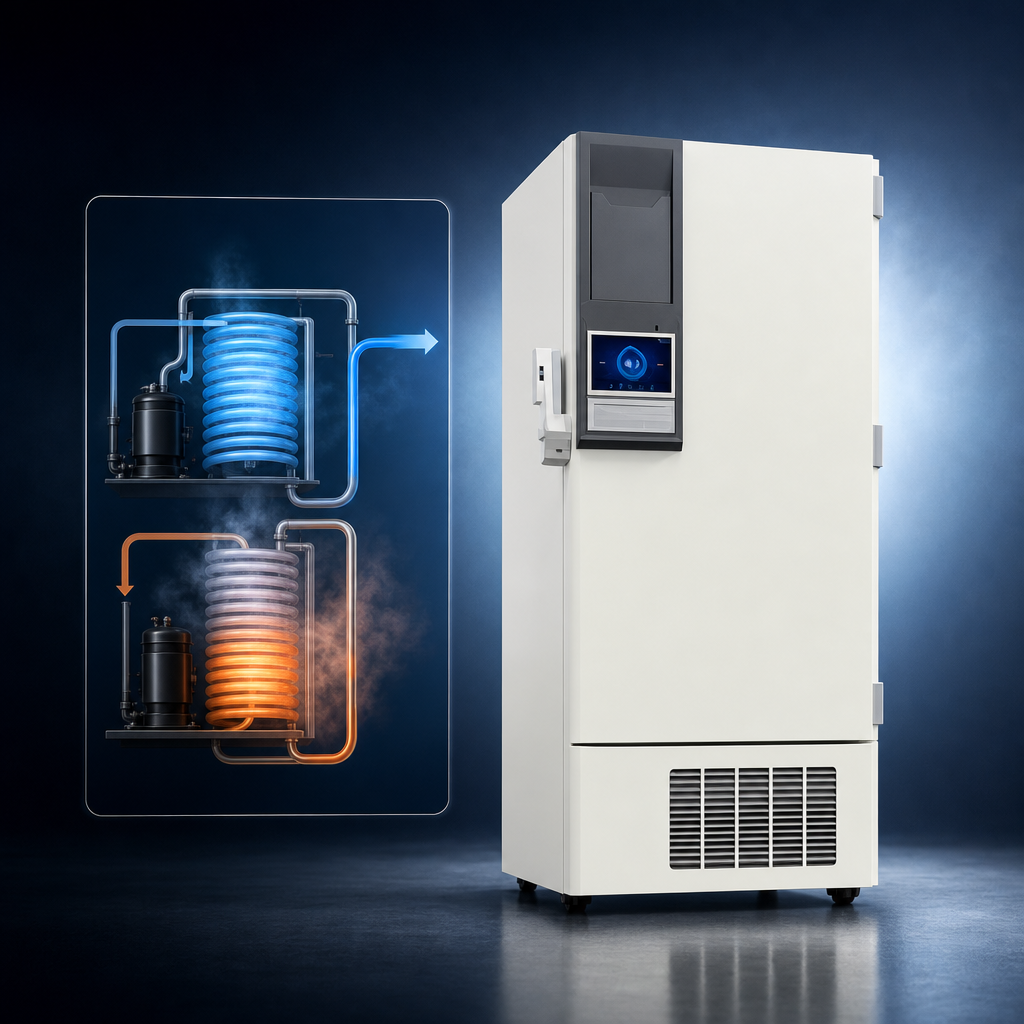

769.42 lbTwo-Stage Cascade Cooling System
M-Cascade technology is designed to maintain ultra-low temperatures for laboratory storage.

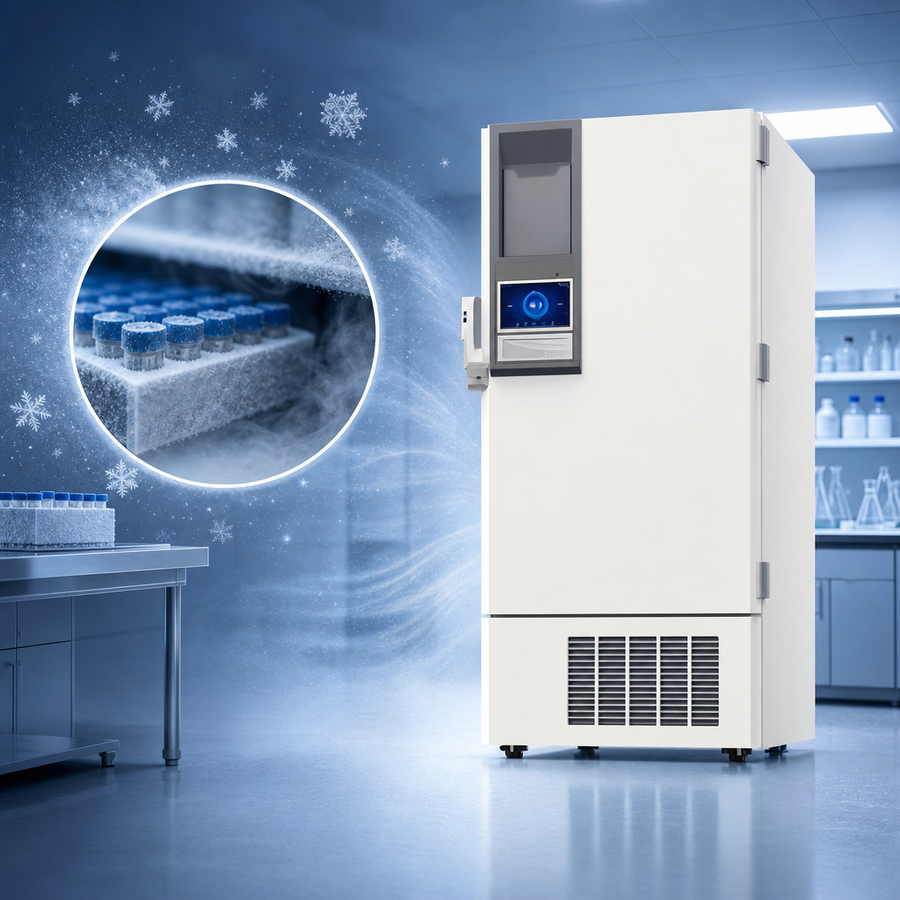

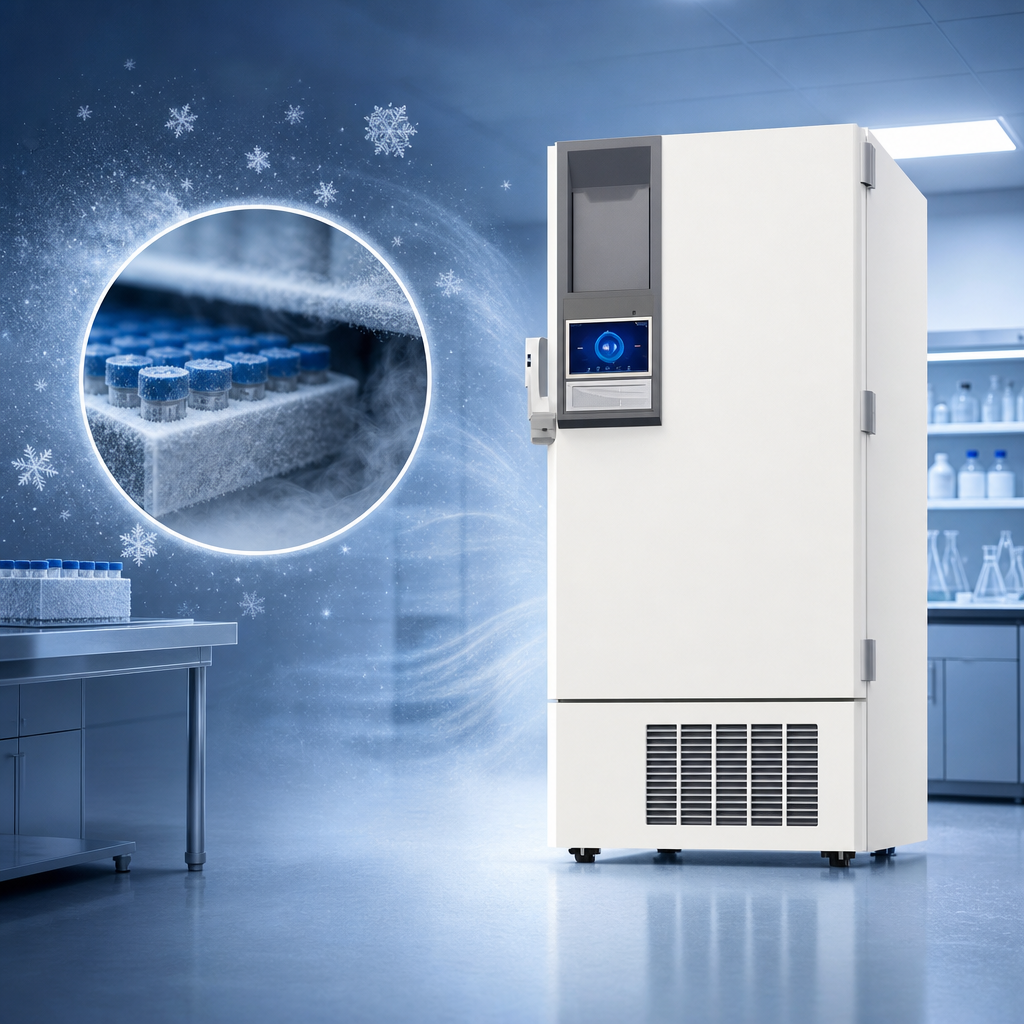

Ultra-Low Temperature Performance
Operates from -40°C to -86°C for specimen preservation and long-term storage.
Dual Inverter Compressors
Two variable-speed compressors help improve energy efficiency and temperature recovery after door openings.
Hydrocarbon Refrigerants
Uses R290 on the high stage and R170 on the low stage for cascade cooling.
10" LCD Touch Screen Control
Intelligent touch screen interface with IntelVU® OS and microprocessor control.
Built-In Data Logging
USB data logger records temperature data every 5 minutes with up to 10 years of memory capacity.
Alarm and Monitoring System
Includes 10 alarm functions, remote alarm contact, RS485 interface, and backup battery support.
VIP Vacuum Insulation
Vacuum insulation panels help improve thermal efficiency and cabinet stability.
Stainless Steel Interior and Shelves
Features a 304 stainless steel interior with three stainless steel shelves.
Lab-Ready Cabinet Design
Includes insulated inner doors, access port, heated vacuum relief port, heavy-duty casters, and leveling feet.
Bottom-Mounted Self-Contained Refrigeration
Self-contained refrigeration is bottom-mounted for service access and cabinet airflow.
