Key specifications
- BTU
- 160,000 BTU
- Amps
- 15 Amps
- Phase
- 1-Phase
- Dimensions
- 90.78"W × 65.36"D × 47.22"H
- Type
- Conveyor Oven
- Style
- Wide-Belt
Spec sheet

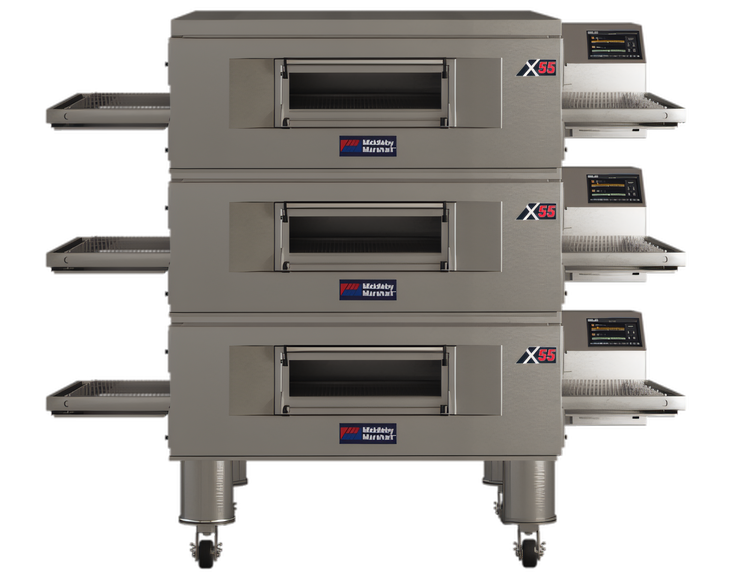

Middleby Marshall X55GWB-3 Triple-Deck Gas Wide-Belt Conveyor Oven, 55" Chamber, 38" Belt, Stainless Steel
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
The Middleby Marshall X55GWB-3 is a triple-deck gas wide-belt conveyor oven with a 55-inch cooking chamber and a 38-inch standard single belt on each deck.
It provides controllable bake time and conveyor speed, a 1-19 minute time range, a 300°F-600°F operating temperature range, and reversible conveyor direction.
- Stainless steel front, sides, top, and interior
- Includes top, legs, casters, and base
- Rated at 160,000 BTU
- 208/240 Volts, 50/60 Hz, 1-Phase, 15 Amps
- cETLus and ETL-Sanitation certified
Overall Dimensions:
90.78"W x 65.36"D x 47.22"HProduct Weight:
1622.0 lbTriple-Deck Layout
The oven has three decks.
Wide-Belt Conveyor
Each deck has a 38-inch standard single belt.
Controllable Bake and Conveyor Settings
Bake time and conveyor speed are controllable, with a 1-19 minute time range.
Reversible Conveyor Direction
The conveyor direction is reversible.
Front-Loading Window
A front-loading window is included.
Stainless Steel Surfaces
The front, sides, top, and interior are stainless steel.

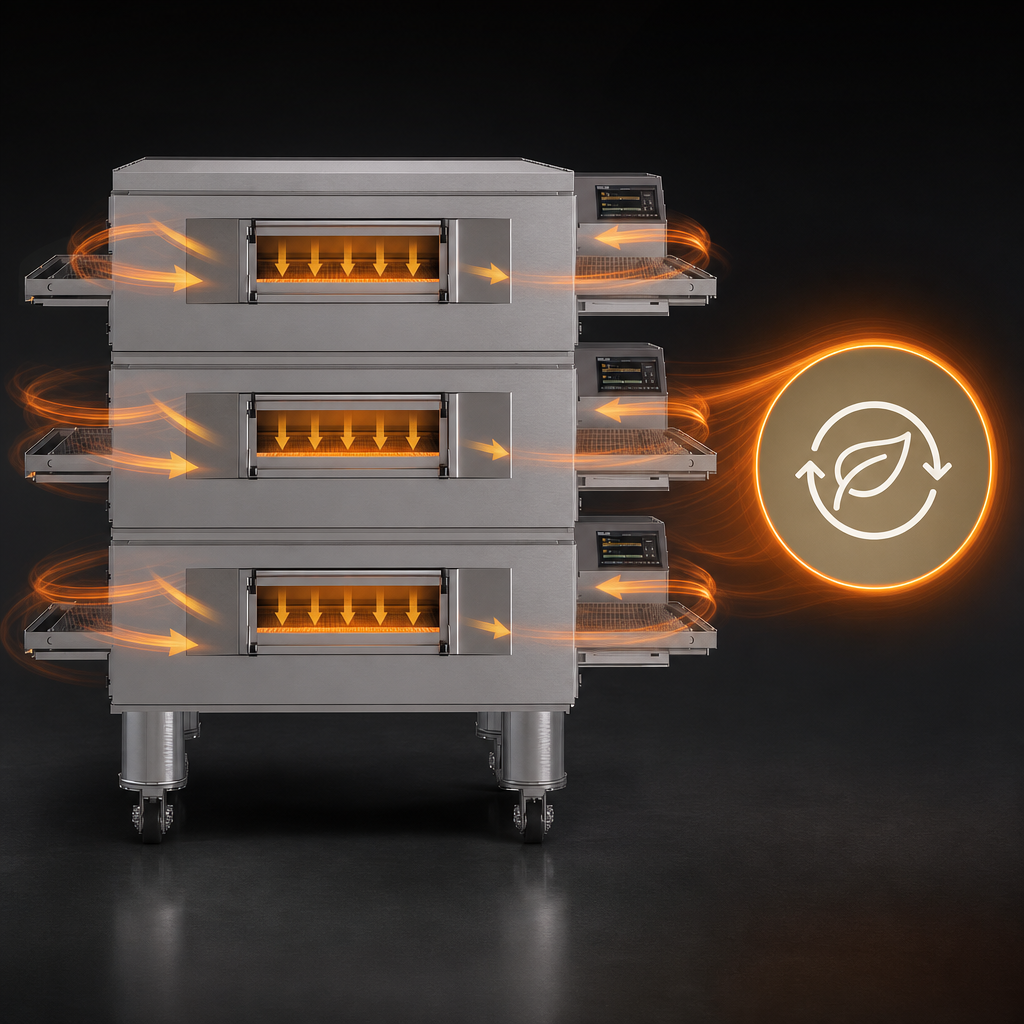

Energy Management System
The product is identified as an Energy Management Wide-Belt Conveyor Oven, and the cutsheet describes an Energy Management System for heat transfer to and from the product.

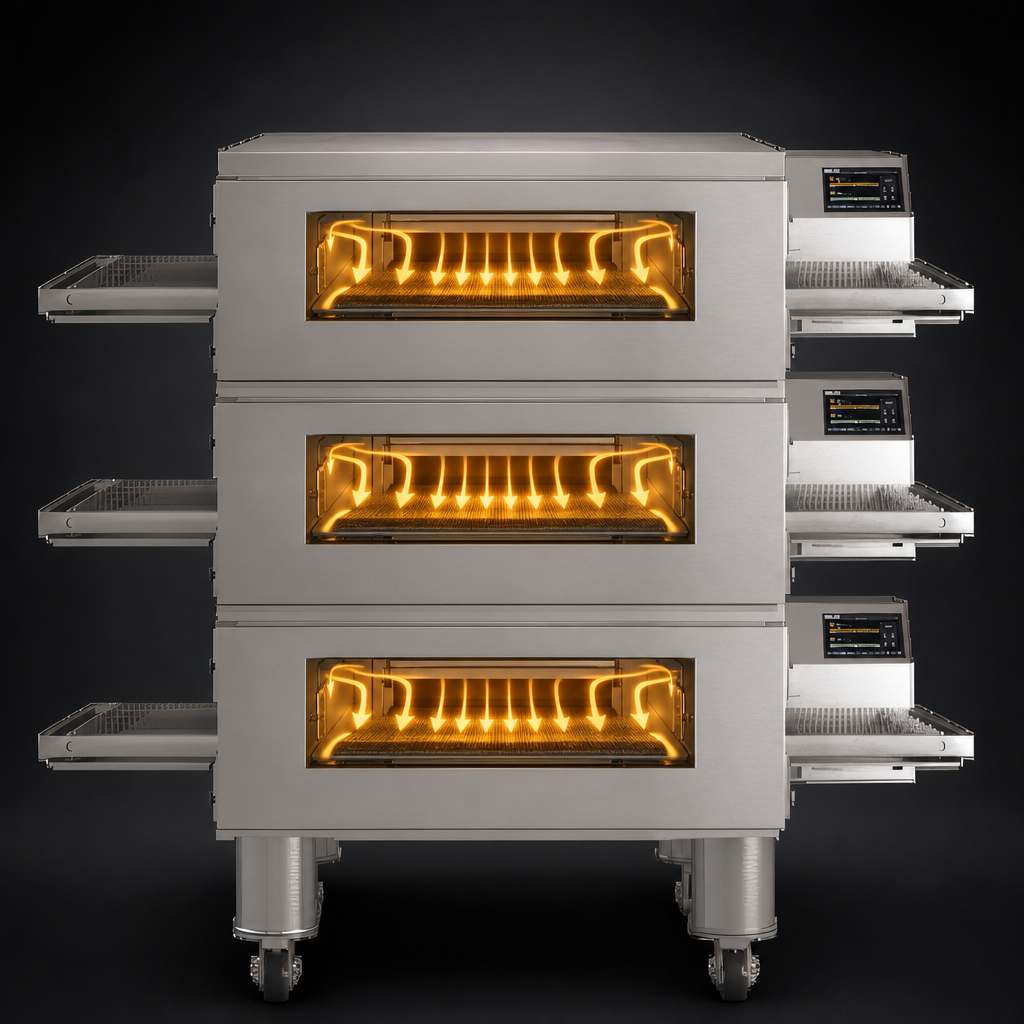

Jet Sweep Impingement
The cutsheet identifies a Jet Sweep impingement process for heat delivery to the chamber.
