Key specifications

BTU
89,000 BTU
Amps
10 Amps
Phase
1-Phase
Dimensions
65.25"W × 49.23"D × 41.9"H
Type
Conveyor Oven
Installation Type
Floor Model
Spec sheet
Middleby Marshall SKU: PS638G-3

Middleby Marshall PS638G-3 Triple-Deck Gas Impingement Conveyor Pizza Oven, 26-Inch Belt, Electronic Controls

$68,064.00
/each
Estimated to ship in 16–19 business days Free Shipping
Decks
Gas type
Conveyor belt
Gas Connector

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $6,296/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Conveyor Oven
Installation Type Floor Model
Material Stainless Steel
Deck Count 3
Conveyor Count Per Deck 1
Belt Type Single Belt
Belt Width 26 Inches
Cooking Chamber Length 38 Inches
Heating Type Impingement PLUS
Controls Electronic
Time Range 30 Seconds - 13 Minutes
Temperature Range 325°F - 600°F
BTU 89,000 BTU
Voltage 208/240 Volts
Amps 10 Amps
Hertz 50/60 Hz
Phase 1-Phase
Plug Type NEMA L6-20P
Included Components Top, 6-Inch Casters, Base

Description

The Middleby Marshall PS638G-3 is a gas, triple-deck Impingement PLUS conveyor oven with a 38-inch cooking chamber and a 26-inch-wide standard single belt.

Electronic controls provide a 30-second to 13-minute time range and a 325°F to 600°F operating temperature range. The oven includes a front loading window and stainless steel front, sides, top, and interior.

The unit includes a top, 6-inch casters, and a base. It is rated at 89,000 BTU per oven and uses 208/240 Volts, 10 Amps, 50/60 Hz, 1-Phase power with a NEMA L6-20P plug.

Overall Dimensions:

65.25"W x 49.23"D x 41.9"H

Product Weight:

2460.0 lb

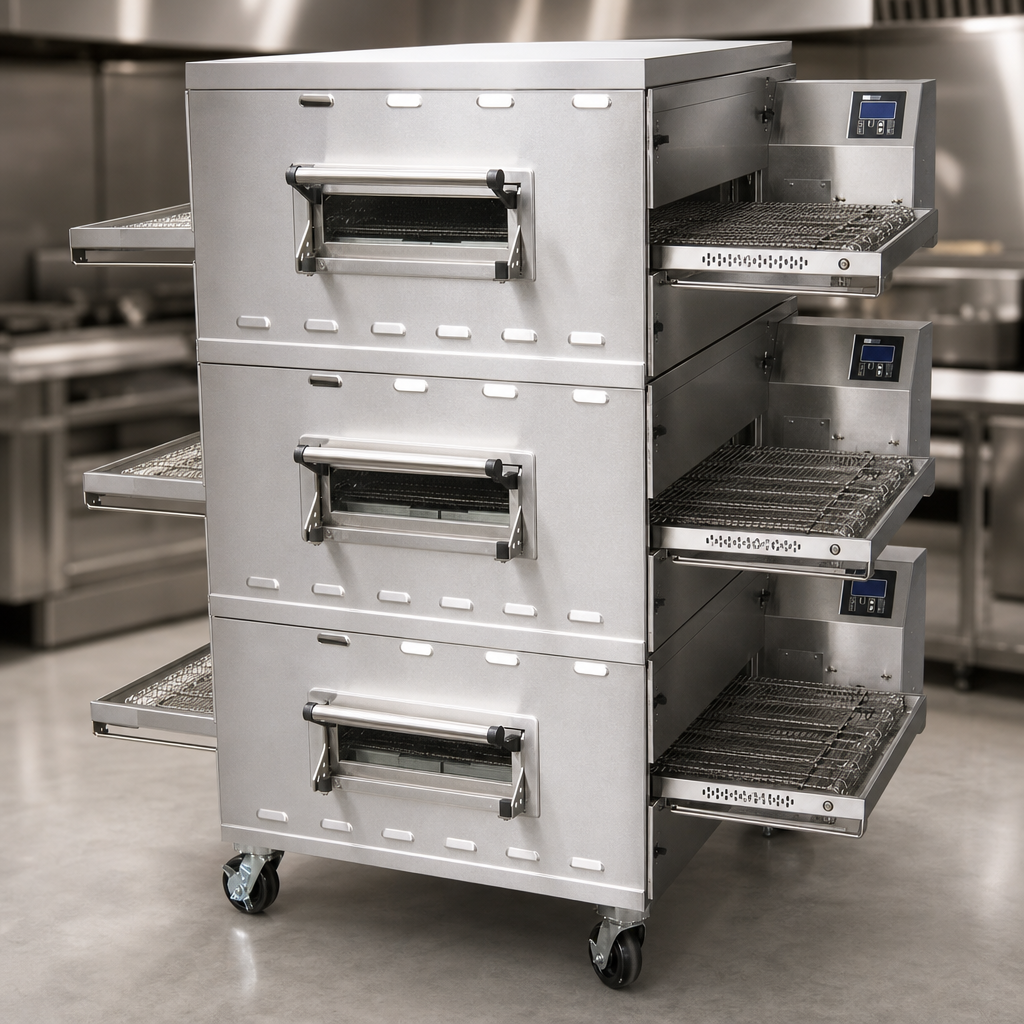

Triple Deck

Triple-deck configuration for the PS638G-3.

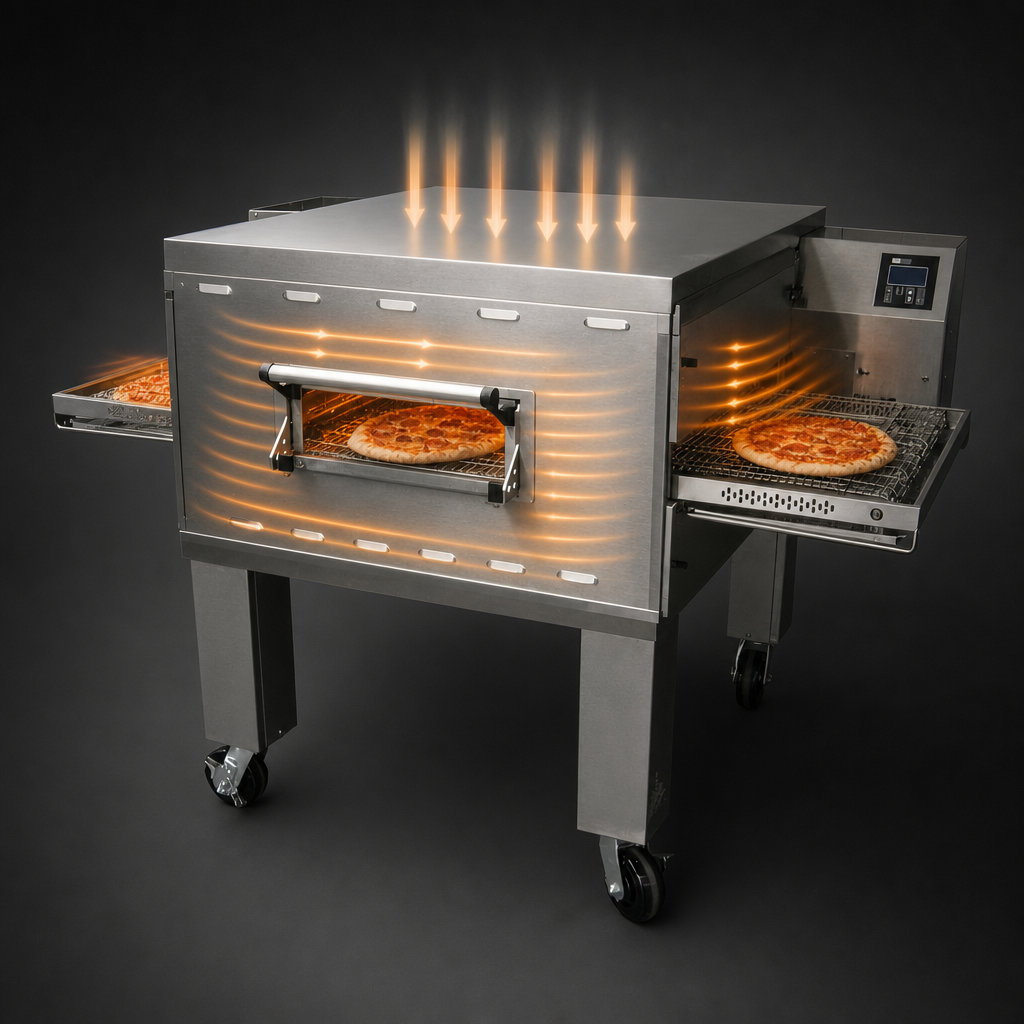

Impingement PLUS Heating

Impingement PLUS heating technology for the baking chamber.

Standard Single Belt

26-inch-wide standard single belt.

Electronic Controls

Electronic control with a 30-second to 13-minute time range.

Operating Temperature Range

Operates from 325°F to 600°F.

Front Loading Window

Includes a front loading window.

Stainless Steel Construction

Stainless steel front, sides, top, and interior.

Gas Operation

Rated at 89,000 BTU per oven.

Frequently Asked Questions

It is a gas, triple-deck Impingement PLUS conveyor oven.
It uses a 26-inch-wide standard single belt.
The operating temperature range is 325°F to 600°F.
The electronic control provides a 30-second to 13-minute time range.
The specified electrical requirements are 208/240 Volts, 10 Amps, 50/60 Hz, 1-Phase, with a NEMA L6-20P plug.
The oven includes a top, 6-inch casters, and a base.
The listed dimensions are 65.25 inches wide, 49.23 inches deep, and 41.9 inches high, with a listed weight of 2460 pounds.
The listed certifications are ETL-Sanitation and cETLus.
