Key specifications

BTU
40,000 BTU
Gas Type
Natural Gas / Propane
Amps
1.5 Amps
Phase
1-Phase
Dimensions
45.0"W × 40.0"D × 28.0"H
Type
Conveyor Oven
Spec sheet
Middleby Marshall SKU: PS520G-CO

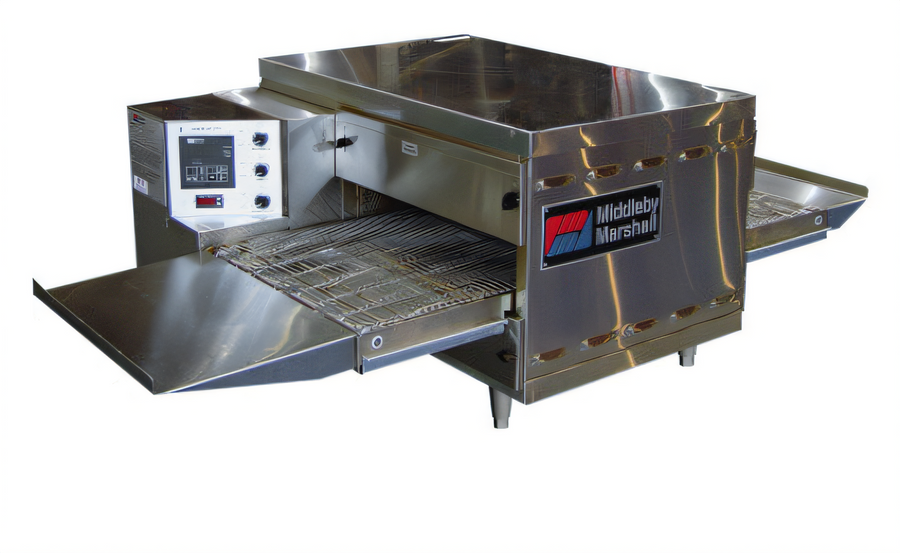

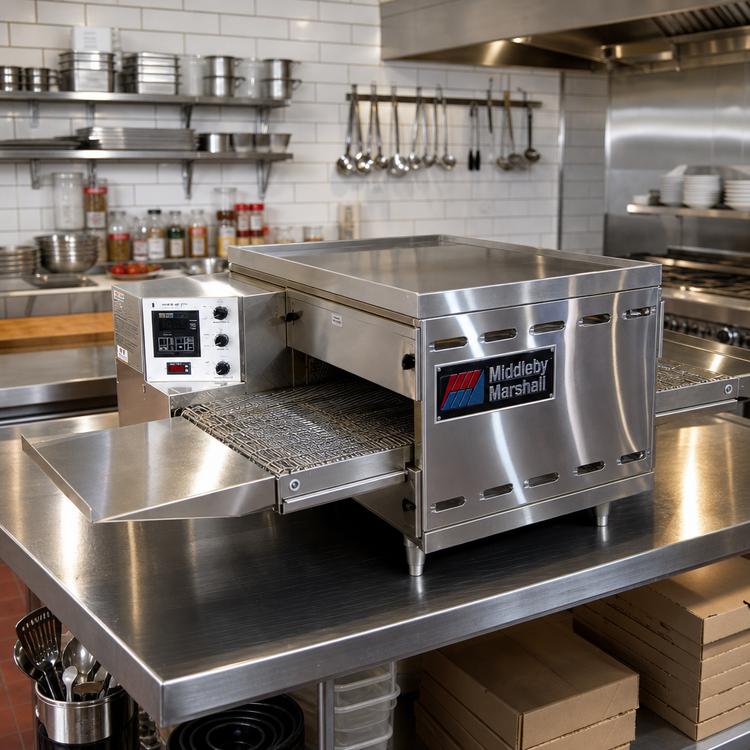

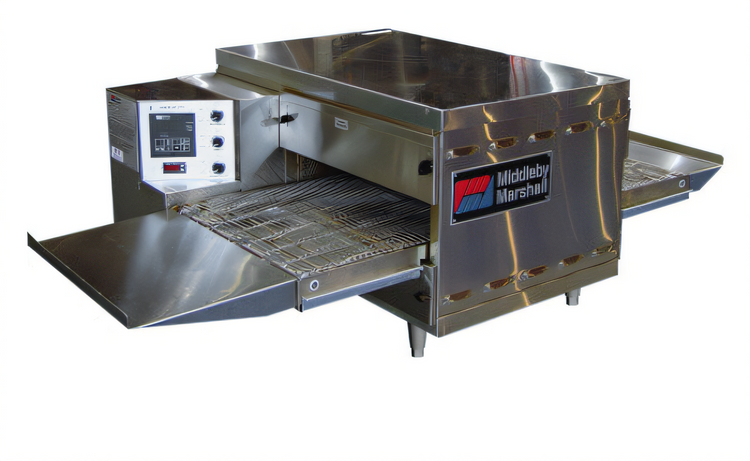

Middleby Marshall PS520G-CO Countertop Gas Conveyor Oven Cavity Only, 18-Inch Belt, Digital Controls, Reversible Conveyor

$10,449.00
/each
Estimated to ship in 16–19 business days
Gas type
Gas Connector

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $967/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Conveyor Oven
Style Cavity Only
Installation Type Countertop
Material Stainless Steel
Deck Count Single
Belt Width 18 Inches
Cooking Chamber Length 20 Inches
Controls Digital Temperature And Speed
Time Range 30 Seconds–12 1/2 Minutes
Temperature Range 200°F–600°F
Conveyor Direction Reversible
Feed Direction Left To Right
Blower Motor Single Speed
BTU 40,000 BTU
Gas Type Natural Gas / Propane
Voltage 208/240 Volts
Amps 1.5 Amps
Hertz 50/60 Hz
Phase 1-Phase
Plug Type NEMA L6-20P
Cord Length 6 ft Nominal

Description

PS520G-CO is a cavity-only countertop gas conveyor oven intended to replace an existing PS520 in a stack.

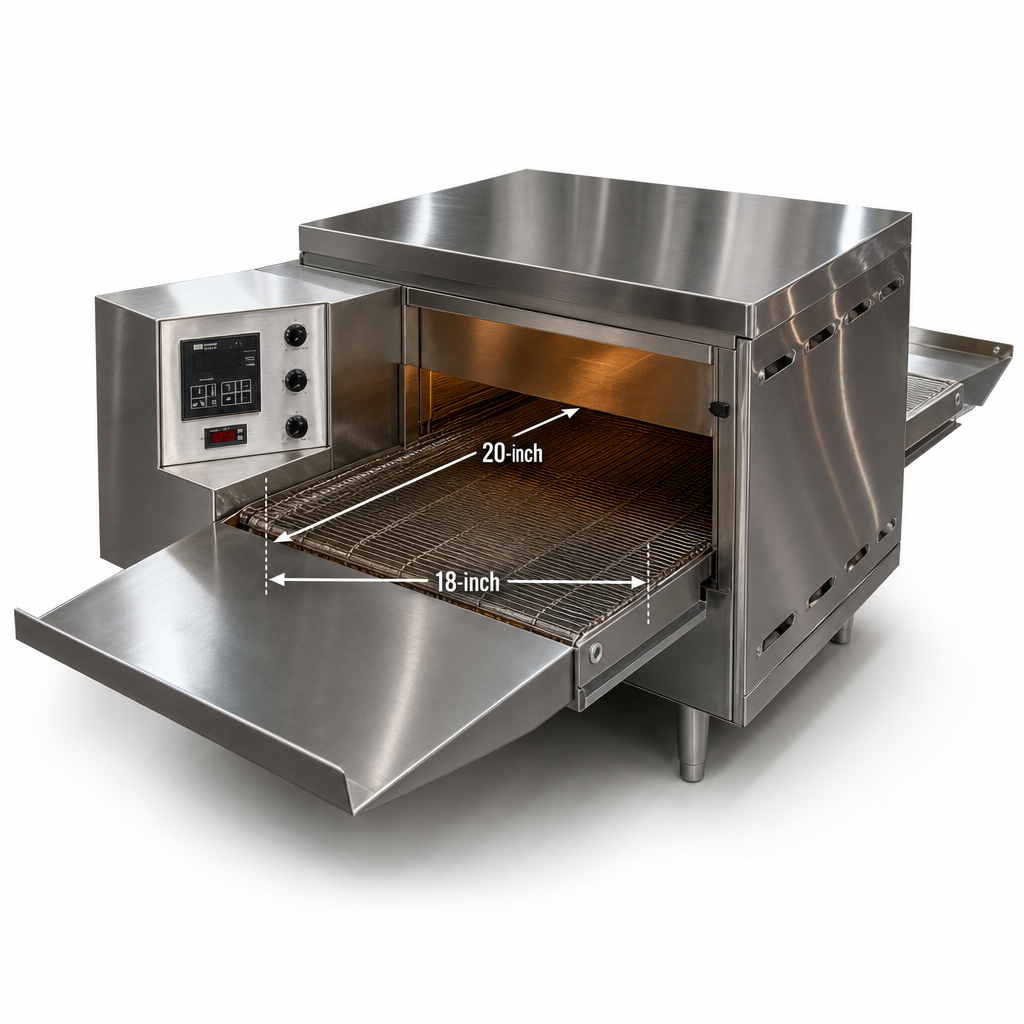

It features a 20-inch cooking chamber, an 18-inch-wide standard belt, digital temperature and speed controls, and a reversible conveyor with left-to-right feed.

  • 30-second to 12 1/2-minute conveyor time range
  • 200°F to 600°F operating temperature range
  • Stainless steel front, sides, top, and interior
  • 40,000 BTU rated heat input

Overall Dimensions:

45.0"W x 40.0"D x 28.0"H

Product Weight:

410.0 lb

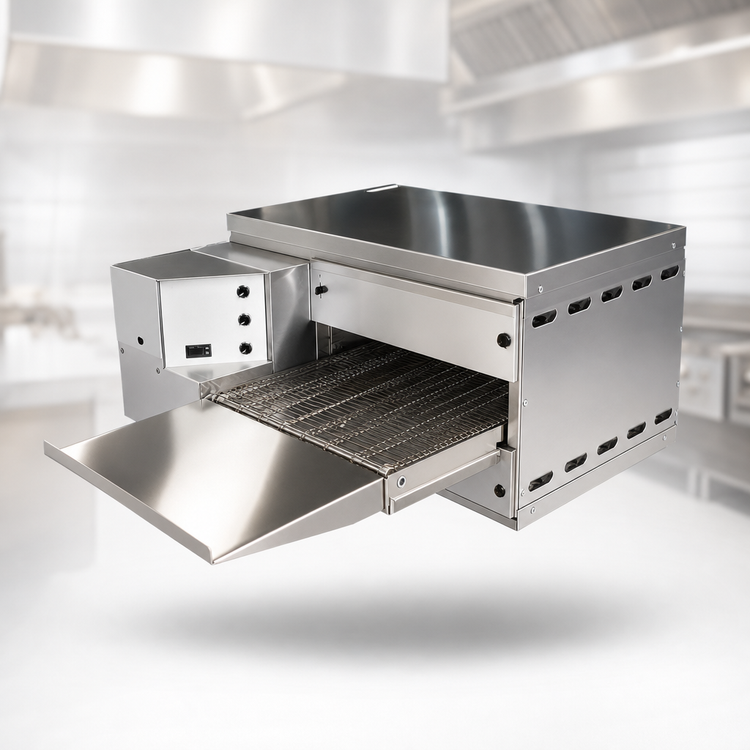

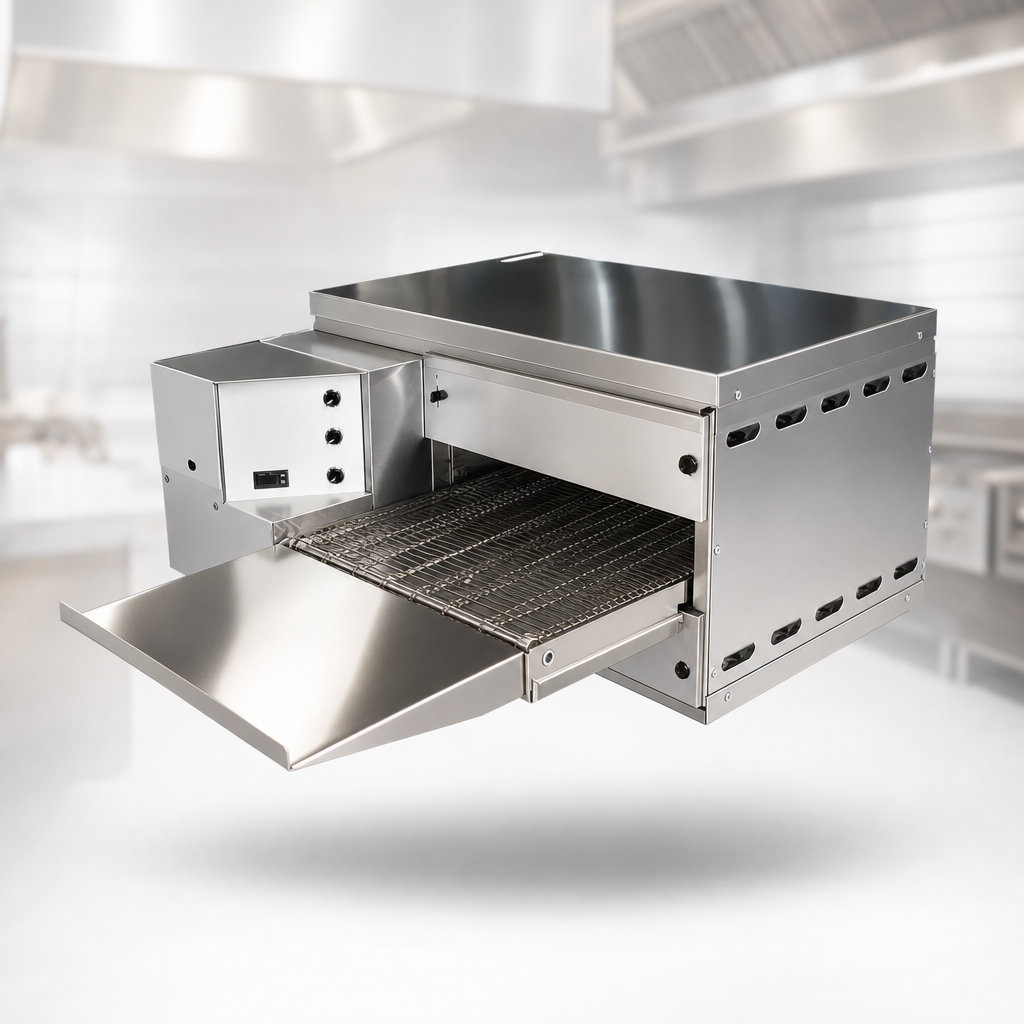

Cavity-Only Design

Intended to replace an existing PS520 in a stack.

18-Inch Conveyor Belt

Uses an 18-inch-wide standard belt.

Digital Controls

Separate digital temperature and speed controllers provide control of oven temperature and conveyor speed.

Adjustable Conveyor Time

The conveyor time range is 30 seconds to 12 1/2 minutes.

Reversible Conveyor

The conveyor direction is reversible, with left-to-right feed specified.

Stainless Steel Interior And Exterior

The front, sides, top, and interior are stainless steel.

Frequently Asked Questions

This is a cavity-only model intended to replace an existing PS520 in a stack.
It uses an 18-inch-wide standard belt.
The operating temperature range is 200°F to 600°F, and the conveyor time range is 30 seconds to 12 1/2 minutes.
Yes. The conveyor direction is reversible, and the specified feed direction is left to right.
