Key specifications

Amps
50 Amps
Phase
1-Phase
Dimensions
42.0"W × 37.5"D × 21.25"H
Type
Conveyor Pizza Oven
Style
Triple Deck
Material
Stainless Steel
Spec sheet
Middleby Marshall SKU: PS520E-3

Middleby Marshall PS520E-3 Triple-Deck Electric Conveyor Pizza Oven, 18-Inch Belt, 20-Inch Chamber, Digital Controls

$33,945.00
/each
Estimated to ship in 16–19 business days Free Shipping

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $3,140/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Conveyor Pizza Oven
Style Triple Deck
Material Stainless Steel
Belt Type Single
Belt Width 18 Inches
Cooking Chamber Length 20 Inches
Controls Digital Temperature and Speed Controllers
Bake Time Range 30 Seconds - 12.5 Minutes
Temperature Range 200°F - 600°F
Conveyor Direction Reversible
Blower Motor Speed Single Speed
Voltage 208 Volts
Amps 50 Amps
Watts 8.3 kW
Hertz 50/60 Hz
Phase 1-Phase
Cord Length 6 Feet (Nominal)
Extension Tray 12 Inches
Leg Height 4 Inches

Description

The PS520E-3 is a triple-deck electric conveyor pizza oven with an 18-inch-wide standard single belt and a 20-inch-long cooking chamber.

Discrete digital temperature and speed controllers provide a 30-second to 12.5-minute bake time range and a 200°F to 600°F operating temperature range. The oven includes a reversible conveyor, single-speed blower motors, stainless steel front, sides, top and interior, 4-inch legs, a 12-inch extension tray, and a 6-foot nominal cord and plug.

Specified electrical service is 208 Volts, 50/60 Hz, 1-Phase, 50 Amps and 8.3 kW per oven.

Overall Dimensions:

42.0"W x 37.5"D x 21.25"H

Product Weight:

975.0 lb

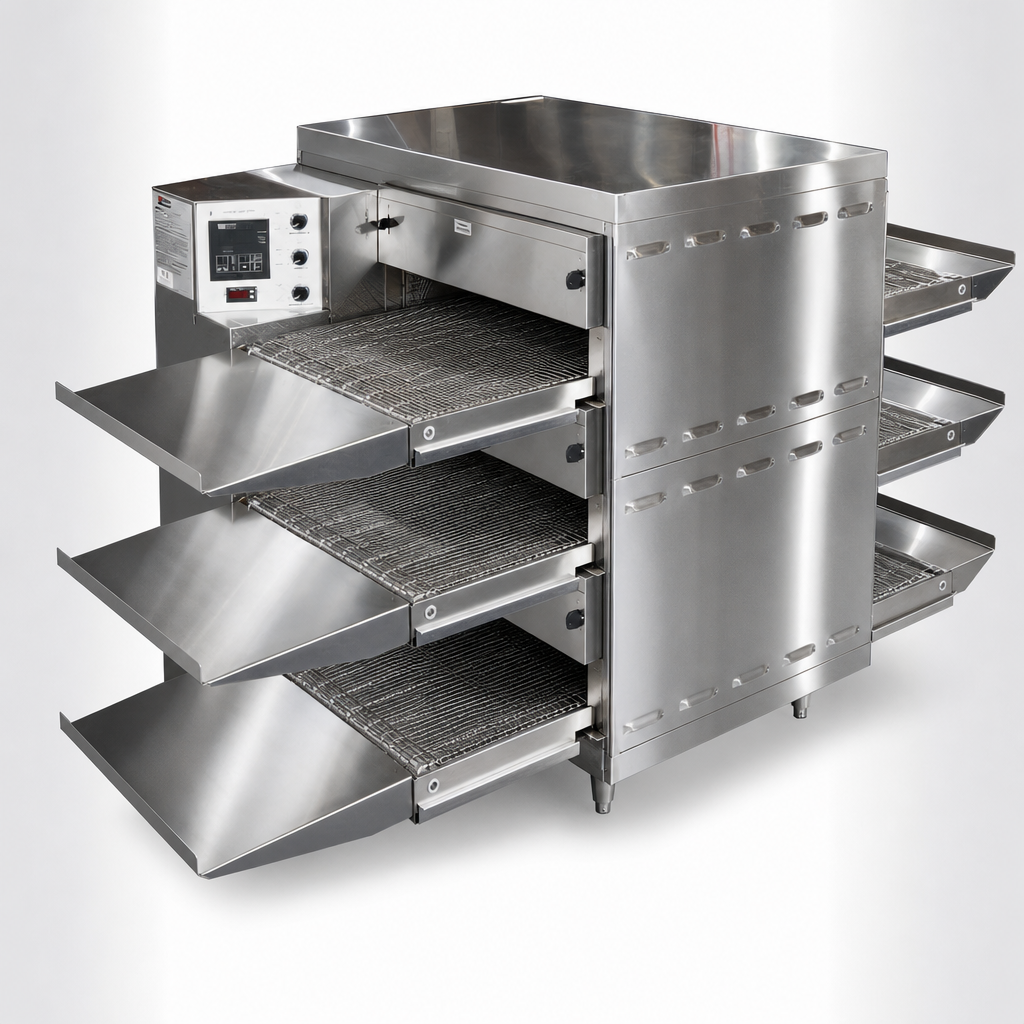

Triple-Deck Design

Configured as a triple-deck conveyor oven.

Electric Conveyor Operation

Uses an 18-inch-wide standard single belt through a 20-inch-long cooking chamber.

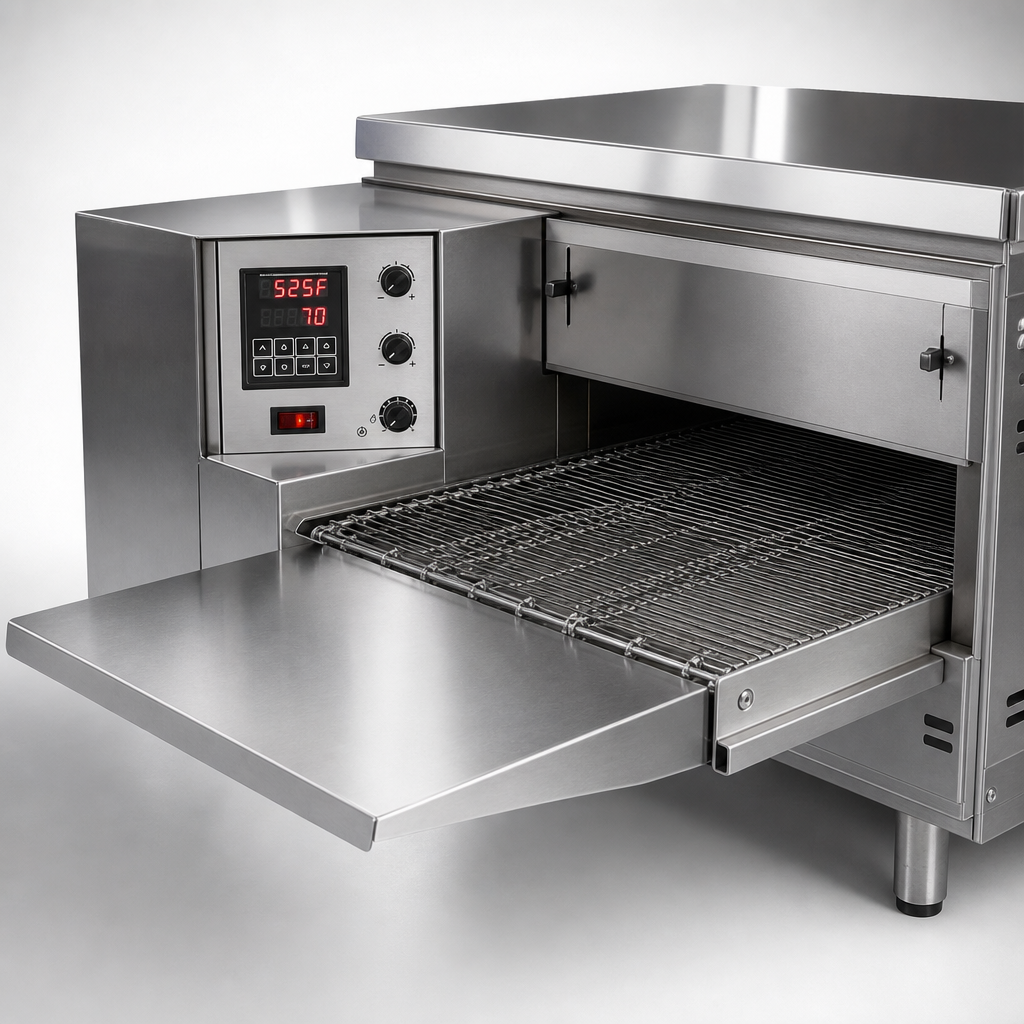

Digital Temperature and Speed Controls

Discrete digital controllers manage temperature and conveyor bake speed.

Bake Time Range

Provides a 30-second to 12.5-minute bake time range.

Operating Temperature Range

Operates from 200°F to 600°F.

Reversible Conveyor

The conveyor direction is reversible.

Stainless Steel Surfaces

The front, sides, top and interior are stainless steel.

Included Components

Includes 4-inch legs, a 12-inch extension tray, and a 6-foot nominal cord and plug.

Frequently Asked Questions

The oven has an 18-inch-wide standard single belt.
The cooking chamber is 20 inches long.
The bake time range is 30 seconds to 12.5 minutes, and the operating temperature range is 200°F to 600°F.
Yes. The conveyor direction is reversible.
The specified electrical service is 208 Volts, 50/60 Hz, 1-Phase, 50 Amps and 8.3 kW per oven.
The overall dimensions are 42 inches wide, 37.5 inches deep and 21.25 inches high, with a listed weight of 975 pounds.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
