Micro Matic USA TT-Y-6KR-11 Draft Beer & Wine Dispensers
Description

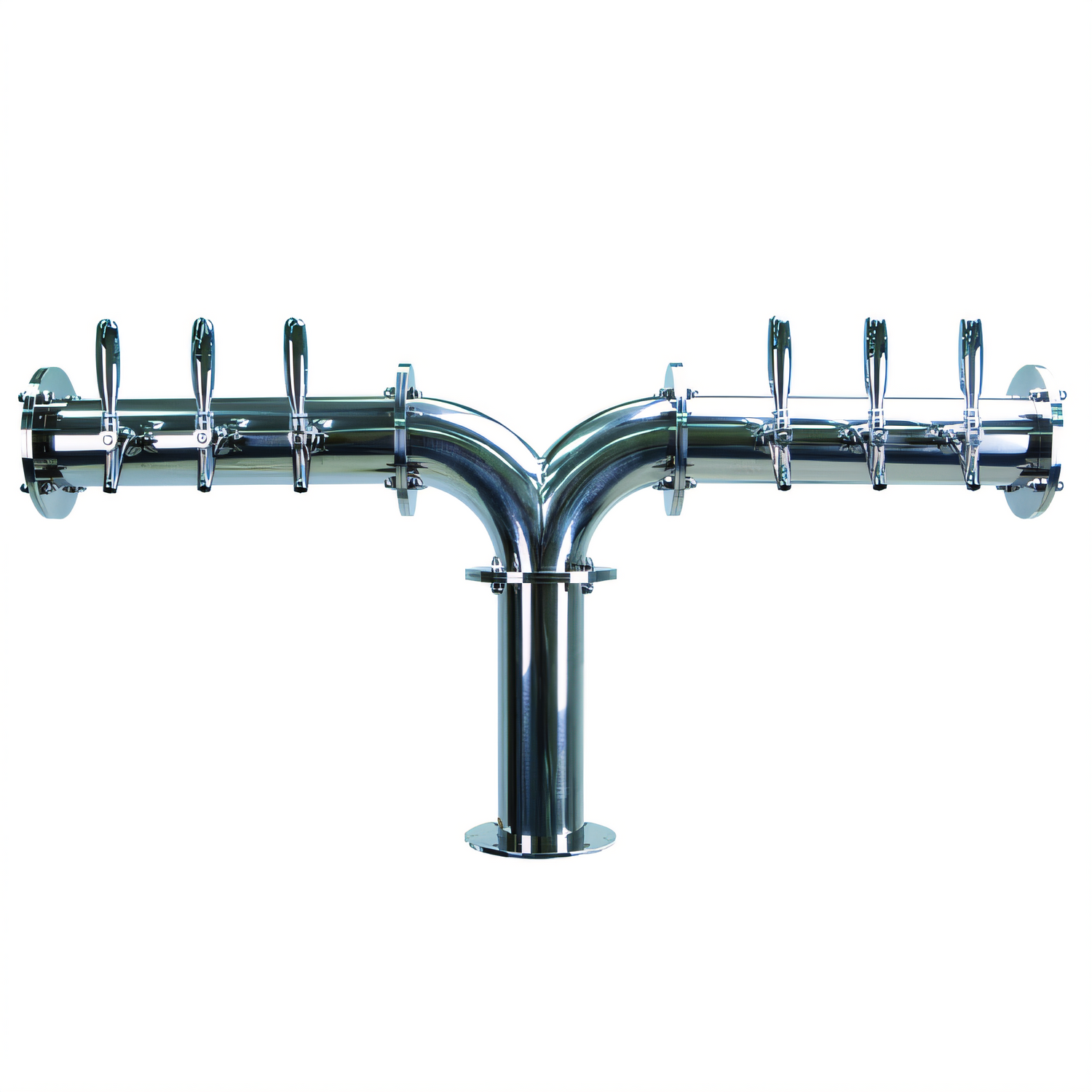

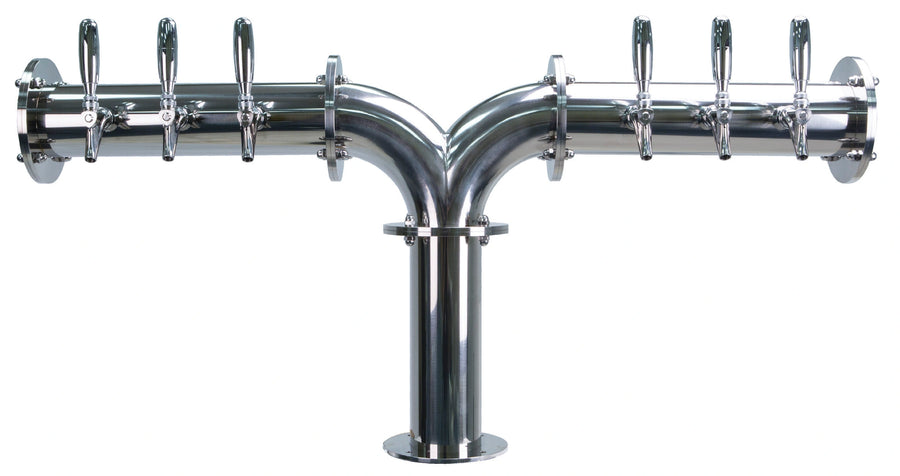

Titan “Y” Draft Tower – 6 Faucets
Polished Stainless Steel • Glycol Cooled • Part No. TT-Y-6KR-11Give your bar a striking focal point and your guests an ice-cold pour every time. The U.S.-made Titan “Y” tower combines an oversized 4" brewery-pipe profile with Micro Matic’s Kool-Rite™ glycol module for rock-solid temperature control right at the faucet.
Key Features
- Bold 4" diameter “Y” tower creates a dramatic, professional look on any bar top.
- Constructed and polished in the USA from 304 stainless steel for lifelong corrosion resistance.
- All product surfaces in 100 % stainless steel—no flavor carry-over, no plating to wear.
- Integrated Kool-Rite™ glycol cooling keeps beer at 38 °F all the way to the glass.
- Modular Plug-‘n-Pour design ships pre-assembled for fast, trouble-free installation.
- NSF/ANSI Standard 18 certified for commercial beverage service.
Why Choose Kool-Rite™?

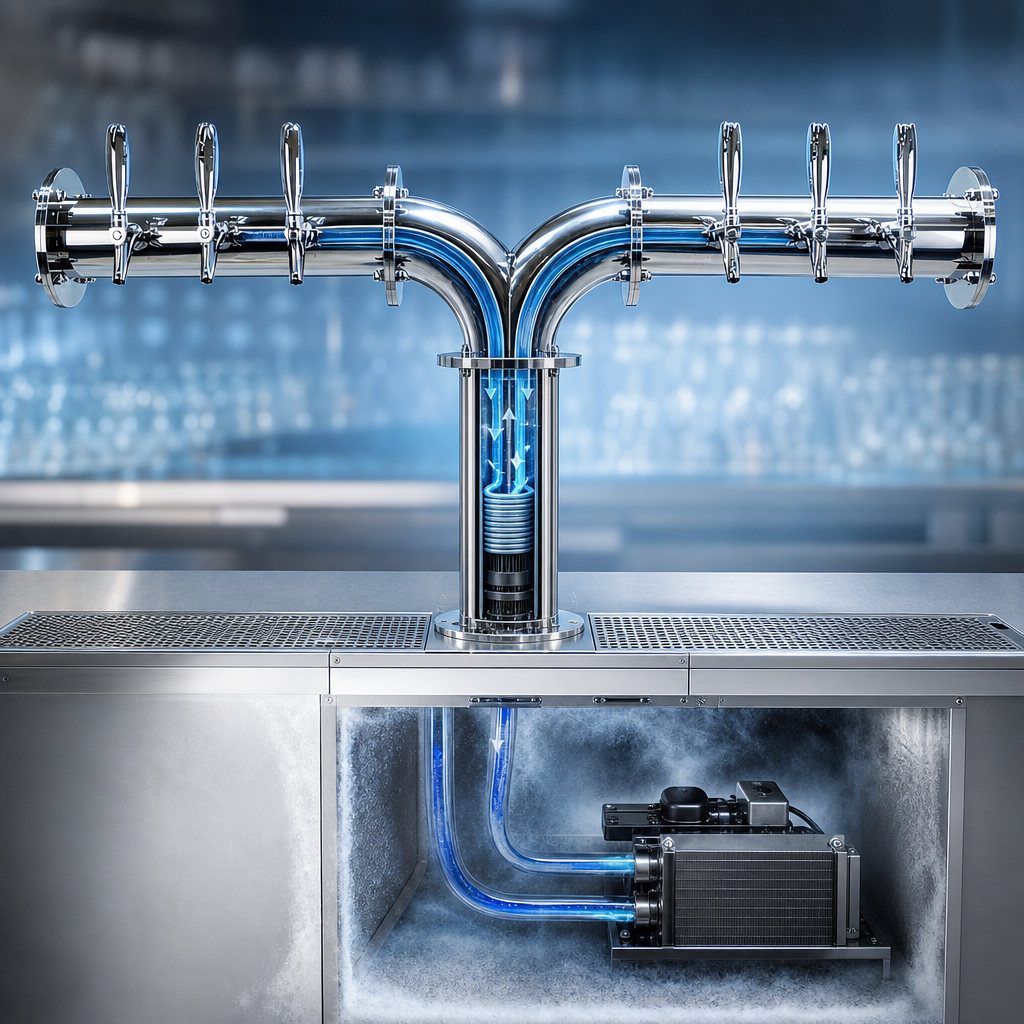

Traditional air-cooled towers can gain heat before the pour, causing foamy beer and waste. Kool-Rite™ surrounds the stainless product lines with actively circulating glycol, locking in keg temperature—even on long-draw systems—so your first pour is as perfect as your last.
Specifications
| Part Number | TT-Y-6KR-11 |
|---|---|
| Faucets | 6 × polished stainless steel (tap handles sold separately) |
| Finish | Polished Stainless Steel |
| Dispense System | Kool-Rite™ Glycol Cooled |
| Tower Diameter | 4" (101.6 mm) |
| Overall Width | 44.7" (1136 mm) |
| Overall Height | 19.9" (505 mm) |
| Beer Lines | 6 × 6 mm (1/4") O.D. stainless tubing with 1/4"–3/8" barb fittings |
| Glycol Lines | 2 return loops, 9.5 mm (3/8") O.D. copper with 3/8" barb fittings |
| Mounting | 4 × 3/8" studs on 7" bolt circle (gasket & hardware included) |
| Certification | NSF / ANSI Standard 18 |
| Shipping Weight | TBD |
Ideal For
- High-volume bars and restaurants seeking a signature centerpiece.
- Brewpubs and taprooms requiring 100 % stainless beer contact for product purity.
- Long-draw systems paired with remote glycol power packs (up to 500' total line length).
Backed by Micro Matic’s limited one-year warranty.
Have a branding idea or need a different configuration? Our draft experts are here to help—just ask!
