Micro Matic USA TT-Y-12KR-11 Titan Draft Beer & Wine Dispensers
Description

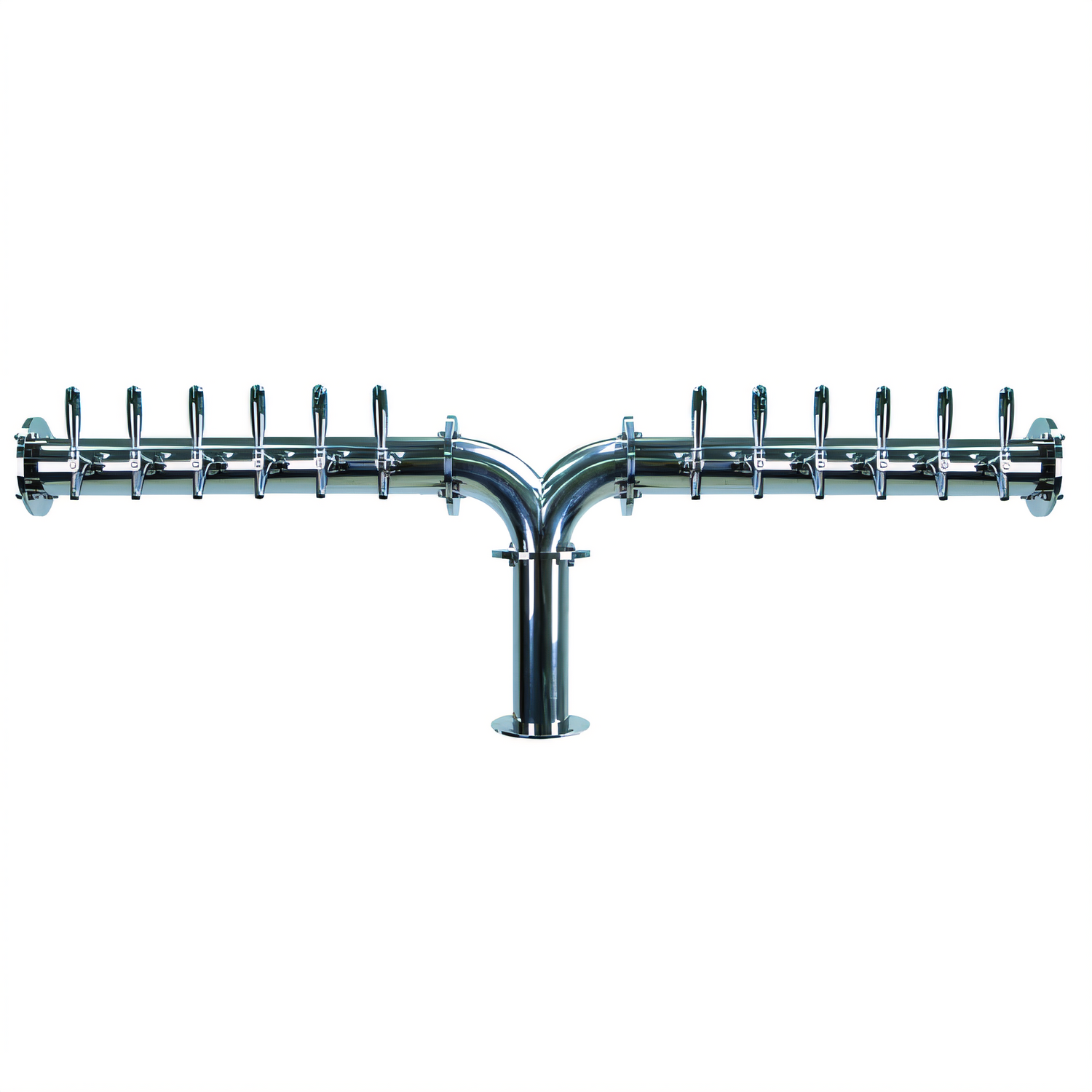

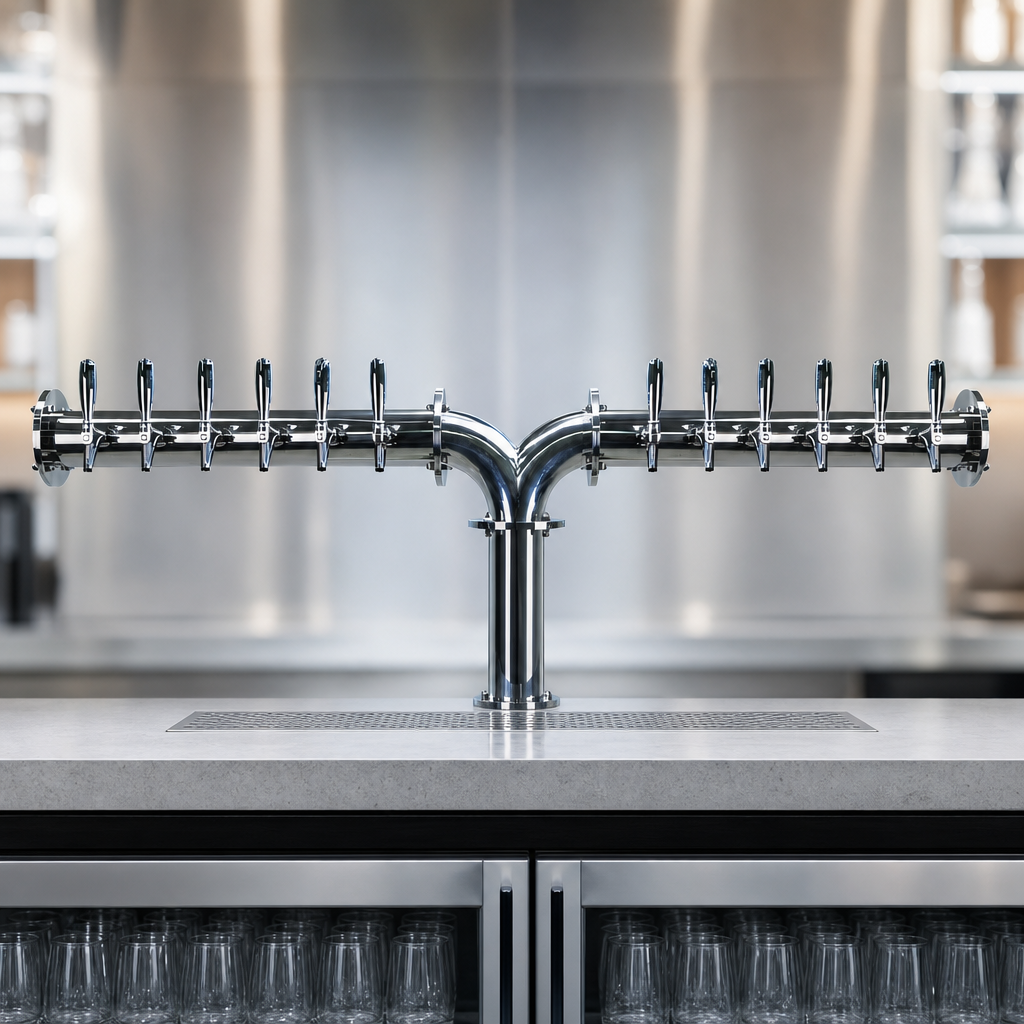

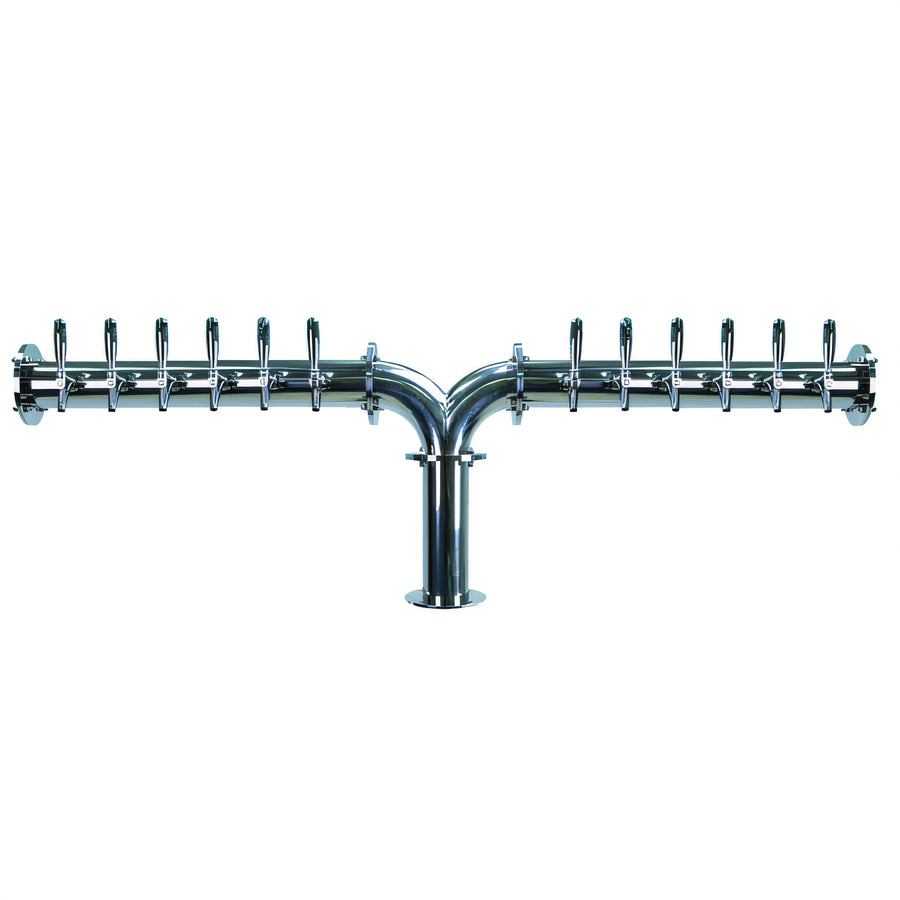

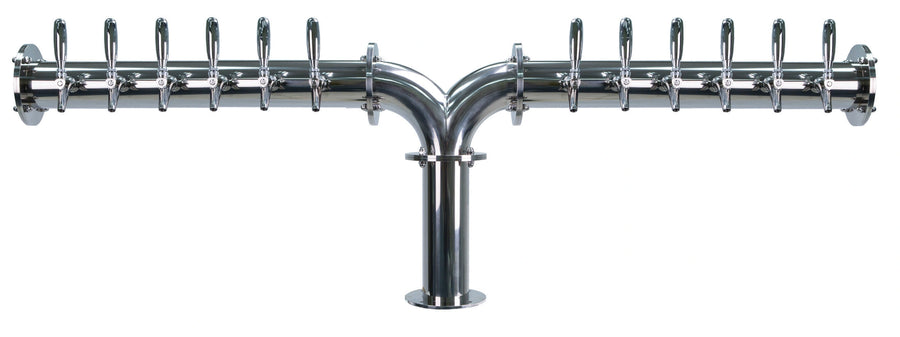

Micro Matic Titan™ “Y” 12-Faucet Draft Beer Tower
Model TT-Y-12KR-11 | Glycol-cooled with Kool-Rite™ moduleEngineered for high-volume bars that refuse to compromise on beer quality, the Titan “Y” tower combines a striking 4" brewery-pipe profile with Micro Matic’s plug-and-pour Kool-Rite™ glycol block. Twelve polished stainless steel faucets keep service moving, while all-steel beer contact guarantees every pint tastes exactly as the brewer intended.
Key features
- 12 × 304 stainless steel faucets (handles sold separately)
- Oversized 4" (102 mm) column with 7" (178 mm) base for rock-solid mounting

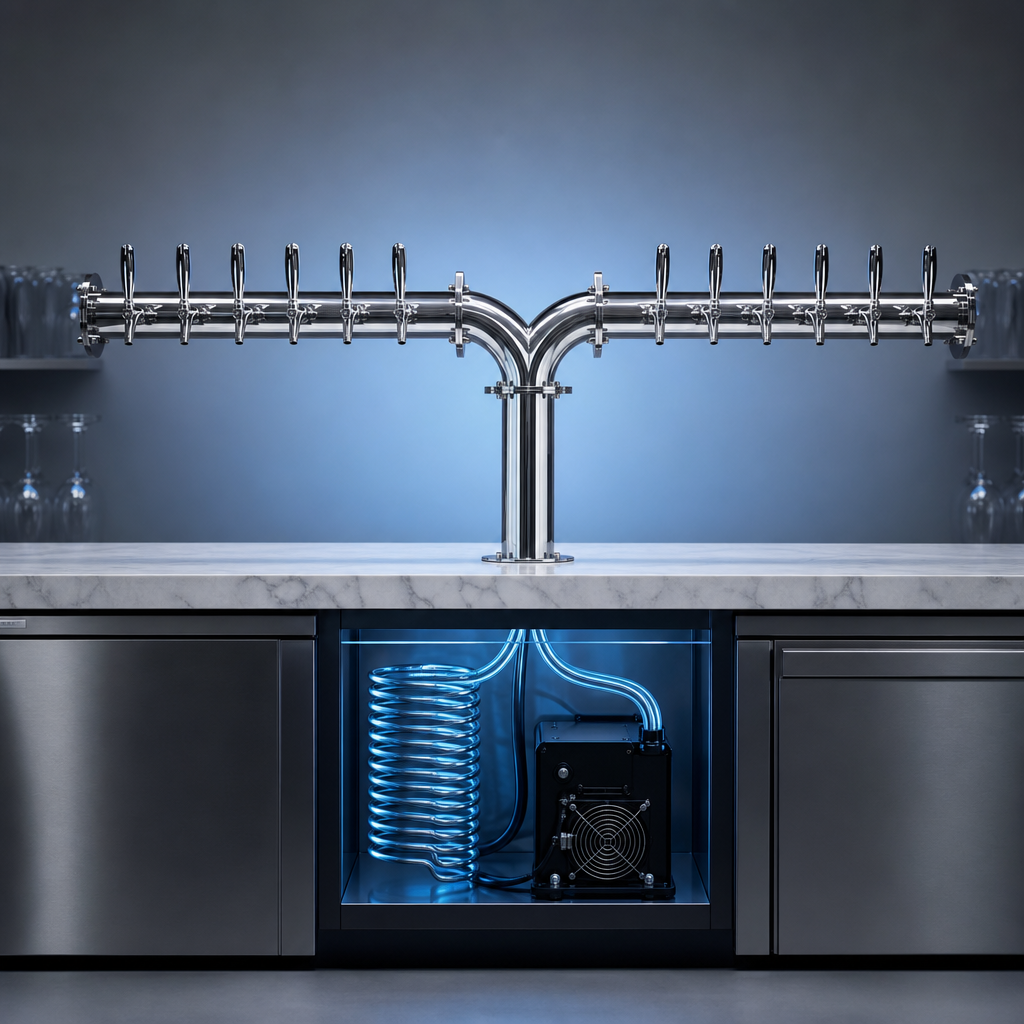

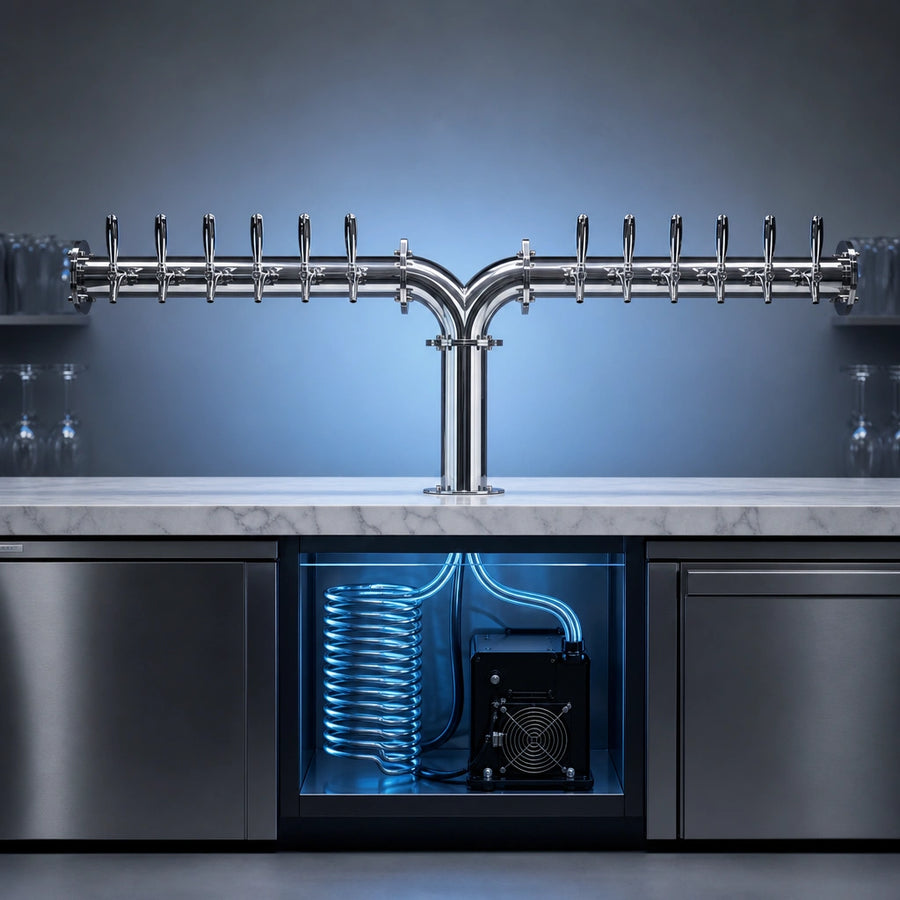

- Kool-Rite™ integrated glycol module delivers 32-38 °F pours—even on the longest runs
- 100 % stainless steel beer contact: product tubes, shanks & faucets protect flavor and sanitation
- 14" (356 mm) faucet clearance—ideal for growlers, pitchers, and tall glassware
- Pre-assembled with (12) 54" stainless product lines and (2) 3/8" copper glycol loops
- Mirror-polished 304 stainless finish resists corrosion and wipes clean in seconds
- NSF certified and proudly manufactured in the USA
Specifications
| Part number | TT-Y-12KR-11 |
|---|---|
| Dispense system | Glycol (Kool-Rite™ integrated cooling block) |
| Faucets supplied | 12 × 304 stainless steel |
| Tower height | 19-7/8" (505 mm) |
| Faucet clearance | 14" (356 mm) |
| Column diameter | 4" (102 mm) |
| Base diameter | 7" (178 mm) |
| Beer lines | (12) 1/4" O.D. stainless tubes, 54" (1.37 m) long, 1/4"–3/8" barbs |
| Glycol lines | (2) 3/8" O.D. copper loops with 3/8" barbs |
| Material / finish | Polished 304 stainless steel |
| Certification | NSF |
Installation & compatibility
- Ships fully assembled—secure with four 3/8" bolts, connect product & glycol lines, and start pouring.
- Compatible with most commercial glycol power packs (15–25 % propylene glycol mix recommended).
- Standard U.S. draft fittings and 3/8" barbed glycol connections simplify integration with existing systems.
Looking for a different faucet count or finish? Explore the full Titan tower family for additional options.
